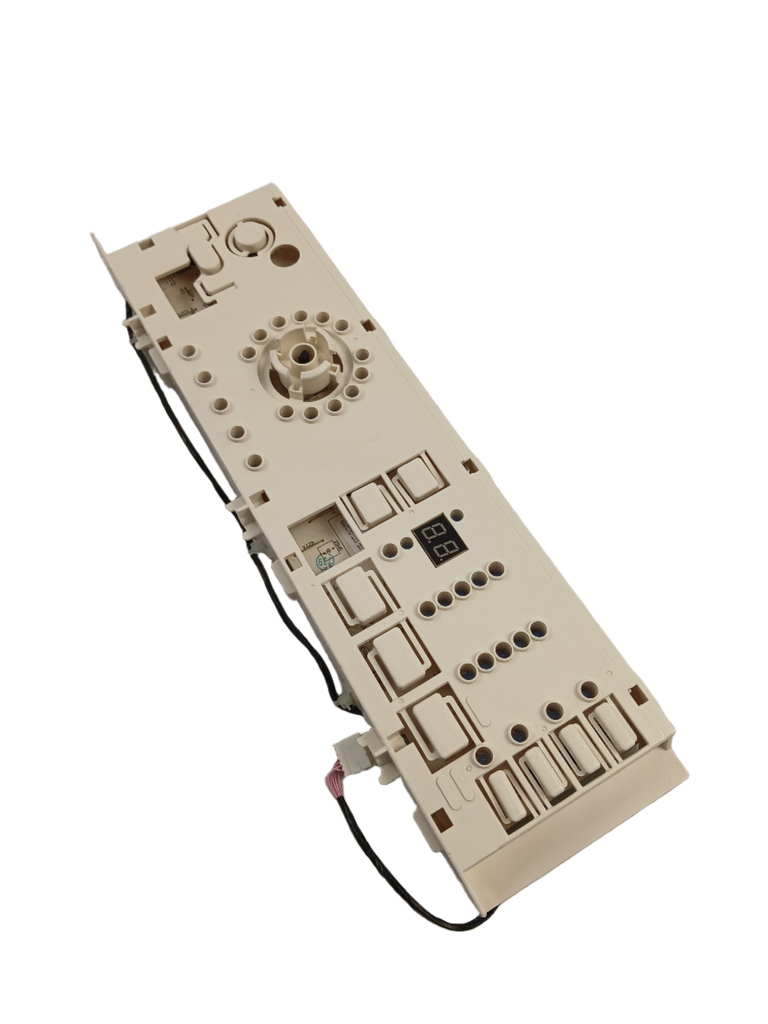

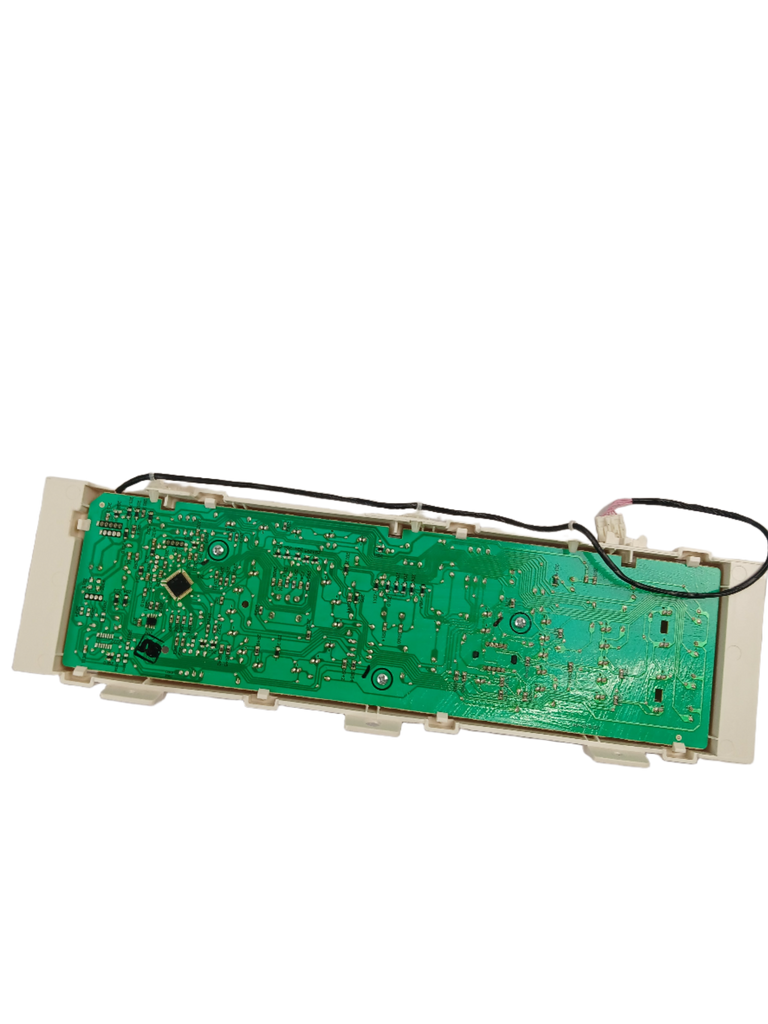

Insignia Dryer Display Board 17138200003654

Genuine Insignia dryer display board/display panel used on selected 6.7 cu. ft. electric dryers.

Is This the Right Part?

Common Symptoms

• Digital display does not show the selected or remaining cycle time.
• Time-adjust, dryness, temperature, or other front-panel selections do not respond as expected.
• START/PAUSE or other control-panel inputs appear unresponsive.

Check Before Replacing

• Check whether Child Lock is enabled before diagnosing the board: press and hold Dryness and Temp together for three seconds. When Child Lock is on, only the POWER button operates.
• With the dryer assembled, observe whether the digital display shows time when a manual cycle is selected and whether applicable control inputs change the displayed setting.
• Disconnect electrical power before accessing or inspecting the control-panel assembly; observed symptoms alone do not confirm that this display board is the failed component.

Pro Tip

Part Details

Key Features

• Genuine Insignia part identified by Encompass as a "Display Board."
• Associated dryer control interface includes a digital display for set/remaining time, cycle-status indicators, and buttons for time, dryness, temperature, start/pause, and saved-cycle functions.
• Listed separately from the dryer’s main control board in the applicable parts catalog.

Installation Notes

• Disconnect electrical power before servicing the control-panel assembly.
• The service manual’s control-panel disassembly sequence includes removing the control-panel fasteners, removing the cover and PCB-kit fasteners, and disconnecting terminals.
• After installation, verify that the display and applicable control-panel functions operate before returning the dryer to normal use.

Verified Compatible Models

NSDRE67WH8A, NSDRE67WH8AC, NSFDRE67WH8A, NSFDRE67WH8AC

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
