Speed Queen Washer Won't Start or Losing Cycle Control? Control Board 2827771010 – Fix Electrical Failure Fast
A failed control board is the most common cause of a Speed Queen washer that powers on but won't start a cycle, displays error codes, or has unresponsive selector controls. In most Speed Queen top-load washers, this is caused by a failed main control board. When it fails, the washer may appear dead, get stuck mid-cycle, or refuse to respond to any input. ⚡ Common failure point in Speed Queen-built commercial-grade washers. Part 2827771010 is the genuine OEM replacement that restores full electronic control, clears fault codes, and returns the washer to normal operation immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on — lid light or display shows activity
- ✔ Motor, pump, and lid switch have been confirmed functional
- ✔ Power supply and outlet voltage confirmed OK
- ✔ ONLY problem is no cycle start, mid-cycle stall, or unresponsive controls
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Washer powers on but won't start any wash cycle
- Cycle selector or start button completely unresponsive
- Washer stalls or stops mid-cycle and won't resume
- Error codes displayed with no mechanical cause found
- Intermittent operation — works sometimes, fails unpredictably
- All other components (motor, pump, lid switch) test good
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this control board restores normal operation immediately.

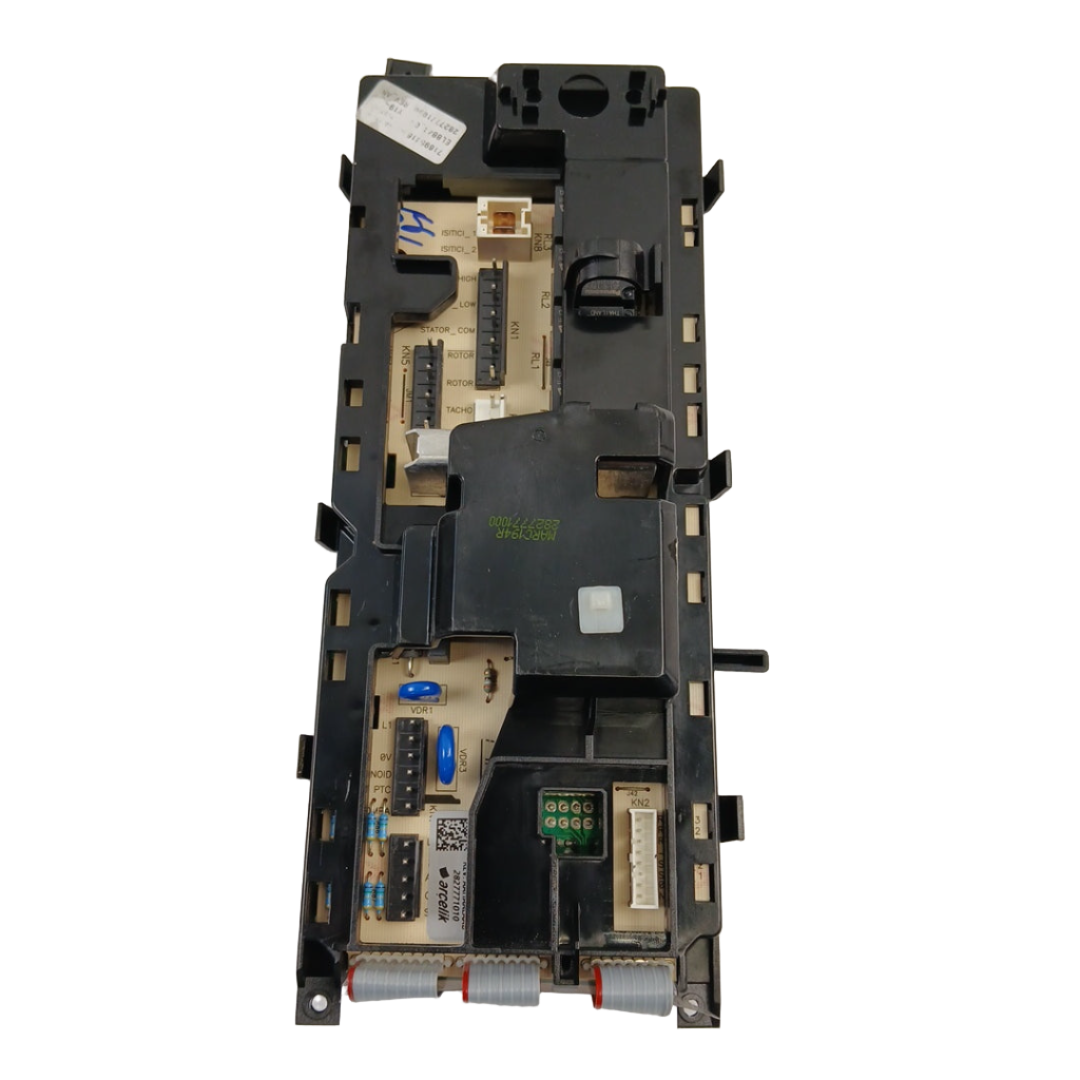

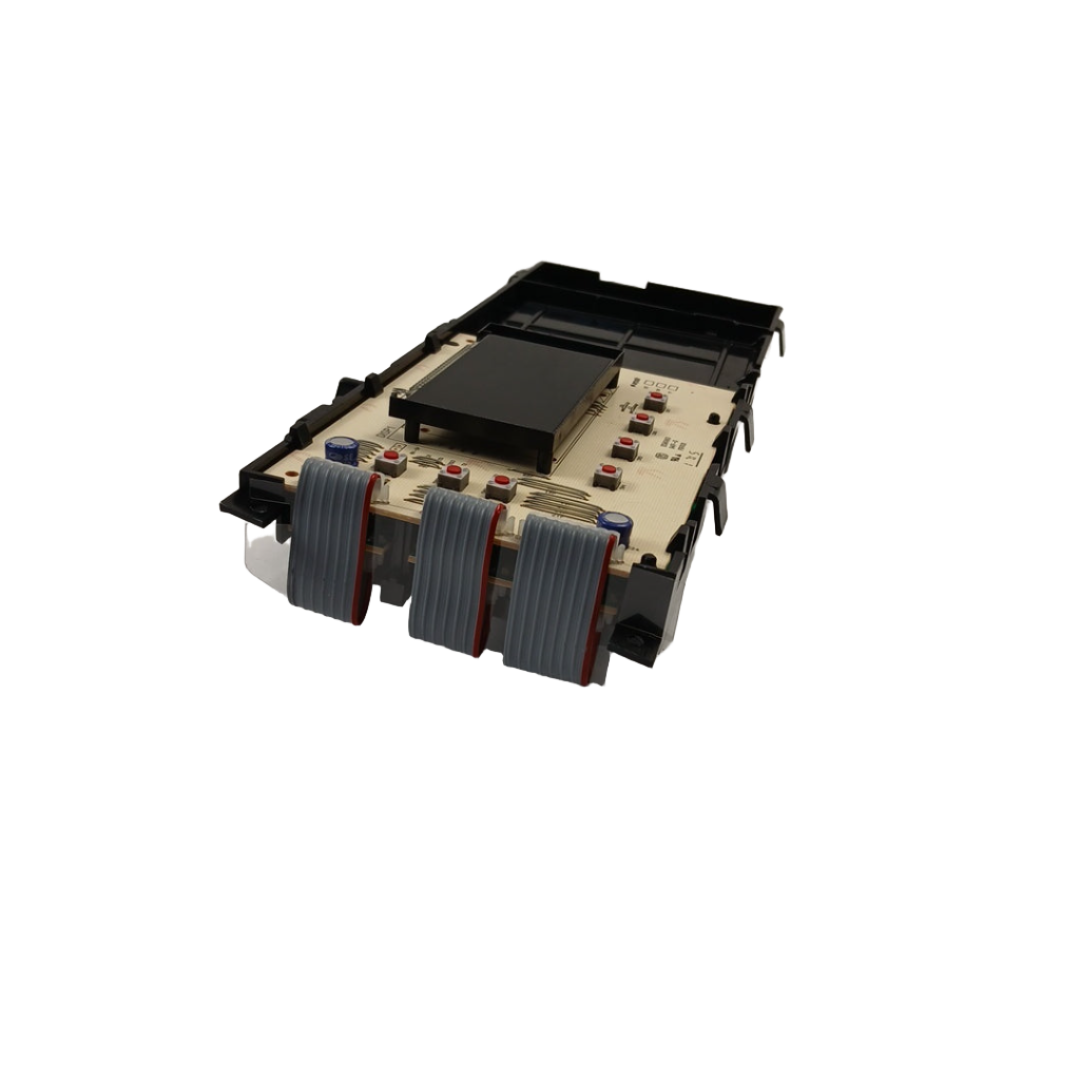

📦 Part Details
- Part Number: 2827771010
- Type: Main Washer Control Board / Electronic Control Module
- Replaces: 2831920100, 2827771000 — no modification required
- Brands: Speed Queen, Alliance Laundry Systems
While the control panel is open, inspect the wiring harness connectors for corrosion or heat damage — a damaged harness can cause the same symptoms and will burn out a new board if not addressed first.
⚙️ Installation
Skill Level: Moderate — 30–45 minutes. Disconnect power before servicing. Remove the control panel or top panel to access the board mounting location. Disconnect all wiring harness connectors (photograph before removal), unscrew the board from its bracket, and install the replacement in reverse order. Restore power and run a test cycle to confirm all functions are restored.
✓ Compatible Models
Confirmed compatible with 7175181100 plus additional Speed Queen models. Contact us to verify your model number before ordering.
💡 Pro Tip
Before replacing the control board, confirm the lid switch closes properly and the motor capacitor hasn't failed — both can mimic a dead board. A $15 lid switch or capacitor test takes 5 minutes and could save you from an unnecessary board replacement. If those check out, the board is almost certainly the cause.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
