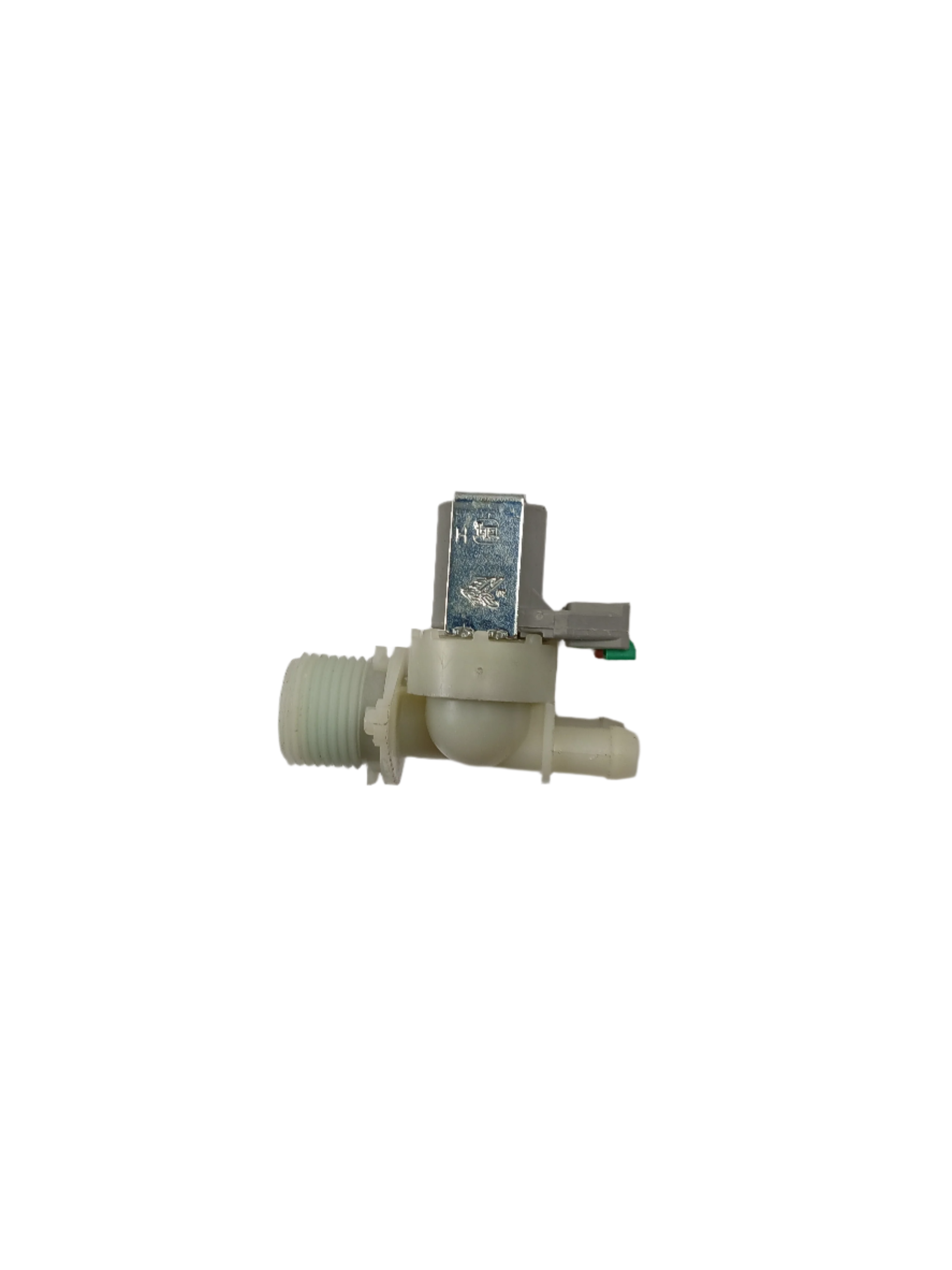

The 32045548 is the genuine OEM cold water inlet valve for Speed Queen top-load washers. The cold water inlet valve is an electrically operated solenoid valve that opens when the control board calls for cold water during the fill cycle. When it fails — due to a burned solenoid coil, debris blockage in the inlet screen, or diaphragm wear — the washer may not fill with cold water at all, fill only with hot water regardless of temperature setting, or stop mid-fill. This OEM replacement restores proper cold water flow and temperature control to your wash cycles.

✓ Model-Specific Repair Pages

Don't see your model? Contact us and we'll confirm compatibility.

The 32045548 cold water valve is the companion part to the 32045549 hot water valve — both valves are mounted at the back of the washer where the supply hoses connect. The cold valve controls the cold water port; the hot valve controls the hot water port. If your washer fills with hot water only, or the temperature is always warmer than expected regardless of setting, the cold water valve solenoid has likely failed. A multimeter resistance test on the solenoid coil terminals will confirm — expect 200–1,000 ohms on a working coil; open circuit (OL) indicates failure.

✓ Common Symptoms Fixed

Washer not filling with cold water | Washer filling with hot water only regardless of temperature setting | Washer filling very slowly on cold or warm cycle | No water entering the tub on cold fill | Washer stopping mid-fill on cold water cycle | Humming sound from valve area with no cold water flow

✓ Key Features & Specifications

Genuine Speed Queen OEM part – guaranteed fit, no modifications required | Solenoid-actuated diaphragm valve for reliable cold water control | Connects to standard cold water supply hose (3/4" inlet) | Direct replacement – plug-in wiring harness connector | Companion part to hot water valve 32045549 | Compatible with Speed Queen top-load washer models

✓ Buying Options

New / OEM: The 32045548 is the current genuine Speed Queen OEM cold water inlet valve. Recommended for all repairs where reliable cold water fill performance is required. If both valves are being replaced at the same time, see the companion 32045549 Hot Water Inlet Valve.

✓ Replacement Part Numbers

32045548 (current OEM)

✓ Installation Tips

CRITICAL: Disconnect power and shut off the cold water supply valve before beginning this repair. The cold water inlet valve is located at the back of the washer alongside the hot water valve, where the supply hoses connect. To access: pull the washer away from the wall, disconnect the cold water supply hose, disconnect the internal outlet hose, unplug the solenoid wiring harness, and remove the mounting screws (typically 1–2). Reverse the process to install the new valve. Hand-tighten the supply hose connection, then snug with pliers — do not overtighten. Restore water and power, then run a cold fill cycle to check for leaks. Repair difficulty: 2/5. Estimated time: 20–30 minutes.

✓ Compatible Models

Verify your Speed Queen model number before ordering. Contact us with your full model number and we'll confirm compatibility.

✓ Frequently Asked Questions

How do I test if my cold water inlet valve is faulty? Set your multimeter to resistance (ohms) and probe the solenoid coil terminals on the valve. A working solenoid typically reads 200–1,000 ohms. An open circuit (OL) reading confirms a failed coil. Also check the inlet screen for debris — a clogged screen can restrict flow without a coil failure. See our Washer Won't Fill With Water guide for a full diagnostic walkthrough.

Should I replace both the hot and cold valves at the same time? If both valves are the same age and one has failed, replacing both is often recommended to avoid a second repair shortly after. The companion hot water valve is 32045549, available separately.

My washer only fills with hot water — is this the cold valve? Yes — if the hot water valve is working but the cold water valve is not opening, the washer will fill with hot water only. This is the most common symptom of a failed cold water solenoid. Test the solenoid coil resistance as described above before ordering.

Is this a difficult repair? Rated 2/5 difficulty. The valve is accessible from the back of the machine and requires only basic tools. Most repairs take 20–30 minutes. Contact us if you need model-specific guidance.
