Dryer Not Advancing? Dryer Timer 3373590 – Fix No-Heat & Cycle Failures Fast

If your dryer runs but won't advance through cycles, stops mid-cycle, or produces no heat, the timer is the most common culprit. In Whirlpool and Maytag dryers, the timer controls the entire cycle sequence — when it fails, the dryer may run continuously, stop prematurely, or skip the heat phase entirely. ⚡ Common failure point in Whirlpool-built dryers manufactured 2000–2015. Part 3373590 is the genuine OEM replacement timer that restores full cycle control and normal drying operation immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Dryer powers on and drum spins normally
• ✔ Door switch and start switch function correctly
• ✔ Power supply and circuit breaker confirmed OK
• ✔ Thermal fuse and heating element test good
• ✔ ONLY problem is cycle not advancing, no heat, or dryer running continuously

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Dryer runs but won't advance to next cycle — most common complaint
• Dryer runs continuously and never shuts off
• No heat during timed dry cycle
• Dryer stops mid-cycle unexpectedly
• Timer knob turns freely but dryer doesn't respond
• Clothes still damp after full cycle completes

✔ If these symptoms match, the timer is the most likely failed component in the system.

✔ In most cases, replacing this timer restores normal cycle operation immediately.

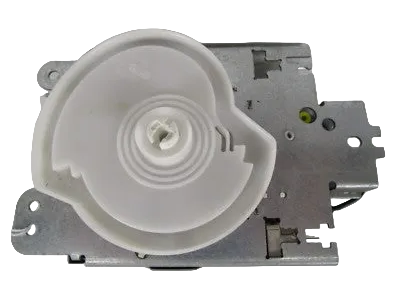

📦 Part Details

• Part Number: 3373590
• Type: Dryer Cycle Timer Assembly
• Replaces: OEM direct-fit timer assembly — supersedes 3388233, 3388234, 3388235, 3388236, 3388237, 3388238, 3388239, 3388240 (no modification required)
• Brands: Whirlpool, Maytag, KitchenAid, Kenmore, Roper, Estate

⚙️ Installation

Skill Level: EASY — 20–30 minutes. Unplug the dryer from the wall before beginning. Remove the control panel screws, disconnect the wiring harness from the old timer, and transfer the knob to the new unit — the harness connector is keyed and only fits one way. No soldering or special tools required; a standard Phillips screwdriver is all you need.

💡 Pro Tip

Find your model hub: WED5300SQ0, WED5300SQ1, WED5300VW0, WED5300VW1, WED5550SQ0, WED5550SQ1, WED5600VQ0, WED5600VQ1, MED5600TQ0, MED5600TQ1, LER5636EQ3, LER5636PT1, LER5636PQ1, LER5848EQ5, LER7646EQ2, LER7646EQ3, LER7646JQ0, LER7646JQ1, LER7646JQ2, LER7646JQ3, LER8648PW0, LER8648PW1, LER8648PW2, LER8648PW3, LER8648PW4, LER8648PW5, LER8648PW6, LGR5636EQ3, LGR5848EQ5, LGR7646EQ2, LGR7646EQ3, LGR7646JQ0, LGR7646JQ1, LGR7646JQ2, LGR7646JQ3, LGR8648PW0, LGR8648PW1, LGR8648PW2, LGR8648PW3, LGR8648PW4, LGR8648PW5, LGR8648PW6
