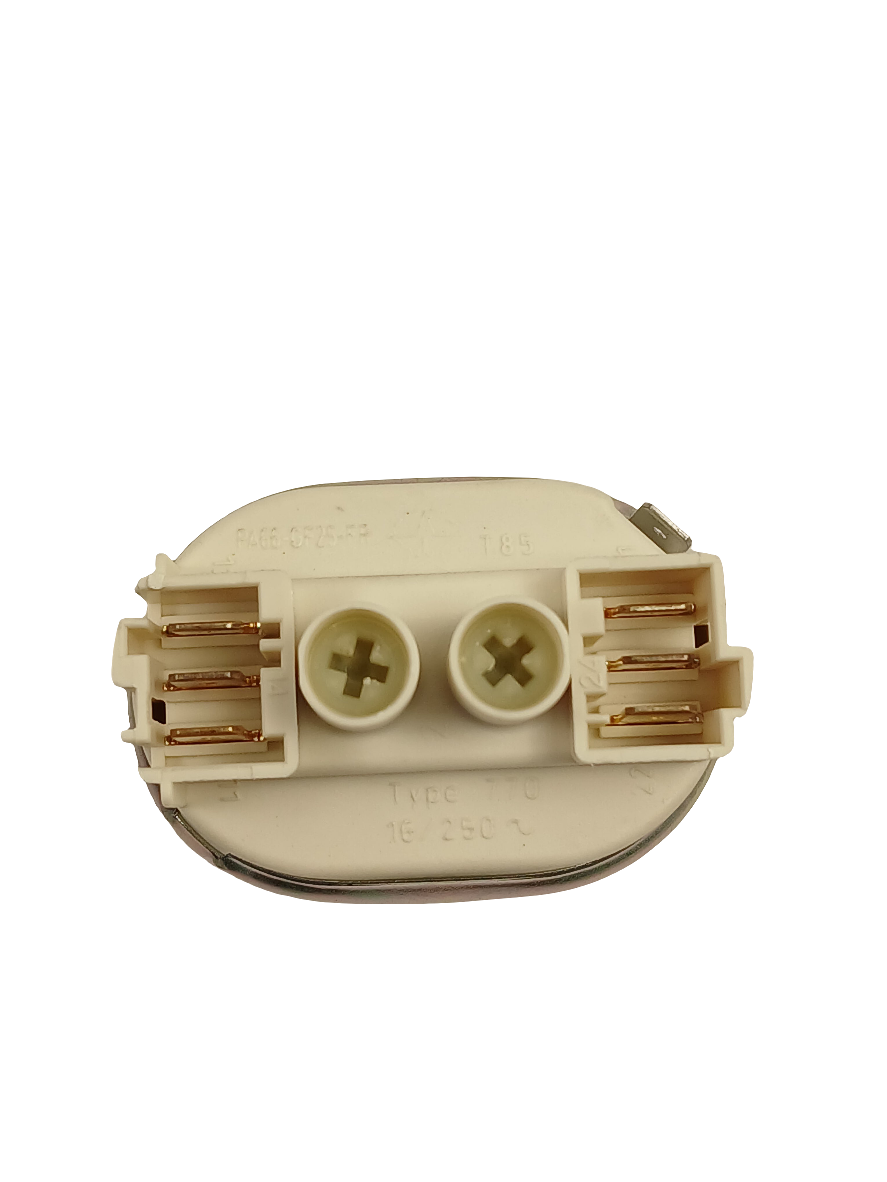

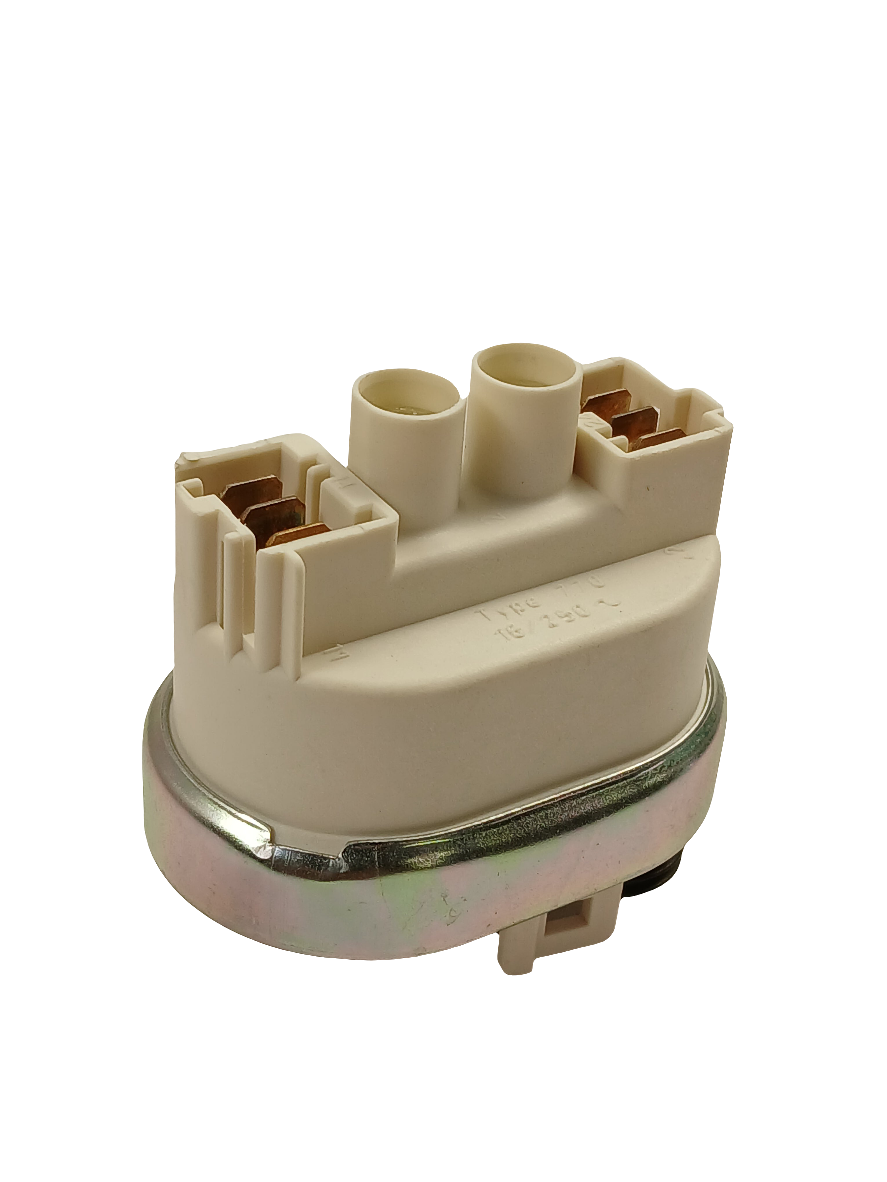

Miele Dishwasher Pressure switch 1100/700 mm/WS (water-level/heater pressure switch) 6996821, Replaces 06996820, 06190703, 06190702, 06190701, 06190700

Genuine Miele dishwasher pressure switch used to monitor water or circulation pressure through the connected hose. The part is identified in Miele technical parts documentation as a pressure switch 1100/700 mm/WS.

Is This the Right Part?

Common Symptoms

• Dishwasher may overfill or stop before reaching the expected water condition.
• Wash program may pause or stop during operation.
• A pressure-related fault code or flashing fault indication may occur on some Miele models.
• Heating may be inhibited when the switch does not report the expected pressure condition.

Check Before Replacing

• Confirm the appliance model and existing switch marking before ordering; do not assume a pressure-switch fault from symptoms alone.
• With the dishwasher disconnected from electrical power and water supply, visually inspect the pressure hose for kinks, disconnection, visible residue, or blockage.
• Check that the hose is firmly seated at the switch and that the switch is not visibly cracked or leaking.
• Record any displayed fault code and compare it with the model-specific Miele service documentation.
• If electrical testing is required, have it performed by a qualified appliance technician; do not bypass or jumper the pressure switch.

Pro Tip

Part Details

Key Features

• Genuine Miele pressure switch
• Miele designation: 1100/700 mm/WS
• Used in dishwasher water-level/heater-pressure sensing circuits
• Manufacturer-listed EAN: 4002515872291

Installation Notes

• Disconnect electrical power and shut off the dishwasher water supply before accessing the component.
• Use the model-specific Miele service documentation for access and removal instructions; appliance construction varies by model.
• Before disconnecting the old switch, document connector and hose routing so the replacement is reconnected identically.
• Ensure the pressure hose, electrical connectors, retaining features, and any supplied seals are fully seated before testing.
• After installation, inspect for leaks and run an appropriate test cycle while monitoring fill, circulation, heating progression, and fault indications.

Verified Compatible Models

G1020, G1021, G1022, G1023, G1040, G1042, G1043, G1102, G1120, G1130, G1140, G1142, G1143, G1150, G1152

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
