Washer Drum Not Spinning? Drive Belt & Idler Lever Kit 959P3 – Fix Belt Failure Fast
A failed drive belt or broken idler lever is the most common cause of a washer drum that stops spinning mid-cycle. In most Speed Queen, Amana, and Maytag top-load washers, the drive belt wraps around the motor pulley and drum, held under tension by the idler lever arm. When the belt snaps, frays, or the idler lever breaks and loses tension, the motor runs but the drum sits completely still — clothes come out soaking wet and the machine sounds like it's running normally. ⚡ Common failure point in Speed Queen-built top-load washers — belt and idler wear together and should always be replaced as a set. Part 959P3 is the genuine OEM kit that restores full drum rotation in a single service call — no guesswork, no partial repairs.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on and motor runs normally during the cycle
- ✔ Water fills and drains correctly — only drum rotation is affected
- ✔ Electrical supply and lid switch confirmed OK
- ✔ ONLY problem is drum not spinning, squealing belt noise, or idler arm broken/loose
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Drum not spinning or tumbling during wash or spin cycle
- Loud squealing, slipping, or thumping noise during operation
- Belt visible as frayed, cracked, glazed, or snapped on inspection
- Idler lever arm broken, bent, or not maintaining belt tension
- Washer runs but clothes come out soaking wet — drum not spinning
- Burning rubber smell during operation — belt slipping on pulley
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing the belt and idler lever together restores full drum rotation immediately.
📦 Part Details

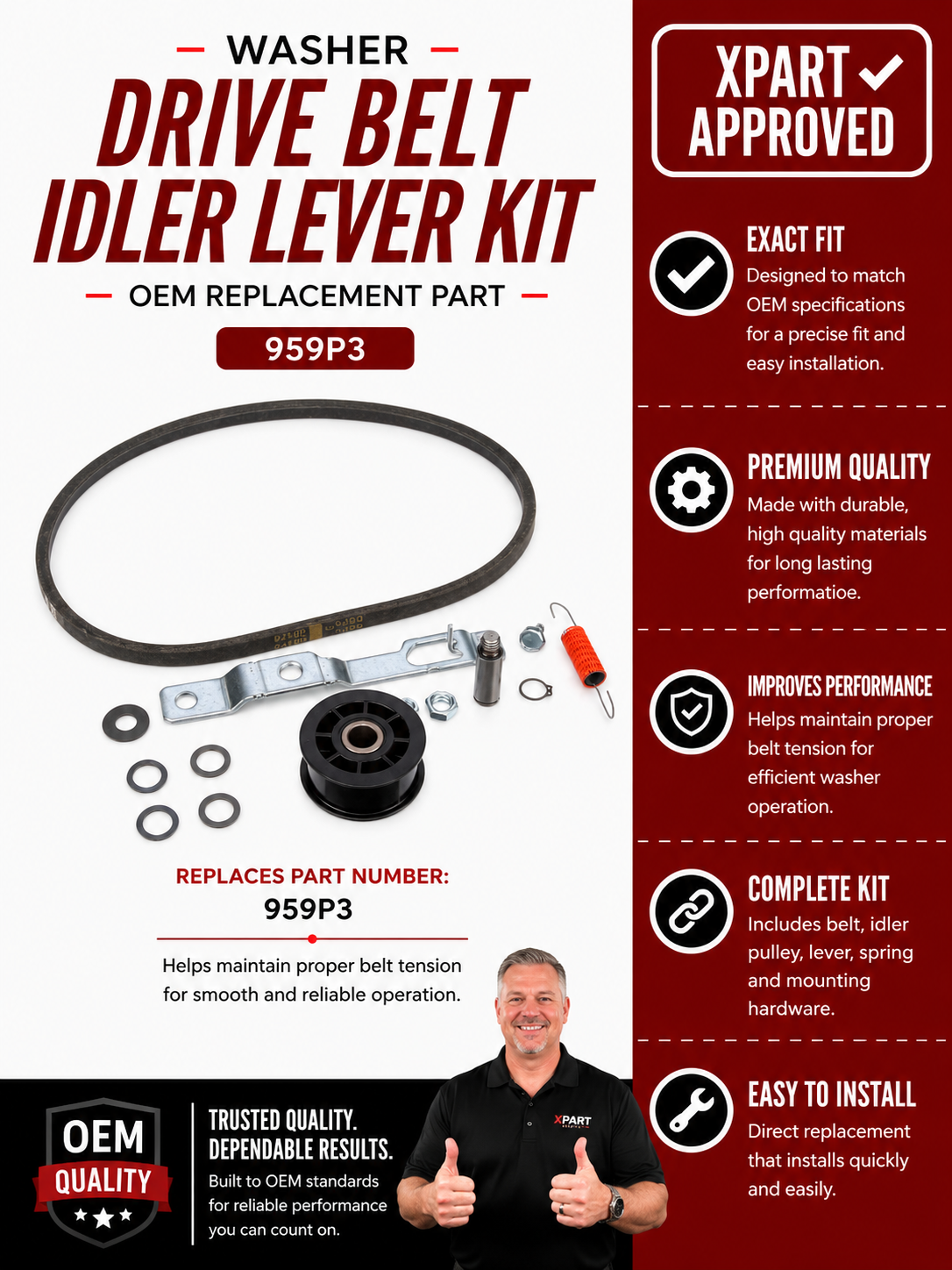

- Part Number: 959P3
- Type: Washer Drive Belt & Idler Lever Kit — belt and idler arm assembly for Speed Queen-platform top-load washers
- Replaces: HUEB959P3, PRM959P3, IPS959P3, UNMC959P3, SPQ959P3
- Brands: Speed Queen, Amana, Maytag, Crosley, Inglis
- Note: Kit includes drive belt and idler lever assembly. Sold as a complete kit.
If the drum stopped suddenly rather than gradually slowing, inspect the motor coupling (part 285753A) before closing up. A failed coupling mimics belt failure symptoms and is a common companion failure on these models — replacing both in one visit avoids a second service call within weeks.
⚙️ Installation
Skill Level: MODERATE — 30–45 minutes. Disconnect power before servicing. Remove the washer cabinet panels to access the drive system. Release the old belt from the motor pulley and drum, then remove the idler lever. Install the new idler lever first, then route the new belt per the diagram label inside the cabinet. Verify belt tension and idler engagement before reassembling the cabinet.
✓ Compatible Models
Confirmed compatible with AWN311SP111TW01, AWN432SP113FW28, AWNE82SP113CW01, AWNE92SP113TW01, LWN311SP111NW22, LWN432SP113FW28, LWNE52SP113FW01, LWNE52SP543RW01, LWS17N-3322, LWZ52N-1102, MWN311SP111TW06, PWNE12PP115CW01, YWN432SP113CW04, YWNE52SP543RW01, ZWN432SP113FW28, ZWNE82SP113CW01, plus additional Speed Queen, Amana, Maytag, Crosley, and Inglis top-load washer models. Contact us to verify your model number before ordering.
💡 Pro Tip
The idler lever maintains belt tension throughout the entire wash and spin cycle. If the belt has failed, the idler has been under abnormal stress and is likely worn or cracked at the pivot point. Installing a new belt on a worn idler lever will result in premature belt failure within months. Always replace both components together — the 959P3 kit is designed for exactly this reason.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
