Samsung TV No Picture or Dead? Main Board BN94-18087A — Fix No-Power & Signal Failures Fast
If your Samsung TV is completely dead, shows no picture, or powers on but produces no image or sound, the main board is the most common cause. In Samsung flat-panel televisions, the main PCB assembly (BN94-18087A) controls all core functions — power sequencing, signal processing, HDMI input management, and audio output. When it fails, the TV may show a standby light but produce no image, fail to power on at all, or display a distorted or frozen picture. ⚡ Common failure point in Samsung LED and QLED televisions. Part BN94-18087A is the OEM Samsung main board that restores full TV operation — this is discontinued stock, order while available.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ TV standby light is on — unit receives power but won't fully start
- ✔ Backlight confirmed working — screen glows faintly when a flashlight is shone at it
- ✔ Power supply board confirmed OK — voltages test within spec
- ✔ ONLY problem is no picture, no sound, or TV won't boot past standby
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- TV completely dead — no response to power button or remote
- Standby light on but TV won't turn on or boot
- No picture or sound — backlight may still glow
- TV powers on then immediately shuts off (protection mode)
- Distorted, frozen, or flickering image with no input response
- HDMI inputs not recognized or no signal on any source
✔ If these symptoms match, the main board is the most likely failed component in the system.
✔ In most cases, replacing BN94-18087A restores full TV operation immediately.
📦 Part Details

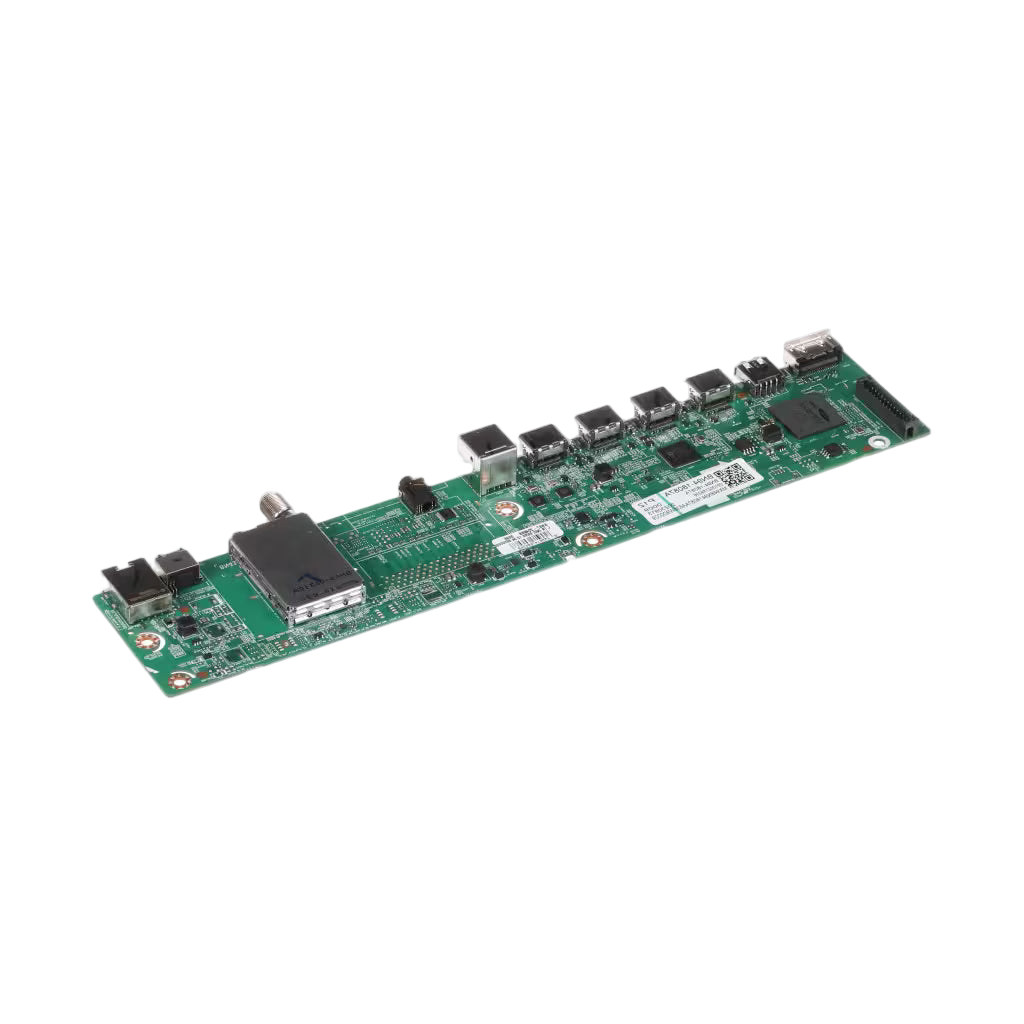

- Part Number: BN94-18087A
- Type: TV main board / PCB assembly — primary system controller
- Replaces: BN94-18087A (OEM Samsung — no known supersession; verify model match before ordering)
- Brands: Samsung
- Status: 🔴 Discontinued / NLA — remaining stock only
Before replacing the main board, test the power supply board — a failing PSU can mimic main board symptoms. If the PSU output voltages are low or absent, replace the PSU first. Swapping the main board into a TV with a bad PSU will damage the new board.
⚙️ Installation
Skill Level: MODERATE — 30 to 45 minutes. Unplug the TV and discharge the panel before opening. Remove the rear cover screws, disconnect all ribbon cables and wire harnesses from the old main board — photograph all connections before removal. Seat the new BN94-18087A, reconnect all harnesses, reassemble the rear cover, and restore power. Allow the TV to complete its boot sequence before confirming the repair.
✓ Compatible Models
Confirmed compatible with select Samsung LED and QLED television models. Model verification is required before ordering — main boards are model-specific. Contact us with your model number before ordering to confirm fitment.
💡 Pro Tip
Before ordering a main board, enter Samsung's service menu (Power off → Info + Menu + Mute + Power on most models) to check for stored fault codes. If the TV won't boot at all, use a multimeter to verify PSU output rails — a dead 5V standby rail points to the PSU, not the main board. Confirming the fault saves you from an unnecessary swap on a discontinued part you can't return.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
