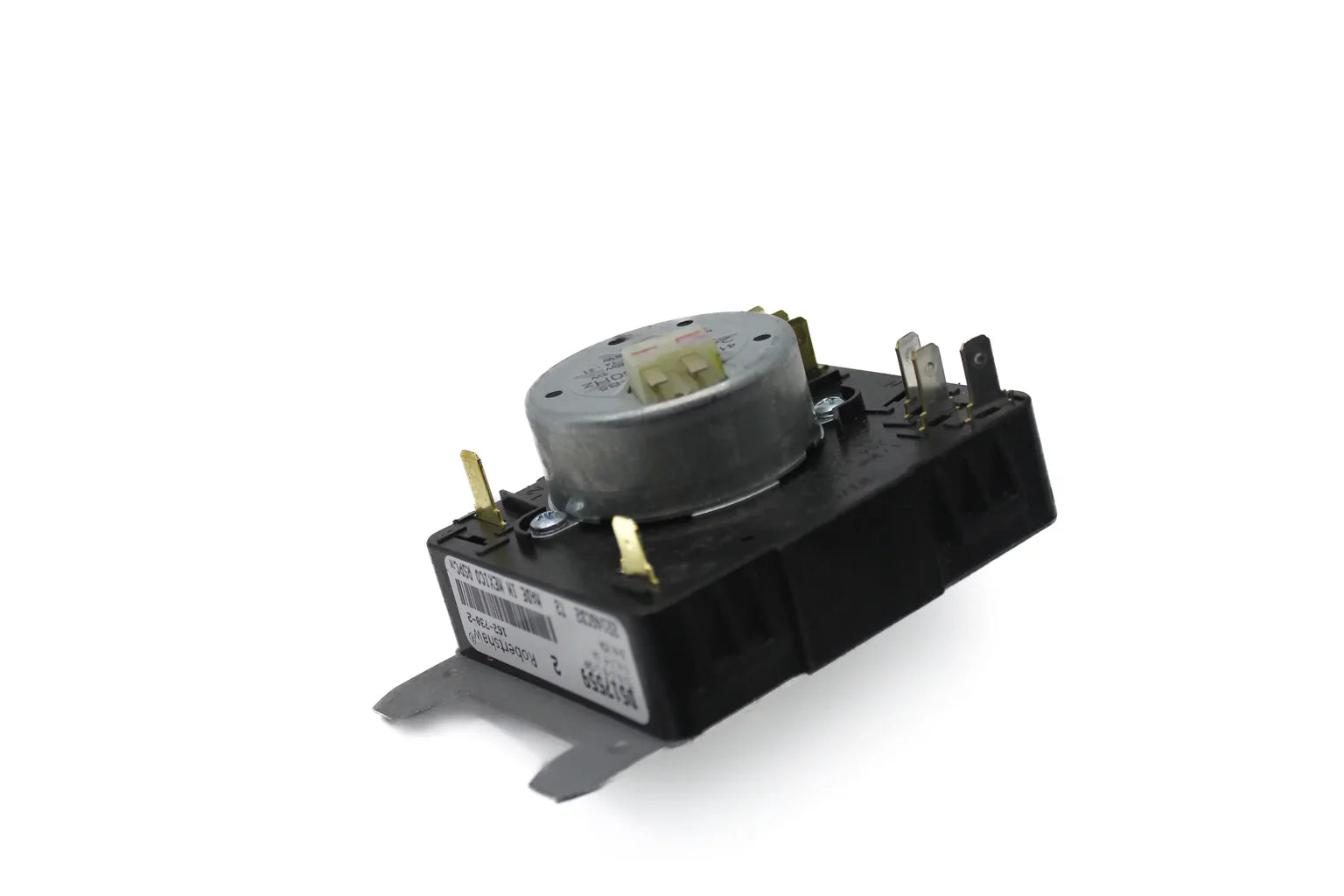

Alliance Laundry Systems / Speed Queen Timer, Dryer 3 Cycle, Retail, 240V 60Hz D517559

Genuine Alliance Laundry Systems timer for three-cycle, 240-volt, 60 Hz dryer applications.

Is This the Right Part?

Common Symptoms

• Dryer may not stop at the end of a timed cycle.
• Selected timed cycle may fail to advance normally.
• Dryer controls may operate incorrectly when the timer contacts are defective.

Check Before Replacing

• Verify the appliance model and serial number against the parts manual before ordering.
• Inspect the timer and wiring for visible damage with power disconnected.
• Test timer contacts only according to the appliance wiring diagram and service documentation.

Pro Tip

Part Details

Key Features

• Three-cycle dryer timer
• 240V
• 60Hz
• Retail/commercial Alliance dryer application

Installation Notes

• Disconnect electrical power before servicing or installing the timer.
• Use the appliance wiring diagram and document wire locations before removing the existing timer.
• Confirm that the replacement has the correct voltage, frequency, cycle configuration, model applicability, and serial-range applicability.

Verified Compatible Models

ADE3SRGS175TW01, ADE3SRGS177TW01, ADE3SRGS177TW02, EDE3TRGS543PW01, EDL3TRGS541NW23, LDE3TRGS541NW22, LDE3TRGS551NW22, LDE30RGS153TW01, LDE30RGS173TW01, LDE30RGS543MW01, LDL3TRGS541NW22, ZDE3SRGS175CW01

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
