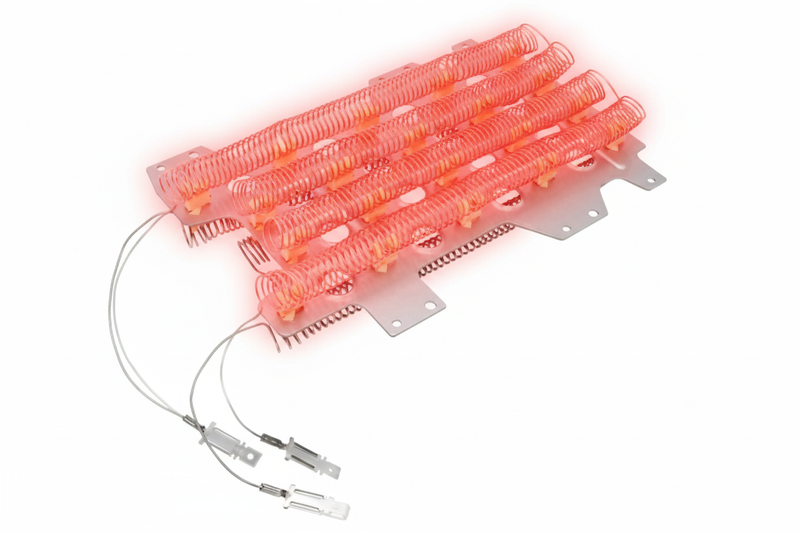

Heating Element Assembly, Heater Assembly, Dryer Heating Coil, Heating Element Housing, Complete Heater Assembly, Heating Element with Housing

DC97-14486E, DC47-00032A, DC93-00154A, AP5582094, PS4216214, EAP4216214, 1482394, AH4216214

Samsung

SamsungDV42H5000EW, DV42H5000EW/A3, DV42H5000EW/A3-00, DV42H5000EW/A3-01, DV42H5200EW, DV42H5200EW/A3, DV42H5200EW/A3-00, DV42H5200EW/A3-01, DV42H5400EF, DV42H5400EF/A3, DV42H5400EF/A3-00, DV42H5400EF/A3-01, DV42H5600EW, DV42H5600EW/A3, DV42H5600EW/A3-00, DV42H5600EW/A3-01, DV45H7000EW, DV45H7000EW/A2, DV45H7000EW/A2-00, DV45H7000EW/A2-01, DV45H7200EW, DV45H7200EW/A2, DV45H7200EW/A2-00, DV45H7200EW/A2-01, DV48H7400EW, DV48H7400EW/A2, DV48H7400EW/A2-00, DV48H7400EW/A2-01, DV50F9A6EVW, DV50F9A6EVW/A2, DV50F9A6EVW/A2-00, DV50F9A6EVW/A2-01, DV52J8700EW, DV52J8700EW/A2, DV52J8700EW/A2-00, DV52J8700EW/A2-01, DV56H9000EW, DV56H9000EW/A2, DV56H9000EW/A2-00, DV56H9000EW/A2-01, DVE45N5300W, DVE45N5300W/A3, DVE45N5300W/A3-00, DVE45N5300W/A3-01, DVE50M7450W, DVE50M7450W/A3, DVE50M7450W/A3-00, DVE50M7450W/A3-01, DVE52M7750W, DVE52M7750W/A3, DVE52M7750W/A3-00, DVE52M7750W/A3-01, DVE54M8750W, DVE54M8750W/A3, DVE54M8750W/A3-00, DVE54M8750W/A3-01, DVE60M9900W, DVE60M9900W/A3, DVE60M9900W/A3-00, DVE60M9900W/A3-01

Professional Repair Time: 45-60 minutes
DIY Repair Time: 60-90 minutes
Difficulty Rating: Moderate-Advanced (3.5/5) — Requires intermediate electrical skills, understanding of 240V AC electrical systems, careful handling of high-voltage connections, multimeter testing, dryer disassembly and reassembly, attention to safety

CRITICAL SAFETY WARNING: This repair involves working with 240 volts AC electrical power, which can cause serious injury or death. Always unplug the dryer and turn off the circuit breaker before beginning work. Use a multimeter to verify power is off before touching any electrical components. If you are not comfortable working with high-voltage electrical systems, hire a qualified appliance repair technician.

1. Turn off the circuit breaker that supplies power to the dryer at the main electrical panel. This is critical for safety when working with 240V electrical systems.
2. Unplug the dryer from the electrical outlet (if accessible) to ensure complete power disconnection.
3. Verify power is off by attempting to turn on the dryer. The dryer should not respond and the display should be blank.
4. Use a multimeter to verify that no voltage is present at the dryer electrical terminal block. Set the multimeter to measure AC voltage (250V or higher range), and test between the two hot terminals (L1 and L2). The reading should be 0 volts. If any voltage is detected, do not proceed—verify the circuit breaker is off and the correct breaker has been identified.
5. Disconnect the dryer vent hose from the dryer exhaust port by loosening the hose clamp and pulling the hose off the port.
6. Pull the dryer away from the wall to provide access to the rear panel and working space around the dryer.
7. Take multiple photos of the heating element assembly location, mounting position, wire connections, thermostat position, thermal fuse position, and how the assembly attaches to the dryer frame before disassembly. Document from multiple angles. This is absolutely critical for proper reassembly. Use a camera or smartphone to capture high-quality images.
8. Remove the dryer rear access panel (if applicable) or the dryer top panel and front panel (depending on your model) to access the heating element assembly. Refer to your dryer service manual for specific disassembly instructions for your model.
9. Locate the heating element assembly mounted on the dryer frame (typically at the rear or bottom of the dryer cabinet).
10. Take additional detailed photos of the wire connections to the heating element terminals, high-limit thermostat, and thermal fuse before disconnecting.
11. Disconnect the wire harness from the heating element assembly by removing the wire connectors from the heating element terminals, high-limit thermostat terminals, and thermal fuse terminals. Note the wire colors and positions for proper reconnection. Use needle-nose pliers to pull the wire connectors straight off—do not pull on the wires.
12. Label the wires with masking tape or labels indicating their positions (e.g., "L1", "L2", "Ground", "Thermostat", "Thermal Fuse") to ensure correct reconnection.
13. Remove the heating element assembly mounting screws or brackets that secure the assembly to the dryer frame (typically 2-4 screws or bolts).
14. Carefully remove the old heating element assembly from the dryer and place it on a clean work surface with adequate space for inspection.
15. Inspect the old heating element assembly for visible damage such as broken or burned heating coil, blown thermal fuse (visible break in fuse element), corroded electrical terminals, damaged housing, or deteriorated insulators. This confirms the diagnosis.
16. Test the old heating element with a multimeter to confirm failure. Set the multimeter to measure resistance (ohms). Test between the two heating element terminals (not including ground). A functioning heating element should show resistance between 10-50 ohms (typically 15-20 ohms for a 3700W element at 240V). If the reading is infinite (open circuit), the heating coil is broken. If the reading is near zero, there is a short circuit.
17. Test the thermal fuse with a multimeter set to measure continuity or resistance. A functioning thermal fuse should show continuity (0 ohms resistance). If the reading is infinite (open circuit), the thermal fuse has blown and must be replaced.
18. Test the high-limit thermostat with a multimeter set to measure continuity or resistance. At room temperature, the thermostat should show continuity (0 ohms resistance). If the reading is infinite (open circuit), the thermostat has failed.
19. Inspect the dryer vent system for blockages, lint buildup, or restrictions. A blocked vent system causes overheating and premature heating element failure. Clean the vent system thoroughly using a vent cleaning brush or vacuum before installing the new heating element.
20. Inspect the blower assembly for lint buildup or obstructions. A restricted blower reduces airflow over the heating element, causing overheating. Clean the blower assembly if necessary.
21. Inspect the heating element mounting location on the dryer frame for damage, corrosion, or debris. Clean the mounting area if necessary using a dry cloth.
22. Unpack the new DC93-00154A heating element assembly from its packaging. Handle carefully to avoid damaging the heating coil or insulators.
23. Verify the heating element specifications match the old assembly: dimensions approximately 10-12 inches x 6-8 inches x 4-6 inches, mounting hole locations, electrical terminal configuration (three-wire: two heating element wires plus ground), wattage rating (3700W), voltage rating (240V AC), high-limit thermostat rating (280-300°F), thermal fuse rating (280-300°F).
24. Compare the new heating element assembly to the old one to verify the dimensions, mounting holes, electrical terminal positions, thermostat location, thermal fuse location, and overall appearance match. Ensure you have the correct replacement part.
25. Inspect the new heating element assembly for any damage or defects before installation. The housing should be intact with no visible damage. The heating coil should be intact with no breaks or damage. The electrical terminals should be clean and undamaged. The thermal fuse and thermostat should be securely mounted.
26. Position the new heating element assembly on the dryer frame, aligning the mounting holes with the mounting points on the frame.
27. Install the mounting screws or brackets to secure the heating element assembly to the dryer frame. Tighten firmly but do not overtighten.
28. Verify the heating element assembly is securely mounted and does not wobble or shift when gently pressed.
29. Reconnect the wire harness to the heating element assembly by pushing the wire connectors onto the heating element terminals, high-limit thermostat terminals, and thermal fuse terminals. Refer to your detailed photos and wire labels to ensure correct connections. Push the connectors firmly onto the terminals until they are fully seated.
30. Verify all electrical connections are secure by gently tugging on each wire connector. The connectors should not pull off—they should be firmly seated.
31. Double-check all wire connections by comparing your installation to your detailed photos. Verify each wire is connected to the correct terminal.
32. Reinstall the dryer rear access panel (if applicable) or the dryer top panel and front panel by reversing the disassembly procedure.
33. Push the dryer back into position against the wall.
34. Reconnect the dryer vent hose to the dryer exhaust port and secure it with the hose clamp.
35. Restore power by plugging in the dryer (if applicable) and turning on the circuit breaker.
36. Turn on the dryer and set it to a heated drying cycle (high heat or normal heat).
37. Verify the dryer heats properly by allowing the dryer to run for 5-10 minutes, then carefully feeling the air coming from the dryer vent. The air should be warm to hot (approximately 130-160°F). Caution: The air will be hot—use caution to avoid burns.
38. Verify the heating element cycles on and off properly during the drying cycle. The heating element should cycle on to heat the air, then cycle off when the desired temperature is reached, then cycle back on as needed.
39. Run a complete drying cycle with a small load of damp towels to verify the dryer dries clothes properly and efficiently.
40. Verify the dryer does not overheat or shut off prematurely during the cycle.
41. Monitor the dryer for the first few cycles to ensure the heating element operates properly without issues.
42. Clean the lint filter after each use to maintain proper airflow and prevent overheating.
43. Inspect and clean the dryer vent system every 6-12 months to prevent lint buildup and maintain efficient dryer operation.

Safety Notes: Always turn off the circuit breaker and unplug the dryer before working on it to prevent electrical shock from 240V AC power. Use a multimeter to verify power is off before touching any electrical components. Label all wires before disconnecting to ensure correct reconnection. Clean the dryer vent system thoroughly before installing the new heating element to prevent premature failure. Do not overtighten mounting screws, which can damage the heating element housing. This repair requires intermediate electrical and mechanical skills and careful attention to safety—if you are not comfortable working with high-voltage electrical systems, hire a qualified appliance repair technician.

1. Always verify power is off using a multimeter before touching any electrical components. Set the multimeter to measure AC voltage (250V or higher range) and test between the two hot terminals (L1 and L2) at the dryer electrical terminal block. The reading should be 0 volts. Never assume power is off based on the circuit breaker position alone—always verify with a multimeter. This is critical for preventing electrical shock from 240V AC power.
2. Label all wires before disconnecting them from the heating element assembly. Use masking tape or adhesive labels to mark each wire with its terminal position (e.g., "L1", "L2", "Ground", "Thermostat", "Thermal Fuse"). Incorrect wire connections will cause the dryer to malfunction or create a fire hazard. Take detailed photos of the wire connections before disconnecting to serve as a reference during reconnection.
3. Clean the dryer vent system thoroughly before installing the new heating element. A blocked or restricted vent system causes the dryer to overheat, which can blow the thermal fuse or damage the heating element prematurely. Use a vent cleaning brush, vacuum, or compressed air to remove lint and debris from the vent hose, vent duct, and exterior vent opening. A clean vent system ensures proper airflow and extends heating element life.
4. Inspect and clean the blower assembly before installing the new heating element. Lint and debris can accumulate on the blower wheel, restricting airflow over the heating element. Remove the blower assembly and clean it thoroughly using a brush or vacuum. A clean blower assembly ensures proper airflow and prevents overheating.
5. Test the old heating element with a multimeter to confirm failure before replacement. Set the multimeter to measure resistance (ohms) and test between the two heating element terminals. A functioning heating element should show resistance between 10-50 ohms (typically 15-20 ohms for a 3700W element at 240V). If the reading is infinite (open circuit), the heating coil is broken. If the reading is near zero, there is a short circuit. This test confirms the diagnosis and prevents unnecessary replacement.
6. Test the thermal fuse with a multimeter to determine if it has blown. Set the multimeter to measure continuity or resistance. A functioning thermal fuse should show continuity (0 ohms resistance). If the reading is infinite (open circuit), the thermal fuse has blown. A blown thermal fuse indicates the dryer overheated, likely due to a blocked vent system or restricted airflow. Clean the vent system before installing the new heating element to prevent the new thermal fuse from blowing.
7. Ensure all wire connectors are fully seated on the heating element terminals. Push each connector firmly onto its terminal until it is fully seated and secure. A partially seated connector will cause intermittent heating, arcing, or electrical shorts. After connecting, gently tug on each connector to verify it is secure and will not pull off.
8. Do not overtighten the mounting screws when securing the heating element assembly to the dryer frame. Overtightening can crack the heating element housing or strip the mounting holes. Tighten the screws firmly but not excessively—tighten until the assembly is snug and secure, then stop.
9. The heating element typically operates at 3700 watts (240V × 15.4 amps) and generates significant heat. Ensure the dryer vent system is clear and unobstructed to allow proper airflow over the heating element. A restricted vent system causes the heating element to overheat, which can damage the element or blow the thermal fuse. Regularly clean the lint filter and inspect the vent system to maintain efficient operation.
10. The heating element is a high-wear component that typically fails after 5-10 years of regular use. With average use (3-4 loads per week), the heating element typically lasts 7-10 years before failure. Replace the heating element promptly when failure is detected to restore reliable dryer operation. This repair is cost-effective compared to dryer replacement—the cost of heating element replacement ($80-150) is far less than the cost of a new dryer ($600-2,000+). Maintain the dryer vent system regularly to extend heating element life and prevent premature failure.

• Dryer not heating at all (no heat production)
• Dryer heating intermittently or inconsistently (cycling on and off)
• Dryer taking much longer than normal to dry clothes (insufficient heat)
• Dryer overheating or shutting off during cycle (thermostat or thermal fuse activation)
• Dryer tripping circuit breaker (electrical short in heating element)
• Dryer displaying error codes related to heating or temperature
• Heating coil broken or burned out
• Thermal fuse blown or failed
• High-limit thermostat not functioning
• Electrical terminals corroded or damaged
• Heating element housing cracked or damaged
• Insulators deteriorated or damaged
