Samsung Range Control Assembly DG94-00888A, Replaces 7404P008-60

⚠️ NLA Notice: DG94-00888A has been discontinued by Samsung and is no longer available new from the manufacturer. Used and tested units may be available — select the Used variant if shown. Confirm the complete range model before ordering any used unit.

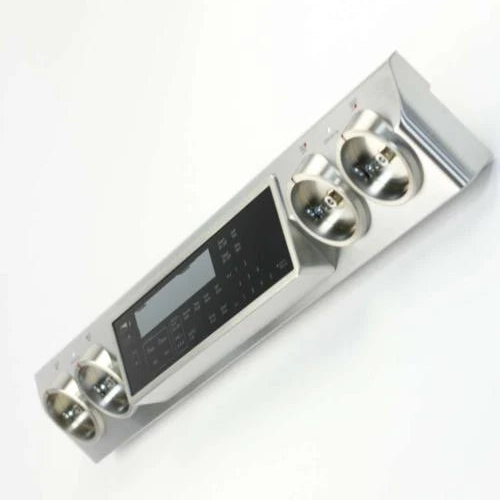

The Samsung DG94-00888A Range Control Assembly is the front control panel sub-assembly for compatible Samsung ranges. It integrates the keypad membrane, display board and mounting frame into a single replaceable unit. It replaces discontinued Samsung OEM number 7404P008-60.

A defective control assembly may contribute to unresponsive buttons, a blank or partially lit display, or controls that cannot be used to select burner or oven settings. Similar symptoms can also result from a failed main control board, loose wiring harness, ribbon cable damage, incoming-power problem or a software fault that clears on reset. Perform a hard reset before ordering.

Is This the Right Part?

Confirm the complete Samsung range model number before ordering. Similar control assemblies may use different connectors, ribbon cable configurations, display types or mounting points.

Common Symptoms

• Control-panel display is blank, partially lit or showing incorrect readings
• Buttons will not respond or require excessive pressure to register
• Burner or oven settings cannot be selected or changed
• Control panel unresponsive after a power surge or outage
• Intermittent button response — works sometimes but not consistently

Check Before Replacing

• Perform a hard reset — unplug the range for 5 minutes to clear software faults before ordering
• Inspect the ribbon cable and wire harness connectors for damage, corrosion or loose seating
• Check for error codes on the display that may point to a main control board fault rather than the display assembly
• Confirm the control panel is receiving correct voltage at the connector before replacing the assembly

Part Details

Installation Notes

1. Disconnect power at the breaker before servicing.
2. Photograph wiring, ribbon cable routing and connector positions before disassembly.
3. Compare the used assembly with the original — verify connector count, layout and ribbon cable interface.
4. Inspect nearby wires, connectors and the ribbon cable for damage before installing.
5. Test the appliance and check for error codes after reassembly.

Use a qualified technician when diagnosis or installation is outside your experience.

Verified Compatible Models

Confirm your complete Samsung range model number before ordering. Contact us to verify your model number before ordering a used unit.

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering. This part is NLA — only used units may be available.
