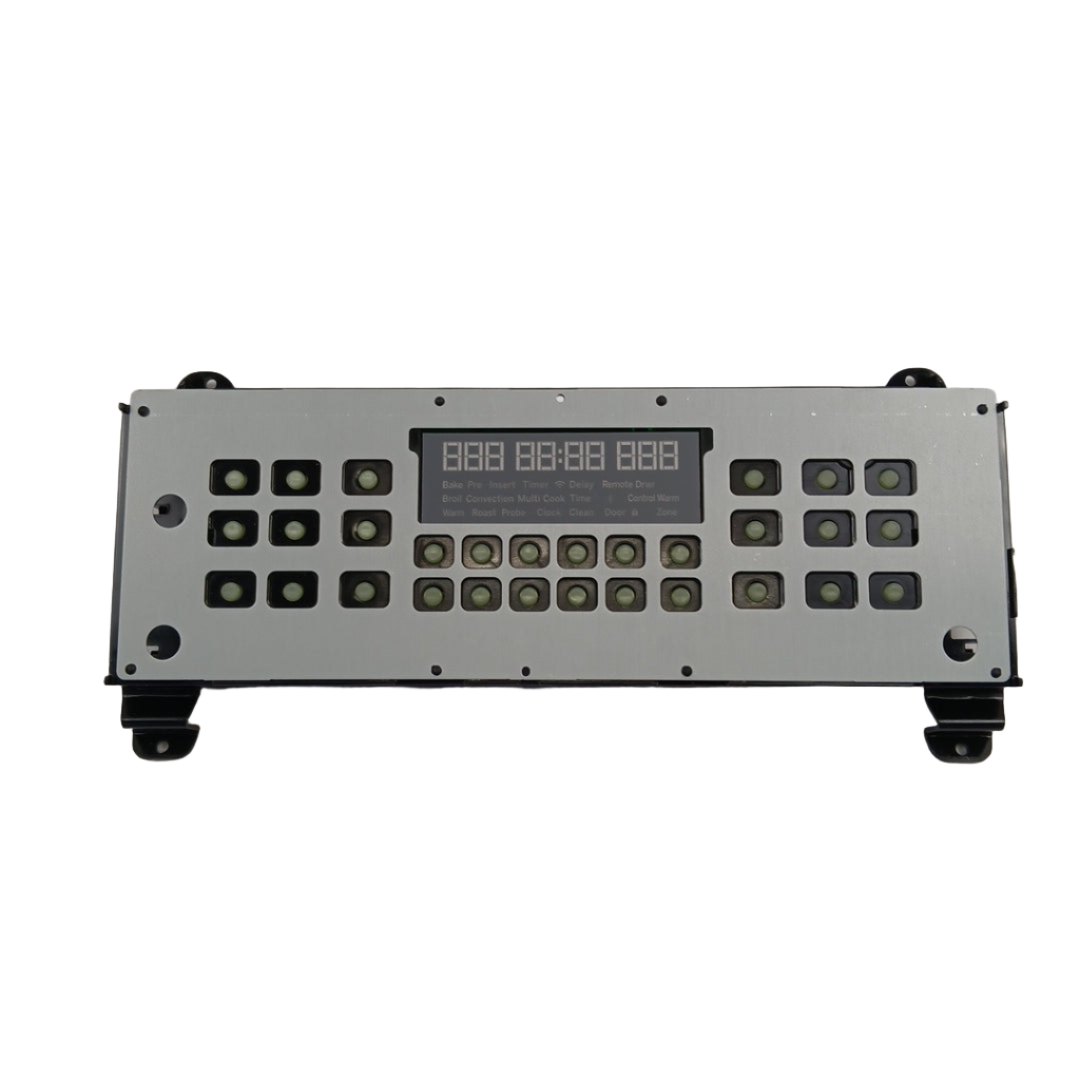

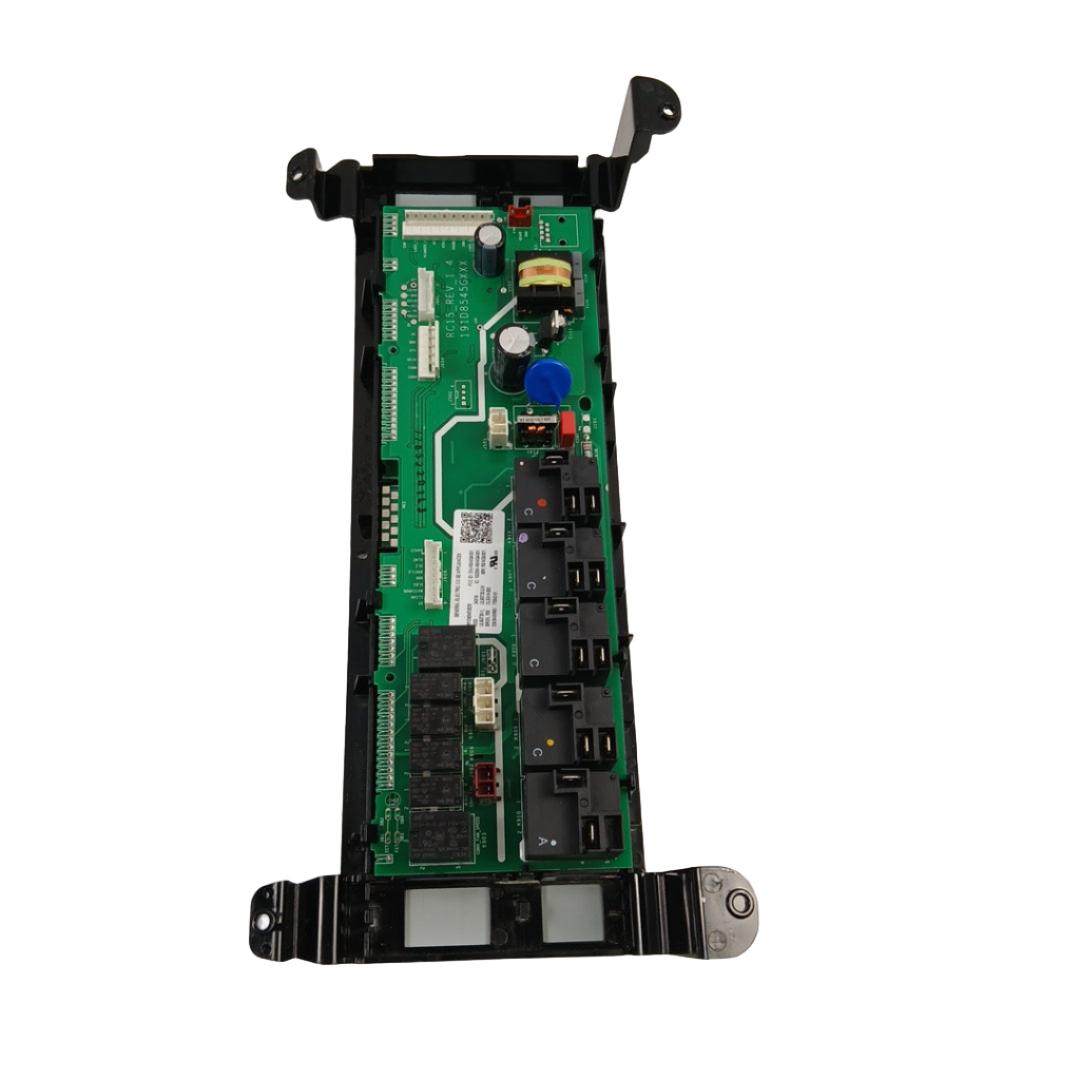

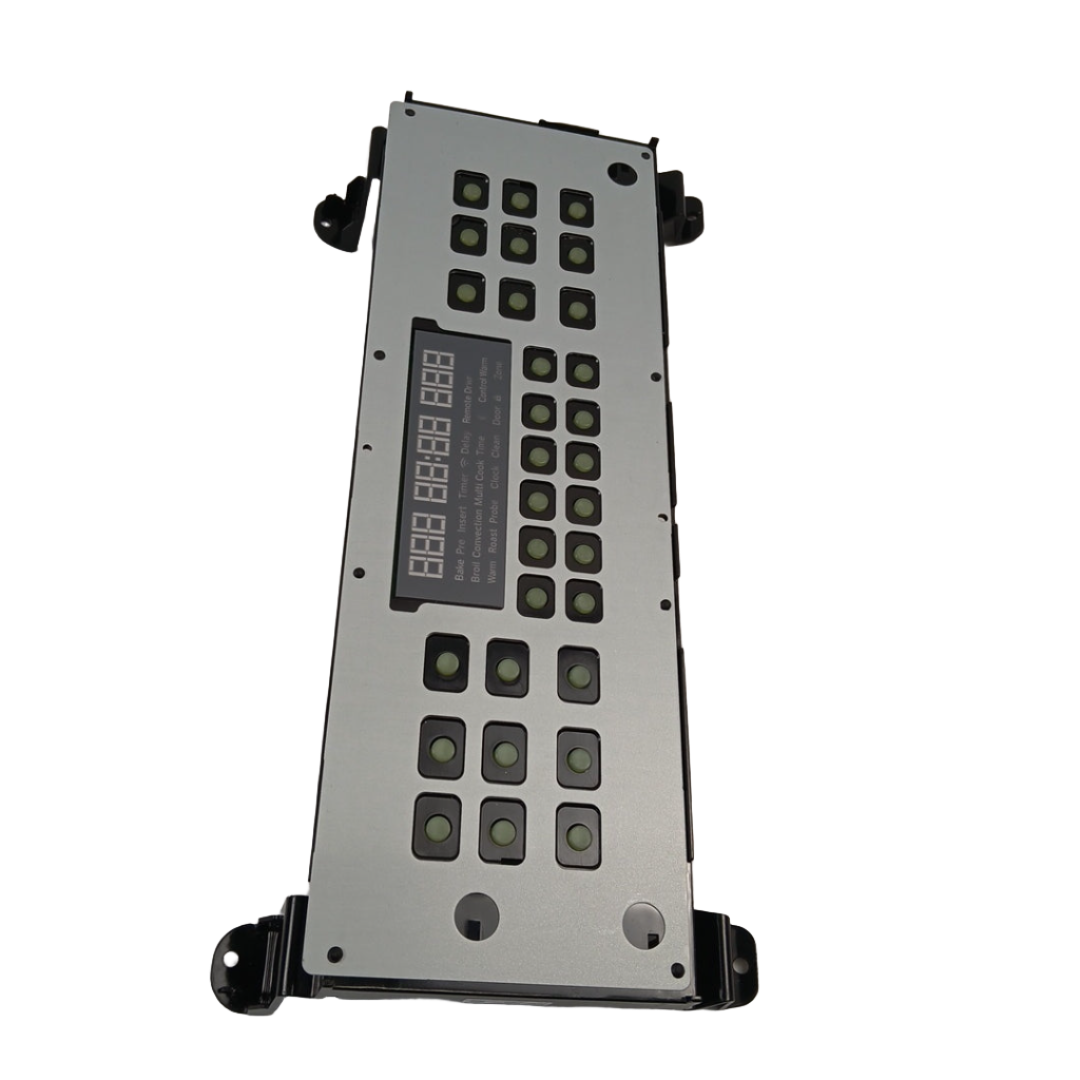

GE Range Control Assembly, RC15 WS01F09621, Replaces 295D1828G019, WS01F07834, WS01F08869

Genuine OEM range oven control assembly that functions as the primary electronic control for oven operation, including temperature regulation, cooking functions, and display features.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• No oven heat.
• Clock display does not operate.
• Timer does not start.
• Oven controls are unresponsive.
• Display is blank or malfunctioning.

Check Before Replacing

• Disconnect the range from electrical power before accessing or handling the control assembly.
• With power disconnected, inspect the control assembly wiring connections for loose or improperly seated connectors; ensure wiring is securely reconnected before restoring power.
• After the control is properly mounted and power is restored, observe whether the oven controls, clock/timer display, and oven operation respond normally. These symptoms alone do not conclusively identify the control assembly as failed.

Pro Tip

Part Details

Key Features

• Genuine OEM GE range control assembly, identified as RC15.
• Serves as the primary electronic control for oven operation.
• Regulates temperature and cooking functions.
• Supports clock, timer, and display-related operation.
• Coordinates communication among internal sensors, heating elements, and user settings.

Installation Notes

• Disconnect electrical power before installation.
• Reconnect all wiring securely.
• Mount the control assembly properly before restoring power.
• Confirm the exact part number and model applicability before ordering or installing, because visually similar parts can differ.

Verified Compatible Models

JCB840DK4WW, JCB840DK5WW, JCB840DK6WW, JCB840DK7WW, JCB840EK3ES, JCB840EK4ES, JCB840EK5ES, JCB840SK3SS, JCB840SK4SS, JCB840SK5SS, JCB870SK3SS, JCB870SN1SS, JCB870SN2SS, JCB870SN3SS, NS-RNEC4BSS9-CB, NS-RNEC4BSS9-CC, JCB840DK1WW, JCB840DK2WW, JCB840DK3WW, JCB840EK1ES, JCB840EK2ES, JCB840SK1SS, JCB840SK2SS, JCB870SK1SS, JCB870SK2SS, NS-RNEC4BSS9-CA

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
