Refrigerator Not Cooling? Main Control Board EBR88309704 — Fix Compressor & Cooling Failures Fast
If your LG refrigerator has stopped cooling, the compressor won't run, or the unit cycles erratically, the main control board is the most common cause. In most LG French door and bottom-freezer refrigerators, the main PCB assembly (EBR88309704) governs compressor start signals, fan motor control, defrost timing, and temperature regulation. When it fails, the refrigerator may appear powered on — lights work, display is active — but cooling stops entirely or becomes inconsistent. ⚡ Common failure point in LG-built refrigerators manufactured 2018–2024. Part EBR88309704 is the genuine OEM replacement that restores full compressor control, defrost cycling, and temperature regulation to factory spec.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Refrigerator powers on — interior lights and display are functional
- ✔ Evaporator and condenser fans spin (or spin intermittently)
- ✔ Power supply and outlet confirmed OK — no tripped breaker
- ✔ ONLY problem is no cooling, compressor not starting, or erratic temperature cycling
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Refrigerator not cooling — freezer may still work partially
- Compressor does not start or runs briefly then shuts off
- Temperature display shows correct set point but interior is warm
- Erratic defrost cycles — excessive frost buildup or no defrost at all
- Error codes on display (e.g., Er FF, Er rF, Er dH on LG models)
✔ If these symptoms match, the main control board is the most likely failed component in the system.
✔ In most cases, replacing the EBR88309704 main PCB restores normal compressor operation and full cooling immediately.

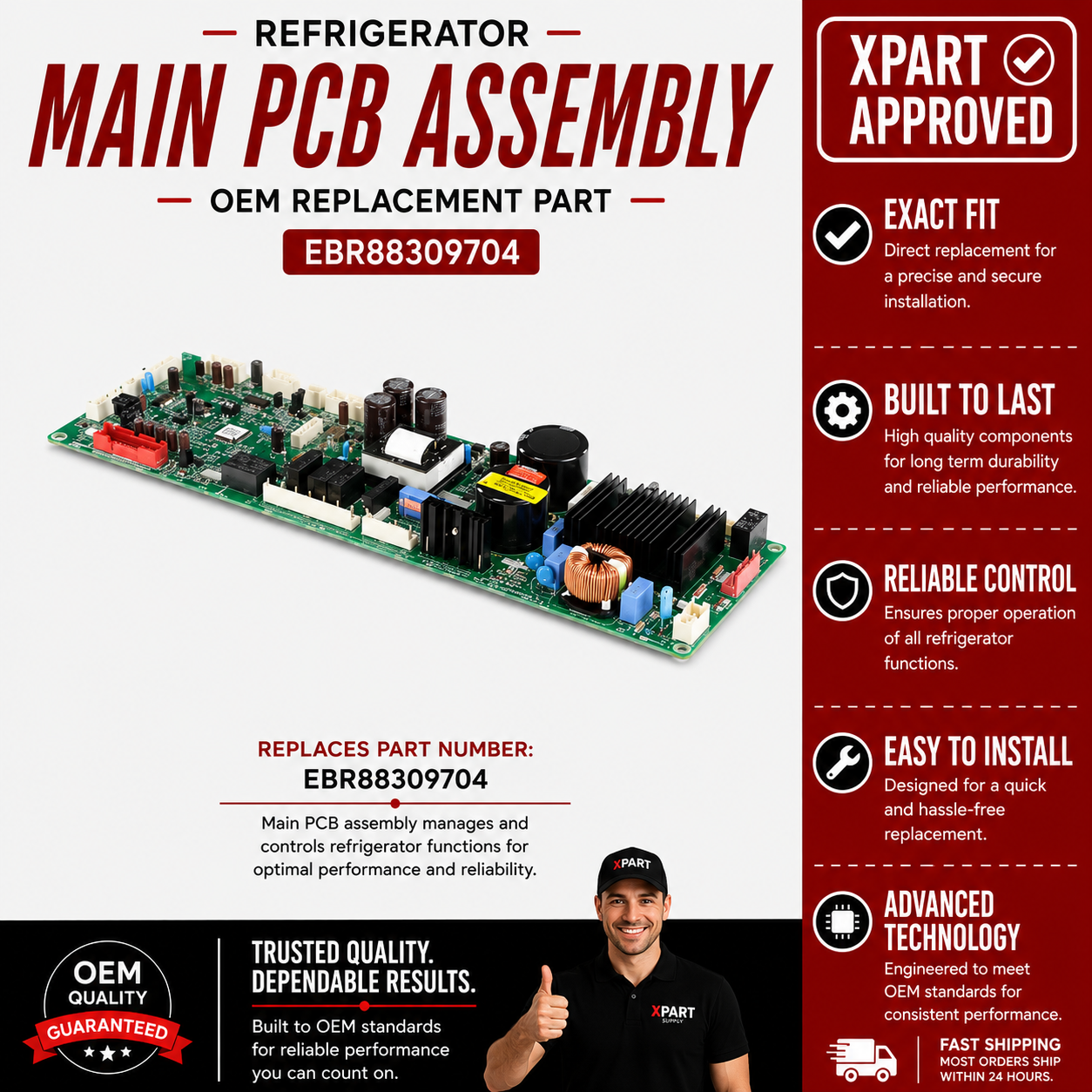

📦 Part Details
- Part Number: EBR88309704
- Type: Main Control Board / PCB Assembly — refrigerator system controller
- Replaces: EBR73304204, EBR73304205, EBR73304206, EBR73304207
- Brands: LG, Kenmore (LG-built models)
- OEM: Yes — genuine LG part
If your refrigerator also shows fan errors or the evaporator fan is noisy, inspect the evaporator fan motor at the same time — a failing fan motor can cause the same no-cooling symptoms and is often replaced alongside the control board. Replacing both in one service call saves labour on a second disassembly.
⚙️ Installation
Skill Level: MODERATE — 30 to 45 minutes. Disconnect power before servicing. Access the main control board by removing the rear lower panel or the control board housing at the back of the refrigerator (model-dependent). Disconnect all wire harness connectors — photograph before removal — swap the board, reconnect all harnesses, and restore power. Allow 24 hours for the refrigerator to reach stable temperature before confirming the repair.
✓ Compatible Models
Confirmed compatible with LRMVS3006S, LRFXS2503S, LRMVS3006D, LRFDS3006S, LRFXC2416S, LRFXS2503D, LRMVS3006M, LRFDS3006D plus additional LG French door and bottom-freezer models. Contact us to verify your model number before ordering.
💡 Pro Tip
Before ordering, put your LG refrigerator into diagnostic mode (press and hold the Refrigerator + Ice Plus buttons for 3 seconds on most models). Active error codes will confirm whether the main board is the source of the fault or whether a sensor or fan motor is the true culprit — saving you from an unnecessary part swap. If you see Er FF or Er rF, the board is almost always the cause.
✓ Model-Specific Repair Pages
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
