Maytag Front-Load Washer MHW5630HW1 Parts Available for Shipping or Pickup

Browse manufacturer parts catalogued for the Maytag MHW5630HW1 front-load washer. Request current pricing and availability, and XPart Supply can locate the part, inspect or test it where applicable, pick it, pack it, and arrange shipping or local pickup.

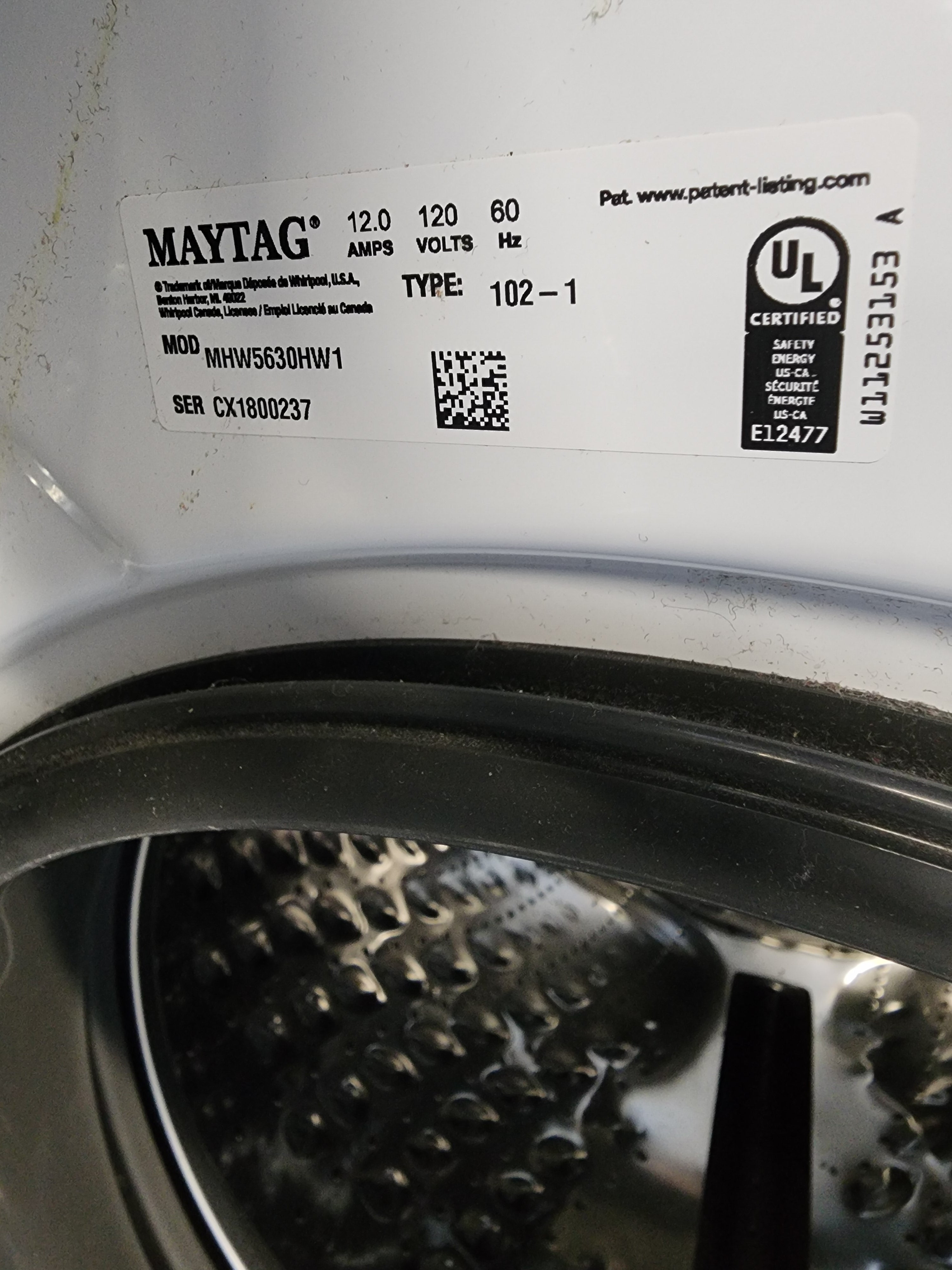

Model: MHW5630HW1Brand: MaytagAppliance: Front-Load Washer129 Unique Part Numbers
This listing is for parts from the appliance—not the complete washer. Parts may be removed as orders are confirmed. Optional accessories and service items are catalogue references and may not be physically included with the unit. Contact us with the complete model, serial number, and requested part number for current price, condition, fit verification, and availability.
1. Find ItSelect a part below.
2. Request a QuoteSend the model, serial number, and part number.
3. We Prepare ItWe locate, inspect, pick, and carefully pack it.
4. Ship or PickupChoose delivery or local pickup.

Parts Found in Maytag Washer MHW5630HW1

Search by part name, number, category, or description. Catalogue inclusion does not confirm XPart live stock.

Category Part Part Number Description Condition Availability Quote
Documentation Owner's Manual W11355369 Provides factory operation, care, and safety information. Reference Item — Confirm Quote Availability Quote This Part
Documentation Quick Start Guide W11355237 Provides abbreviated factory operating instructions. Reference Item — Confirm Quote Availability Quote This Part
Documentation Energy Guide W11356842 Provides factory energy-use and efficiency information. Reference Item — Confirm Quote Availability Quote This Part
Documentation Tech Sheet W11156990 Provides factory diagnostic, wiring, and service information. Reference Item — Confirm Quote Availability Quote This Part
Documentation Cycle Guide W11366244 Explains the washer's cycle selections and recommended uses. Reference Item — Confirm Quote Availability Quote This Part
Electrical, Controls & Heat Control Panel Assembly - White W11316623 Houses the user controls and display used to select and monitor wash cycles. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical, Controls & Heat Control Panel Assembly - Chrome Shadow W11325569 Houses the user controls and display used to select and monitor wash cycles. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Dispenser Dispenser Drawer Handle - White W11316627 Provides the grip used to open the detergent dispenser drawer. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Dispenser Dispenser Drawer Handle - Chrome Shadow W11649814 Provides the grip used to open the detergent dispenser drawer. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical, Controls & Heat HMI Jumper Wire Harness W11316625 Carries electrical power or control signals between washer components. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Maytag Medallion W10908007 Displays the Maytag brand identification on the washer exterior. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Edge Guard W11316770 Protects the applicable cabinet or console edge from contact damage. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W11568617 Secures the applicable washer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Console Bracket W11314678 Supports or secures the applicable washer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Water Channel W11458348 Directs incoming water through the intended washer or dispenser path. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Front Panel - White W11316249 Forms the visible front section of the washer cabinet. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Front Panel - Chrome Shadow W11325570 Forms the visible front section of the washer cabinet. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W11573574 Secures the applicable washer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Base Hinge WPW10208415 Supports the washer door and allows it to open and close correctly. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Hinge Bracket W10299097 Supports or secures the applicable washer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W11661566 Secures the applicable washer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Lock Latch Assembly W11565030 Secures the washer door during operation and signals when it is safely locked. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw WP8540282 Secures the applicable washer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Cabinet - White W11352995 Forms the washer's main exterior structure and supports internal components. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Cabinet - Chrome Shadow W11352996 Forms the washer's main exterior structure and supports internal components. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Suspension & Leveling Leveling Leg W10888529 Supports and levels the washer to help reduce vibration and movement. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Suspension & Leveling Leveling Leg Locking Nut WP3359452 Supports and levels the washer to help reduce vibration and movement. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Water-Level Pressure Switch W11316246 Monitors tub water level and reports fill information to the electronic control. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Pressure Switch Hose W11456953 Transfers tub air pressure to the water-level pressure switch. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical, Controls & Heat RFI Noise Filter W11316771 Helps suppress electrical interference in the washer power circuit. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drain System Drain Hose Bracket W11316769 Supports and positions the washer drain hose. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical, Controls & Heat Main Electronic Control Board W11322901 Controls the washer's main operating logic and communicates with sensors and powered components. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical, Controls & Heat Upper Wire Harness W11316252 Carries electrical power or control signals between washer components. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical, Controls & Heat Wire Harness W11316253 Carries electrical power or control signals between washer components. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical, Controls & Heat Wire Harness W11557918 Carries electrical power or control signals between washer components. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Bracket W10467484 Supports or secures the applicable washer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Retainer W10245452 Retains or secures the applicable washer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Bracket W11314674 Supports or secures the applicable washer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Bracket W11353016 Supports or secures the applicable washer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Top Panel - White WPW10208373 Forms the upper exterior surface of the washer cabinet. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Top Panel - Chrome Shadow WPW10460693 Forms the upper exterior surface of the washer cabinet. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Cabinet & Panels Cabinet Panel W11491750 Forms or reinforces a structural section of the washer cabinet. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical, Controls & Heat Power Cord W11316254 Connects the washer to the household electrical supply. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W10850756 Secures the applicable washer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Optional Accessory / Service Item Outer Drain Hose Assembly W11281268 Carries discharged water from the washer to the household drain. Optional Item — Confirm Included Quote Availability Quote This Part
Cabinet & Panels Washer Retainer WPW10280024 Retains or secures the applicable washer component. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Hose Clamp WP356138 Secures a washer hose to help prevent it from loosening or leaking. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Zip Tie WPW10339879 Bundles and secures washer wiring or hoses. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Shipping Bolt W11316631 Locks the suspended tub for transportation to help prevent damage. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Shipping Bolt W11316629 Locks the suspended tub for transportation to help prevent damage. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W10208380 Secures the applicable washer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Outer Door Assembly - Gray W11316913 Forms the outer visible section of the washer door. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Handle - Black W10626041 Provides the grip used to open and close the washer door. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Clear Door Insert / Inner Door Glass W11316777 Forms the transparent viewing section of the washer door. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Inner Door W11316776 Forms the inner structural section of the washer door. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Bumper W11310051 Cushions the washer door when it closes. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Strike W11316914 Engages the door-lock mechanism so the door can remain closed during a cycle. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw WP8534022 Secures the applicable washer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Hinge Retainer Plate W10839743 Secures and reinforces the washer door hinge connection. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Hinge Cap WPW10208398 Covers and protects the washer door hinge pivot. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Single Water Inlet Valve W11688994 Controls incoming household water as directed by the electronic control. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Hot Water Inlet Hose W11316257 Routes hot water from the inlet valve through the washer fill system. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Hose Clamp WP596669 Secures a washer hose to help prevent it from loosening or leaking. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Double Water Inlet Valve W11688995 Controls incoming household water as directed by the electronic control. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Cold Water Inlet Hose W11316599 Routes cold water from the inlet valve through the washer fill system. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Dispenser Dispenser Drawer Assembly W11752344 Holds detergent, bleach, or fabric softener before dispensing. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Dispenser Bleach / Fabric Softener Siphon W11772011 Controls how bleach or fabric softener is drawn from the dispenser compartment. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Dispenser Detergent Drawer Cover W11316375 [DESCRIPTION NEEDED — VERIFY PART FUNCTION BEFORE PUBLISHING.] [CONDITION TO CONFIRM] Quote Availability Quote This Part
Dispenser Siphon Separator W11316603 Separates dispenser compartments and supports correct additive dispensing. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Dispenser Dispenser Hose Assembly W11316604 Routes water and detergent from the dispenser toward the tub. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Hose Clamp W10239910 Secures a washer hose to help prevent it from loosening or leaking. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drain System Drain Hose Assembly W11549455 Carries discharged water from the washer to the household drain. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Tub, Drum & Drive Tub-to-Pump Hose W11314666 Routes used wash water from the tub to the drain pump. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Hose Clamp WP616099 Secures a washer hose to help prevent it from loosening or leaking. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Vent Hose Clamp W10273034 Secures a washer hose to help prevent it from loosening or leaking. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Pump-to-Bellow Hose W11316605 Routes water between the drain pump and door-bellow area. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Hose Clip W11050231 Retains and positions the applicable washer hose. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Water Nozzle W10796538 Directs water into the intended washer fill or rinse path. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Hose Clamp 8533888 Secures a washer hose to help prevent it from loosening or leaking. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drain System Drain Pump Assembly W11319789 Removes used wash water from the tub during drain and spin cycles. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drain System Drain Pump Filter Cap W10921834 Captures lint and foreign objects before they reach or damage the drain pump. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drain System Drain Pump Filter W11319788 Captures lint and foreign objects before they reach or damage the drain pump. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Filter Cap Seal W10921839 Seals the drain-pump filter cap to help prevent water leakage. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drain System Drain Pump Hose W10782741 Routes discharged water through the drain-pump system. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Hose Clamp W10834076 Secures a washer hose to help prevent it from loosening or leaking. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Drain System Drain Pump Plug W10834077 [DESCRIPTION NEEDED — VERIFY PART FUNCTION BEFORE PUBLISHING.] [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Pump Pin Grommet W11133160 Cushions or seals the applicable washer mounting or pump connection. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Pump Grommet W11126910 Cushions or seals the applicable washer mounting or pump connection. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Front Panel-to-Bellow Retainer W11266654 Secures the outer edge of the door boot to the front cabinet. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Door Boot Bellow W11314648 Forms a flexible watertight seal between the tub and front cabinet. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Door & Lock Bellow-to-Tub Retainer W11314649 Secures the inner edge of the door boot to the outer tub. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Tub, Drum & Drive Tub and Drum Assembly W11460604 Combines the water-containing outer tub and rotating inner drum into a factory service assembly. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Tub, Drum & Drive Tub Assembly Clip W11510655 [DESCRIPTION NEEDED — VERIFY PART FUNCTION BEFORE PUBLISHING.] [CONDITION TO CONFIRM] Quote Availability Quote This Part
Tub, Drum & Drive Drum Baffle W11460395 Lifts and tumbles clothing inside the drum as it rotates. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical, Controls & Heat Heater and NTC Sensor Assembly W11314664 Heats wash water and monitors temperature for supported hot-water or sanitizing functions. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Electrical, Controls & Heat Heater Shield W11314776 Protects and supports the washer heating-element area. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Tub, Drum & Drive Motor Stator W11354541 Creates the magnetic field used to turn the motor rotor and drum. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Tub, Drum & Drive Stator Screw W11314661 Secures the applicable washer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Tub, Drum & Drive Motor Rotor W11314361 Forms the rotating section of the direct-drive motor. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Tub, Drum & Drive Rotor Screw W11314657 Secures the applicable washer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Tub, Drum & Drive Top Counterweight W11314650 Stabilizes the upper tub area and helps reduce vibration during high-speed spin. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Tub, Drum & Drive Bottom Counterweight W11607191 Stabilizes the lower tub area and helps reduce vibration during high-speed spin. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Tub, Drum & Drive Counterweight Screw W11314651 Secures the applicable washer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Suspension & Leveling Shock Absorber W11316766 Dampens tub movement and vibration during wash and high-speed spin. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Suspension & Leveling Suspension Spring W11771999 Supports the tub assembly and helps control movement during operation. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Vent Housing W11316248 Houses and directs the washer tub-vent airflow path. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Hardware & Supports Screw W11230114 Secures the applicable washer component in position. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Ventilation Hose W11316247 Routes air through the washer tub-vent system. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Water System Hose Clamp WP371502 Secures a washer hose to help prevent it from loosening or leaking. [CONDITION TO CONFIRM] Quote Availability Quote This Part
Optional Accessory / Service Item Drain Hose Extension Kit DRNEXT4 Extends the washer drain-hose reach for installations that require additional length. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item 5-Foot Braided Inlet Hose Set 8212487RP Connects household water supplies to the washer inlet valves. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item 5-Foot Red and Blue Inlet Hose Set 8212545RP Connects household water supplies to the washer inlet valves. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item 5-Foot Black Inlet Hose Set 8212641RP Connects household water supplies to the washer inlet valves. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item 4-Foot Black Inlet Hose Set 8212546RP Connects household water supplies to the washer inlet valves. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Affresh Washer Cleaner - 3 Count W10549845 Helps remove detergent residue, odour-causing buildup, and grime from the washer. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Affresh Machine Cleaning Wipes W10355053 Clean residue and fingerprints from appliance surfaces. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Affresh Washer Cleaner - 6 Count W10501250 Helps remove detergent residue, odour-causing buildup, and grime from the washer. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item White Appliance Paint - 1 Quart 799344 Provides a colour-matched cosmetic finish for appliance surface repair. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Gray Primer Spray Paint 350938 Provides a colour-matched cosmetic finish for appliance surface repair. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Stack Kit W10869845 Secures a compatible dryer above the washer to save floor space. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item White Appliance Spray Paint 350930 Provides a colour-matched cosmetic finish for appliance surface repair. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Chrome Shadow Touch-Up Paint W10446202 Provides a colour-matched cosmetic finish for appliance surface repair. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item White Touch-Up Paint 72017 Provides a colour-matched cosmetic finish for appliance surface repair. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Washer Drip Tray 8212526 Sits beneath the washer to help contain small leaks or drips. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Bulk Dispenser Tank - 2 L W11318830 Stores liquid detergent for supported bulk-dispensing operation. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item Bulk Dispenser Tank - 1 L W11678968 Stores liquid detergent for supported bulk-dispensing operation. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item 4.5-Foot Braided Inlet Hose W11766548 Connects a household water supply to the washer inlet system. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item 10-Foot Black Inlet Hose Set 8212656RP Connects household water supplies to the washer inlet valves. Optional Item — Confirm Included Quote Availability Quote This Part
Optional Accessory / Service Item 6-Foot Braided Inlet Hose Set 8212638RP Connects household water supplies to the washer inlet valves. Optional Item — Confirm Included Quote Availability Quote This Part
No matching parts were found. Try a shorter part number or broader description.
Fitment Tip:
Matching only the appliance name is not enough. Send the complete MHW5630HW1 model and serial number so XPart Supply can check production revisions and confirm the correct part before it is removed or shipped.

What Happens After You Request a Quote?

We confirm whether the requested component is still with the unit, review its condition, verify the model information, and provide pricing. Once approved, the part can be picked, packed, shipped, or prepared for local pickup.

Part Condition

Condition varies by component. Your quote will identify whether the part is used, tested, inspected, new, or available by special order.

Need a Part From MHW5630HW1?

Send the part number, complete appliance model, serial number, and a photo when possible.
