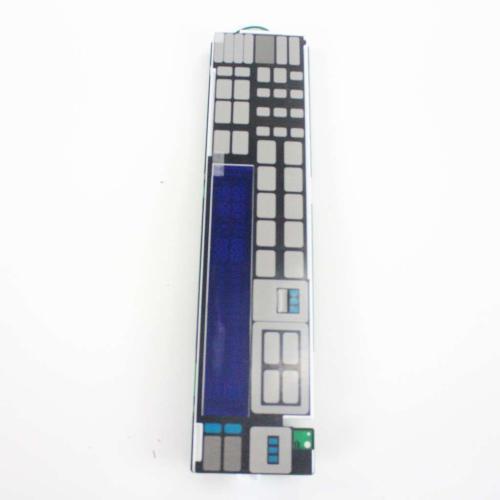

Samsung Range Oven Control Board DE96-01027D, Fixes Oven Not Heating, Incorrect Temperature or No Display
🇺🇸 Matching U.S. Part Number: DE96-01027D

DE96-01027D is a genuine Samsung oven control board used on select Samsung freestanding and slide-in ranges. The board manages oven temperature regulation, bake and broil element switching, display functions, and electronic control inputs. A defective board may cause the oven to fail to heat, display error codes, or become completely unresponsive.

This part has been discontinued by Samsung. Availability through distributors may be limited to remaining new-old-stock inventory. Confirm availability before ordering and verify the complete range model number to ensure fitment.

Is This the Right Part?

Confirm the complete model number before ordering. Similar control boards may use different wiring harness connectors, ribbon cable configurations, software versions, or mounting arrangements. Do not substitute based on appearance alone.

Common Symptoms

• Oven not heating to the set temperature or not heating at all
• Oven display blank, flickering, or showing error codes
• Bake or broil element not activating
• Oven controls unresponsive or intermittently failing
• Range functions working but oven section completely dead

Check Before Replacing

• Confirm incoming power — ranges require 240V; a partial power loss can cause oven failure while surface burners work normally
• Test the bake and broil elements for continuity — a failed element is a more common and less expensive repair
• Check the oven temperature sensor for correct resistance — a faulty sensor can cause incorrect temperature or error codes without a board failure
• Inspect the wiring harness and connectors at the board for heat damage, corrosion, or loose terminals
• Note any specific error codes displayed — Samsung error codes can help isolate whether the board or a connected component has failed

Part Details

Installation Notes

1. Disconnect power at the breaker before beginning any work — ranges operate on 240V.
2. Photograph all wiring harness connections, ribbon cables, and mounting positions before removal.
3. Compare the replacement board with the original — confirm connector positions, ribbon cable ports, and mounting hole locations.
4. Inspect the wiring harness, connectors, and nearby components for heat damage before installing the new board.
5. Reconnect all harnesses and cables securely, restore power, and test all oven functions before reassembly.

Use a qualified appliance technician when diagnosis or installation is outside your experience. Ranges operate on 240V — always disconnect power at the breaker before servicing.

Verified Compatible Models

Compatible model list pending cross-reference audit. Confirm fitment using the complete range model number, including all suffixes and revision digits, before ordering.

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering. Do not order based on appearance or partial model number alone.
