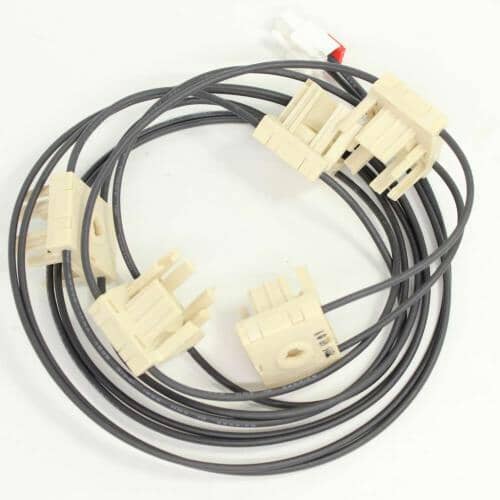

Samsung Range Igniter Switch & Harness Assembly DG96-00298D
Part# DG96-00298D
Replaces DG96-00298A · DG96-00298B · DG96-00298C
Fits Samsung
NX58 Gas Range Series
Samsung Gas Range Not Sparking? Igniter Switch & Harness Assembly DG96-00298D – Fix No-Ignition Fast
If your Samsung gas range burners won't spark, click continuously, or only some burners ignite, the igniter switch and harness assembly is the most common cause. In most Samsung NX58 gas ranges, this is caused by a failed igniter switch or a broken, burnt, or shorted harness. When it fails, the spark module loses its signal path — burners go dead, the module clicks non-stop, or ignition becomes intermittent and unreliable. ⚡ Common failure point in Samsung-built NX58 gas ranges. Part DG96-00298D is the genuine OEM replacement that restores full, reliable ignition to all surface burners.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Range powers on and oven functions work normally
- ✔ Gas supply is confirmed on and pressure is normal
- ✔ Spark electrodes are intact and not visibly cracked or contaminated
- ✔ Spark module has been ruled out as the primary fault
- ✔ ONLY problem is one or more surface burners not sparking, or continuous clicking
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- One or more burners won't spark — no clicking when knob is turned to ignite
- Spark module clicks continuously even when no burner knob is in use
- Only some burners spark — others are completely dead
- Intermittent ignition — burner sparks sometimes but not reliably
- Burner ignites but spark won't stop clicking after flame is established
- Visible burn marks, melted insulation, or cracked wiring on the harness
- Burning smell from cooktop area without an active flame
- Spark module replaced but ignition problems persist — switch or harness is the upstream fault
✔ If these symptoms match, this is the most likely failed component in the ignition circuit.
✔ In most cases, replacing this igniter switch and harness assembly restores normal operation immediately.
📦 Part Details
-
Part Number: DG96-00298D
-
Type: Range Igniter Switch and Harness Assembly (Surface Burner Spark Circuit)
-
Replaces: OEM direct-fit igniter switch and harness assembly — supersedes DG96-00298A, DG96-00298B, DG96-00298C (no modification required)
-
Brands: Samsung
⚠️ Recommended While Repairing:
Inspect all spark electrodes before installing the new harness — a cracked or contaminated electrode is the most common cause of harness burnout and will destroy the new assembly if not addressed. Replace any cracked electrode at the same time to prevent a repeat failure.
⚙️ Installation
Skill Level: MODERATE — 45–60 minutes. Disconnect power at the breaker and shut off the gas supply before starting. Lift the cooktop to access the igniter switch and harness routing, photograph all connector positions before disconnecting, then route the new assembly in the same path. Ensure all connectors click fully into place — a partially seated connector causes intermittent spark faults.
💡 Pro Tip
Inspect Electrodes Before Installing the New Harness:
A burnt harness is almost always caused by a cracked or contaminated spark electrode drawing excess current. Before installing the new assembly, clean all electrodes with a dry toothbrush and inspect for cracks. Also confirm the spark module is functional — if the module has failed, the new harness won't restore ignition. Replacing the harness and electrodes in the same service call prevents a repeat failure and saves a second labour visit.
Compatible model pages: NX58F5500SS, NX58H5600SS, NX58H5650WS, NX58M6630SS, NX58R4311SS.
