Samsung Range Burner Won’t Spark or Ignite? DG96-00793A Electrode Assembly – Fix It Fast

A failed electrode assembly is the most common reason a Samsung gas range burner won’t spark, clicks continuously, or fails to ignite at all. In most Samsung NX-series gas ranges, this is caused by a failed electrode assembly — the component that generates the high-voltage spark to ignite the gas at the burner. When the ceramic insulator cracks, the electrode tip wears down, or the assembly shorts out from moisture or grease intrusion, the spark either stops entirely or fires continuously even after the burner is lit. ⚡ One of the most common ignition failures in Samsung gas ranges. Part DG96-00793A is the genuine OEM replacement electrode assembly that restores reliable spark ignition immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Your range powers on and the control panel is responsive
• ✔ Gas supply to the range is confirmed on and flowing
• ✔ The burner head and cap are undamaged and seated correctly
• ✔ The spark module (igniter control board) has been ruled out as the fault
• ✔ ONLY problem is no spark at this burner, or continuous clicking that won’t stop after lighting

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

• Burner won’t spark at all when the knob is turned — most common reason customers search for this part
• Igniter clicks continuously even after the burner is lit and the knob is released
• Spark is weak, intermittent, or only fires on one side of the burner
• Burner requires multiple attempts to light even with gas flowing
• Visible crack or carbon tracking on the electrode ceramic insulator
• Clicking stops only when the range is unplugged — indicating a shorted electrode

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this electrode assembly restores reliable spark ignition immediately.

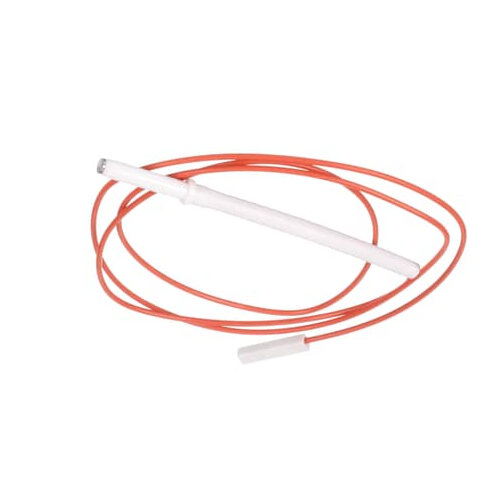

📦 Part Details

• Part Number: DG96-00793A
• Type: OEM Gas Range Electrode Assembly (Spark Igniter)
• Replaces: Genuine OEM Samsung electrode assembly — direct-fit replacement (no modification required)
• Brands: Samsung

⚙️ Installation

Skill Level: MODERATE — 20 to 30 minutes. Disconnect power to the range before beginning — the electrode carries high voltage during operation. Remove the burner grate, cap, and head to access the electrode mounting point; the assembly is typically secured by one or two screws and a wiring harness connector. Disconnect the harness, remove the old electrode, seat DG96-00793A in its place, reconnect the harness, and reassemble the burner. Restore power and test each burner for a clean, consistent spark before use. Do not touch the electrode tip — skin oils accelerate ceramic degradation.

✓ Compatible Models

Confirmed compatible with NX58J7750SS/AA, NX58J7750SS/AC, NX58J7750SG/AA, NX58K9850SS/AA, NX58K9850SG/AA, NX58K7850SS/AA, NX58K7850SG/AA, NX58M6850SS/AA, NX58M6850SG/AA, NX58M6630SS/AA, NX58M6630SG/AA, NX58M9960PS/AA, NX58M9960PM/AA, NX58M9420SS/AA, NX58N9420SG/AA, NX58R9421SS/AA, NX58H9500WS/AA, NX58H9500WS/AC, NX58H9950WS/AA, NX60T8751SS/AA, NX60T8751SG/AA, plus additional Samsung NX-series gas range models. Contact us to verify your model number before ordering.
