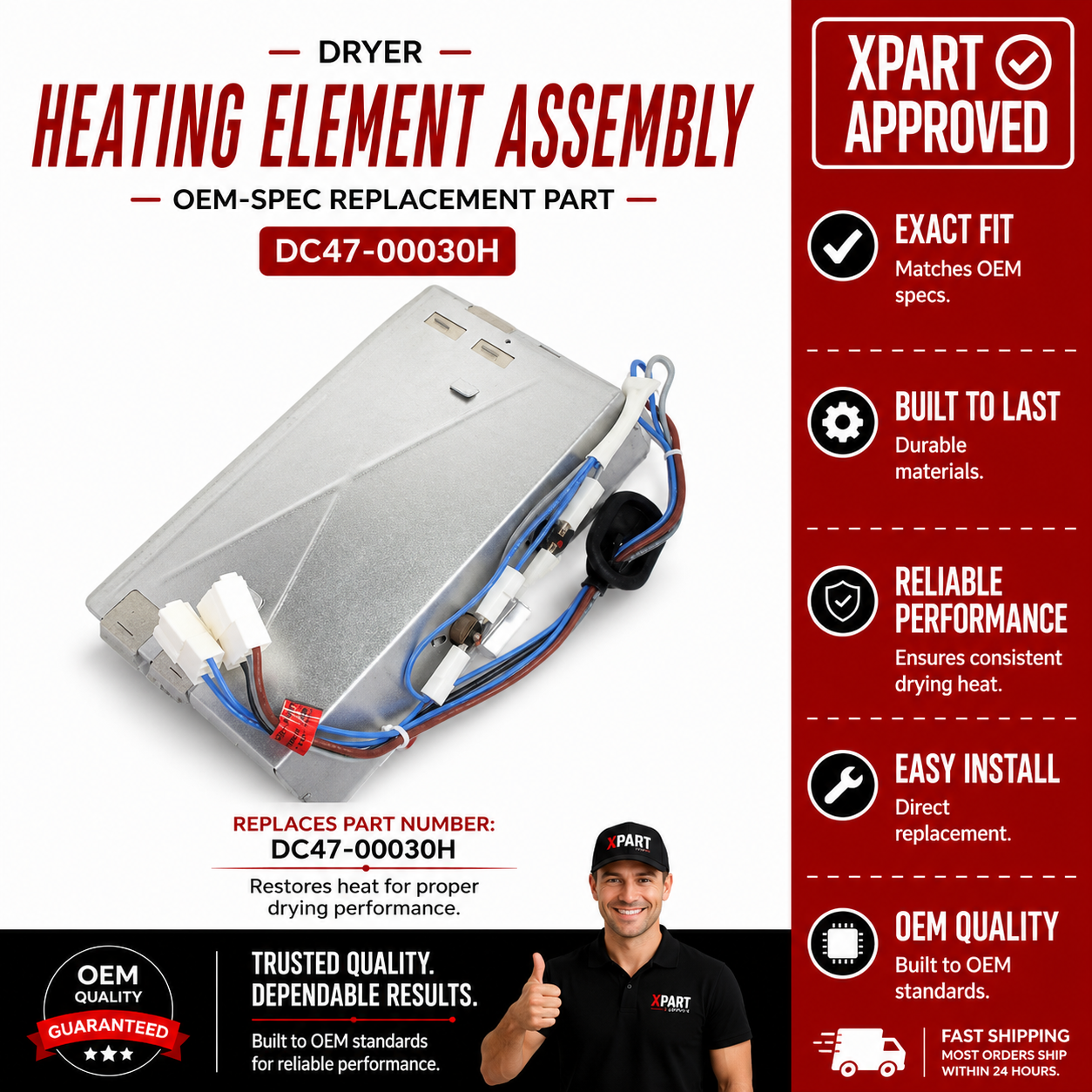

Samsung Dryer Heating Element Assembly DC47-00030H, Fixes Dryer Not Heating

Sale price
$277
Regular price
$302
You save
$25 (8%)

Frequently Bought Together

Stock Notification

Get notified when this product is available again
No Longer Available

Samsung Dryer Heating Element Assembly DC47-00030H — Fixes Dryer Not Heating

Restores full heat output to Samsung electric dryers. Genuine OEM assembly with element coil and housing.

Part DC47-00030H OEM Samsung Electric Dryer Complete Assembly

The Samsung DC47-00030H Heating Element Assembly is the genuine OEM replacement for Samsung electric dryers that run but produce no heat. This complete assembly includes the element coil and housing, restoring full drying performance when the original element coil burns out or breaks. Fitment must be confirmed by your appliance model number before ordering.

Is This the Right Part?

Part NumberDC47-00030H
ReplacesDC47-00030H — verify with your model number
ManufacturerSamsung
Appliance TypeElectric Dryer

Confirm the complete model number before ordering. Similar heating assemblies may differ in element wattage, housing dimensions, connector positions, or thermal component ratings.

Common Symptoms

  • Dryer runs but produces no heat — drum spins, air is cold
  • Clothes still damp after a full cycle — insufficient heat output
  • Dryer takes 2–3 cycles to dry a normal load
  • Dryer shuts off early — thermal cutoff tripped due to element failure
  • Burning smell from dryer before full heating failure
  • Error codes related to heating or temperature on Samsung display

Check Before Replacing

  • Confirm the dryer is electric (not gas) — this part does not apply to gas dryers
  • Verify 240V supply at the outlet — both legs of the circuit must be live
  • Test the thermal cutoff fuse (DC96-00887C) and high-limit thermostat (DC47-00016A) — these often fail alongside the element
  • Inspect the wiring harness to the element housing for damage or loose connections
Pro Tip: If the heating element burned out, the thermal cutoff fuse (DC96-00887C) and high-limit thermostat (DC47-00016A) almost certainly tripped or failed at the same time. Replacing only the element without replacing these safety components will cause the new element to burn out again quickly. Replace all three in the same visit.

Part Details

Part TypeHeating Element Assembly
Primary FunctionGenerates and regulates drying heat in Samsung electric dryers
Key FeatureComplete OEM assembly — coil and housing included
ConditionOEM

Installation Notes

  1. Disconnect power at the breaker before servicing — this assembly carries 240V AC.
  2. Photograph wiring harness connections and thermal component leads before disconnecting.
  3. Compare the new assembly with the original before installation.
  4. Inspect nearby wires, connectors, and thermal components for damage.
  5. Restore power and run a timed dry cycle to confirm full heat output.

Skill level: Moderate — approximately 45–60 minutes. Use a qualified appliance technician when diagnosis or installation is outside your experience.

Verified Compatible Models

No verified model numbers on file. Please contact us with your full model number (including suffixes and revision digits) to confirm fitment before ordering.

Fitment reminder: Match the complete model number, including suffixes and revision digits, before ordering.

✅Compatibility & Cross Reference

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
