Genuine OEM Replacement Part

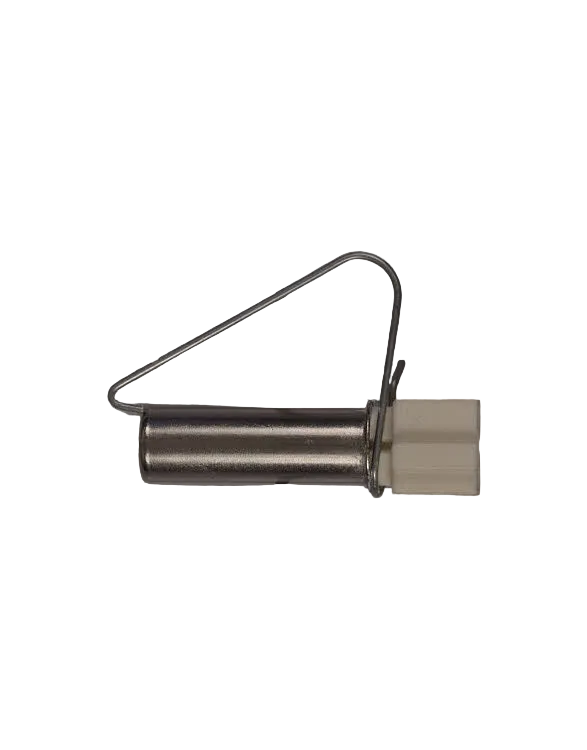

Whirlpool Dryer Not Heating, Overheating, or Shutting Off Early — W10834236 Dryer Thermistor
Part # W10834236
Fits Whirlpool · Maytag · Amana
KitchenAid · Kenmore
Whirlpool Dryer Not Heating or Overheating? Thermistor W10834236 – Fix Temperature Sensing Fast
When your Whirlpool dryer won't heat, shuts off too early, overheats, or runs excessively long, the thermistor is one of the first components to test. In most Whirlpool-built electric and gas dryers, the thermistor is a resistance-based temperature sensor that continuously reports drum air temperature to the control board — when it fails, the board loses accurate feedback and either cuts heat entirely or allows the dryer to overheat. ⚡ Common failure point in Whirlpool-built dryers. Part W10834236 is the genuine OEM replacement thermistor that restores accurate temperature sensing and returns your dryer to normal operation.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Your dryer powers on and tumbles normally — only heating or temperature control is the issue
- ✔ The thermal fuse has been tested and confirmed good (not blown)
- ✔ The heating element or gas igniter has been ruled out as the fault
- ✔ Venting is clear — no blockage or restriction in the exhaust duct
- ✔ ONLY problem is no heat, overheating, clothes still damp, or dryer shutting off too early
Not sure? Send us your model number — we'll confirm before you order.
🔧 Common Symptoms
- Dryer not heating — tumbles but produces no heat
- Dryer overheating — clothes come out extremely hot or scorched
- Dryer shuts off before clothes are dry — cycle ends too early
- Clothes still damp after a full cycle — dryer runs but doesn't dry
- Dryer runs excessively long to dry a normal load
- Control board error codes related to temperature sensing
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this thermistor restores normal dryer heating and cycle control immediately.
📦 Part Details
-
Part Number: W10834236
-
Type: Dryer Drum Thermistor / NTC Temperature Sensor
-
Replaces: OEM direct-fit thermistor for compatible Whirlpool-platform dryer models (no modification required)
-
Brands: Whirlpool, Maytag, Amana, KitchenAid, Kenmore
⚠️ Recommended While Repairing:
While the dryer is open, test the thermal fuse for continuity — a blown thermal fuse is the most common cause of no-heat and is often triggered by a failed thermistor allowing overheating. Replacing both at the same time prevents a repeat service call.
⚙️ Installation
Skill Level: Easy — 15–25 minutes. Disconnect power at the breaker or unplug the dryer before beginning. The thermistor is typically located on the exhaust duct inside the dryer cabinet — access requires removing the front or rear panel depending on your model. Disconnect the 2-wire harness connector, remove the single mounting screw, and install the new thermistor in reverse order. Restore power and run a test cycle to confirm normal heating behavior.
✓ Compatible Models
Confirmed compatible with select Whirlpool, Maytag, Amana, KitchenAid, and Kenmore dryer models. Contact us to verify your model number before ordering.
🔗 Model Hub Pages
No model-specific hub pages linked yet — contact us with your model number and we'll point you to the right parts breakdown.
💡 Pro Tip
Test the Thermistor with a Multimeter Before Ordering:
A healthy dryer thermistor reads approximately 10,000 ohms (10kΩ) at room temperature (70°F/21°C) — resistance drops as temperature rises. An open circuit (OL/infinite reading) or a reading far outside this range confirms thermistor failure. This 60-second test prevents ordering the wrong part when the real fault is the thermal fuse, heating element, or control board.
