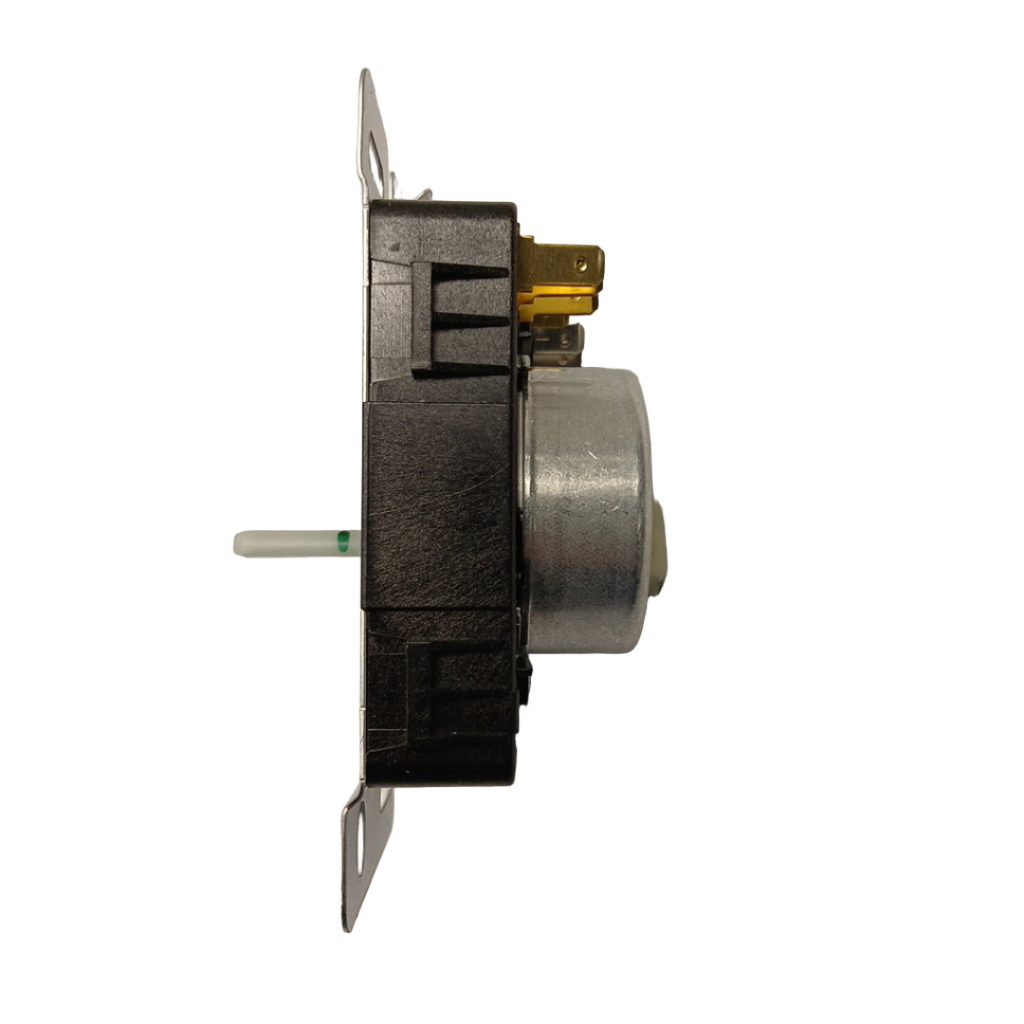

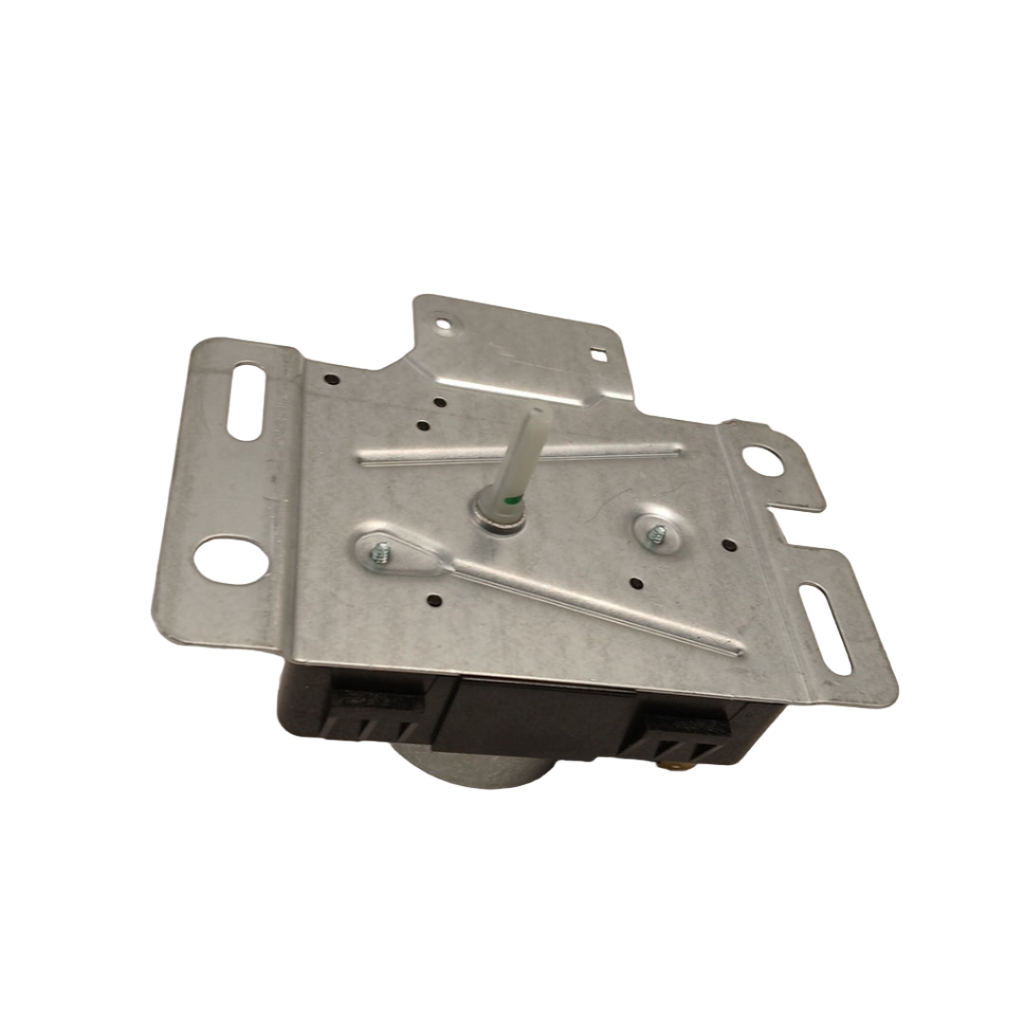

Whirlpool Dryer timer W10857612, Replaces W10436308, W10857612VP

Genuine Whirlpool OEM dryer timer used to control cycle timing and regulate when power is directed to selected dryer functions.

Is This the Right Part?

Common Symptoms

• Timer not working
• Dryer cycle does not complete correctly
• Dryer not heating when the timer fails to direct power properly

Check Before Replacing

• Confirm the timer is not advancing during a selected cycle.
• Before replacing the timer, check more commonly defective dryer components and use the appliance wiring diagram to test the timer with a multimeter.
• Verify the complete appliance model number before ordering.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM part
• Dryer timer assembly
• Controls cycle timing and power routing
• Used across selected Whirlpool-family dryer models

Installation Notes

• Disconnect electrical power before installation.
• Match the complete dryer model number and timer wiring/terminal arrangement before installation.
• Use the appliance wiring diagram when testing or reconnecting the timer.

Verified Compatible Models

4KMEDC215FW0, 4KMEDC410JW0, 4KNED3100JW0, 4KNED4605FW0, 4KWED4605FW0, 4KWED5600JW0, AED4516HW0, AED4516MW0, AED4516MW1, AED4675EW0, AED4675YQ0, AED4675YQ1, CED123SEW0, NED4600YQ0, NED4600YQ1, NED4655EW0, NED4655EW1, RED4516FW0, RED4516FW1, RED4640YQ0, RED4640YQ1, RED4645EW0, VDEW6511RW0, VED6505GW0, YIED4671DQ0, YIED4671EW0, YIED4671EW1, YNED4600YQ0, YNED4600YQ1, YNED4655EW1, YIED4600YQ0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
