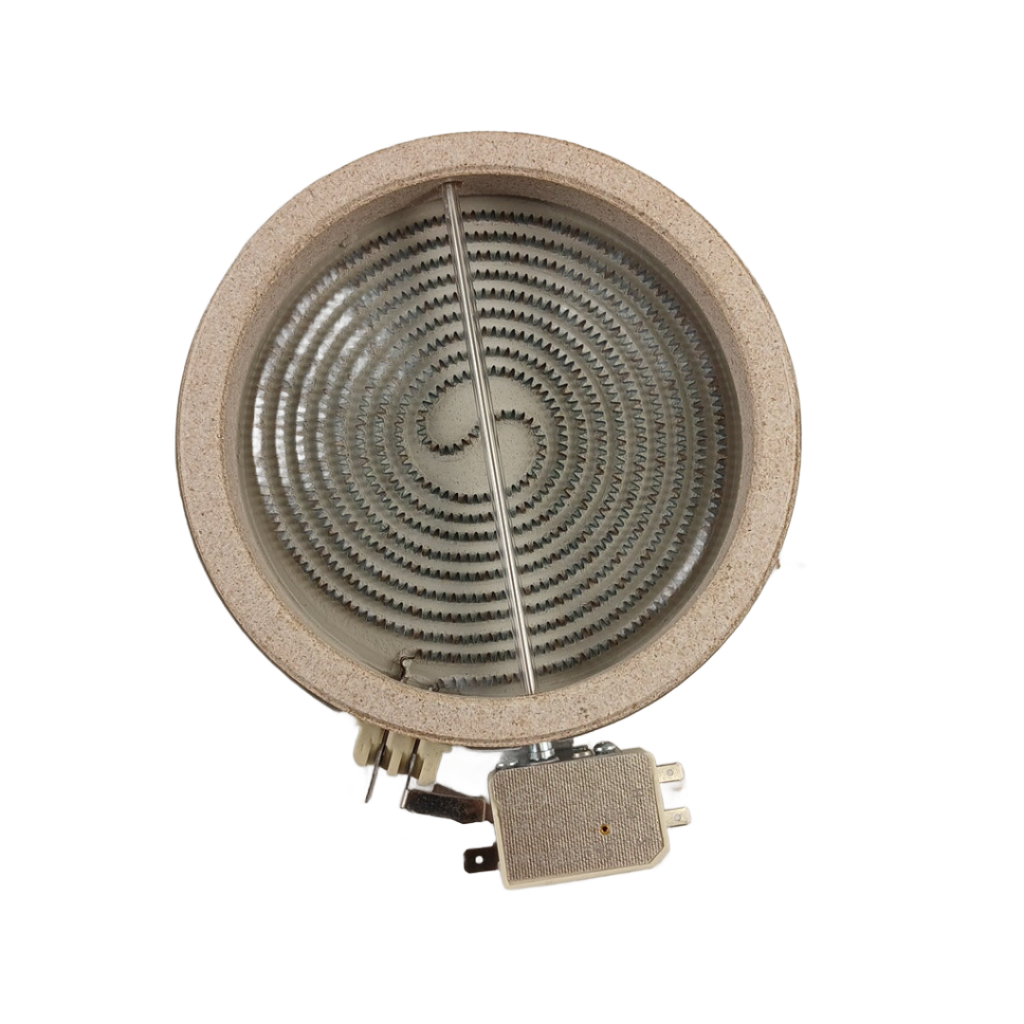

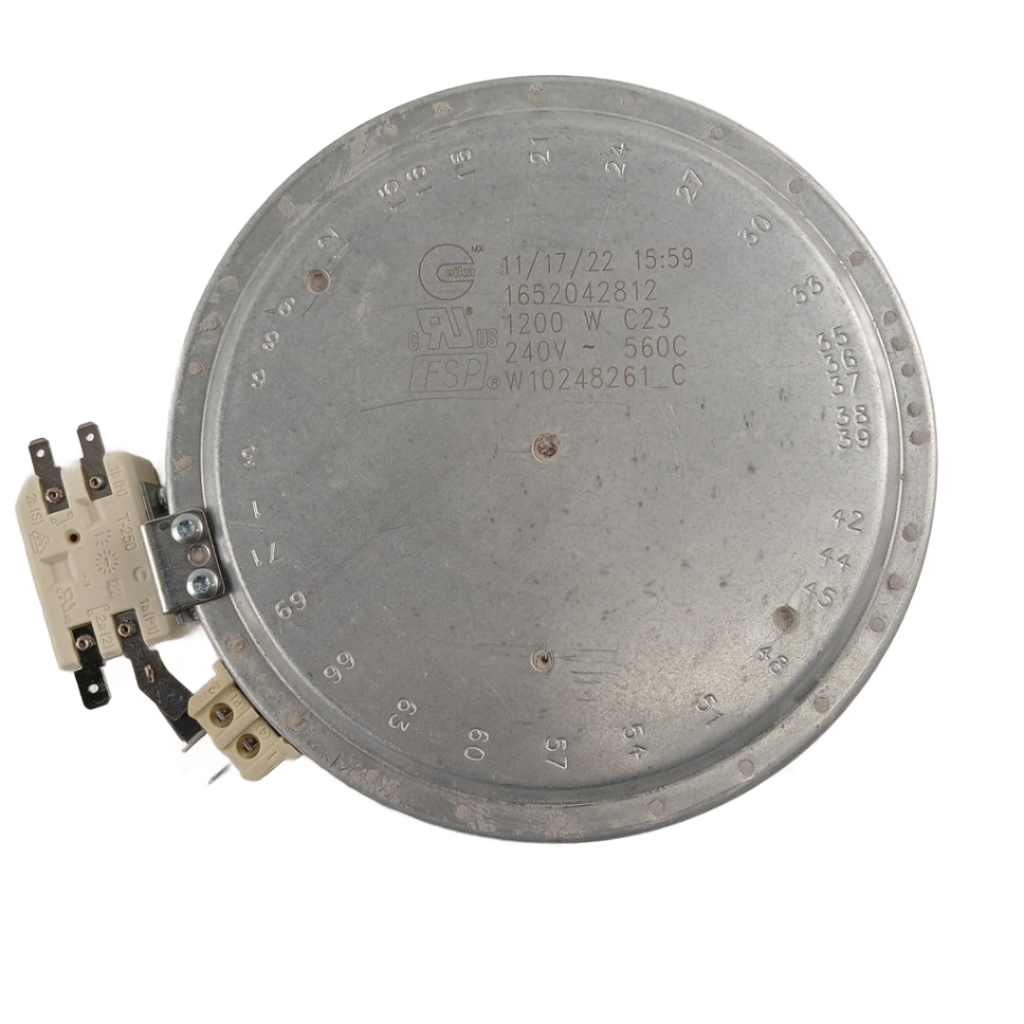

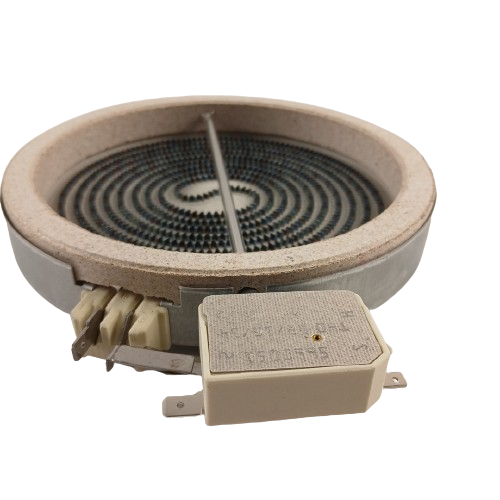

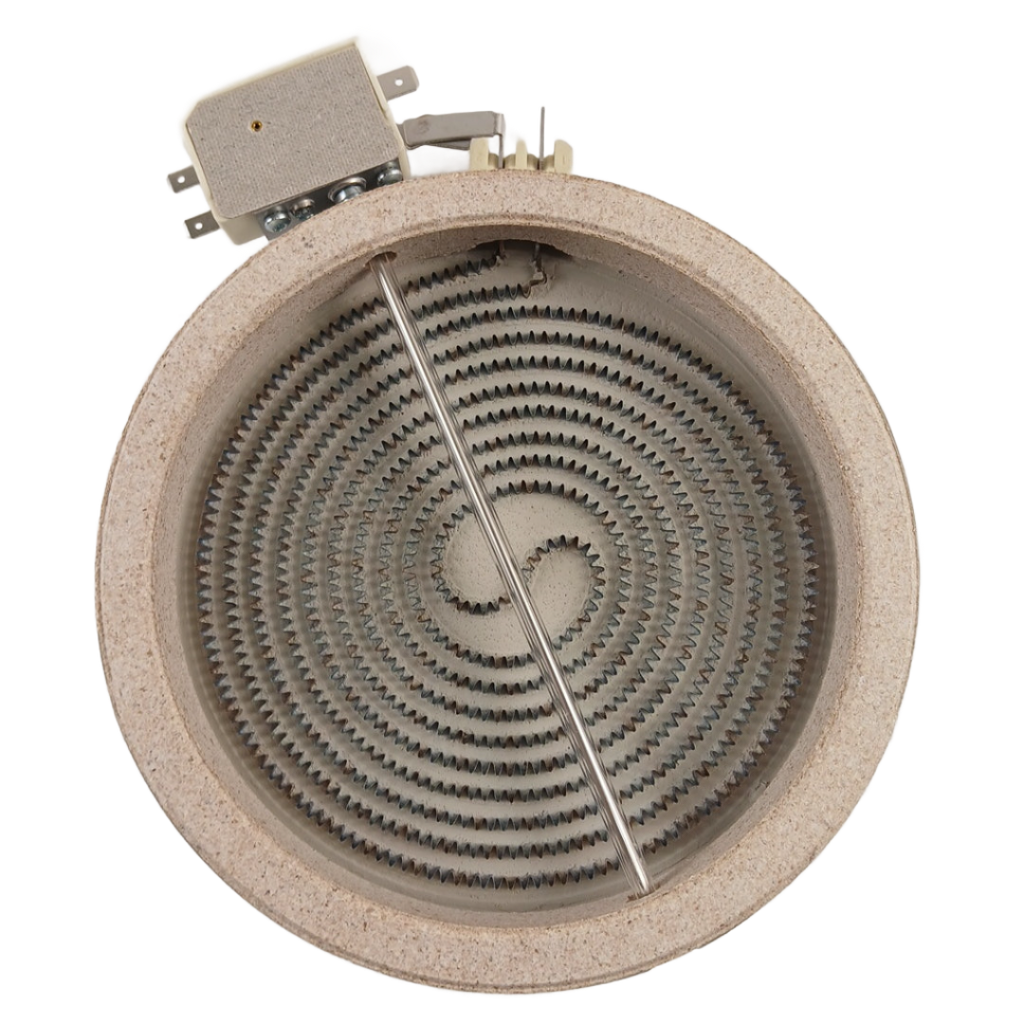

Radiant Surface Element, Glass Cooktop Element, Radiant Burner, Heating Element

8273994, W10248261, WP8273994

Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Kenmore (verify by model)

4KAER7685EW0, 4KAER7685EW1, 4KMER7685ES0, 4KMER7685ES1, 4KMER7685EW0, 4KMER7685EW1, 4KWFE7685ES0, 4KWFE7685ES1, 4KWFE7685EW0, 4KWFE7685EW1, 66495113610, 66495113611, 66495123610, 66495123612, 664C95113610, 664C95123610, 664C95123611, AEC6540KFB00, AEC6540KFB01, AER5822VAB0, AER5822VAD0, AER5822VAS0, AER5822VAW0, AER5822VCB0, AER5822VCS0, AER5822VCW0, AER5830VAB0, AER5830VAB1, AER5830VAD0, AER5830VAD1, AER5830VAS0, AER5830VAS1, AER5830VAW0, AER5830VAW1, AER5844VAB0, AER5844VAD0, AER5844VAS0, AER5844VAW0, AER6303MFB0, AER6303MFB1, AER6303MFB2, AER6303MFB3, AER6303MFB5, AER6303MFS0, AER6303MFS1, AER6303MFS2, AER6303MFS3, AER6303MFS5, AER6303MFW0, AER6303MFW1, AER6303MFW2, AER6303MFW3, AER6303MFW5, AER6303MMS0, AER6603SFB0, AER6603SFB1, AER6603SFB2, AER6603SFB3, AER6603SFS0, AER6603SFS1, AER6603SFS2, AER6603SFS3, AER6603SFS5, AER6603SFW0, AER6603SFW1, AER6603SFW2, AER6603SFW3, AER6603SFW5, AER6603SMS0, ARB210BAC, G7CE3034XB00, G7CE3034XC00, G7CE3034XP00, G7CE3034XS00, G7CE3055XB00, G7CE3055XS00, G7CE3635XB00, G7CE3635XB01, G7CE3635XP00, G7CE3635XP01, G7CE3635XS00, G7CE3635XS01, G7CE3655XB00, G7CE3655XB01, G7CE3655XS00, G7CE3655XS01, G9CE3065XB00, G9CE3065XB01, G9CE3065XS00, G9CE3065XS01, G9CE3074XB00, G9CE3074XS00, G9CE3675XB00, G9CE3675XB01, G9CE3675XS00, G9CE3675XS01, GFE461LVB0, GFE461LVB1, GFE461LVQ0, GFE461LVQ1, GFE461LVS0, GFE461LVS1, GFE461LVT0, GFE461LVT1, GGE350LWB00, GGE350LWQ00, GGE350LWS00, GGE388LXB00, GGE388LXB01, GGE388LXB02, GGE388LXB03, GGE388LXB04, GGE388LXQ00, GGE388LXQ01, GGE388LXQ02, GGE388LXQ03, GGE388LXQ04, GGE388LXS00, GGE388LXS01, GGE388LXS02, GGE388LXS03, GGE388LXS04, GGE390LXB00, GGE390LXB01, GGE390LXB02, GGE390LXB03, GGE390LXB04, GGE390LXQ00, GGE390LXQ01, GGE390LXQ02, GGE390LXQ03, GGE390LXQ04, GGE390LXS00, GGE390LXS01, GGE390LXS02, GGE390LXS03, GGE390LXS04, GR438LXRQ0, GR438LXRQ1, GR438LXRQ2, GY397LXUB03, GY397LXUQ04, GY397LXUS03, GY399LXUB03, GY399LXUQ05, GY399LXUS03, ICR444DB00, ICR444DB01, ICR555DB00, ICR555DB01, ICR555DB02, ICR555DW00, ICR555DW01, ICR555DW02, ICR655DB00, ICR655DB01, ICR655DB02, IEL730CS0, IEL730CS1, IEL730CS2, IER660GS0, IES360GW0, IES426AS1, IES505DS0, IES790GS0, IES900DS00, IES900DS01, IES900DS02, IES900DS03, IES900DS04, ISE630WS01, JEC3430BB00, JEC3430BS00, JEC3430HB00, JEC3430HS00, JEC3536HB00, JEC3536HS00, JEC4424HB00, JEC4424HB01, JEC4430BB00, JEC4430BS00, JEC4530YB00, JEC4530YS00, JEC4536BB00, JEC4536BS00, JEC4536HB00, JEC4536HB01, JEC4536HS00, JEC4536HS01, JEC4536YB00, JEC4536YS00, JED3430GB00, JED3430GB01, JED3430GS00, JED3430GS01, JED3430WB00, JED3430WB01, JED3430WF00, JED3430WF01, JED3430WS00, JED3430WS01, JED3536GB00, JED3536GB01, JED3536GS00, JED3536GS01, JED3536WB00, JED3536WB01, JED3536WB03, JED3536WB04, JED3536WF00, JED3536WF01, JED3536WF03, JED3536WF04, JED3536WS00, JED3536WS01, JED3536WS03, JED3536WS04, JED4430GB00, JED4430GB01, JED4430GS00, JED4430GS01, JED4430WB00, JED4430WB01, JED4430WB02, JED4430WR00, JED4430WR01, JED4430WR02, JED4430WS00, JED4430WS01, JED4430WS02, JED4536GB00, JED4536GS00, JED4536GS01, JED4536WB00, JED4536WB01, JED4536WB02, JED4536WR00, JED4536WR01, JED4536WR02, JED4536WS00, JED4536WS01, JED4536WS02, JES1450CDB0, JES1450CDB1, JES1450CDS0, JES1450CDS1, JES1450CFB0, JES1450CFB1, JES1450CFS0, JES1450CFS1, JES1450CFS2, JES1450DB0, JES1450DS0, JES1450DS1, JES1450FB1, JES1450FS0, JES1450FS1, JES1450FS2, JES1750CEB0, JES1750CES0, JES1750EB0, JES1750EB1, JES1750ES0, JES1750ES1, JES1750FB0, JES1750FB1, JES1750FS0, JES1750FS1, JES8850CAB01, JES8850CAF01, JES8850CAS01, JES8850CAS02, JES8860CCS02, JES9800CAB01, JES9800CAF01, JES9800CAR01, JES9800CAS02, JES9900CCB01, JES9900CCS00, JES9900CCS02, JES9900CCW01, KCED600GBL00, KCED600GBL01, KCED600GSS00, KCED600GSS01, KCED606GBL00, KCED606GBL01, KCED606GSS00, KCED606GSS01, KCES550HBL00, KCES550HSS00, KCES556HBL00, KCES556HSS00, KCES950HBL00, KCES950HBL01, KCES950HSS00, KCES950HSS01, KCES956HBL00, KCES956HBL01, KCES956HSS00, KCES956HSS01, KECC056RBL05, KECC056RBL06, KECC602BBL00, KECC602BSS00, KECC604BBL00, KECC604BSS00, KECC605BBL00, KECC605BPW00, KECC605BSS00, KECC607BBL00, KECC607BBL01, KECC607BBL02, KECC607BSS00, KECC607BSS01, KECC607BSS02, KECC662BBL00, KECC662BPW00, KECC662BSS00, KECC667BBL00, KECC667BBL01, KECC667BBL02, KECC667BSS00, KECC667BSS01, KECC667BSS02, KECD807XBL00, KECD807XBL01, KECD807XS00, KECD807XSS00, KECD807XSS01, KECD867XBL00, KECD867XBL01, KECD867XBL02, KECD867XSS00, KECD867XSS01, KECD867XSS02, KERA205PBL0, KERA205PBL1, KERA205PBL2, KERA205PBL3, KERA205PBL4, KERA205PBL5, KERA205PBT0, KERA205PBT1, KERA205PBT2, KERA205PBT3, KERA205PBT4, KERA205PBT5, KERA205PSS0, KERA205PSS1, KERA205PSS2, KERA205PSS3, KERA205PSS4, KERA205PSS5, KERA205PWH0, KERA205PWH1, KERA205PWH2, KERA205PWH3, KERA205PWH4, KERA205PWH5, KERI201PBL0, KERI201PBL1, KERI201PBL2, KERI201PBL3, KERI201PBL4, KERI201PBS0, KERI201PBS1, KERI201PBS2, KERI201PBS3, KERI201PBS4, KERI201PWH0, KERI201PWH1, KERI201PWH2, KERI201PWH3, KERI201PWH4, KERI203PBL0, KERI203PBL2, KERI203PBL3, KERI203PBS0, KERI203PBS2, KERI203PBS3, KERI203PBS4, KERI203PWH0, KERI203PWH2, KERI203PWH3, KERS202BBL0, KERS202BSS0, KERS202BSS1, KERS202BWH0, KERS205TBL4, KERS205TBL5, KERS205TBT4, KERS205TSS4, KERS205TSS5, KERS205TWH4, KERS205TWH5, KERS303BBL0, KERS303BBL1, KERS303BSS0, KERS303BSS1, KERS303BWH0, KERS303BWH1, KERS306BSS0, KERS306BSS1, KERS505XBL00, KERS505XBL01, KERS505XBL02, KERS505XBL03, KERS505XBL05, KERS505XSS00, KERS505XSS01, KERS505XSS02, KERS505XSS03, KERS505XSS05, KERS505XWH00, KERS505XWH01, KERS505XWH02, KERS505XWH03, KERS505XWH05, KERS507XSS00, KERS507XSS01, KERS507XSS02, KFED500EBL00, KFED500EBL01, KFED500EBL02, KFED500EBL03, KFED500EBS00, KFED500EBS03, KFED500ESS00, KFED500ESS01, KFED500ESS02, KFED500ESS03, KFED500EWH00, KFED500EWH01, KFED500EWH02, KFED500EWH03, KFEG500EBL0, KFEG500EBL2, KFEG500EBL3, KFEG500EBS1, KFEG500EBS2, KFEG500EBS3, KFEG500ESS0, KFEG500ESS1, KFEG500ESS2, KFEG500ESS3, KFEG500EWH0, KFEG500EWH2, KFEG500EWH3, KFEG504KPS0, KFES530ESS0, KFES530ESS1, KFES530ESS2, KSEB900EBL0, KSEB900ESS0, KSEB900ESS1, KSEB900ESS2, KSEB900ESS3, KSEB900EWH0, KSEG700EBL0, KSEG700EBL1, KSEG700EBS0, KSEG700EBS1, KSEG700EBS2, KSEG700EBS3, KSEG700ESS0, KSEG700ESS1, KSEG700ESS2, KSEG700ESS3, KSEG700EWH0, KSEG700EWH1, KSEG950ESS0, KSEG950ESS1, KSEG950ESS2, MEC7430BB00, MEC7430BB01, MEC7430BB02, MEC7430BB03, MEC7430BS00, MEC7430BS01, MEC7430BS02, MEC7430BW00, MEC7430BW01, MEC7430BW02, MEC7430BW03, MEC7430WB00, MEC7430WB01, MEC7430WS00, MEC7430WS01, MEC7430WW00, MEC7430WW01, MEC7536WB00, MEC7536WB01, MEC7536WS00, MEC7536WS01, MEC7536WW00, MEC7536WW01, MEC7630WB00, MEC7630WB01, MEC7630WS00, MEC7630WS01, MEC7630WW00, MEC7630WW01, MEC7636WB00, MEC7636WB01, MEC7636WS00, MEC7636WS01, MEC7636WW00, MEC8830HB00, MEC8830HS00, MEC8836HS00, MEC9530BB00, MEC9530BB01, MEC9530BB02, MEC9530BS00, MEC9530BS01, MEC9536BB00, MEC9536BB01, MEC9536BB02, MEC9536BB03, MEC9536BS00, MEC9536BS01, MEC9536BS02, MER6600FB0, MER6600FB1, MER6600FB2, MER6600FW0, MER6600FW1, MER6600FW2, MER6600FW3, MER6600FZ0, MER6600FZ1, MER6600FZ2, MER6600FZ3, MER6741BAB17, MER6741BAS17, MER6741BAW17, MER6751AAB23, MER6751AAS24, MER6751AAW24, MER6755AAB24, MER6755AAQ25, MER6755AAS26, MER6755AAW25, MER6755ABW25, MER6755ACB24, MER6755ACS26, MER6757BAB14, MER6757BAB15, MER6757BAQ14, MER6757BAQ15, MER6757BAS15, MER6757BAW14, MER6757BAW15, MER6765BAB17, MER6765BAQ17, MER6765BAS18, MER6765BAW17, MER6775BAB17, MER6775BAF17, MER6775BAN17, MER6775BAS18, MER6775BCB17, MER6775BCS17, MER6775BCW17, MER6875BAB17, MER6875BAF17, MER6875BAS18, MER6875BCB17, MER6875BCS17, MER6875BCW17, MER7662WB0, MER7662WB1, MER7662WB2, MER7662WB3, MER7662WQ1, MER7662WQ2, MER7662WQ3, MER7662WS0, MER7662WS1, MER7662WS2, MER7662WS3, MER7662WT0, MER7662WW0, MER7662WW1, MER7662WW2, MER7662WW3, MER7685BB0, MER7685BS0, MER7685BW0, MER7775WB2, MER7775WS2, MER7775WW2, MER8600DE0, MER8600DH0, MER8600DS0, MER8650ES0, MER8650FZ0, MER8650FZ1, MER8670AB0, MER8670AS0, MER8670AW0, MER8674AB0, MER8674AS0, MER8674AW0, MER8680BB0, MER8680BS0, MER8680BW0, MER8700DB0, MER8700DB1, MER8700DE0, MER8700DE1, MER8700DH0, MER8700DH1, MER8700DS0, MER8700DS1, MER8700DS2, MER8700DW0, MER8700DW1, MER8770WB0, MER8770WB1, MER8770WQ0, MER8770WQ1, MER8770WS0, MER8770WS1, MER8770WW0, MER8770WW1, MER8772WB0, MER8772WB1, MER8772WS0, MER8772WS1, MER8772WW0, MER8772WW1, MER8775AB0, MER8775AS0, MER8775AW0, MER8800DE0, MER8800DE1, MER8800DH0, MER8800DH1, MER8800DS0, MER8800DS1, MER8800FB0, MER8800FB1, MER8800FW0, MER8800FW1, MER8800FZ0, MER8800FZ1, MER8800FZ2, MER8800HK0, MER8850DS0, MER8850DS1, MER8875WB0, MER8875WB1, MER8875WS0, MER8875WS1, MER8875WW0, MER8875WW1, MES5752BAB16, MES5752BAS17, MES5752BAW16, MES5875BAS21, MES8800FZ0, MES8800FZ1, MES8800FZ2, MES8880DE0, MES8880DH0, MES8880DS0, MET8665XB00, MET8665XB01, MET8665XB02, MET8665XS00, MET8665XS01, MET8665XS02, MET8665XW00, MET8665XW01, MET8665XW02, MET8720DE00, MET8720DE01, MET8720DE02, MET8720DE03, MET8720DH00, MET8720DH01, MET8720DH02, MET8720DH03, MET8720DS00, MET8720DS01, MET8720DS02, MET8720DS03, MET8776BB00, MET8776BS00, MET8776BW00, MET8800FZ00, MET8800FZ01, MET8820DS00, MET8820DS01, MET8820DS02, MET8820DS03, MET8885XB00, MET8885XB01, MET8885XB02, MET8885XS00, MET8885XS01, MET8885XS02, MET8885XW00, MET8885XW01, MET8885XW02, NNT199KAC, RF262LXSB1, RF262LXSB2, RF262LXSB3, RF262LXSB4, RF262LXSQ1, RF262LXSQ2, RF262LXSQ3, RF262LXSQ4, RF262LXST1, RF262LXST2, RF262LXST3, RF262LXST4, RF262LXSW1, RF265LXTB0, RF265LXTB1, RF265LXTB2, RF265LXTB3, RF265LXTQ0, RF265LXTQ1, RF265LXTQ2, RF265LXTQ3, RF265LXTS0, RF265LXTS1, RF265LXTS2, RF265LXTS3, RF265LXTT0, RF265LXTT1, RF265LXTT2, RF265LXTT3, RF265LXTY0, RF265LXTY1, RF265LXTY2, RF265LXTY3, RF272LXTD0, RF272LXTD1, RF272LXTD2, RF272LXTD3, RF362LXSB0, RF362LXSB1, RF362LXSQ0, RF362LXSQ1, RF362LXSS0, RF362LXSS1, RF362LXST0, RF362LXST1, RF362LXTB0, RF362LXTB1, RF362LXTB2, RF362LXTB3, RF362LXTQ0, RF362LXTQ1, RF362LXTQ2, RF362LXTQ3, RF362LXTS0, RF362LXTS1, RF362LXTS2, RF362LXTS3, RF362LXTT0, RF362LXTT1, RF362LXTT2, RF362LXTT3, RF362LXTY0, RF366PXGQ2, RF366PXGT2, RF366PXGW2, RF367LXSB1, RF367LXSB2, RF367LXSB3, RF367LXSB4, RF367LXSQ1, RF367LXSQ2, RF367LXSQ3, RF367LXSQ4, RF367LXSS1, RF367LXSS2, RF367LXSS3, RF367LXSS4, RF367LXSY1, RF367LXSY2, RF367LXSY3, RF367LXSY4, RF368LXKB0, RF368LXKB1, RF368LXKP0, RF368LXKQ0, RF368LXKQ1, RF368LXKS1, RF368LXKT0, RF368LXKT1, RF368LXKV0, RF368LXKW0, RF368LXMB0, RF368LXMQ0, RF368LXMS0, RF368LXMT0, RF368LXPB0, RF368LXPB1, RF368LXPB2, RF368LXPB3, RF368LXPQ0, RF368LXPQ1, RF368LXPQ2, RF368LXPQ3, RF368LXPS0, RF368LXPS1, RF368LXPS2, RF368LXPS3, RF368LXPT0, RF368LXPT1, RF368LXPT2, RF368LXPT3, RF370LXPB0, RF370LXPB1, RF370LXPQ0, RF370LXPQ1, RF370LXPQ2, RF370LXPQ3, RF370LXPS0, RF370LXPS1, RF370LXPS2, RF370LXPS3, RF370LXPT0, RF370LXPT1, RF370LXPT2, RF370LXPT3, RF376LXGN2, RF376LXGT2, RF376LXGW2, RF378LXKB0, RF378LXKQ0, RF378LXKT0, RF386PXGB3, RF386PXGN3, RF386PXGQ3, RF386PXGT3, RF386PXGW3, RF386PXGZ3, RF388LXGQ3, RF388LXGT3, RF388LXGZ3, RF390LXKP0, RF390LXKQ0, RF390LXKT0, RF462LXSB1, RF462LXSB2, RF462LXSB3, RF462LXSB4, RF462LXSQ1, RF462LXSQ2, RF462LXSQ3, RF462LXSQ4, RF462LXSS1, RF462LXSS2, RF462LXSS3, RF462LXSS4, RF462LXST1, RF462LXST2, RF462LXST3, RF462LXST4, SES380MS0, W5CE1522FB00, W5CE1522FB01, W5CE3024XB00, W5CE3024XS00, W5CE3024XW00, W5CE3625AB00, WCE55US0HB00, WCE55US0HB01, WCE55US0HS00, WCE55US0HS01, WCE55US0HW00, WCE55US0HW01, WCE55US4HB00, WCE55US6HB00, WCE77US0HB00, WCE77US0HB01, WCE77US0HS00, WCE77US0HS01, WCE77US0HW00, WCE77US0HW01, WCE77US6HB00, WCE77US6HS00, WCE97US0HB00, WCE97US0HB01, WCE97US0HS00, WCE97US0HS01, WCE97US6HB00, WCE97US6HB01, WCE97US6HS00, WCE97US6HS01, WDE350LVB02, WDE350LVQ02, WDE350LVS02, WEE510S0FB0, WEE510S0FB1, WEE510S0FB2, WEE510S0FS0, WEE510S0FS1, WEE510S0FS2, WEE510S0FV1, WEE510S0FV2, WEE510S0FW0, WEE510S0FW1, WEE510S0FW2, WEE510SAGB0, WEE510SAGB1, WEE510SAGS0, WEE510SAGS1, WEE510SAGW0, WEE510SAGW1, WEE730H0DB0, WEE730H0DS0, WEE730H0DW0, WEE745H0FE0, WEE745H0FE1, WEE745H0FE2, WEE745H0FH0, WEE745H0FH1, WEE745H0FH2, WEE745H0FS0, WEE745H0FS1, WEE745H0FS2, WEE750H0HB0, WEE750H0HB1, WEE750H0HV0, WEE750H0HV1, WEE750H0HW0, WEE750H0HW1, WEE750H0HZ0, WEE750H0HZ1, WEE760H0DE0, WEE760H0DH0, WEE760H0DS0, WEEA25H0HN0, WEEA25H0HN1, WEEA25H0HZ0, WEEA25H0HZ1, WERE4100PB0, WERE4100PB2, WERE4100PB3, WERE4100PQ0, WERE4100PQ2, WERE4100PQ3, WERE4100PT0, WERE4200PQ0, WERE4200PQ1, WERE4200PQ2, WERE4200PQ3, WERP4110PQ0, WERP4110PQ1, WERP4110PQ2, WERP4110PQ3, WERP4110PS0, WERP4110PS1, WERP4110PS2, WERP4110PS3, WERP4110PT0, WERP4110PT1, WERP4210PQ0, WERP4210PQ1, WERP4210PQ2, WERP4210PQ3, WFE320M0AB0, WFE320M0AS0, WFE320M0AW0, WFE320M0EB0, WFE320M0EB1, WFE320M0EB2, WFE320M0ES0, WFE320M0ES1, WFE320M0ES2, WFE320M0EW0, WFE320M0EW1, WFE320M0EW2, WFE320M0JB0, WFE320M0JS0, WFE320M0JS1, WFE320M0JW0, WFE330W0AB0, WFE330W0AS0, WFE330W0AW0, WFE364LVB0, WFE364LVD0, WFE364LVQ0, WFE364LVS0, WFE364LVT0, WFE366LVB0, WFE366LVB1, WFE366LVQ0, WFE366LVQ1, WFE366LVS0, WFE366LVS1, WFE366LVT0, WFE366LVT1, WFE505W0HB0, WFE505W0HB1, WFE505W0HB2, WFE505W0HB3, WFE505W0HS0, WFE505W0HS1, WFE505W0HW0, WFE505W0HW1, WFE505W0HW2, WFE505W0HW3, WFE505W0HZ0, WFE505W0HZ1, WFE505W0JS0, WFE505W0JS1, WFE505W0JV0, WFE505W0JV1, WFE505W0JZ0, WFE505W0JZ1, WFE510S0AB0, WFE510S0AD0, WFE510S0AS0, WFE510S0AT0, WFE510S0AW0, WFE510S0HB0, WFE510S0HB1, WFE510S0HS0, WFE510S0HS1, WFE510S0HW0, WFE510S0HW1, WFE515S0EB0, WFE515S0EB1, WFE515S0EB2, WFE515S0ED0, WFE515S0ED1, WFE515S0ES0, WFE515S0ES1, WFE515S0ES2, WFE515S0ET0, WFE515S0ET1, WFE515S0ET2, WFE515S0EW0, WFE515S0EW1, WFE515S0EW2, WFE515S0JB0, WFE515S0JB1, WFE515S0JS0, WFE515S0JS1, WFE515S0JW0, WFE515S0JW1, WFE520C0AB0, WFE520C0AS0, WFE520C0AW0, WFE520S0FS0, WFE520S0FS1, WFE520S0FS2, WFE524CLAB0, WFE524CLAS0, WFE524CLAW0, WFE524CLBB0, WFE524CLBS0, WFE524CLBW0, WFE525C0BB0, WFE525C0BS0, WFE525C0BW0, WFE525S0HB0, WFE525S0HB1, WFE525S0HD0, WFE525S0HS0, WFE525S0HS1, WFE525S0HT0, WFE525S0HT1, WFE525S0HV0, WFE525S0HV1, WFE525S0HW0, WFE525S0HW1, WFE525S0HZ0, WFE525S0HZ1, WFE525S0JB0, WFE525S0JB1, WFE525S0JS0, WFE525S0JS1, WFE525S0JT0, WFE525S0JV0, WFE525S0JV1, WFE525S0JW0, WFE525S0JW1, WFE525S0JZ0, WFE525S0JZ1, WFE530C0EB0, WFE530C0EB1, WFE530C0ES0, WFE530C0ES1, WFE530C0EW0, WFE530C0EW1, WFE535S0JS0, WFE535S0JS1, WFE535S0JV0, WFE535S0JZ0, WFE535S0JZ1, WFE540H0AB0, WFE540H0AB1, WFE540H0AE0, WFE540H0AE1, WFE540H0AH0, WFE540H0AH1, WFE540H0AS0, WFE540H0AS1, WFE540H0AW0, WFE540H0AW1, WFE540H0EB0, WFE540H0EB1, WFE540H0EE0, WFE540H0EE1, WFE540H0EH0, WFE540H0EH1, WFE540H0ES0, WFE540H0ES1, WFE540H0ES2, WFE540H0EW0, WFE540H0EW1, WFE550S0HB0, WFE550S0HB1, WFE550S0HV0, WFE550S0HV1, WFE550S0HW0, WFE550S0HW1, WFE550S0HW2, WFE550S0HZ0, WFE550S0HZ1, WFE550S0HZ2, WFE710H0AE0, WFE710H0AE1, WFE710H0AH0, WFE710H0AH1, WFE710H0AS0, WFE710H0AS1, WFE714HLAS0, WFE714HLAS1, WFE715H0EE0, WFE715H0EH0, WFE715H0ES0, WFE720H0AS0, WFE720H0AS1, WFE745H0FE0, WFE745H0FE1, WFE745H0FH0, WFE745H0FH1, WFE745H0FS0, WFE745H0FS1, WFE745H0FS2, WFE770H0FZ0, WFE770H0FZ1, WFE770H0FZ2, WFE775H0HB0, WFE775H0HB1, WFE775H0HV0, WFE775H0HV1, WFE775H0HW0, WFE775H0HW1, WFE775H0HZ0, WFE775H0HZ1, WFE905C0ES0, WFE975H0HV0, WFE975H0HV1, WFE975H0HZ0, WFE975H0HZ1, WGE555S0BB00, WGE555S0BB01, WGE555S0BB02, WGE555S0BB03, WGE555S0BS00, WGE555S0BS01, WGE555S0BS02, WGE555S0BS03, WGE555S0BW00, WGE555S0BW01, WGE555S0BW02, WGE555S0BW03, WGE745C0FE00, WGE745C0FE01, WGE745C0FH00, WGE745C0FH01, WGE745C0FS00, WGE745C0FS01, WGE755C0BE00, WGE755C0BE01, WGE755C0BE02, WGE755C0BH00, WGE755C0BH01, WGE755C0BH02, WGE755C0BS00, WGE755C0BS01, WGE755C0BS02, YAER6303MFS0, YAER6303MFS1, YAER6303MFS2, YAER6303MFS3, YAER6303MFS5, YAER6303MFW0, YAER6303MFW1, YAER6303MFW2, YAER6303MFW3, YAER6303MFW5, YAER6303MMS0, YAER6603SFB0, YAER6603SFS0, YAER6603SFS1, YAER6603SFS2, YAER6603SFS3, YAER6603SFS5, YAER6603SFW0, YAER6603SFW1, YAER6603SFW2, YAER6603SFW3, YAER6603SFW5, YAER6603SMS0, YAES6603SFS0, YAES6603SFS1, YAES6603SFS2, YAES6603SFS3, YAES6603SFS5, YAES6603SFW0, YAES6603SFW1, YAES6603SFW2, YAES6603SFW3, YAES6603SFW5, YGFE461LVB1, YGFE461LVQ1, YGFE461LVS1, YGFE471LVQ1, YGFE471LVS1, YGGE390LXQ00, YGGE390LXQ03, YGGE390LXS00, YGGE390LXS03, YGY397LXUB04, YGY397LXUQ05, YGY397LXUS04, YGY399LXUB04, YGY399LXUQ06, YGY399LXUS04, YIEL730CS0, YIEL730CS1, YIEL730CS2, YIER660GS0, YIES360GW0, YIES426AS1, YIES505DS0, YIES505DS1, YIES790GS0, YIES900DS00, YIES900DS01, YIES900DS02, YIES900DS03, YIES900DS04, YISE630WS01, YKER507XSS00, YKER507XSS01, YKER507XSS02, YKER507XSS04, YKERA205PB0, YKERA205PB1, YKERA205PB2, YKERA205PB3, YKERA205PB4, YKERA205PB6, YKERA205PS0, YKERA205PS1, YKERA205PS2, YKERA205PS3, YKERA205PS4, YKERA205PS6, YKERA205PT0, YKERA205PT1, YKERA205PT2, YKERA205PT3, YKERA205PT4, YKERA205PW0, YKERA205PW1, YKERA205PW2, YKERA205PW3, YKERA205PW4, YKERA205PW6, YKERI201PW0, YKERI201PW1, YKERI201PW3, YKERI203PT0, YKERI203PT1, YKERI203PW0, YKERI203PW1, YKERS202BSS0, YKERS202BSS1, YKERS202BWH0, YKERS202BWH1, YKERS205TS4, YKERS205TS5, YKERS303BBL0, YKERS303BBL1, YKERS303BSS0, YKERS303BSS1, YKERS303BWH0, YKERS303BWH1, YKERS306BSS0, YKERS306BSS1, YKFED500EBS0, YKFED500EBS3, YKFED500ESS0, YKFED500ESS1, YKFED500ESS2, YKFED500ESS3, YKFEG500EBL0, YKFEG500EBL2, YKFEG500EBS1, YKFEG500EBS2, YKFEG500EBS3, YKFEG500EBS4, YKFEG500ESS0, YKFEG500ESS1, YKFEG500ESS2, YKFEG500ESS3, YKFEG500ESS4, YKFEG500EWH0, YKFEG500EWH2, YKFEG500EWH3, YKFEG500EWH4, YKFEG510ESS0, YKFEG510ESS1, YKFEG510ESS2, YKFEG510ESS3, YKFES530ESS0, YKFES530ESS1, YKFES530ESS2, YKSEB900EBL0, YKSEB900ESS0, YKSEB900ESS1, YKSEB900ESS2, YKSEB900ESS3, YKSEB900EWH0, YKSEB900EWH1, YKSEB900EWH2, YKSEB900EWH3, YKSEG700EBL0, YKSEG700EBS1, YKSEG700EBS2, YKSEG700EBS3, YKSEG700ESS0, YKSEG700ESS1, YKSEG700ESS2, YKSEG700ESS3, YKSEG700EWH0, YKSEG950ESS0, YMER6600FB0, YMER6600FB1, YMER6600FB2, YMER6600FW0, YMER6600FW1, YMER6600FW2, YMER6600FW3, YMER6600FZ0, YMER6600FZ1, YMER6600FZ2, YMER7651WB0, YMER7651WB1, YMER7651WB2, YMER7651WS0, YMER7651WS1, YMER7651WS2, YMER7651WW0, YMER7651WW1, YMER7651WW2, YMER7662WB0, YMER7662WB1, YMER7662WB2, YMER7662WS1, YMER7662WS2, YMER7662WW0, YMER7662WW1, YMER7662WW2, YMER7685BB0, YMER7685BS0, YMER7685BW0, YMER7765WB2, YMER7765WS2, YMER7765WW2, YMER8600DE0, YMER8600DH0, YMER8600DS0, YMER8650FZ0, YMER8650FZ1, YMER8670AB0, YMER8670AS0, YMER8670AW0, YMER8700DB0, YMER8700DB1, YMER8700DE0, YMER8700DE1, YMER8700DH0, YMER8700DH1, YMER8700DS0, YMER8700DS1, YMER8700DW0, YMER8700DW1, YMER8772WB0, YMER8772WB1, YMER8772WS0, YMER8772WS1, YMER8772WW0, YMER8772WW1, YMER8775AS0, YMER8775BS0, YMER8800DE0, YMER8800DE1, YMER8800DH0, YMER8800DH1, YMER8800DS0, YMER8800DS1, YMER8800FB0, YMER8800FB1, YMER8800FW0, YMER8800FW1, YMER8800FW2, YMER8800FZ0, YMER8800FZ1, YMER8800FZ2, YMER8800FZ3, YMER8800HK0, YMER8850DS0, YMER8850DS1, YMER8875WB0, YMER8875WB1, YMER8875WS0, YMER8875WS1, YMER8875WW0, YMER8875WW1, YMERH770WB0, YMERH770WB1, YMERH770WS0, YMERH770WS1, YMERH770WW0, YMERH770WW1, YMES8800FZ0, YMES8800FZ1, YMES8800FZ2, YMES8880DE0, YMES8880DH0, YMES8880DS0, YMET8665XB00, YMET8665XB02, YMET8665XS00, YMET8665XS02, YMET8665XW00, YMET8665XW02, YMET8720DE00, YMET8720DE01, YMET8720DE02, YMET8720DE03, YMET8720DH00, YMET8720DH01, YMET8720DH02, YMET8720DH03, YMET8720DS00, YMET8720DS01, YMET8720DS02, YMET8720DS03, YMET8800FZ00, YMET8800FZ01, YMET8820DS00, YMET8820DS01, YMET8820DS02, YMET8820DS03, YMET8885XB00, YMET8885XB02, YMET8885XS00, YMET8885XS02, YMET8885XW00, YMET8885XW02, YWEE510S0FB0, YWEE510S0FB1, YWEE510S0FB2, YWEE510S0FS0, YWEE510S0FS1, YWEE510S0FS2, YWEE510S0FV1

CRITICAL SAFETY WARNING: Unplug range or turn off circuit breaker before servicing. This is a 240V component.

1. Unplug range or switch off breaker.
2. Remove screws or fasteners securing cooktop (refer to manual for model specifics).
3. Lift or prop up glass cooktop for access to elements.
4. Take a photo of wiring connections for reference.
5. Disconnect wires from old element.
6. Release mounting clips or screws and remove old element.
7. Install new element in same orientation, secure with clips/screws.
8. Reconnect wiring as per your photo.
9. Lower and secure cooktop.
10. Restore power and test element at all settings.

Safety Notes: Handle glass cooktop carefully to avoid cracks. Never operate element without proper mounting.

1. Test old element for continuity (expect 20–40Ω); infinite = open circuit.
2. Inspect wiring connectors for corrosion or heat damage—replace if needed.
3. Check thermal limiter for continuity; replace if failed.
4. If element fails quickly, check for cracked glass or spilled liquids causing shorts.
5. Use only OEM elements to match wattage and fit.
6. Document installation for warranty and troubleshooting.
7. If burner still doesn’t heat, test infinite switch or control board.
8. Handle element and glass with care—avoid bending or dropping.
9. After install, run element on high for 2–3 minutes to burn off manufacturing residue.
10. Monitor for proper cycling and even heat distribution.
11. Keep spare elements in stock for high-volume rental or commercial units.
