Washer Won’t Start or Door Won’t Unlock? Fix Door Lock Assembly W11316250 Fast

A front-load washer that won’t start, won’t unlock after a cycle, or displays a door lock error has a failed door lock assembly. In most Whirlpool and Maytag front-load washers, the door lock assembly is the electromechanical latch that signals the control board the door is sealed before allowing the cycle to begin — when it fails, the washer either refuses to start or traps laundry inside a locked drum. ⚡ Common failure point in Whirlpool-built front-load washers. Part W11316250 is the genuine OEM replacement (supersedes W10804741, W11469919, W11565030) that restores proper door locking and full cycle operation immediately.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Your washer powers on and the control panel responds normally
• ✔ Water supply is connected and the drain hose is not kinked
• ✔ The door physically closes and latches (door strike is intact)
• ✔ The control board has been confirmed functional (no other error codes)
• ✔ ONLY problem is door lock error, failure to start, or door won’t release after cycle

Not sure? Send us your model number — we’ll confirm before you order.

🔧 Common Symptoms

• Washer won’t start — door lock error displayed (F5 E1, F5 E2, or similar)
• Door won’t unlock after cycle completes — laundry trapped inside
• Washer starts but immediately stops and displays door lock fault
• Door lock clicks repeatedly but cycle never begins
• Door feels loose or doesn’t engage the latch mechanism when closed
• Washer runs but door lock indicator light flashes throughout cycle

✔ If these symptoms match, the door lock assembly is the most likely failed component in the system.

✔ In most cases, replacing this door lock assembly restores normal operation immediately.

📦 Part Details

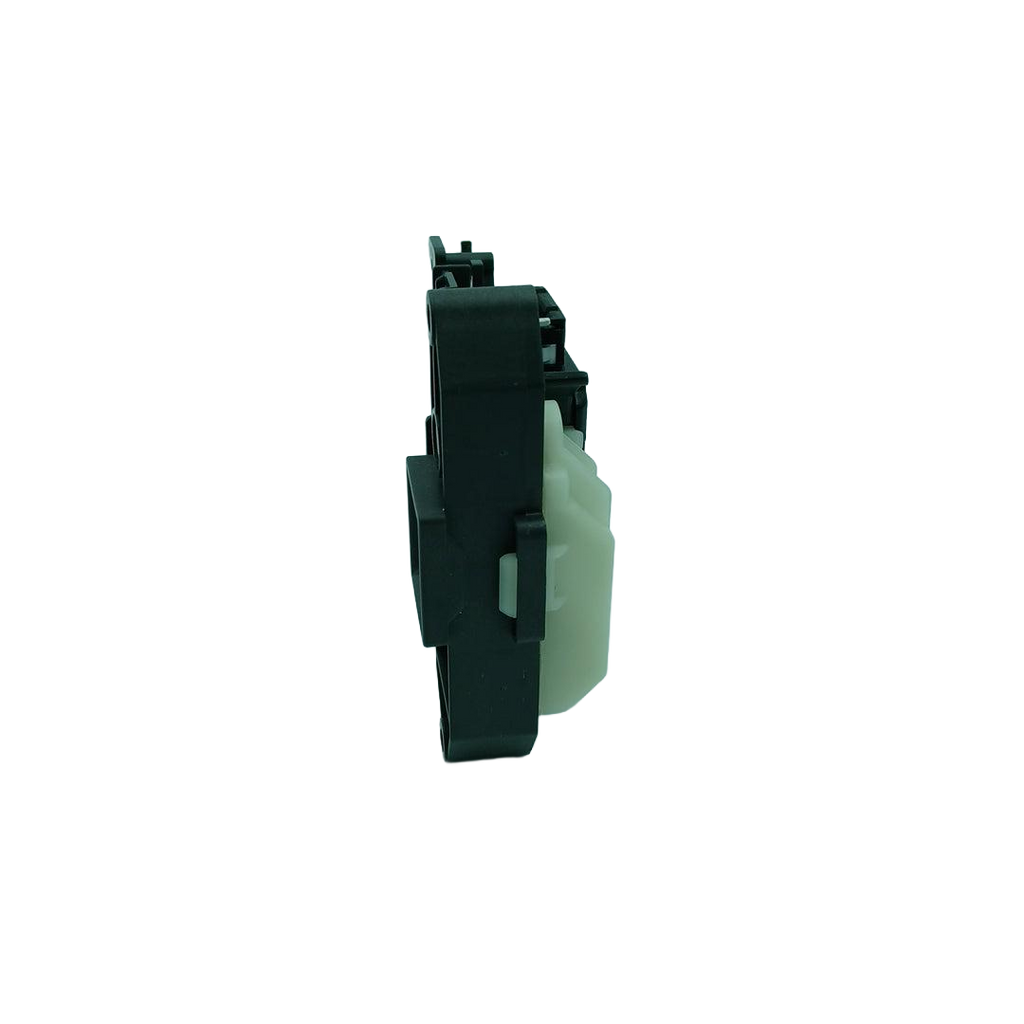

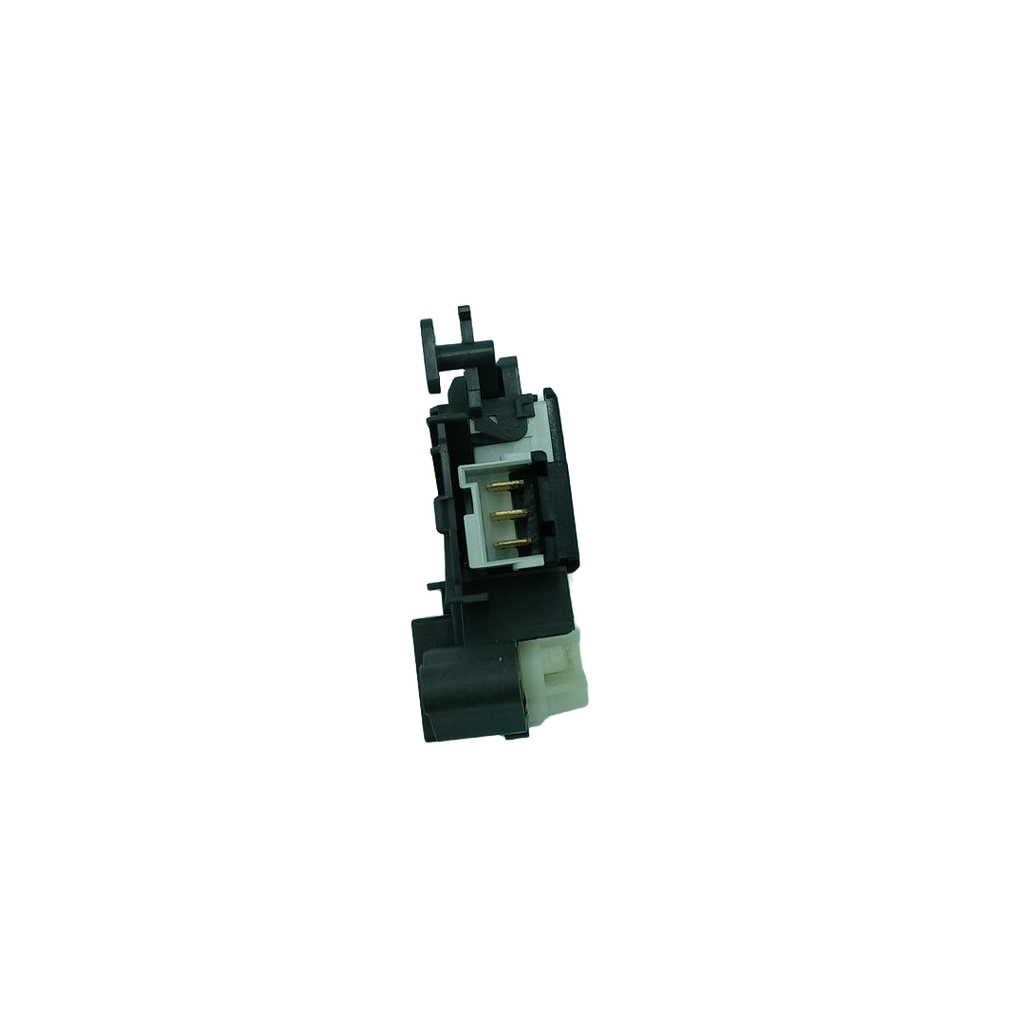

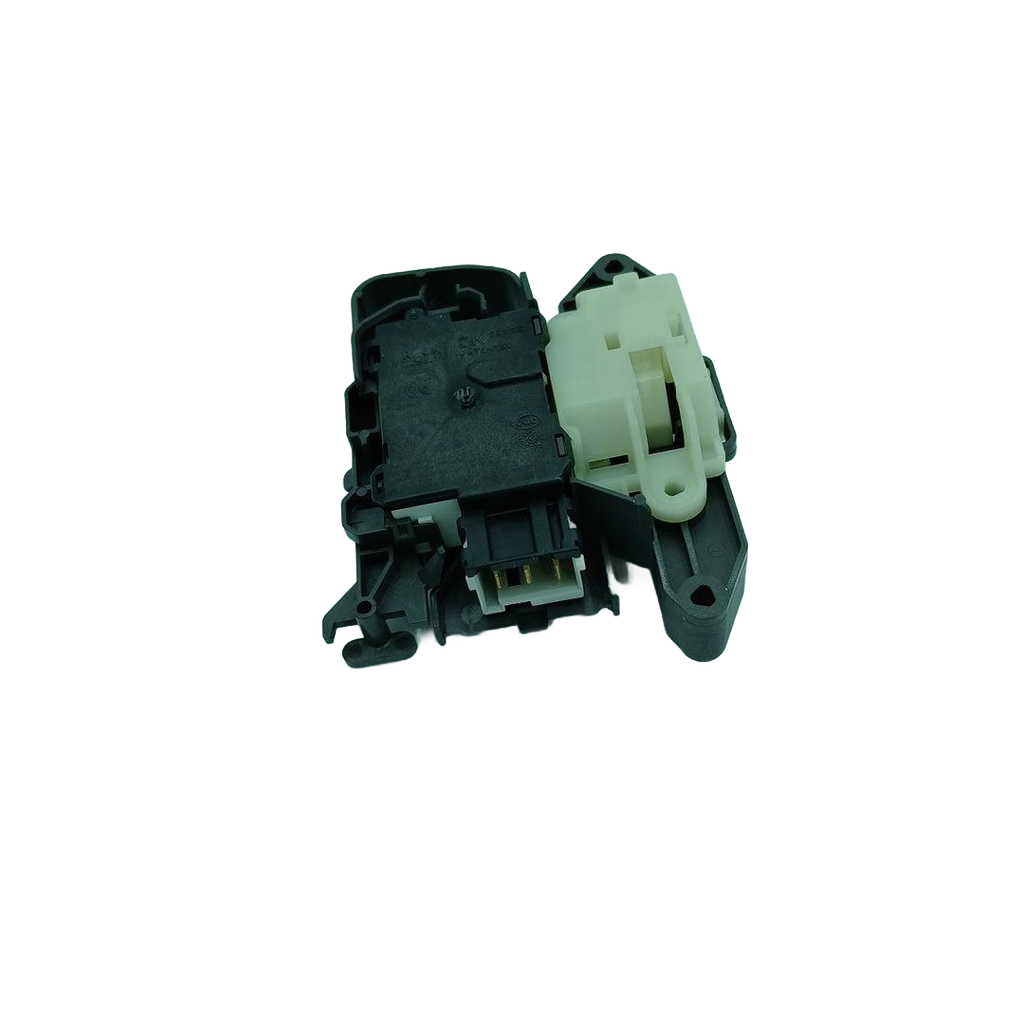

• Part Number: W11316250
• Type: Front-Load Washer Door Lock Assembly (Latch & Switch)
• Replaces: OEM direct-fit door lock — supersedes W10804741, W11469919, W11565030 (no modification required)
• Brands: Whirlpool, Maytag

⚙️ Installation Notes

Skill Level: EASY — 15–20 minutes. Unplug the washer before beginning. Remove the door boot seal retaining ring to access the door lock assembly behind the front panel, disconnect the wire harness connector, and swap the lock. Reconnect the harness, reseat the boot seal, and restore power — run a short cycle to confirm the lock engages and releases correctly before closing up the machine.

✓ Compatible Models

Confirmed compatible with WFW5620, WFW5620, WFW6620, WFW8620, WFW862C, WFW9620, WFC9820, WFW560C, MHW5630, MHW6630, MHW8630, NFW5800, IFW5900, 7MWFW560C, 7MWFW5622, 7MWFW6621, 7MWFW6622, 7MWFC9822, 7MMHW6621 series and additional variants. Contact us to verify your model number before ordering.

💡 Pro Tip

WFW5620HW0, WFW6620HC0, WFW8620HW0, WFW9620HW0, WFC9820HW0, MHW5630HW0, MHW6630HC0, MHW8630HW0, NFW5800HW1, IFW5900HW0
