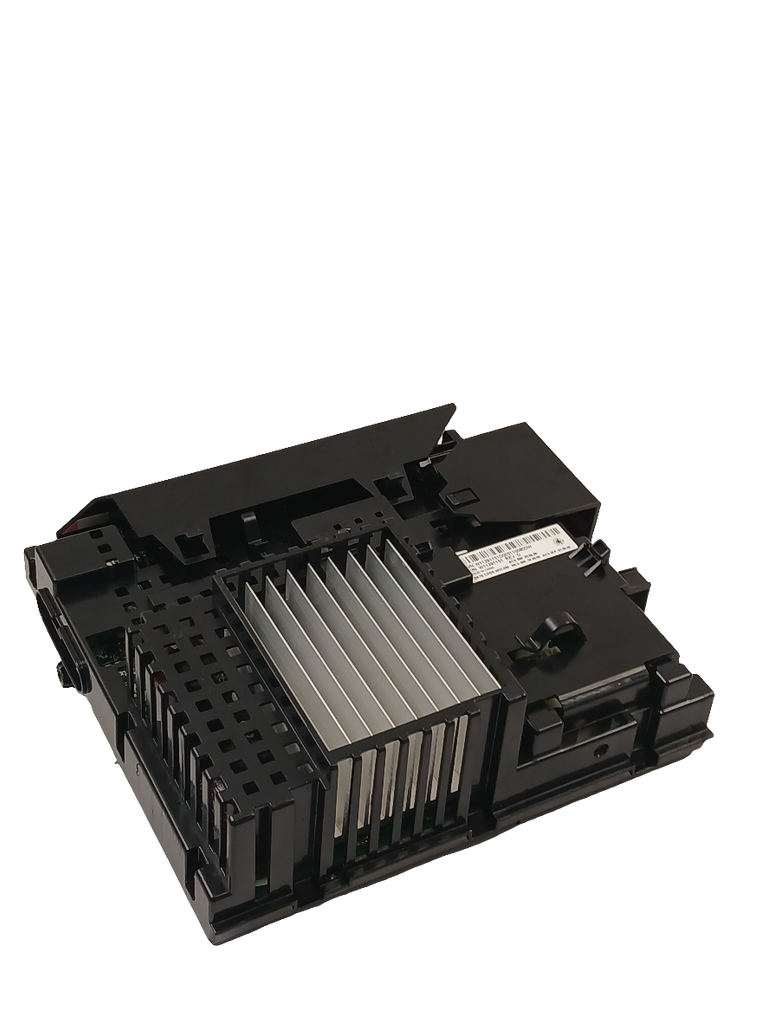

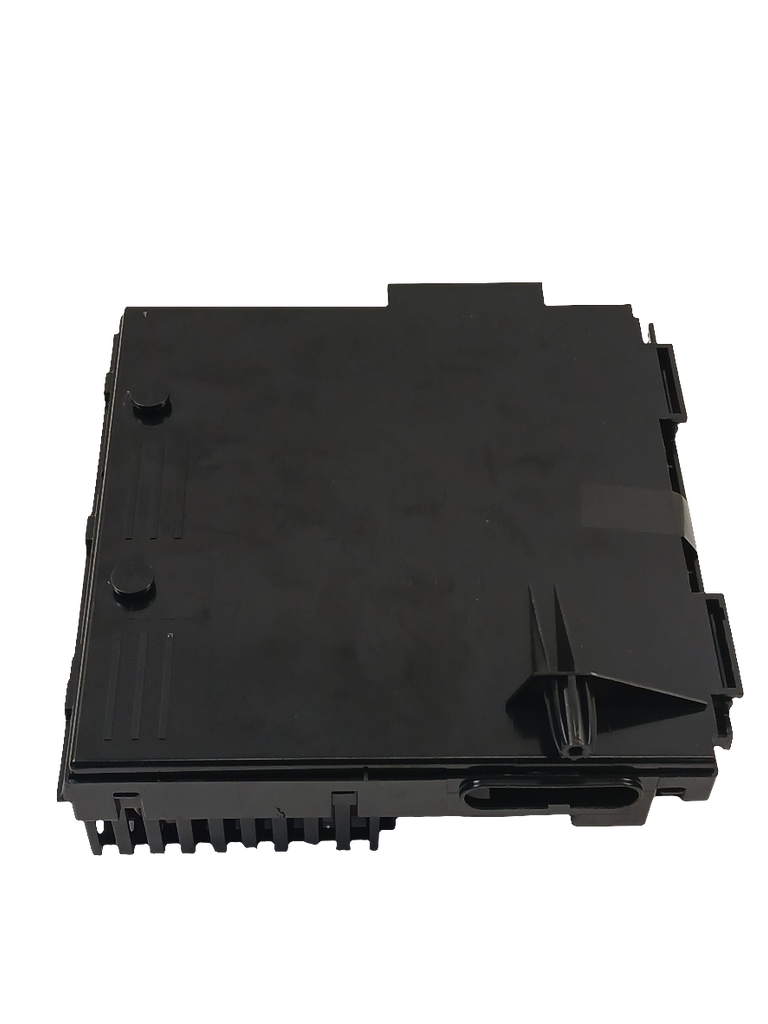

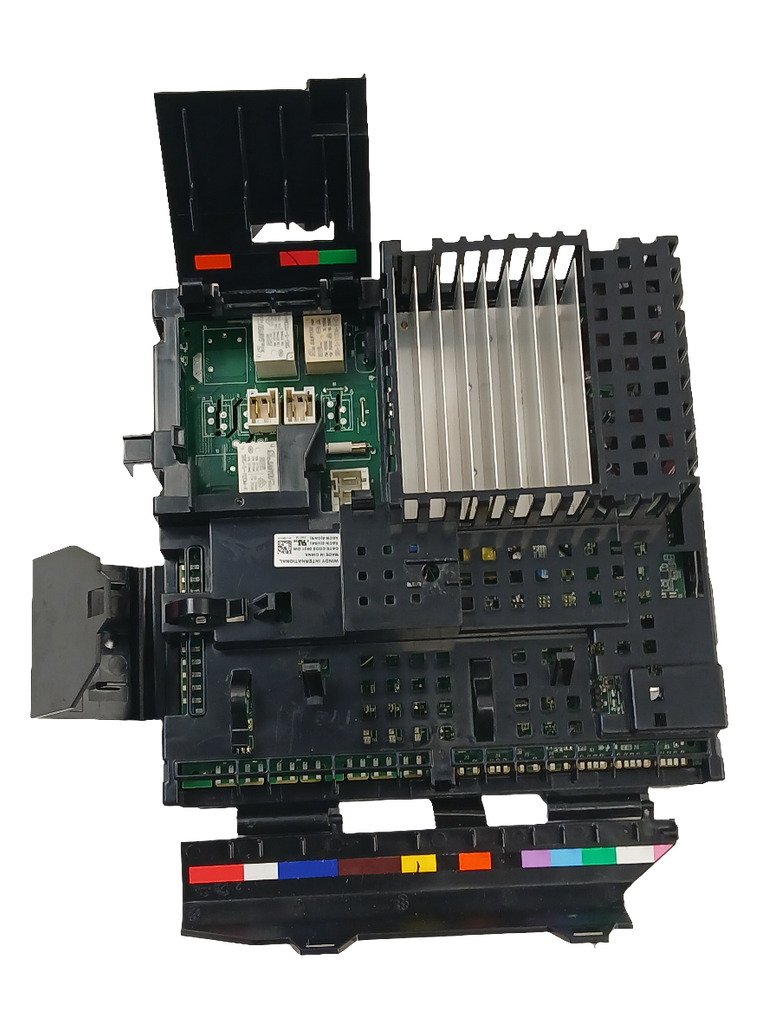

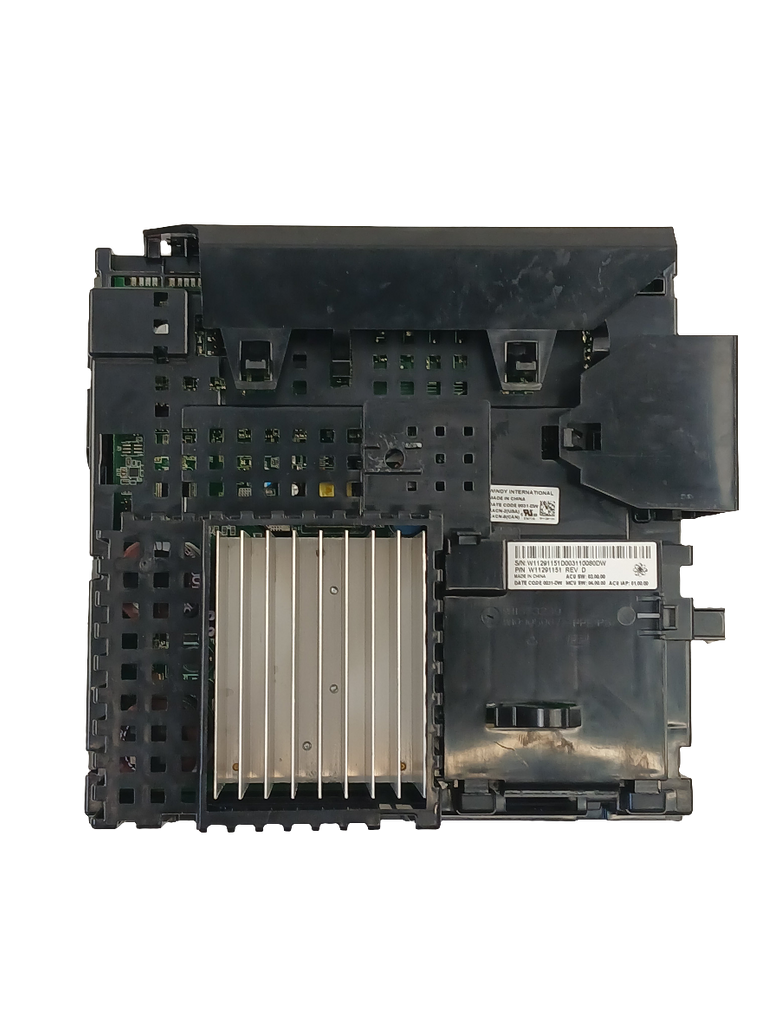

Whirlpool Washer Appliance Control Unit (ACU) / Electronic Control Board W11322903, Replaces W11329112

Genuine Whirlpool washer appliance control unit (ACU), also described as an electronic control board. It manages washer functions including filling, washing, draining, and spinning.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer is completely unresponsive despite confirmed incoming power
• Washer stops mid-cycle
• Washer does not fill, drain, spin, or agitate as commanded
• Washer controls do not respond
• Washer displays communication or control-related error codes
• Visible burn marks or a burning odor from the control area

Check Before Replacing

• Confirm the washer is receiving power at the receptacle and that the circuit breaker or fuse has not tripped.
• Unplug the washer before inspecting the control area, wiring harnesses, and connectors for loose, damaged, corroded, or visibly overheated connections.
• Check the washer’s model-specific tech sheet and run its approved service-diagnostic routine if available; record any stored error codes before replacing the control.
• If the board shows burn damage or a burning odor, disconnect power and have the control and related wiring evaluated rather than assuming the board is the sole cause.
• Do not perform live-voltage measurements unless qualified to work safely around energized appliance circuits; manufacturer guidance indicates such testing may require a certified technician.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM appliance control unit/electronic control board

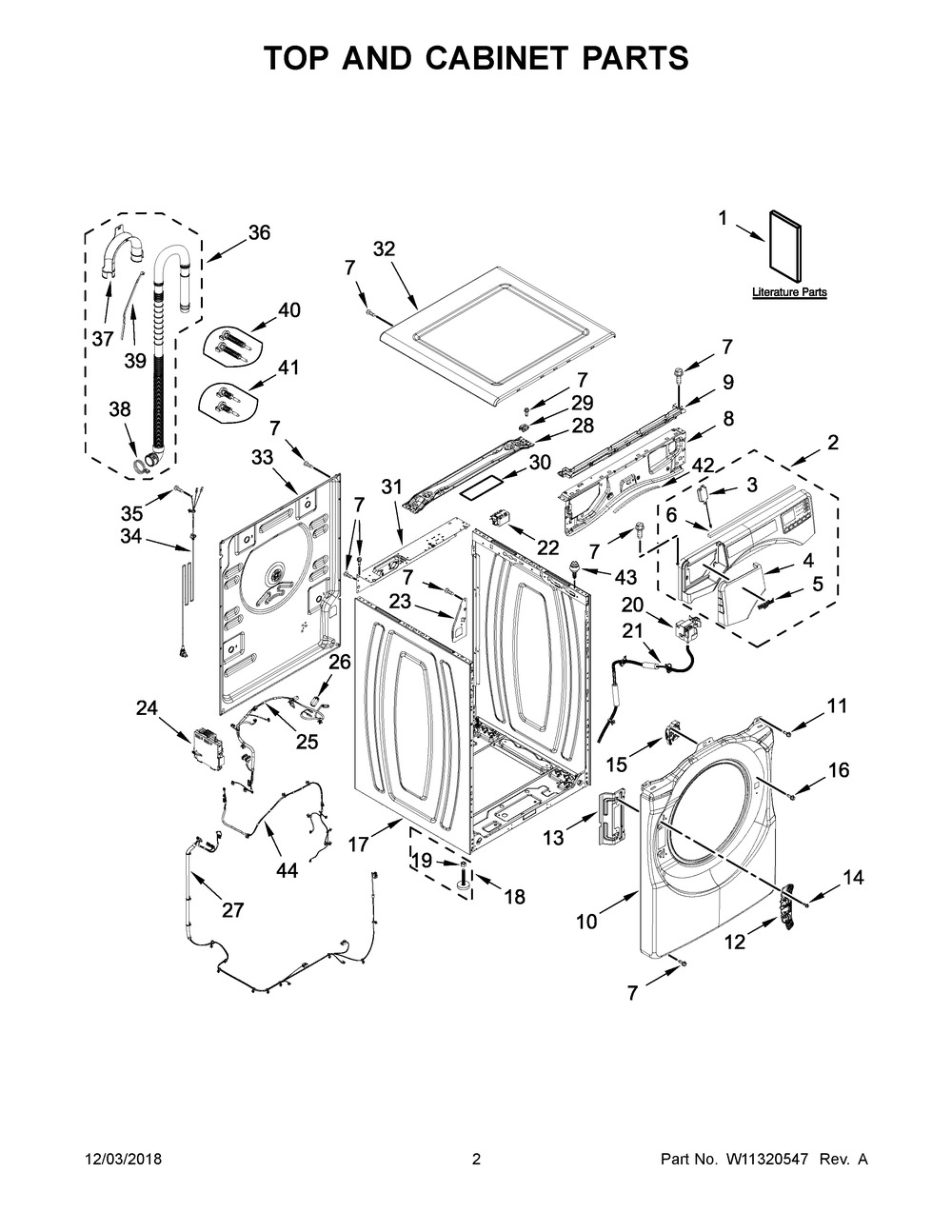

• Whirlpool ACU identified as item 24 in the official repair-parts list for applicable washer models
• Coordinates major washer operations including filling, washing, draining, and spinning
• Current manufacturer number W11322903
• Officially documented predecessor number W11329112

Installation Notes

• Disconnect electrical power before installation.
• Wear appropriate hand protection when accessing the washer interior.
• Use the model-specific Whirlpool service documentation for connector placement, access instructions, and any required post-installation diagnostics or calibration.
• Transfer or reconnect wiring only with power disconnected and verify each connector is fully seated before reassembling the washer.
• Because the ACU is an electrical control component, qualified service assistance is recommended when electrical testing or board-level diagnosis is required.

Verified Compatible Models

WFW5620HW0, WFW5620HW1, WFW5620HW2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
