Whirlpool W11612327 Dishwasher Circulation Pump Motor – Replaces W11084656, W10854710 | Fits Whirlpool, KitchenAid, Maytag

$109.19
Buying Options : OEM

Product variant with selected options does not exist!

Frequently Bought Together

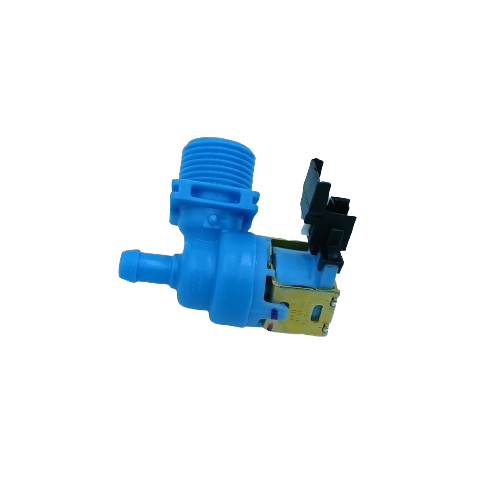

Whirlpool Dishwasher Water Inlet Valve WPW10327249 (Replaces W10316814, W11130743, W10327249)

Whirlpool Dishwasher Water Inlet Valve WPW10327249 (Replaces W10316814, W11130743, W10327249)

$49.99
Genuine OEM Replacement Part

Your Dishwasher Fills But Won’t Wash — The Circulation Pump Motor Has Failed

W11612327 Whirlpool Dishwasher Circulation Pump Motor | Replaces W11084656 · W10854710 · AP6330503

✔ Replaces W11084656 ✔ Replaces W10854710 ✔ Fits Whirlpool, KitchenAid, Maytag ✔ 45–60 Min DIY Repair

Is This the Part You Need?

The circulation pump motor is the heart of your dishwasher’s wash system — it draws water from the sump and forces it through the spray arms at high pressure during every wash cycle. When the motor burns out, the impeller jams with debris, or the bearings wear through years of thermal cycling, the dishwasher fills with water but delivers no cleaning power: spray arms stop spinning, dishes come out dirty, and you may hear humming with no water movement. Left unrepaired, a failed circulation motor makes the machine completely useless. The W11612327 is the genuine OEM Whirlpool replacement that restores full wash pressure across Whirlpool, KitchenAid, Maytag, Amana, and Kenmore dishwashers.

Symptoms This Part Fixes

  • Dishwasher fills with water but won’t wash — no spray action
  • Spray arms not spinning or rotating during cycle
  • Dishes coming out dirty with food residue after a full cycle
  • Weak or no water pressure during wash phase
  • Humming noise with no water circulation
  • Dishwasher runs through cycle but nothing gets clean
  • Grinding or squealing noise from the sump area during wash

Part Details

  • Part Number: W11612327
  • Replaces (Cross-Reference): W11084656, W10854710, AP6330503, PS12728679
  • Brand: Whirlpool (OEM)
  • Type: Dishwasher Circulation Pump Motor
  • Voltage: 120V AC
  • Housing: Sealed motor housing rated for continuous hot water and detergent exposure
  • Compatible Brands: Whirlpool, KitchenAid, Maytag, Amana, Kenmore
  • HS Code: 850990
  • Available Conditions: New OEM, Used OEM

Installation Notes

Skill Level: Intermediate — requires tipping the dishwasher onto its back to access the bottom panel (45–60 minutes).

  • Disconnect power at the circuit breaker before starting
  • Remove the lower rack, spray arm, and filter assembly before tipping the unit
  • Photograph wire harness and hose connections before disconnecting
  • Remove mounting hardware, swap in the new motor in the same orientation, and reconnect all hoses and harness connectors
  • Return the dishwasher to upright, reinstall the filter and spray arm, restore power, and run a test cycle to confirm full wash pressure before closing up

Compatible Models

Fits Whirlpool, KitchenAid, Maytag, Amana, and Kenmore dishwashers. Model-specific repair pages:

MODEL KDTE204EPA4 WDT750SAHZ0 WDT750SAHW0 WDT750SAHV0 WDT750SAHM0 WDT750SAHB0 WDT720PADW3 WDT720PADM3 WDT720PADH3 WDT720PADE3 WDT720PADB3 WDT710PAHZ1 WDT710PAHW1 WDT710PAHB1 WDT705PAKW0 WDT705PAKB0 WDF770SAFZ2 WDF590SAJW0 WDF590SAJM0 WDF590SAJB0 WDF560SAFW2 WDF560SAFT2 WDF560SAFM2 WDF560SAFB2 KDPE204GBS0 KDFE204EWH4 KDFE204ESS4 KDFE204EBL4 KDFE104HWH1 KDFE104HWH0 KDFE104HPS1 KDFE104HPS0 KDFE104HBS1 KDFE104HBS0 KDFE104HBL1 KDFE104HBL0 KDFE104DWH5 KDFE104DSS5 KDFE104DBL5 ADB1700ADW4 ADB1700ADS4 ADB1700ADB4 ADB1500ADW4 ADB1500ADS4 ADB1500ADB4 IDT830SAGS0 66514749N513 66514743N513 66514742N513 66514579N612 66514573N612 66514572N612 66514569N611 66514565N611 66514563N611 66514562N611 66514549N711 66514543N711 66514529N611 66514523N611 66514522N611 66513549N414 66513543N414 66513542N414 66513479N413 66513229N414 66513223N414 66513209N413 66513204N413 66513202N413 66513093N413 66513092N413

Don’t see your model? Contact us to confirm compatibility.

💡 Pro Tip — Check the Filter Before Condemning the Motor:
A clogged filter or debris-jammed impeller is the most common cause of circulation pump failure on Whirlpool-platform dishwashers — and it’s a free fix if caught early. Before ordering the motor, remove the lower spray arm and filter assembly and inspect the sump for glass shards, food debris, or broken plastic. If the motor hums but doesn’t circulate water, the impeller may be jammed rather than the motor burned out — clear the obstruction first. Also test the motor windings with a multimeter for continuity: an open winding confirms motor failure. If the motor runs but wash pressure is still weak after replacement, inspect the spray arm nozzles for calcium buildup — blocked nozzles mimic low pump pressure.
W11612327 Whirlpool Dishwasher Circulation Pump Motor – Parts Diagram

✅Compatibility & Cross Reference

Item #9 in diagram.

Part number W11612327 replaces W10854710, W11084656, W10805387

66513092N413, 66513093N413, 66513202N413, 66513204N413, 66513209N413, 66513223N414, 66513229N414, 66513479N413, 66513542N414, 66513543N414, 66513549N414, 66514522N611, 66514523N611, 66514529N611, 66514543N711, 66514549N711, 66514562N611, 66514563N611, 66514565N611, 66514569N611, 66514572N612, 66514573N612, 66514579N612, 66514742N513, 66514743N513, 66514749N513, ADB1500ADB4, ADB1500ADS4, ADB1500ADW4, ADB1700ADB4, ADB1700ADS4, ADB1700ADW4, IDT830SAGS0, KDFE104DBL5, KDFE104DSS5, KDFE104DWH5, KDFE104HBL0, KDFE104HBL1, KDFE104HBS0, KDFE104HBS1, KDFE104HPS0, KDFE104HPS1, KDFE104HWH0, KDFE104HWH1, KDFE204EBL4, KDFE204ESS4, KDFE204EWH4, KDPE204GBS0, KDPE204GPS0, KDPE234GBS0, KDPE234GPS0, KDTE104EBL4, KDTE104EBS4, KDTE104ESS4, KDTE104EWH4, KDTE204EBL4, KDTE204EPA4, KDTE204ESS4, KDTE204EWH4, KDTE204GPS0, KDTE204GPS1, KDTE234GBL0, KDTE234GBL1, KDTE234GBS0, KDTE234GBS1, KDTE234GPS0, KDTE234GPS1, KDTE234GWH0, KDTE234GWH1, KDTE304GPS0, KDTE304GPS1, WDF560SAFB2, WDF560SAFM2, WDF560SAFT2, WDF560SAFW2, WDF590SAJB0, WDF590SAJM0, WDF590SAJW0, WDF770SAFZ2, WDT705PAKB0, WDT705PAKW0, WDT710PAHB1, WDT710PAHW1, WDT710PAHZ1, WDT720PADB3, WDT720PADE3, WDT720PADH3, WDT720PADM3, WDT720PADW3, WDT730PAHB0, WDT730PAHV0, WDT730PAHW0, WDT730PAHZ0, WDT750SAHB0, WDT750SAHM0, WDT750SAHV0, WDT750SAHW0, WDT750SAHZ0, WDT970SAHB0, WDT970SAHV0, WDT970SAHW0, WDT970SAHZ0, WDT995SAFM0, WDTA50SAHB0, WDTA50SAHM0, WDTA50SAHN0, WDTA50SAHV0, WDTA50SAHW0, WDTA50SAHZ0

Why is my dishwasher not cleaning dishes even though it runs?

The circulation pump motor is responsible for pushing water through the spray arms at high pressure. When it fails, the dishwasher may fill with water and run through the cycle, but without proper water circulation, dishes won't get clean. If you hear humming but see no spray arm movement, or dishes come out with food still on them, replacing the circulation pump motor will restore full washing performance.

W11612327, Whirlpool dishwasher circulation pump, dishwasher pump motor, dishwasher not washing, dishwasher no water pressure, W11084656, dishwasher wash motor, KitchenAid dishwasher pump, Maytag dishwasher pump motor, Kenmore dishwasher circulation pump, dishwasher spray arm not spinning, dishwasher won't clean dishes, dishwasher motor replacement, dishwasher impeller pump, dishwasher humming not washing, Whirlpool wash pump, dishwasher motor assembly, dishwasher water circulation, dishwasher weak spray, Amana dishwasher pump

Whirlpool, KitchenAid, Maytag, Kenmore, and Amana

Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
