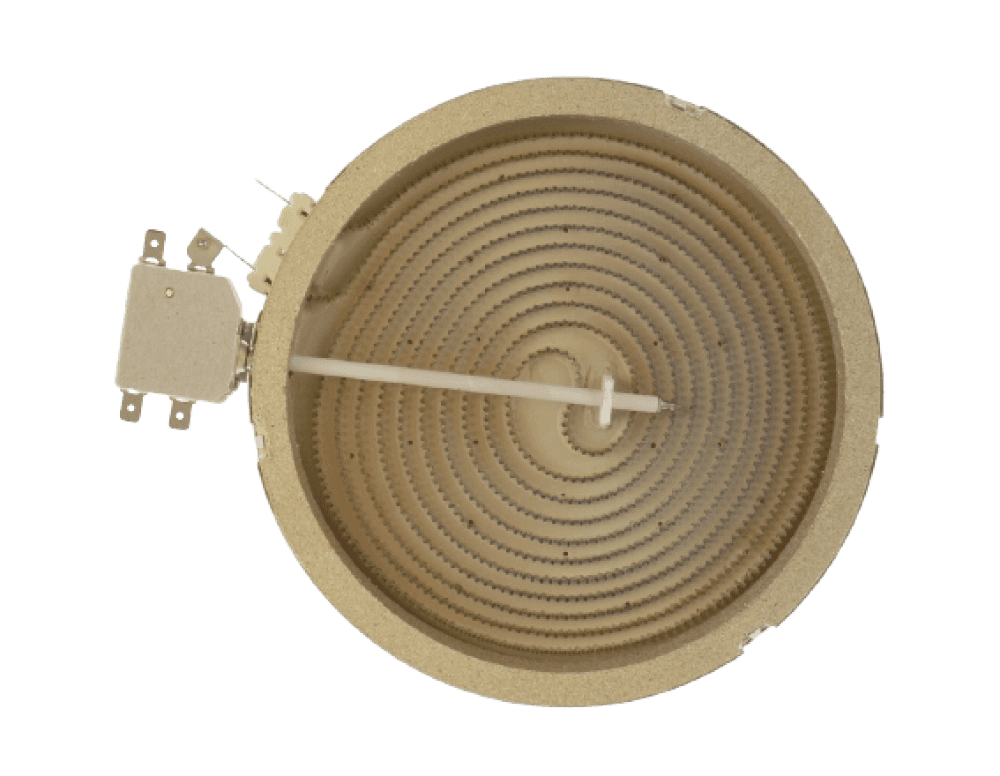

GE / General Electric Range Element Radiant 6-in WB30T10097

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• 6-inch burner remains cold or heats only partially.
• Burner heats unevenly or intermittently.
• Burner may stop heating after an electrical fault or visible element damage.
• A radiant burner may normally glow red and cycle on and off during operation; cycling alone is not evidence of failure.

Check Before Replacing

• Confirm the range has power by checking the dedicated circuit breaker or fuse; electric ranges require full supply voltage for proper burner operation.
• With the burner set to HIGH, observe whether the radiant zone glows across its intended heating area; compare with another burner if needed.
• Use a flat-bottomed pan that matches the burner size; an unsuitable or warped pan can cause premature temperature-limiter cycling and poor heating.
• After switching off power at the breaker and unplugging the range where accessible, visually inspect the element and terminals for cracks, burn marks, loose connections, or other damage.
• If the element remains cold, have a qualified technician test the disconnected element for continuity and verify the control switch and wiring before replacing parts.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power at the circuit breaker and unplug the range where accessible before servicing.
• Allow the cooktop and element to cool completely, and use appropriate hand protection when handling the range or element.
• Access and mounting details vary by range model; follow the appliance-specific service documentation.
• Reconnect the element terminals securely and restore power only after the cooktop and all covers or panels are properly reassembled.
• If wiring, terminals, or the glass cooktop are damaged, use qualified appliance service rather than proceeding with replacement.

Verified Compatible Models

JB900BK1BB, JB900BK2BB, JB900BK3BB, JB900BK5BB, JB900KK1CC, JB900KK2CC, JB900KK3CC, JB900KK5CC, JB900SK1SS, JB900SK2SS, JB900SK3SS, JB900SK4SS, JB900SK5SS, JB900TK1WW, JB900TK2WW

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
