WG02F05809 Range Block Rear R Line
WG02F05809 Range Block Rear R Line

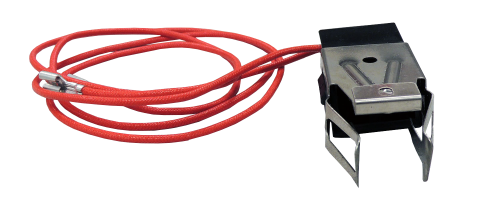

GE Range Terminal Block Rear "R-Line" WG02F05809, Replaces WB2M2260

XPart Number XP10001506
$50.95
$55.54
Out of stock
Buying Options: OEM Genuine

Choose an available buying option.

Frequently Bought Together
VERIFIED PART INFORMATION

GE Range Terminal Block Rear "R-Line" WG02F05809

Genuine OEM GE rear terminal block identified as "TERM BLOCK REAR \"R-LINE\"."

Part WG02F05809Replaces WB2M2260GE
Guaranteed to Fit — or your money back.
Confirm your full appliance model number before ordering.

Is This the Right Part?

Part NumberWG02F05809
ReplacesWB2M2260
ManufacturerGE
Appliance TypeRange
Part TypeTerminal Block Rear "R-Line"

✅ Cross Reference Information

Current Part NumberWG02F05809
ReplacesWB2M2260

Pro Tip

Verify the complete range model number before ordering; terminal blocks that look similar may not have the same fit.

Part Details

Part NumberWG02F05809
Part TypeTerminal Block Rear "R-Line"
ManufacturerGE
Appliance TypeRange
Primary FunctionProvides the rear electrical terminal connection point for the range.

Installation Notes

  • Disconnect electrical power to the range before servicing or replacing this electrical component.
  • Confirm the replacement against the appliance model and existing terminal-block configuration.

Verified Compatible Models

GRSL3400RM-1, GRSL3640ZWW-4, MRMF3100ZWW-4, GRCL3650ZWW-2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
