Washer Not Filling Correctly? Water Level Switch WG04F00839 – Fix Overfill, Underfill & Cycle Faults Fast

If your GE or Hotpoint front-load washer is overfilling, underfilling, stopping mid-cycle, or refusing to advance past the fill stage, the water level switch is the most common cause. In most GE-built washers, this pressure-sensing switch monitors drum water level and signals the control board when the correct fill has been reached. When it fails, the machine may flood the drum, run dry, or lock up entirely — leaving laundry soaking or bone dry. ⚡ Common failure point in GE-built front-load washers across the WCVH, WBVH, WHDVH, and GCVH series. Part WG04F00839 is the genuine OEM replacement that restores accurate water level sensing and gets your washer cycling normally again.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Washer powers on and door latches normally
• ✔ Drum motor and drain pump operate (or did before the fault)
• ✔ Water supply valves are open and inlet screens are clear
• ✔ ONLY problem is incorrect fill level, mid-cycle stop at fill, or error codes related to water sensing

Not sure? Send us your model number — we'll confirm before you order.

🔧 Common Symptoms

• Washer overfills — water rises above the drum window or leaks from the door seal
• Washer underfills — cycle starts but clothes come out barely wet
• Machine stops at the fill stage and won't advance to wash or spin
• Error codes related to water level, pressure sensor, or fill timeout displayed on control panel
• Washer runs continuously without advancing — fill never "satisfies"

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this water level switch restores normal fill and cycle operation immediately.

📦 Part Details

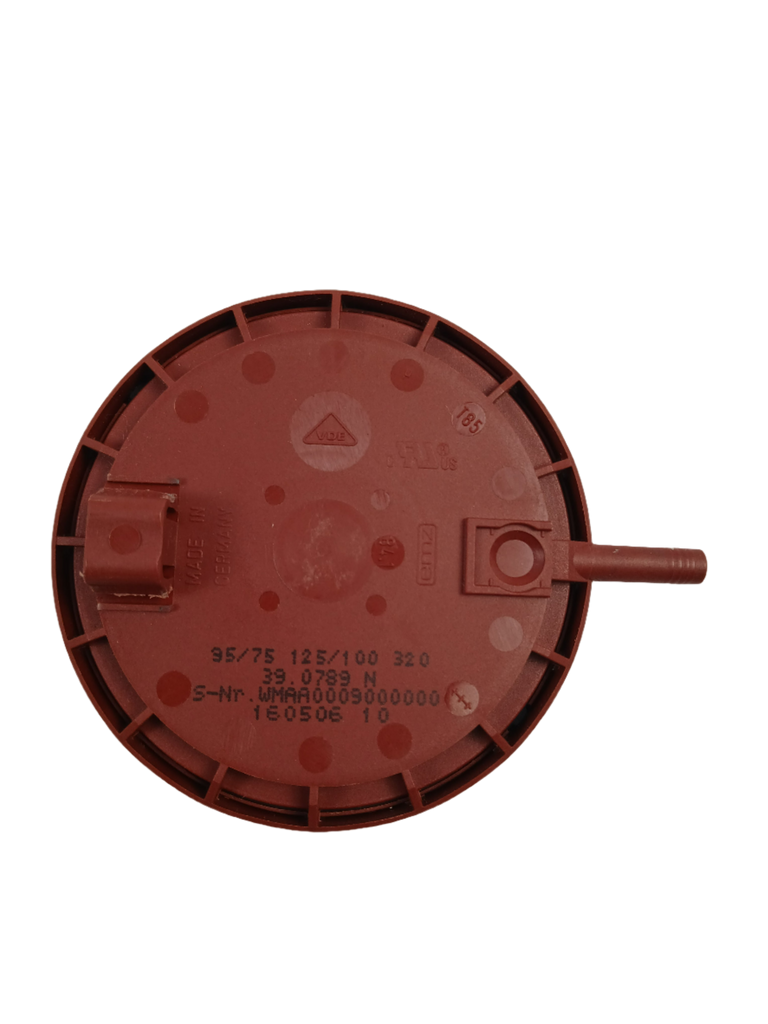

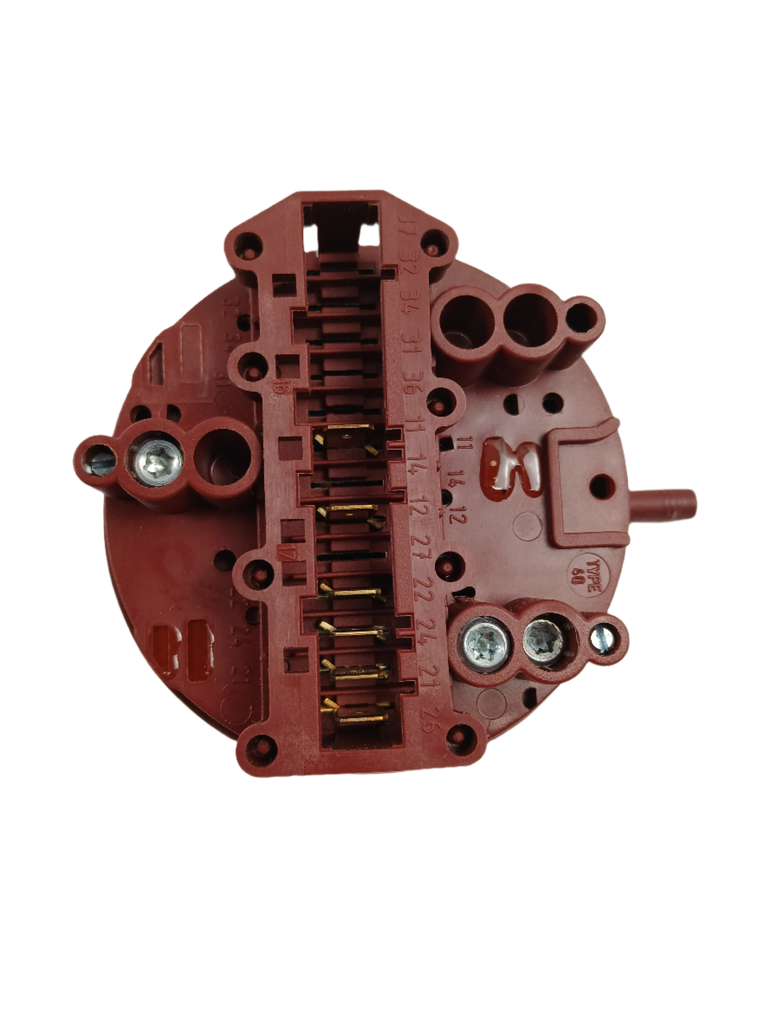

• Part Number: WG04F00839
• Type: Washer Water Level / Pressure Switch — OEM GE replacement
• Replaces: WH12X10307, WH12X10522
• Brands: GE, Hotpoint, GE Profile
• Compatible Series: WCVH6800, WCVH6600, WCVH6400, WCVH6260, WBVH5100, WBVH5200, WBVH5300, WBVH6240, WHDVH626, WHDVH660, WHDVH680, GCVH6800, GFAN, GFWN, GMAN

⚙️ Installation

Skill Level: MODERATE — 30–45 minutes. Disconnect power and turn off water supply before servicing. Access the switch by removing the top panel or rear access panel depending on your model. Disconnect the wiring harness and pressure hose from the old switch, transfer the hose to the new switch, reconnect the harness, and reassemble. Run a test cycle to confirm correct fill behavior before closing up.

✓ Compatible Models

Confirmed compatible with GCVH6800J5BB, GCVH6800J5MR, GCVH6800J5MS, GCVH6800J5MV, GCVH6800J5WW, GFAN1000L2WW, GFAN1000L4WW, GFAN1100L2WW, GFAN1100L4WW, GFWN1000L0WW, GFWN1000L1WW, GFWN1000L2WW, GFWN1100L0WW, GFWN1100L1WW, GFWN1100L2WW, GFWN1100L3WW, GFWN1100L4WW, GMAN1200L2WW, GMAN1200L4WW, WBVH5100H0WW, WBVH5100H1WW, WBVH5200J0WW, WBVH5200J1WW, WBVH5200J2WW, WBVH5200J3WW, WBVH5200K0WW, WBVH5300K0WW, WBVH5300K1WW, WBVH5300K3WW, WBVH6240F0GG, WBVH6240F0WW, WBVH6240H0WW, WBVH6240H1WW, WCVH6260F0GG, WCVH6260F0WW, WCVH6260H0WW, WCVH6260H1WW, WCVH6400J0WW, WCVH6400J1WW, WCVH6400J2WW, WCVH6600H0BB, WCVH6600H0GG, WCVH6600H0MB, WCVH6600H0MS, WCVH6600H0WW, WCVH6600H1BB, WCVH6600H1GG, WCVH6600H1MB, WCVH6600H1MS, WCVH6600H1WW, WCVH6800J0BB, WCVH6800J0GG, WCVH6800J0MB, WCVH6800J0MR, WCVH6800J0MS, WCVH6800J0WW, WCVH6800J1BB, WCVH6800J1MB, WCVH6800J1MR, WCVH6800J1MS, WCVH6800J1MV, WCVH6800J1WW, WCVH6800J2BB, WCVH6800J2MR, WCVH6800J2MS, WCVH6800J2MV, WCVH6800J2WW, WCVH6800J3BB, WCVH6800J3MR, WCVH6800J3MS, WCVH6800J3MV, WCVH6800J3WW, WCVH6800J4BB, WCVH6800J4MR, WCVH6800J4MS, WCVH6800J4MV, WCVH6800J4WW, WCVH6800J5BB, WCVH6800J5MR, WCVH6800J5MS, WCVH6800J5MV, WCVH6800J5WW, WCVH6800K0MV, WCVH6850K0MV, WHDVH626F0GG, WHDVH626F0WW, WHDVH626H1GG, WHDVH626H1WW, WHDVH660H0BB, WHDVH660H0GG, WHDVH660H0MB, WHDVH660H0MS, WHDVH660H0WW, WHDVH660H1BB, WHDVH660H1GG, WHDVH660H1MB, WHDVH660H1MS, WHDVH660H1WW, WHDVH680J0BB, WHDVH680J0GG, WHDVH680J0MB, WHDVH680J0MR, WHDVH680J0MS, WHDVH680J0WW, WHDVH680J1MR, WHDVH680J1MS, WHDVH680J1WW, plus additional GE and Hotpoint models. Contact us to verify your model number before ordering.

💡 Pro Tip
