Genuine OEM Replacement Part

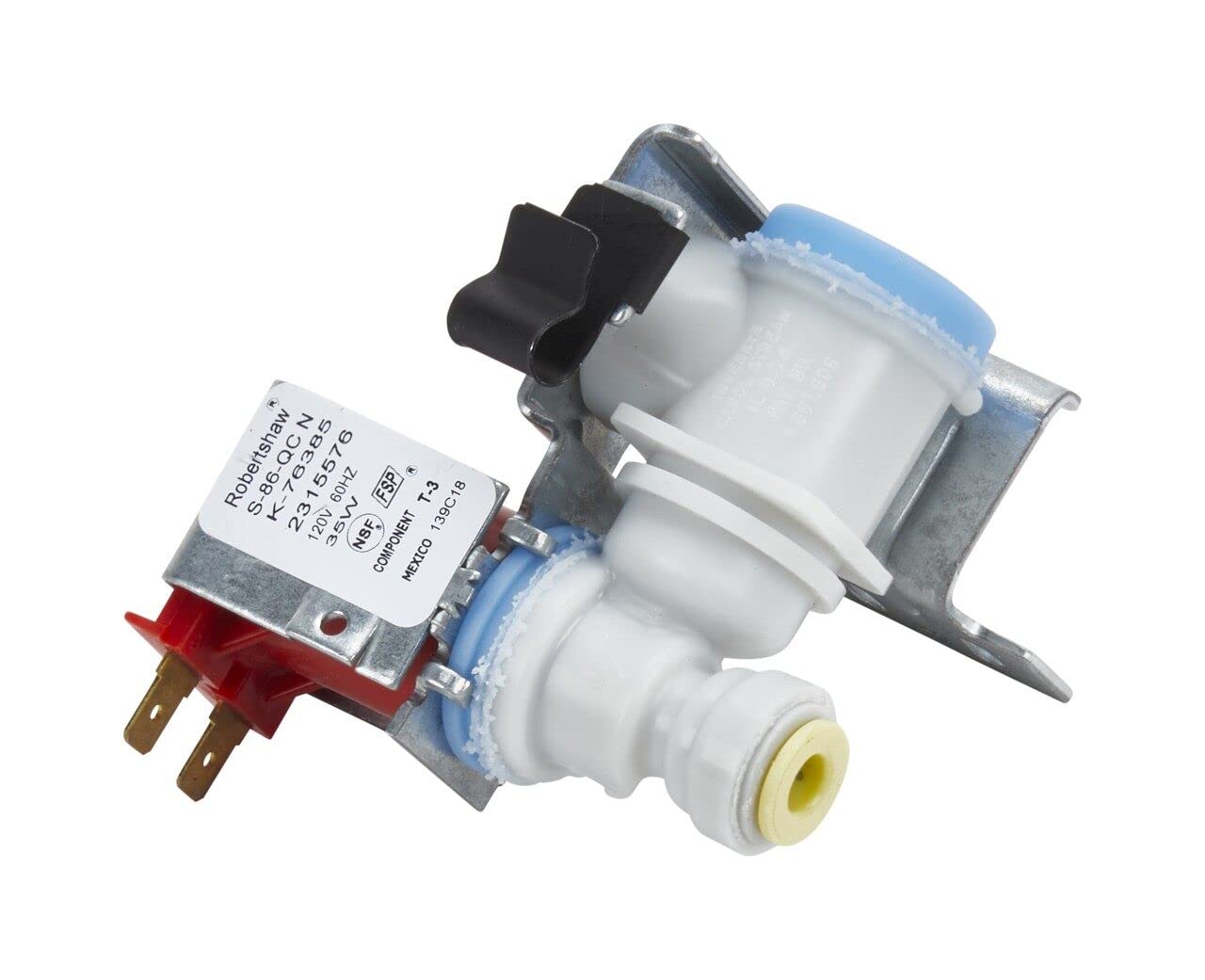

Whirlpool Refrigerator Water Inlet Valve WP2315576 – Genuine OEM
Part# WP2315576 Supersedes W10219716 Fits Whirlpool Fits KitchenAid
Fridge Not Dispensing Water or Making Ice? Fix Water Inlet Valve WP2315576 Fast
A refrigerator that produces no water at the dispenser, no ice, or only a slow trickle has a failed water inlet valve. In most Whirlpool, KitchenAid, and Maytag refrigerators,![]()
the water inlet valve is the electrically-operated solenoid that opens to allow water from the supply line into the ice maker and dispenser — when it fails, water flow stops entirely or becomes restricted. ⚡ Common failure point in Whirlpool-built side-by-side and French door refrigerators. Part WP2315576 is the genuine OEM replacement (supersedes W10219716) that restores full water and ice production immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Your refrigerator is connected to a working water supply line with adequate pressure (min. 20 PSI)
- ✔ The water filter is new or confirmed not clogged
- ✔ The ice maker is turned on and the freezer is at proper temperature (−15°C / 0°F)
- ✔ The dispenser control board and door switch are functioning
- ✔ ONLY problem is no water flow or no ice production at the valve
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- No water dispensed when lever or pad is pressed
- Ice maker stopped producing ice completely
- Slow or weak water flow from dispenser
- Humming sound from back of fridge but no water flows
- Water leaking from behind the refrigerator near the valve
- Ice maker fills with water but freezes into a solid block (valve not closing fully)
✔ If these symptoms match, the water inlet valve is the most likely failed component in the system.
✔ In most cases, replacing this inlet valve restores normal water and ice production immediately.
📦 Part Details
-
Part Number: WP2315576
-
Type: Refrigerator Water Inlet Valve (Dual Solenoid)
-
Replaces: OEM direct-fit inlet valve — supersedes W10219716 (no modification required)
-
Brands: Whirlpool, KitchenAid, Maytag, Amana, Kenmore
⚠️ Recommended While Repairing:
While the water line is disconnected, replace your refrigerator water filter if it hasn’t been changed in the last 6 months — a clogged filter causes low pressure that stresses the new valve and shortens its life. Takes 30 seconds and prevents a repeat service call.
⚙️ Installation
Skill Level: EASY — 15–20 minutes. Unplug the refrigerator and shut off the water supply valve before beginning. Pull the fridge away from the wall, locate the inlet valve at the lower rear, disconnect the water supply line and wire harness connectors, remove the mounting screws, and swap the valve. Reconnect all lines and connectors, restore water supply, and plug in — run the dispenser for 2–3 minutes to purge air from the line before checking for leaks.
✓ Compatible Models
Confirmed compatible with a wide range of Whirlpool, KitchenAid, Maytag, Amana, and Kenmore side-by-side and French door refrigerators. Contact us to verify your model number before ordering.
💡 Pro Tip
💡 Pro Tip — Check Water Pressure First:
Before replacing the valve, confirm your home water pressure is at least 20 PSI at the fridge supply line — low pressure is the #1 cause of inlet valve failure and will kill the new valve just as fast. A $10 pressure gauge at the supply line connection takes 60 seconds to check and rules out a plumbing issue. If pressure is good and the valve still won’t open, WP2315576 is your fix.
