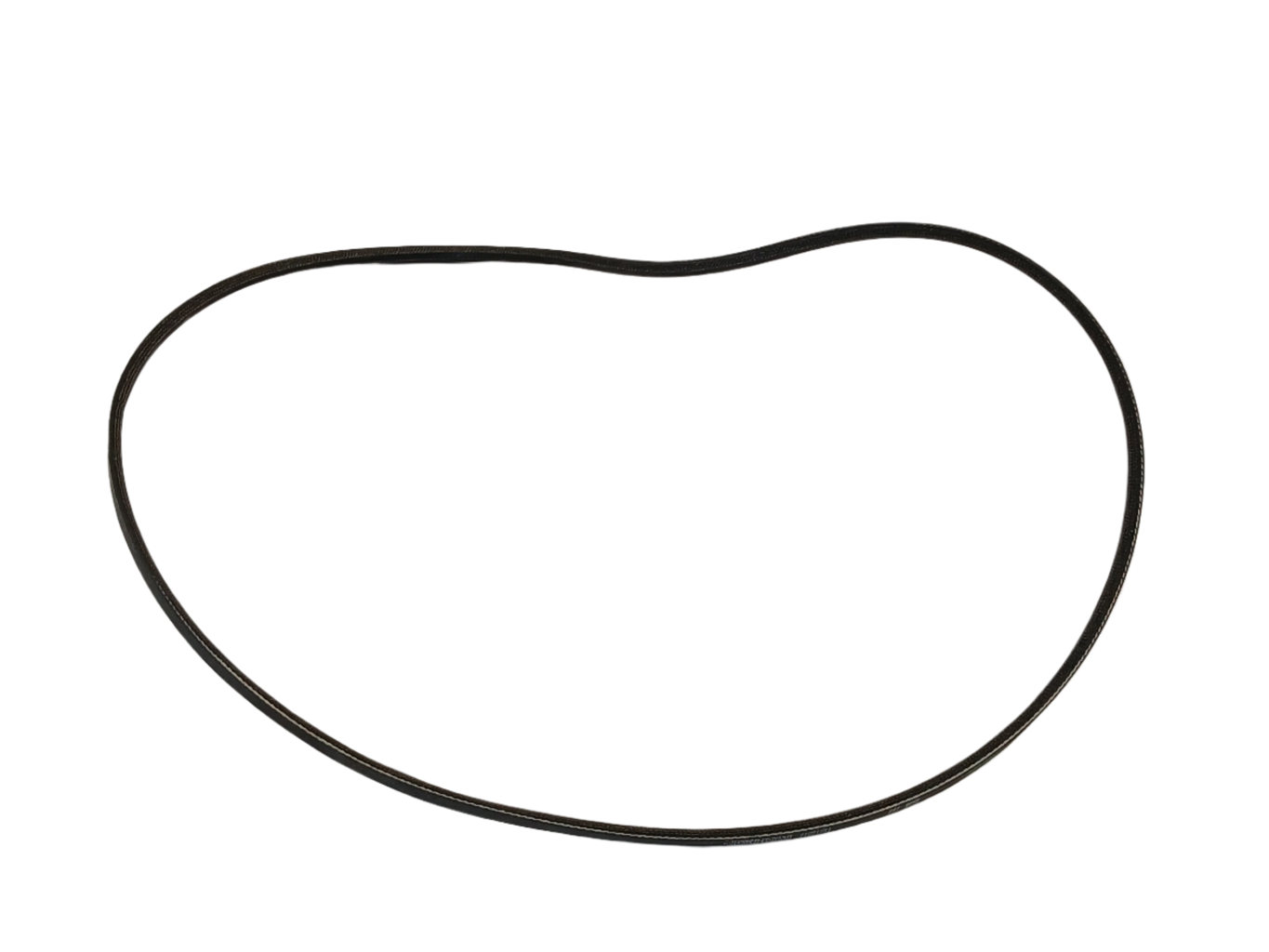

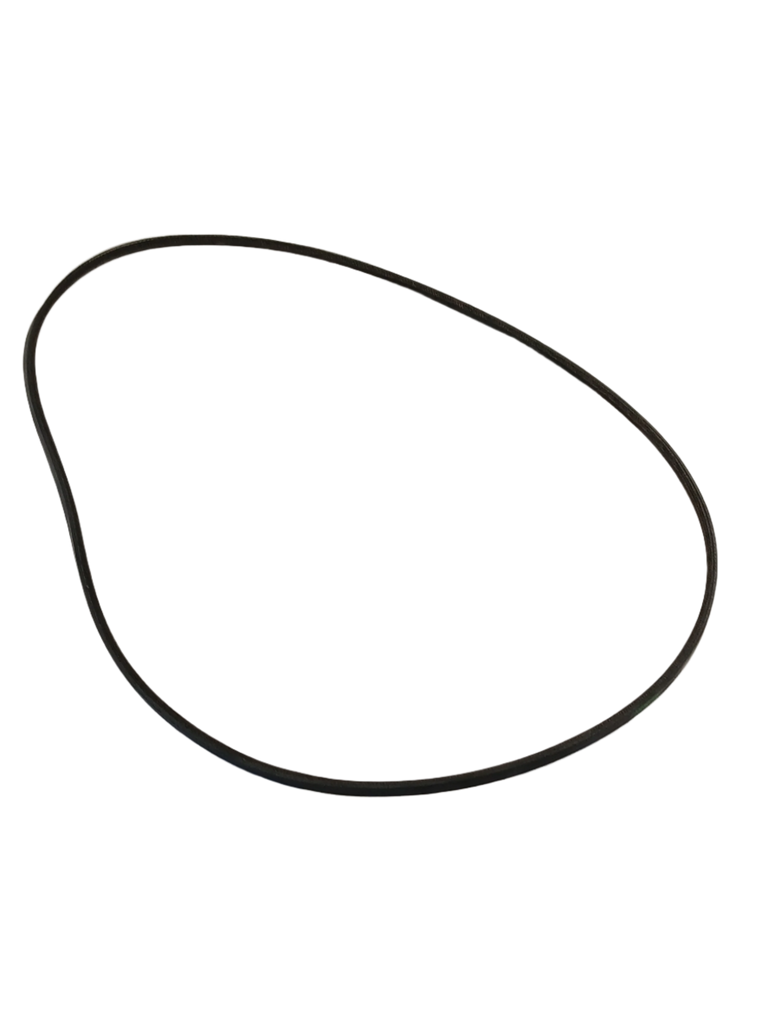

Whirlpool Washer Drive Belt WP20056498

Whirlpool genuine OEM washer drive belt, approximately 3/8 inch wide by 48 inches long. The belt connects the washer drive motor to the drive system and can be associated with no-spin, no-agitate, improper washing, burning odor, or unusual noise symptoms.

Is This the Right Part?

Common Symptoms

• No agitation
• No spin or slow spin
• Burning-rubber odor
• Unusual squealing or belt-slipping noise
• Visible belt wear, damage, or belt dust

Check Before Replacing

• Disconnect electrical power before servicing.
• Inspect the belt for cracking, fraying, glazing, stretching, or breakage.
• Check whether the belt is seated correctly on the motor and drive pulleys.
• Check that the pulleys are aligned and rotate without obvious obstruction.
• Confirm that the belt is the correct approximately 3/8-inch-wide by 48-inch-long type for the appliance model; do not diagnose the belt from symptoms alone.

Pro Tip

Part Details

Key Features

• Whirlpool genuine OEM washer drive belt
• Approximately 3/8 inch wide by 48 inches long
• Connects the washer drive motor to the drive system
• Used to transmit power for agitation and spinning
• Part is reported as no longer available from the manufacturer

Installation Notes

• Disconnect power before beginning service and replace all panels before operating the washer.
• Access the belt only according to the washer model's service or installation instructions.
• Install a replacement belt of the same type and verify that it is properly seated on the pulleys.
• Check pulley alignment before reassembly; do not use a prybar or screwdriver to force the belt into position.
• If the washer uses more than one belt, follow the model-specific instructions regarding replacement of the complete belt set.
