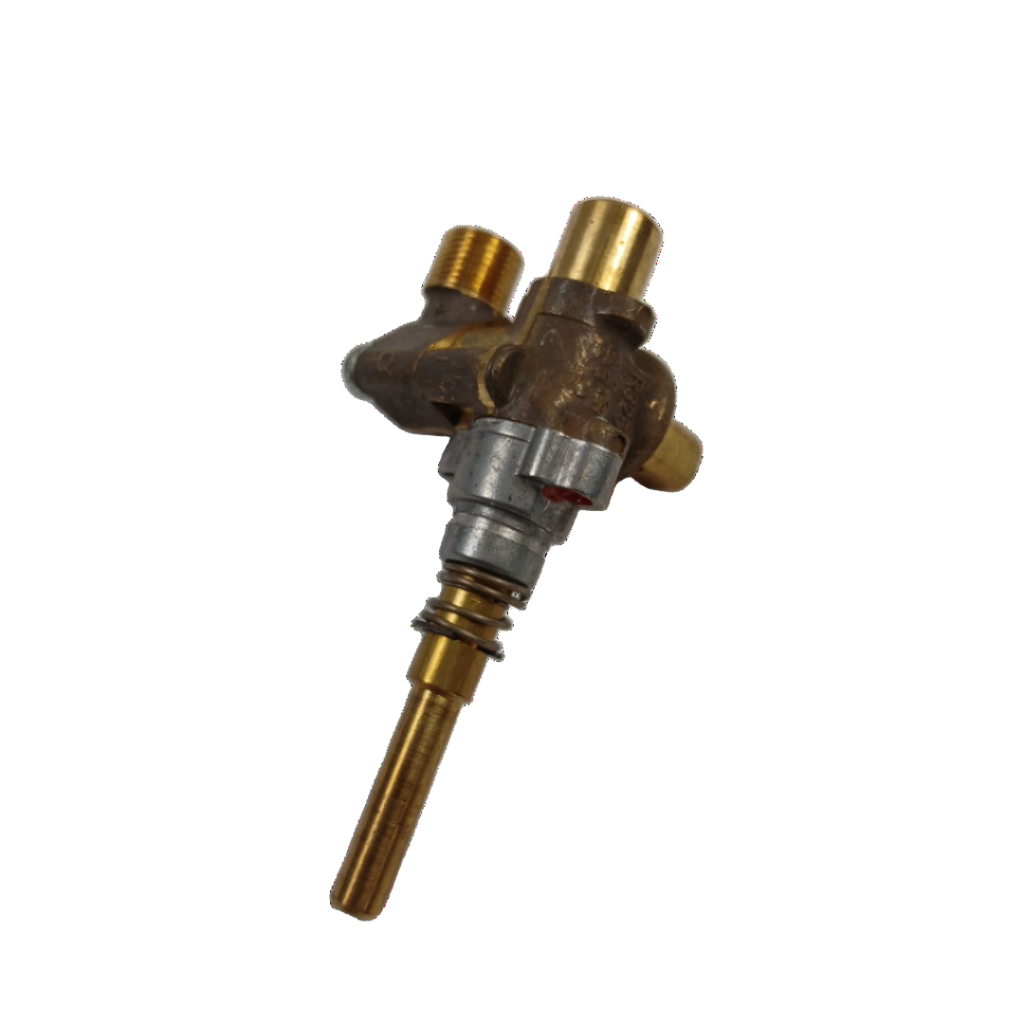

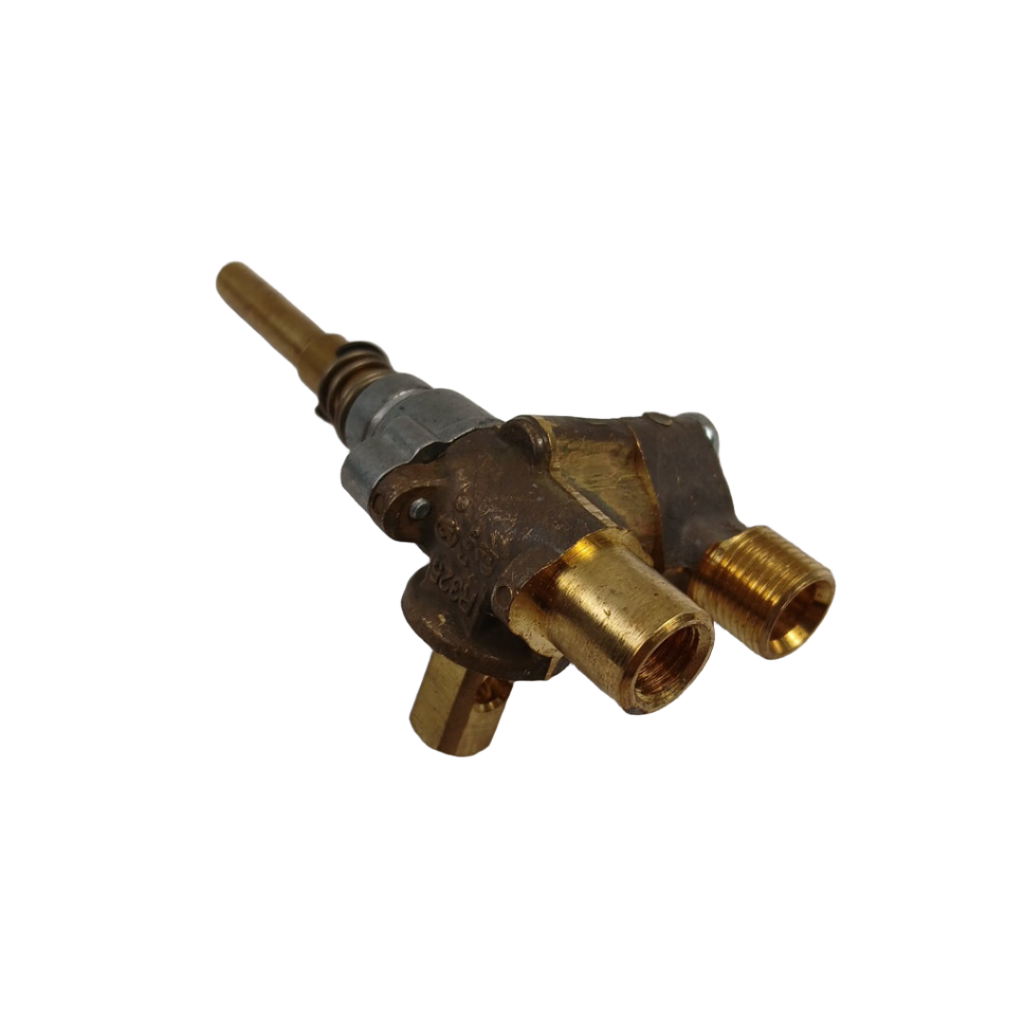

GE Range Dual Burner Gas Valve WS01F03891

GE dual burner gas valve, shown as item 306 in supported gas-range parts diagrams. It is also documented for at least one gas rangetop/cooktop model.

⚠️ NLA — Limited Stock: WS01F03891 is no longer manufactured or distributed by GE. Once existing supply is exhausted, there is no reorder path. Order now if your range requires this valve.

Is This the Right Part?

Confirm the complete appliance model number before ordering.

Common Symptoms

• One or both burners won’t ignite — igniter clicks but no flame appears
• Weak, uneven, or sputtering flame even at full heat setting
• No gas smell at the burner head when the knob is turned on
• Burner lights intermittently or only after repeated attempts
• Continuous clicking at igniter with no ignition result

Check Before Replacing

• Confirm the gas supply is on and at correct pressure at the appliance shutoff
• Inspect the igniter electrode and spark module — a failed igniter produces identical no-ignition symptoms without valve failure
• Check the burner cap and head for food debris or moisture blocking the ports — clean thoroughly before replacing parts
• Verify the wiring harness connector to the valve is fully seated and undamaged
• Confirm which burner circuits are affected — this valve controls two circuits; a single-burner failure may point to the igniter or orifice rather than the valve

✅ Cross Reference Information

Part Details

Installation Notes

1. Disconnect power and shut off the gas supply at the appliance shutoff valve before servicing.
2. Photograph gas line connections, wiring harness routing, and valve orientation before disassembly.
3. Compare the new valve with the original before installation — confirm inlet/outlet positions and connector match.
4. Reconnect all gas fittings and test for leaks with soapy water at every joint before restoring gas and power.
5. Test ignition on both burner circuits and check for unusual sounds or gas odour after reassembly.

Gas parts must be installed by a licensed gas technician. Use a qualified appliance technician when diagnosis or installation is outside your experience.

Verified Compatible Models

CGU366SEH1SS, ZDP304NP2SS, ZDP304NP6SS, ZDP304NP7SS, ZDP364NDP6SS, ZDP364NDP7SS, ZDP364NDP8SS, ZDP364NRP5SS, ZDP364NRP6SS, ZDP364NRP7SS, ZDP366NP1GS, ZDP366NP4SS, ZDP366NP5SS, ZDP366NP6SS, ZDP484NGP6SS, ZDP484NGP7SS, ZDP484NGP8SS, ZDP486NDP6SS, ZDP486NDP7SS, ZDP486NDP8SS, ZDP486NRP5SS, ZGU364NDP1SS, ZGU364NDP2SS, ZGU364NDP4SS, ZGU364NDP6SS, ZGU364NRP6SS, ZGU364NRP7SS, ZGU366NP5SS, ZGU484NGP1SS, ZGU484NGP7SS, ZGU486NDP1SS, ZGU486NDP6SS, ZGU486NDP7SS, ZGU486NRP6SS, ZGU486NRP7SS, ZIPS360NHBSS

Fitment reminder: Match the complete model number including suffix and revision before ordering.
