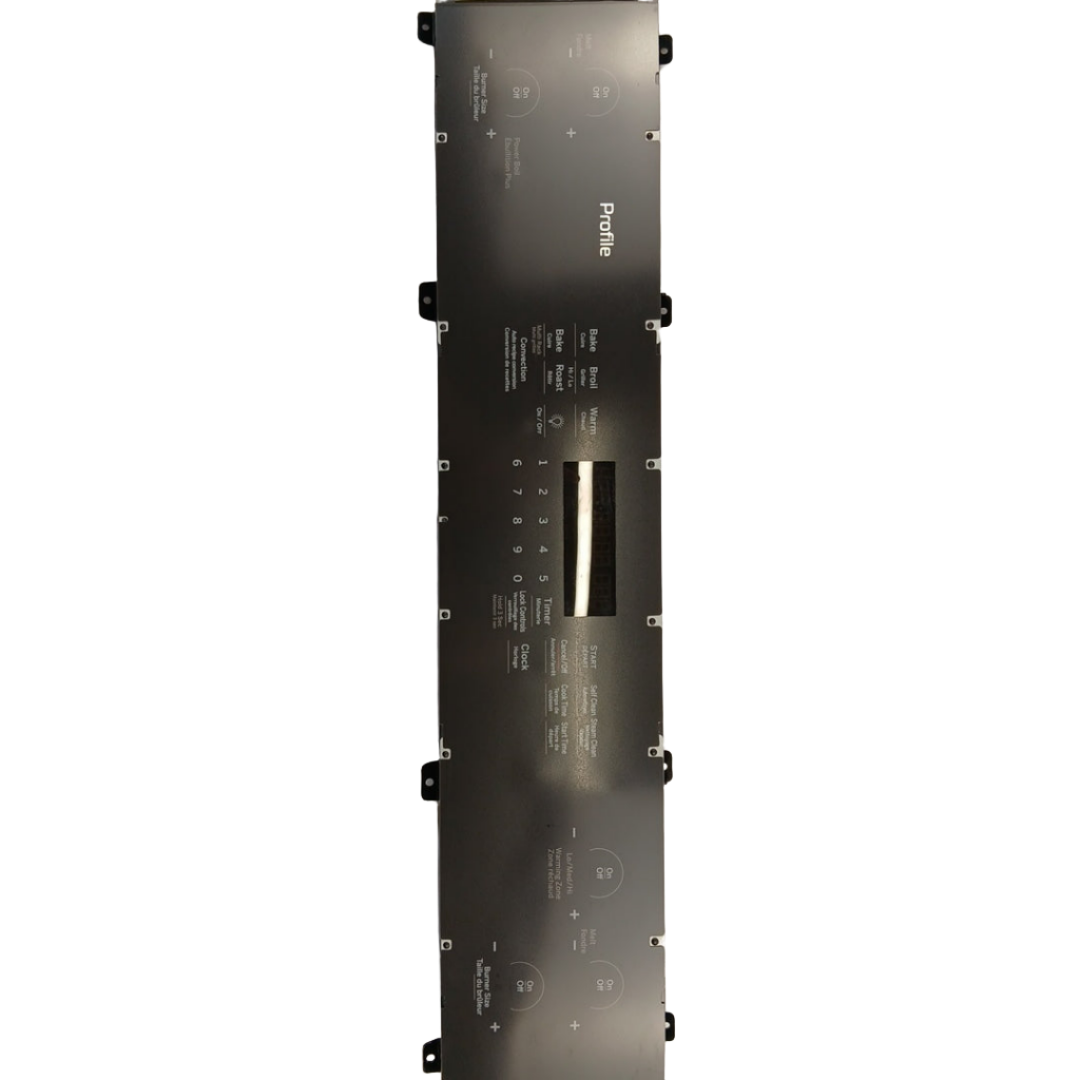

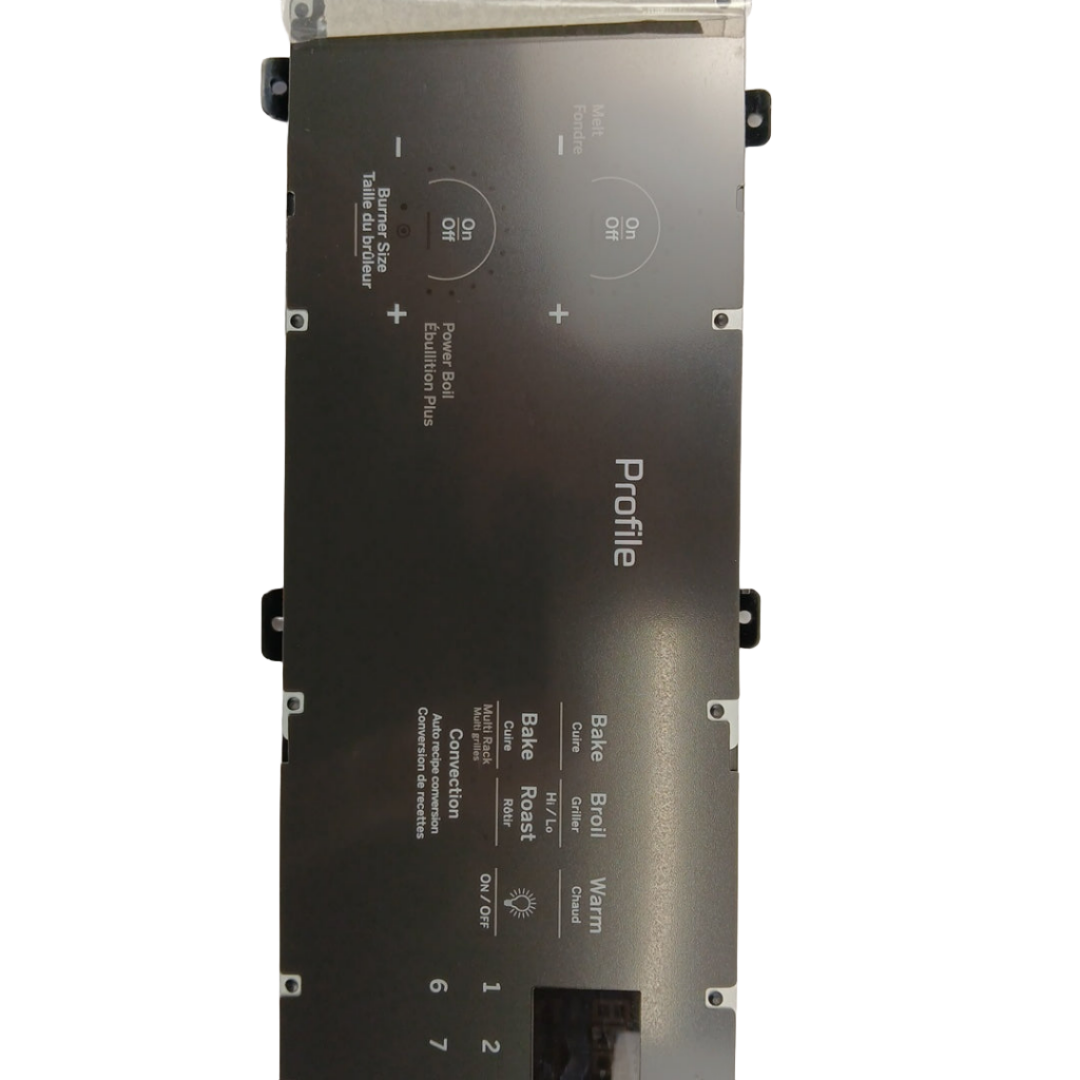

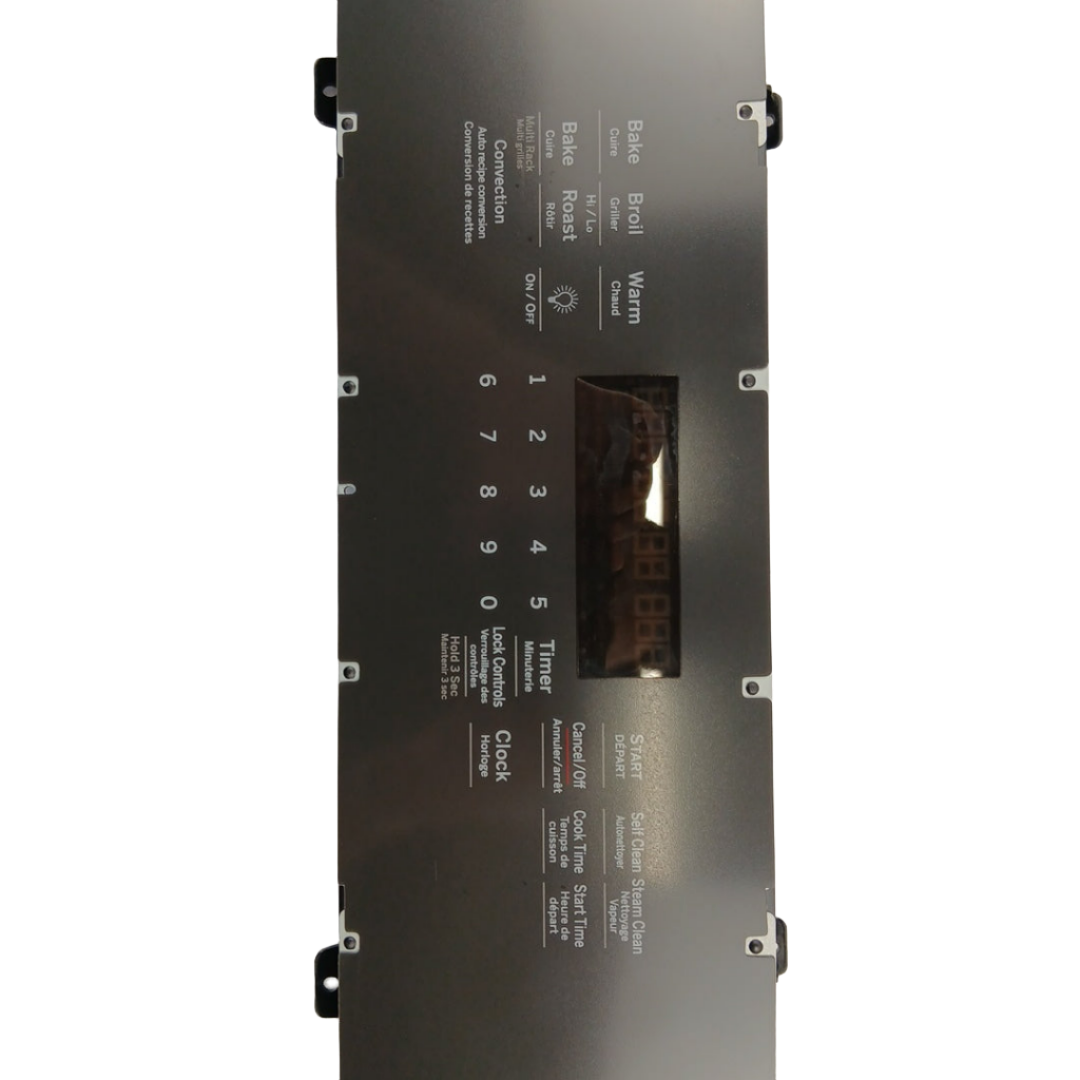

GE Range Surface And Oven Control Assembly RC15 WS01F07871, Replaces 295D1828G005 – Superseded by WS01F09628

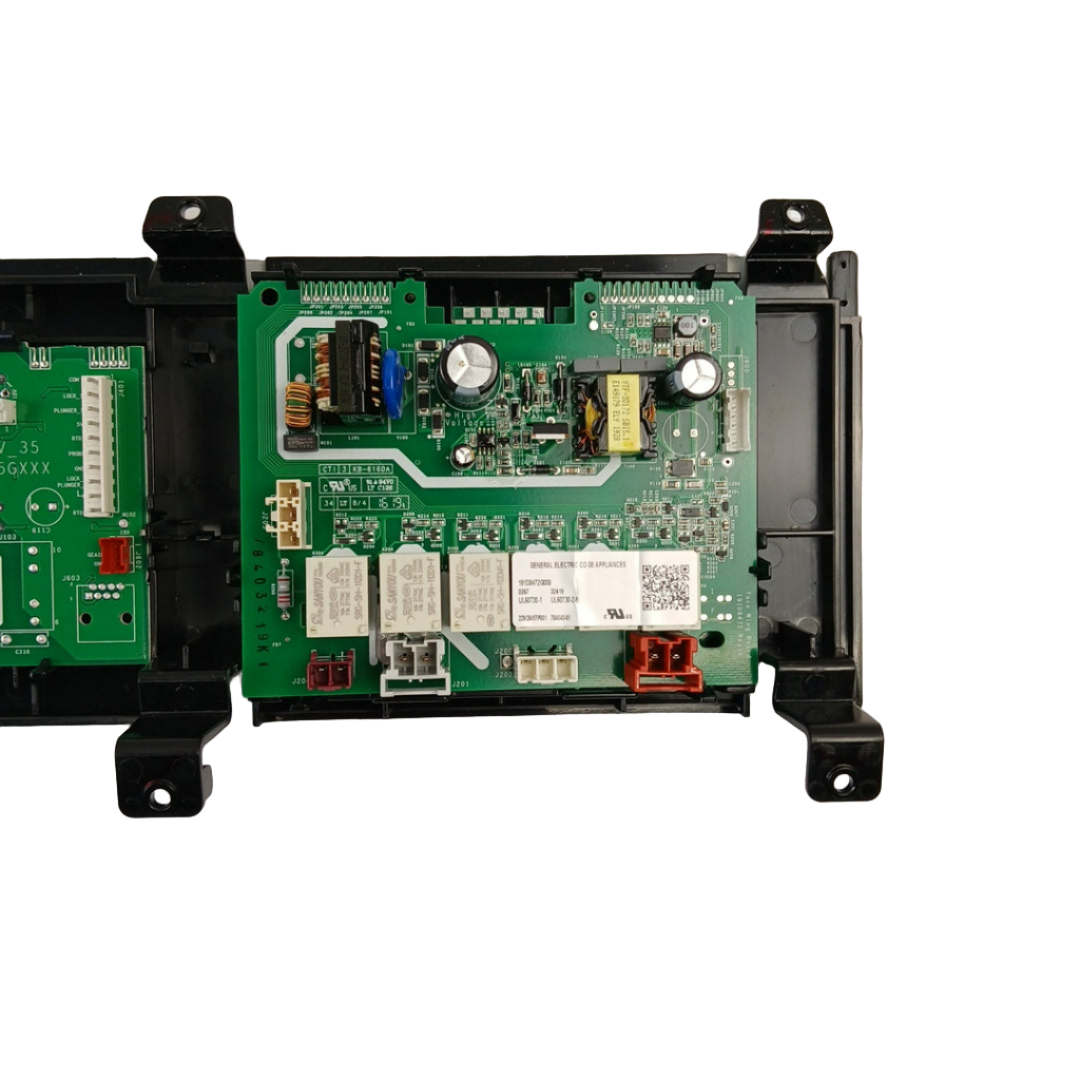

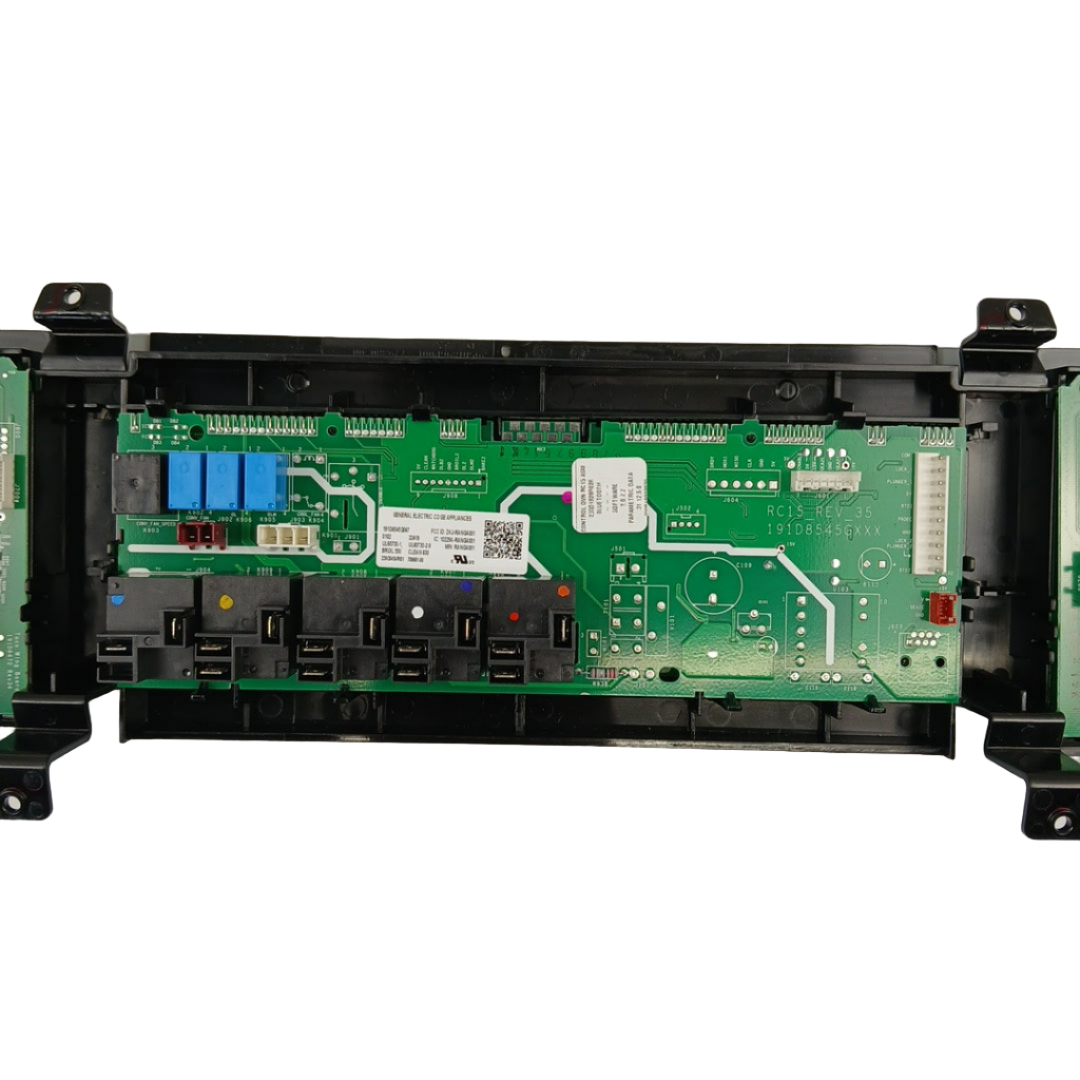

Genuine OEM GE surface-and-oven electronic control assembly for the range. The control board monitors oven temperature and controls oven heating; reported symptoms include no heat, insufficient heat, failure to start, programming failure, and an unresponsive touchpad.

Is This the Right Part?

Common Symptoms

• Oven will not start
• Oven will not program
• Oven produces no heat
• Oven produces insufficient heat
• Touchpad or control panel does not respond

Check Before Replacing

• Confirm the range has electrical power and that the circuit breaker has not tripped.
• Verify that the desired oven function and temperature have been selected correctly.
• Check whether the display shows a recurring function or error code after power is restored.
• If controls remain unresponsive, disconnect power to the range according to the appliance instructions and have the control assembly evaluated by a qualified technician.
• Do not treat these symptoms as proof that the control assembly has failed; wiring, sensors, heating elements, and power-supply faults can produce similar symptoms.

Pro Tip

Part Details

Key Features

• Genuine OEM GE surface-and-oven control assembly
• RC15 control assembly designation
• Electronic control board monitors oven temperature and controls oven heat
• Controls user programming and touchpad input
• Archived replacement number: WS01F09628

Installation Notes

• Disconnect electrical power to the range before servicing.
• Use the appliance’s model-specific service or installation instructions because connector locations and access procedures can vary.
• Transfer or retain only the components specifically identified for reuse by the service documentation; do not force connectors or alter wiring.
• After installation, restore power and verify display operation and basic control response before using the oven.
• Electrical appliance control replacement should be performed by a qualified technician if the service procedure or wiring is not clear.

Verified Compatible Models

PCB915EK1ES, PCB915SK1SS, PCB915SK4SS

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
