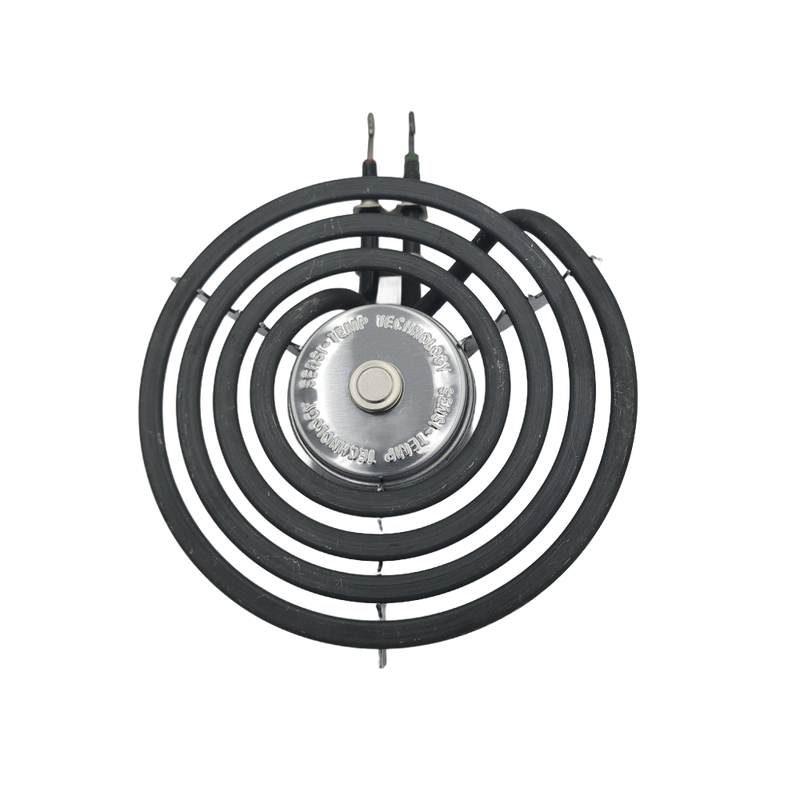

Burner Not Heating? GE 8" Coil Surface Element WS01F11294 – Fix Dead Burner Fast

A completely dead burner — no heat, no glow, no response at any setting — is the classic sign of a failed coil surface element. In most GE, Hotpoint, and Moffat electric ranges, this is caused by a burned-out 8" coil element. When it fails, that burner becomes completely unusable, and a partial break can cause the element to glow on one side only or trip the breaker on startup. ⚡ One of the most common electric range failures across GE-built coil cooktops. Part WS01F11294 is the genuine OEM replacement that restores full burner output immediately — no modification required.

❓ Is This the Right Part?

This is the correct fix if ALL of the following are true:

• ✔ Range powers on and other burners work normally
• ✔ Oven and broil functions work correctly
• ✔ Infinite switch (burner knob) confirmed OK — turns and clicks
• ✔ Receptacle block shows no melting or burn damage
• ✔ ONLY problem is one burner with no heat, partial glow, or visible coil damage

🔧 Common Symptoms

• Burner produces no heat at any setting
• Element glows red on one side only — partial internal break
• Visible burn mark, crack, or blister on the coil surface
• Burner trips the breaker when turned on
• Intermittent heating — works sometimes, fails others
• Sparking or popping from the element surface during use

✔ If these symptoms match, this is the most likely failed component in the system.

✔ In most cases, replacing this coil surface element restores normal burner operation immediately.

📦 Part Details

• Part Number: WS01F11294
• Type: 8" Coil Surface Burner Element — Electric Range
• Replaces: WS01F09151, 600323, 164D9999P001, MAW/WS01F09151 — no modification required
• Brands: GE, Hotpoint, RCA, Moffat

⚙️ Installation Notes

Skill Level: EASY — 5–10 minutes. Disconnect power at the breaker before servicing. The element plugs directly into the receptacle block — align the two prongs carefully and press firmly until fully seated. Do not force the element; a misaligned plug can damage the receptacle. Before installing, inspect the receptacle block for burn marks, melted plastic, or corroded terminals — a damaged receptacle must be replaced at the same time or the new element will fail prematurely.

💡 Pro Tip
