Washer Drum Not Spinning? Motor WW02F00209 – Fix Drive Motor Failure Fast
A failed washer drive motor doesn’t just stop the spin cycle — it can leave your machine completely unresponsive with a full load of wet laundry inside. In most GE Profile top-load washers, this is caused by a failed drive motor assembly. When it fails, the drum will not agitate or spin, the machine may hum without moving, and the washer may trip thermal protection and shut down entirely. ⚡ Common failure point in GE Profile and GE top-load washers. Part WW02F00209 is the genuine OEM replacement that restores full drum agitation, spin, and drive motor function immediately.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Washer powers on and control panel responds normally
- ✔ Lid switch, capacitor, and wiring harness confirmed OK
- ✔ Water inlet and drain pump are functioning correctly
- ✔ ONLY problem is drum not agitating, not spinning, or motor humming without movement
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Washer drum does not agitate or spin at all
- Motor hums but drum does not move (seized or overloaded motor)
- Washer fills and drains correctly but drum stays still
- Burning smell from motor area during attempted operation
- Washer trips breaker or shuts off mid-cycle due to motor overload
- Drum moves intermittently then stops completely
✔ If these symptoms match, this is the most likely failed component in the system.
✔ In most cases, replacing this drive motor restores full agitation and spin immediately.
📦 Part Details
- Part Number: WW02F00209

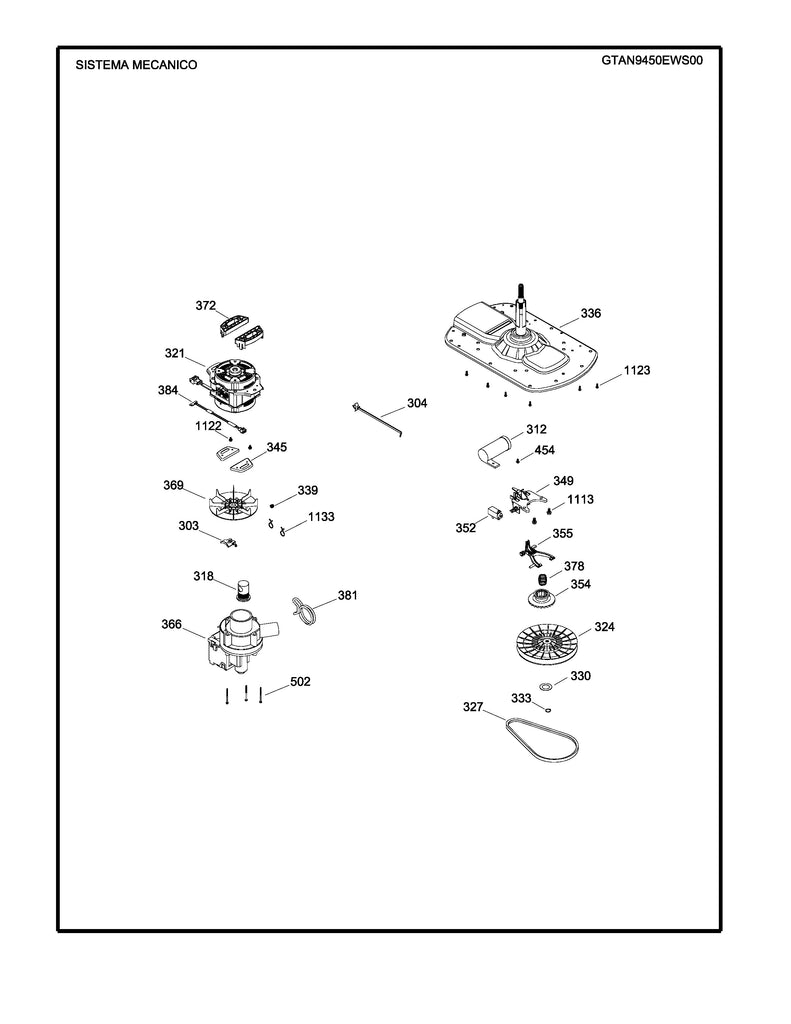

- Type: Washer Drive Motor Assembly (Item #321 in diagram)
- Replaces: WH20M47, 189D4153P008 — no modification required
- Brands: GE, GE Profile, GE Appliances
⚠️ Recommended While Repairing:
The drive motor and motor capacitor work as a system. A failed capacitor is often the root cause of motor burnout — if you’re replacing the motor, always replace the capacitor at the same time. Installing a new motor on a failing capacitor will cause premature motor failure and a second repair call.
The drive motor and motor capacitor work as a system. A failed capacitor is often the root cause of motor burnout — if you’re replacing the motor, always replace the capacitor at the same time. Installing a new motor on a failing capacitor will cause premature motor failure and a second repair call.
⚙️ Installation
Skill Level: ADVANCED — 60–90 min DIY / 30–45 min professional. Disconnect power before servicing. Access the motor by removing the cabinet panels and disconnecting the wiring harness, drive belt (if applicable), and mounting hardware. Transfer any brackets or mounting clips from the old motor before installing the new unit. Restore power and run a test cycle to confirm full agitation and spin.
✓ Compatible Models
Confirmed compatible with GTAN9450EWS00, GTAN9455EGG00, PTAN9150MWW0, PTAN9250MWS0, PTAN9350MWS0, PTAN9450MWS0, PTAN9455MGG0. Contact us to verify your model number before ordering.
💡 Pro Tip
Test the Capacitor Before Ordering the Motor:
A failed run capacitor mimics a dead motor — the drum won’t move and the motor may hum. Capacitors cost a fraction of a motor and are the first thing to check. If the capacitor tests good and the motor still won’t run, then WW02F00209 is your fix. Replacing both in one visit is the professional standard and eliminates the most common cause of repeat motor failure.
A failed run capacitor mimics a dead motor — the drum won’t move and the motor may hum. Capacitors cost a fraction of a motor and are the first thing to check. If the capacitor tests good and the motor still won’t run, then WW02F00209 is your fix. Replacing both in one visit is the professional standard and eliminates the most common cause of repeat motor failure.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
