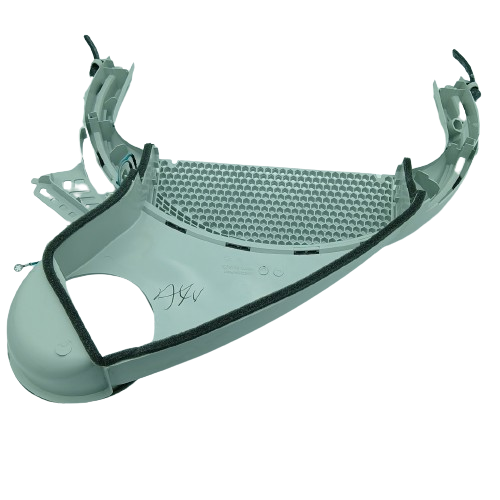

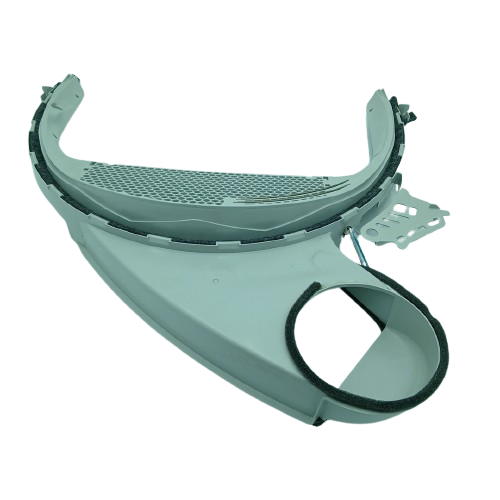

GE Appliances / General Electric Dryer Trap Duct Assembly WW02F00668, Replaces 234D2073G006, WE01X25334

Genuine GE dryer trap duct assembly used in the dryer lint-trap airflow path.

Is This the Right Part?

Common Symptoms

• Increased drying time
• Lint accumulating inside the dryer instead of the lint trap
• Reduced airflow
• Vibration or rattling from damaged or loose ducting

Check Before Replacing

• With power disconnected, visually inspect the trap duct for cracks, breaks, crushing, collapse, loose connections, or lint bypass around the duct.
• Check whether lint is accumulating inside the dryer rather than being captured by the lint trap.

Pro Tip

Part Details

Key Features

• Genuine GE Appliances replacement part
• Trap duct assembly
• Shown as part 137 in documented dryer diagrams
• May include the moisture-sensor components, according to documented service-part feedback

Installation Notes

• Disconnect electrical power before servicing the dryer.
• The assembly is mounted at the dryer front panel and may have an electrical connector and ground connection; follow the appliance service documentation for removal and installation.
• After installation, verify that the duct seals correctly and that wiring is reconnected as specified by the service documentation.

✅ Cross Reference Information

234D2073G006, WE01X25334

Verified Compatible Models

DME47N8MSDBP00, DMG47N8MSDAB00, GTD40EBMK0WW, GTD40EBMR0WS, GTD40GBMK0WW, GTD40GBMR0WS, GTD45EAMJ1WS, GTD45EAMJ2WS, GTD45EBMK0WS, GTD45EBMR0WS, GTD45GAMJ1WS, GTD45GAMJ2WS, GTD45GBMK0WS, GTD45GBMR0WS, GTD46EDMN0WS, GTMP280GD5WW, SGE47N5XNSBH00, SGE47N5XSBBH00, SGE47N5XSBBH01, SGE47N5XSSBP00, SGE47N8XSBBT00, SGE47N8XSBBT10, SGE47N8XSBBT20, SGE47N8XSBBT30, SGE47N8XSBCT00, SGN27N5XSBAB00, SGN47N5MSSAB00, SGN47N5XSSAB00, SGN47N8MSSAB00, SIG47N5MSBAB00, SME27N5MSBBP00, SME27N5MSBBP01, SME27N5MSBBT00, SME47N5XSBBP00, SME47N5XSBBP01, SME47N5XSBBT00, SME47N5XSBBT10, SME47N8MSBBP00, SME47N8MSBBP01, SME47N8MSBBP02, SME47N8MSBCT00, SME47N8MSBCT10, SME47N8MSBCT11, SME47N8MSDBP00, SME47N8MSGBP00, SME47N8MSGBP01, SME47N8MSGCT00, SME47N8MSRBP00, SME47N8XSBBT00, SME47N8XSBBT10, SME47N8XSBBT20, SME47N8XSBCT00, SMG27N5MSBAB00, SMG27N5MSBAB01, SMG47N5MSBAB00, SMG47N5MSBAB01, SMG47N8MSBAB00, SMG47N8MSBAB01, SMG47N8MSBBB00, SMG47N8MSBBB01, SMG47N8MSDAB00, SMG47N8MSDBB00, SMG47N8MSGAB00, SMG47N8MSGBB00, SMG47N8MSGBB01, SMG47N8MSRAB00, XKR72FWTWB00, XKR72FWTWB10, XKR72GWTWB00

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
