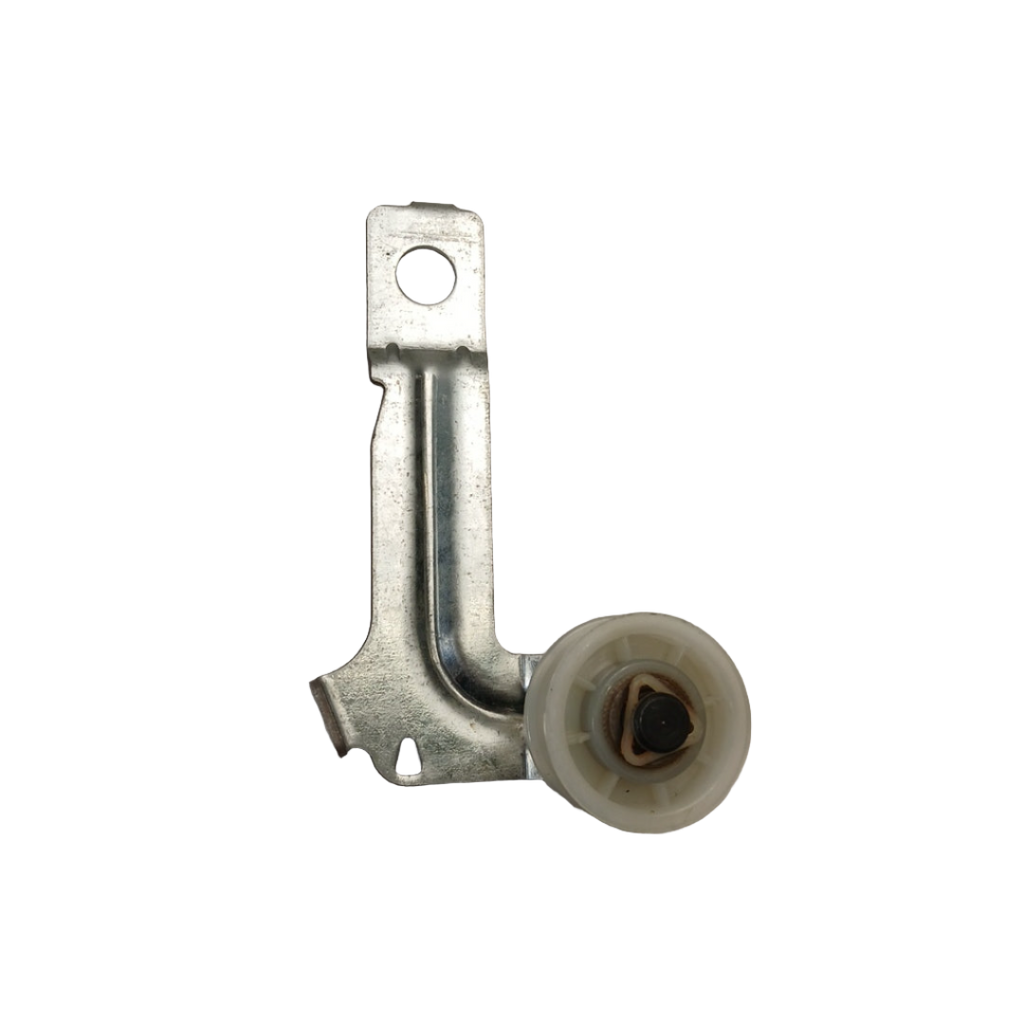

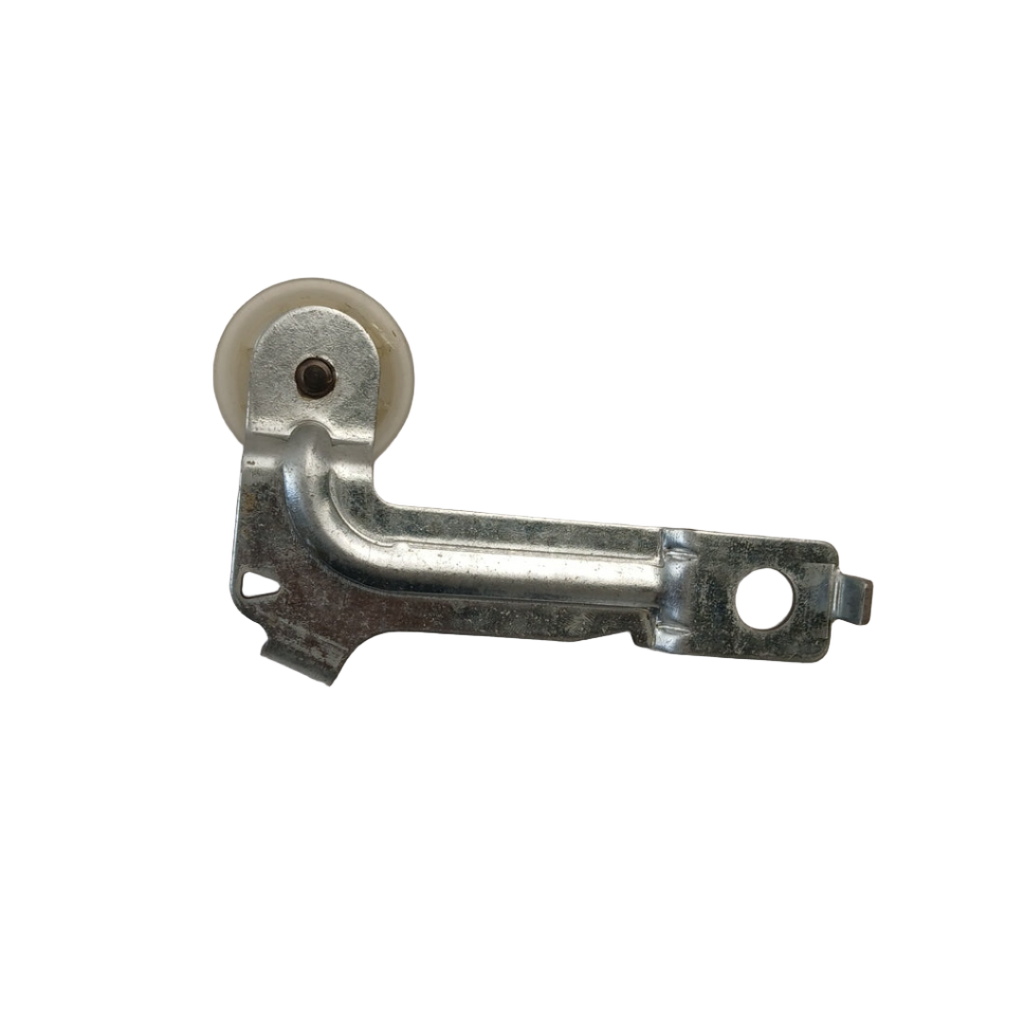

Whirlpool Dryer Idler Pulley Wheel and Arm Assembly WPW10547292, Replaces 8547160, W10547292

OEM idler pulley wheel and arm assembly that maintains tension on the dryer drive belt and supports smooth drum rotation. It may cause squealing, noise, or a non-spinning drum when worn or seized.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Persistent squealing or squeaking from the belt-drive area.
• Pulley wheel does not spin freely or appears seized when inspected with power disconnected.
• Drive belt slips, loses tension, or repeatedly comes off the pulley.
• Drum fails to rotate or rotates intermittently when the idler assembly cannot maintain belt tension.

Check Before Replacing

• Disconnect electrical power before inspection; shut off the gas supply on gas dryer models.
• With the dryer de-energized and access provided according to the appliance service documentation, visually inspect the idler wheel and arm for wear, cracking, damage, or misalignment.
• Check whether the idler wheel rotates freely by hand without forcing it.
• Inspect the belt path to confirm the belt remains seated and is routed around the motor and idler pulley as shown in the appliance documentation.
• Do not operate the dryer with panels removed or while hands are near the belt, pulley, or motor.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool dryer idler pulley wheel and arm assembly.
• Combines the pulley wheel and supporting arm in one belt-tensioning assembly.
• Designed to maintain drive-belt tension during drum rotation.
• Listed as replacing Whirlpool numbers 8547160 and W10547292.

Installation Notes

• Disconnect electrical power before servicing; shut off the gas supply for gas dryers.
• Installation requires access to the belt-tensioner area and may require removal of dryer panels and the drum, depending on the model.
• Release belt tension before removing the old idler assembly.
• Install the replacement so the arm and pulley are correctly positioned, then confirm the pulley moves freely and the belt is correctly routed before reassembly.
• Follow the model-specific Whirlpool service or repair documentation because access and disassembly vary by dryer model.

Verified Compatible Models

7MMGDB850WL0, 7MMGDB850WL1, 7MMGDB950AG0, 7MMGDB950AG1, 7MWGD7800XW0, 7MWGD8800AW0, 7MWGD8800AW1, MEDB400VQ1, MEDB850YG0, MEDB850YW0, MEDB950YW1, MGDB200VQ1, MGDB850WQ0, MGDB850WR0, MGDB950YW1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
