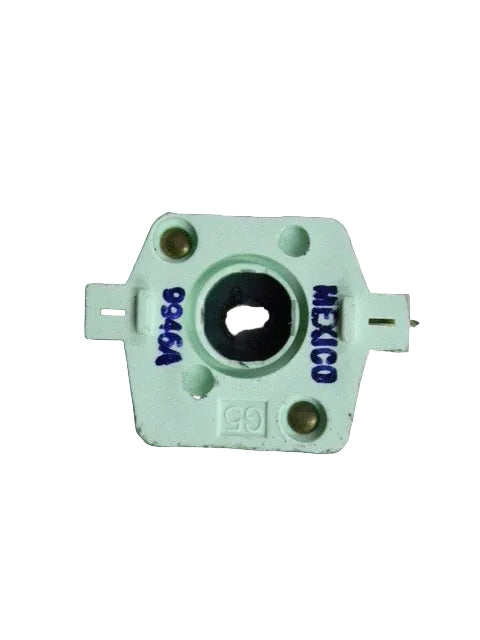

Y0316538 Caloric Range Spark Ignition Switch — Fix Burner Ignition Problems Fast

If your Caloric range won’t ignite despite gas flowing, or you hear a repetitive click but never see a spark, the problem is often the spark ignition switch itself. The Y0316538 Caloric Range Spark Ignition Switch from XPart Supply is a genuine OEM replacement designed to restore reliable burner ignition and quiet those incessant clicks.

What this part fixes

• Burner won’t ignite or light
• Clicking sound but no spark
• Continuous clicking without ignition
• No spark when turning the burner knob
• Intermittent ignition problems
• One or more burners won’t light
• Gas flows but burner won’t ignite

Key features & specifications

• Part Number: Y0316538
• Type: Range Spark Ignition Switch
• Compatibility: Caloric and compatible gas ranges
• Condition: Genuine OEM part
• Function: Directly controls the spark module to ignite gas burners

Why the ignition switch fails (and how this part helps)

Over years of use, electrical arcing and exposure to heat, grease, and moisture cause the internal contacts in a spark ignition switch to wear and corrode. After roughly 8–12 years, those worn contacts can stick or fail, preventing the spark module from firing even when gas is present. Replacing with the Y0316538 switch reestablishes a clean electrical signal to the spark module, restoring reliable ignition and eliminating stubborn clicking.

Installation at a glance

1. Turn off the gas supply and disconnect power to the range.
2. Remove burner grates and burner caps for access.
3. Take off the control knobs from the front panel.
4. Unscrew the control panel screws and lift the panel up.
5. Locate the spark ignition switch behind the panel and disconnect the wire harness.
6. Remove mounting screws and extract the old switch.
7. Install the new switch, reconnect wiring, and reassemble.
8. Restore gas and power, then test burner ignition.

Safety note: Always verify the gas supply is off and power is disconnected before servicing. After reassembly, test connections with soapy water to check for leaks.

Compatible models

This Caloric range spark ignition switch is designed for Caloric gas range models that use this exact switch design. To ensure a proper fit, verify your model number against the part and compare with your existing switch before ordering.

Why choose XPart Supply

• Genuine OEM Parts: Factory-authorized replacements built to exact specifications
• Expert Support: 30+ years helping Canadians fix appliances with trusted guidance
• Fast Shipping: Quick delivery across Canada
• Guaranteed Fit: Free phone support to verify compatibility before you buy
• Canadian Business: Proudly serving customers since 1996

Practical tips and use cases

• Use this ignition switch when you hear persistent clicking but see no spark, or when the burner won’t ignite despite gas flow.
• Replace as part of a planned maintenance cycle for older Caloric ranges to prevent unexpected ignition failures.
• Pair with a quick check of the spark module to confirm the entire ignition path is functioning after replacement.

Frequently asked questions

Q: How do I know if my spark ignition switch is bad?

A: If your burners repeatedly click without producing a spark, or if they don’t click at all when you turn the knob, the ignition switch is a likely culprit. Replacing with the Y0316538 restores proper signaling to the spark module.

Take the guesswork out of burner ignition repairs with a genuine OEM replacement designed for Caloric ranges. The Y0316538 Spark Ignition Switch from XPart Supply delivers a reliable ignition path, reduces noisy clicking, and gets your cooking back on track quickly.

Y0316538 Caloric Range Spark Ignition Switch – Fix Your Range That Won't Ignite, Clicks But Won't Light, or Has No Spark

The complete fix for a Caloric range with burners that won't ignite, click continuously but won't light, or have no spark at all.

The spark ignition switch controls the spark module that creates the electrical spark to ignite your gas burners. When this switch fails, your burners won't light even though gas is flowing, or they may click continuously without producing a spark. Replacing a failed ignition switch restores proper burner ignition and eliminates annoying clicking sounds.

✓ Common Symptoms Fixed

• Burner won't ignite or light
• Clicking sound but no spark
• Continuous clicking without ignition
• No spark when turning burner knob
• Intermittent ignition problems
• One or more burners won't light
• Gas flows but burner won't ignite

✓ Key Features & Specifications

• Part Number: Y0316538
• Type: Range Spark Ignition Switch
• Compatibility: Caloric and compatible gas ranges
• Condition: Genuine OEM part
• Function: Controls spark module to ignite gas burners

✓ Why This Part Fails

The spark ignition switch fails from repeated use and electrical arcing over 8-12 years. Each time you turn a burner knob, the switch activates the spark module, gradually wearing down the internal contacts. Moisture, grease, and heat exposure accelerate deterioration, eventually causing the contacts to stick, corrode, or fail completely. When it fails, the switch can't send the signal to create a spark, preventing burner ignition.

✓ Installation Tips

Difficulty: Easy to Moderate | Time: 30-45 minutes | Tools: Screwdriver, nut driver

Steps:

1. Turn off gas supply and disconnect power to range
2. Remove burner grates and burner caps for access
3. Remove control knobs from front panel
4. Remove screws securing control panel and lift panel up
5. Locate spark ignition switch behind control panel
6. Disconnect wire harness from switch
7. Remove mounting screws and extract old switch
8. Install new switch, reconnect wiring, and reassemble
9. Restore gas and power, test burner ignition

Safety Note: Always turn off gas supply and disconnect power before working on gas range components. Test for gas leaks after reassembly using soapy water on all connections.

✓ Compatible Models

Caloric Ranges: Compatible with Caloric gas range models using this spark ignition switch design

Verify your model number and compare with your existing part to ensure proper fit.

✓ Why Choose XPart Supply

• Genuine OEM Parts: Factory-authorized replacement parts
• Expert Support: 30+ years experience helping Canadians fix appliances
• Fast Shipping: Quick delivery across Canada
• Guaranteed Fit: Free phone support to verify compatibility
• Canadian Business: Trusted local supplier since 1996

✓ Frequently Asked Questions

Q: How do I know if my spark ignition switch is bad?
A: If your burners click but don't produce a spark, or if they don't click at all when you turn the knob, the ignition switch is likely failed. You can also test by listening for the clicking sound—if you hear clicking but see no spark at the burner, the switch may be sending a signal but the spark module or electrode needs attention.

Q: Will replacing the ignition switch fix my clicking problem?
A: Yes, if the switch is stuck in the "on" position causing continuous clicking. However, if the clicking is caused by moisture or a faulty spark module, you may need to address those issues as well. A failed switch that won't turn off is a common cause of continuous clicking.

Q: Can I use my range if the ignition switch is broken?
A: Yes, you can manually light burners with a match or lighter while waiting for the replacement part. However, this is inconvenient and potentially dangerous, so we recommend replacing the switch as soon as possible.

Q: How long does a spark ignition switch typically last?
A: Ignition switches typically last 8-12 years with normal use. Replace it when it fails—it's not a regular maintenance item.

Q: Is this a genuine Caloric part?
A: Yes, this is a genuine OEM part (Y0316538), manufactured to factory specifications. It's the exact same part a service technician would install, ensuring perfect fit and reliable performance.
