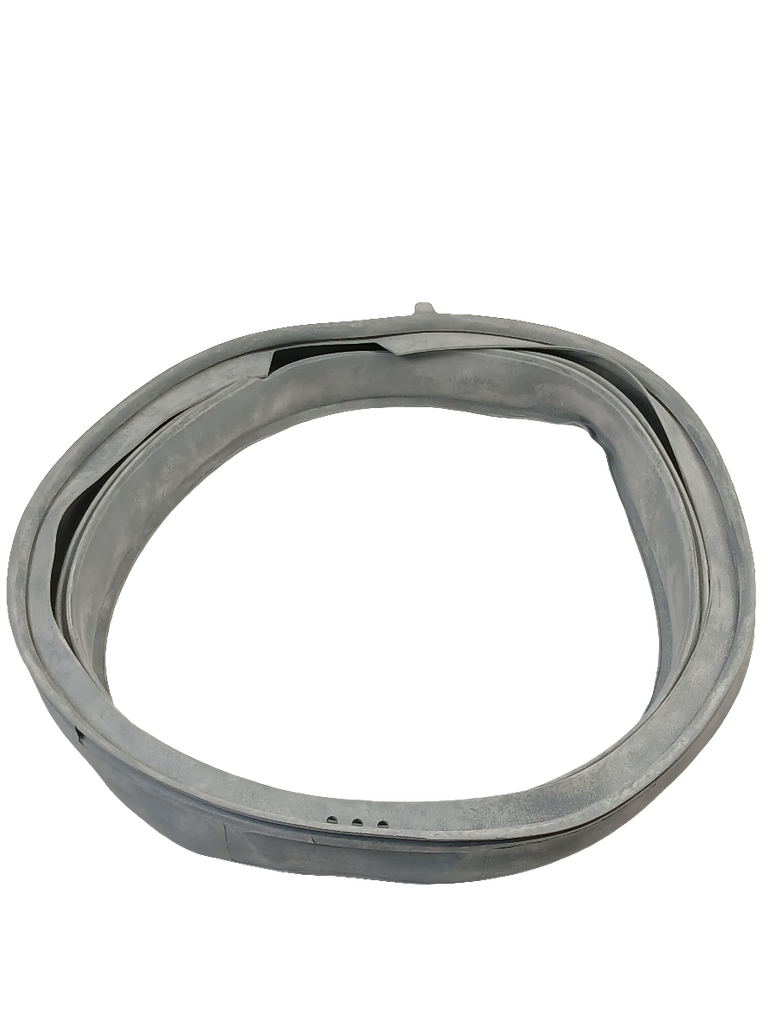

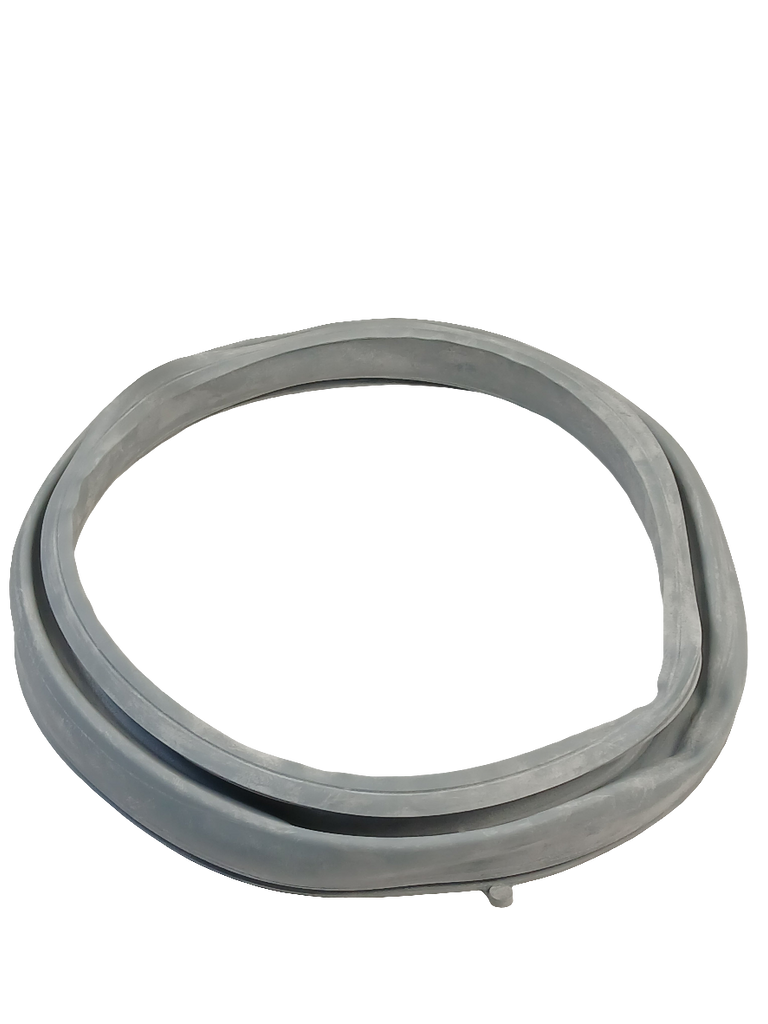

Bosch Washer Door Seal / Door Boot Gasket 00667487, Replaces 667487

Genuine Bosch front-load washer door boot gasket that seals the opening between the wash tub and door to help prevent water leaks. Bosch documentation specifies that this version does not include a flushing-hose port.

Is This the Right Part?

Common Symptoms

• Water pooling beneath or around the front door after a cycle.
• Visible cracks, tears, hardening, flattening, or deformation of the door boot.
• Door boot visibly misaligned or preventing the door from closing or locking properly.
• Drum contact or rubbing against the door seal during operation.

Check Before Replacing

• With the washer empty and powered off, visually inspect the entire door boot, including its folds, for tears, cracks, foreign objects, or deformation.
• Wipe the seal clean and check whether the leak path appears to originate at the door boot rather than the detergent drawer, hoses, pump, or another area.
• Inspect the boot’s seating around the door opening for visible gaps, twists, pinches, or displacement.
• Confirm that the door closes evenly against the seal without forcing or catching.
• If the seal appears intact but leaking continues, have the door, hinge, glass, tub rim, and seal seating inspected by a qualified technician.

Pro Tip

Part Details

Key Features

• Genuine Bosch OEM washer door seal / door boot gasket.
• Designed for Bosch Nexxt front-load washers listed for this part.
• Does not include a flushing-hose port.
• Flexible bellows-style seal forms the water barrier between the tub and door.

Installation Notes

• Disconnect electrical power and the washer’s water supply before beginning service.
• Record the original gasket orientation before removal; install the replacement in the same orientation.
• The gasket is retained at the door opening and tub by retaining clamps or wires; ensure both retaining elements are fully seated and evenly tensioned.
• Clean the mating grooves and surrounding surfaces before installing the new seal.
• Check that the gasket is not twisted, pinched, or unevenly seated before reassembling the washer.
• After reassembly, run a short empty cycle and check carefully for leaks before normal use.

Verified Compatible Models

WFMC530CUC/13, WFMC530SUC/13, WFMC2201UC/13, WFMC3301UC/15, WFMC3301UC/16, WFMC4301UC/09, WFMC4301UC/10, WFMC4301UC/12, WFMC4301UC/13, WFMC5301UC/09, WFMC5301UC/10, WFMC5301UC/12, WFMC5301UC/13, WFMC5301UC/15, WFMC5301UC/16

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
