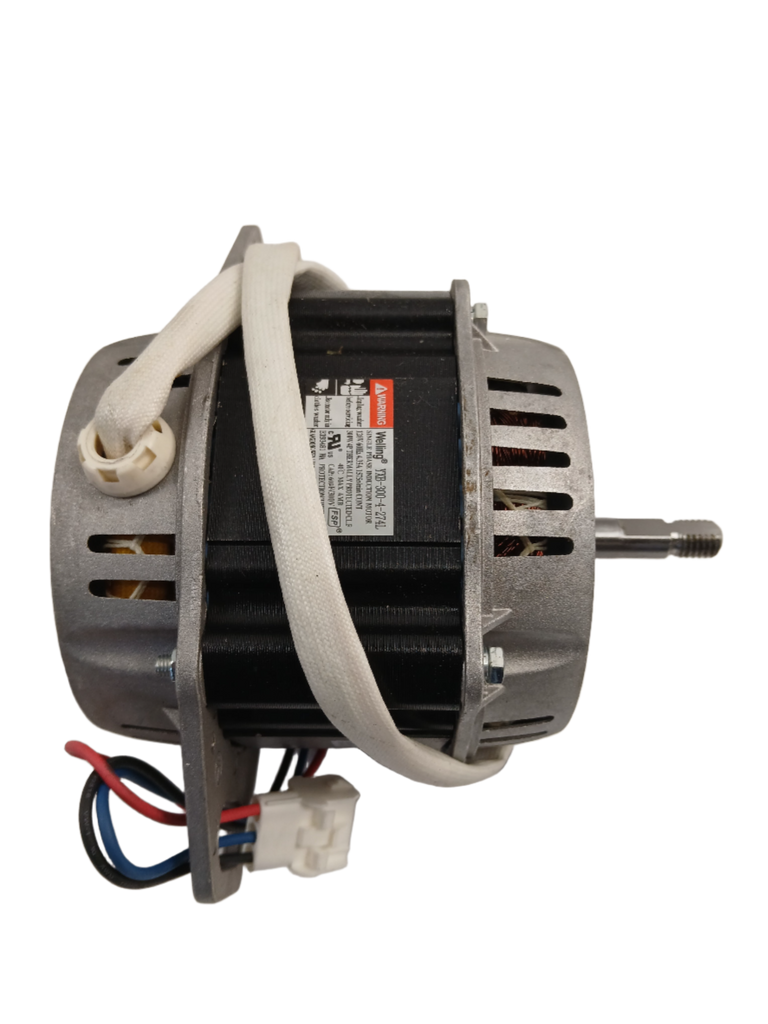

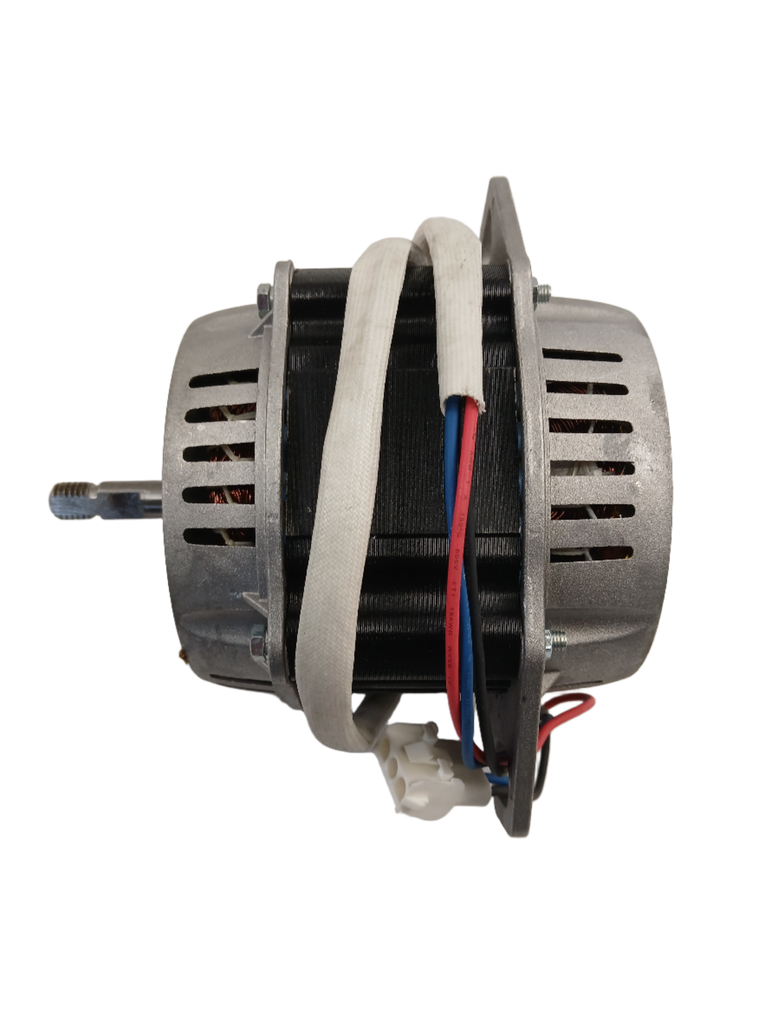

Midea Washer Single Phase Asynchronous Motor 11002012000022

Genuine Midea/Insignia washer drive motor, identified in parts documentation as a single-phase asynchronous motor. The motor is also associated with the YXB-300-4-234 designation.

Is This the Right Part?

Common Symptoms

• Washer drum or tub does not rotate during agitation or spin
• Motor hums or runs without transferring motion to the tub
• Intermittent or abnormal motor-related noise
• Washer stops rotating after the cycle begins

Check Before Replacing

• Disconnect power before accessing the motor or wiring.
• With power disconnected, check that the tub or wash basket rotates freely by hand and is not mechanically blocked.
• Visually inspect the drive belt and motor pulley for looseness, breakage, displacement, or obvious damage.
• Inspect the motor wiring harness and connector for looseness, damaged insulation, or disconnected wires.
• Check the motor only after related belt, pulley, wiring, capacitor, coupling, and control-system causes have been considered; do not treat a no-spin symptom alone as proof of motor failure.

Pro Tip

Part Details

Key Features

• Genuine Midea/Insignia washer motor designation
• Single-phase asynchronous motor
• Also identified with the YXB-300-4-234 designation
• Used with a motor pulley and ribbed drive belt in documented washer assemblies
• Exact archived part number: 11002012000022

Installation Notes

• Disconnect electrical power before servicing the motor, connector, belt, or pulley.
• Use the model-specific service documentation for access and removal because cabinet construction and fastener arrangements can vary.
• Before replacement, compare the connector, pulley arrangement, mounting pattern, and motor labeling with the removed part.
• After installation, ensure the wiring connector is fully seated and the belt is correctly positioned before restoring power.
• If the motor has visible burning, physical damage, or abnormal resistance, have electrical testing performed by a qualified technician rather than applying power for an improvised test.

Verified Compatible Models

ATLMW41, CLAWI47W, CTW41N1AW, MAD160S2801GPSFMUS13, MAD160S2801PS, MLV41N1AWW, MLV41N1AWWC, MLV45N1BWW, MLV45N1BWWC, MLV45N3BMG, MLV45N3BWW, MLV47A3AGG, NS-TWM35W1, NS-TWM41WH8A

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
