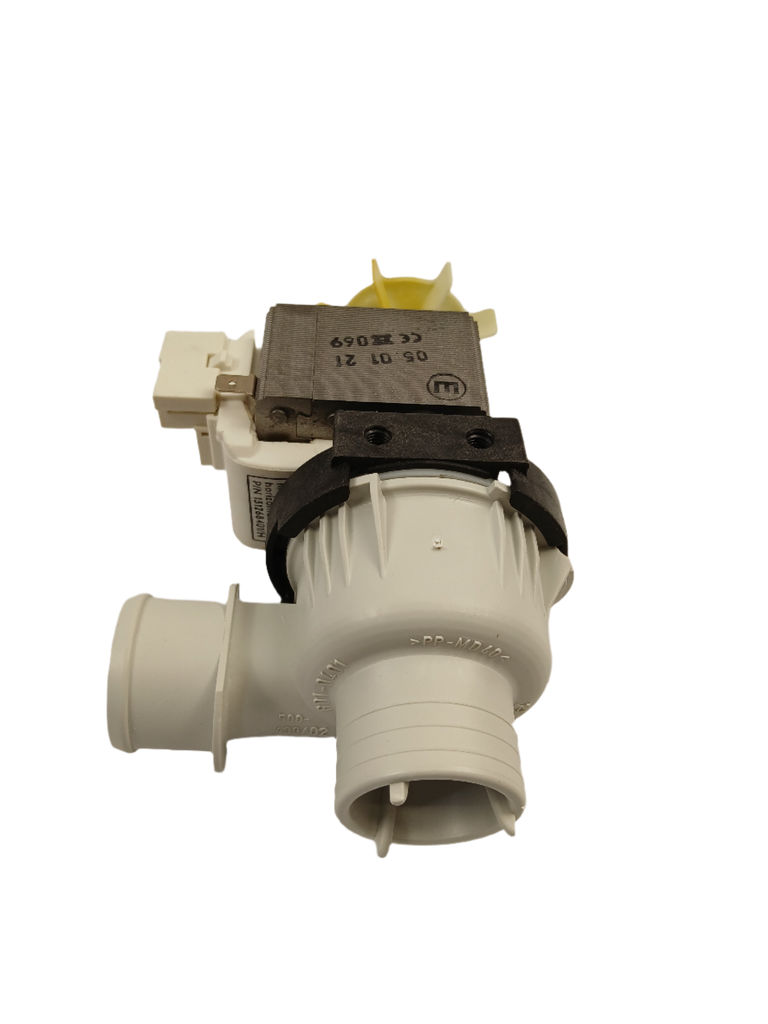

Frigidaire / Electrolux Washer Drain Pump and Motor Assembly 131268401, Replaces 131268400, 131427400, 131630700

Genuine OEM washer drain pump and motor assembly for top-load and front-load washing machines. The pump removes water during the drain portion of the cycle and uses a horizontal or remote-style mount.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer leaves water in the tub or drum.
• Slow or incomplete draining.
• Whining or abnormal pump noise during drain.
• Water leakage from the pump assembly.

Check Before Replacing

• Disconnect electrical power before inspecting the pump, hoses, or wiring.
• Check the external drain hose for kinks, crushing, improper positioning, or a blockage.
• Inspect accessible pump inlet and outlet hoses for foreign objects or restrictions before condemning the pump.
• If the pump is accessible under the model-specific service procedure, inspect the impeller and pump housing for debris, damage, or leakage; do not force the impeller or operate exposed electrical connections.
• If the pump is unobstructed but the washer still will not drain, verify the pump wiring and connector condition and consult the appliance's model-specific service information before replacing the pump.

Pro Tip

Part Details

Key Features

• Genuine Frigidaire/Electrolux OEM drain pump and motor assembly.
• Used in selected front-load and top-load washers and washer-dryer combinations.
• Horizontal or remote-style mounting configuration.
• Replaces manufacturer numbers 131268400, 131427400, and 131630700.
• Pump cover may be removable for outlet repositioning on applicable installations.

Installation Notes

• Disconnect power and remove or otherwise safely manage residual water before removing pump hoses.
• Use the model-specific access and removal procedure because pump location and mounting can vary by washer model.
• Transfer or retain only model-specific mounting hardware or brackets if the service procedure requires it.
• Reconnect the electrical connector and hoses securely, then run an appropriate drain or test cycle and check for leaks before returning the appliance to normal use.
• Do not rely on the part number alone; verify the appliance model and pump orientation before installation.

Verified Compatible Models

417.99680210, FLSE72GCS7, FLSG72GCS4, FLSG72GCS5, FLSG72GCT1, FLXG52RBS2, FWT445GES1, FWT445GES2, FWT449GFS0, GWS645RBS3, GWS645RFS1, GWT445RFS0, GWT445RFS1, GWT445RFS2, GWT445RGS0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
