Electrolux / Frigidaire Dryer drum drive belt 131553800, Replaces 131130700

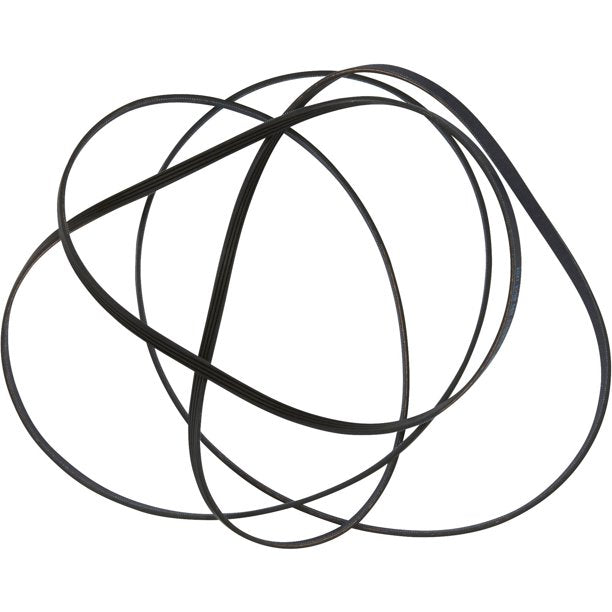

Genuine OEM dryer drum belt that attaches to the motor pulley and rotates the dryer drum. Documented specifications include approximately 87 3/8 inches long, 1/4 inch wide, with 4 ribs on one side and a flat opposite side.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Drum stops spinning or will not turn
• Dryer may make belt-related noise
• Drum turns unusually easily by hand when the belt is broken
• Dryer may not start on models with belt-safety circuitry

Check Before Replacing

• Disconnect power before inspection.
• With the dryer empty and unplugged, rotate the drum by hand and note whether it turns unusually freely; this can indicate a broken or disengaged belt but is not conclusive.
• Visually inspect the accessible belt area for a broken, cracked, frayed, stretched, or displaced belt.
• Confirm that the belt remains routed around the drum, motor pulley, and tensioning pulley; do not operate the dryer with the cabinet open.

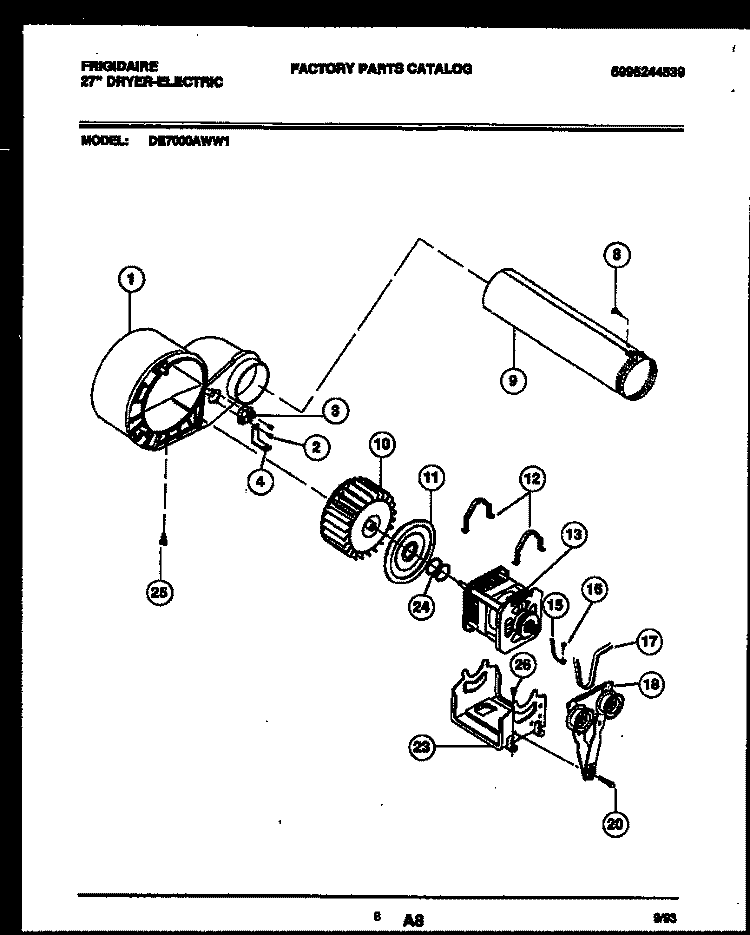

• Verify the replacement belt’s dimensions and ribbed/flat orientation against the removed belt and the appliance’s parts diagram before installation.

Pro Tip

Part Details

Key Features

• Genuine OEM Frigidaire/Electrolux dryer drum drive belt
• Approximately 87 3/8 inches long and 1/4 inch wide

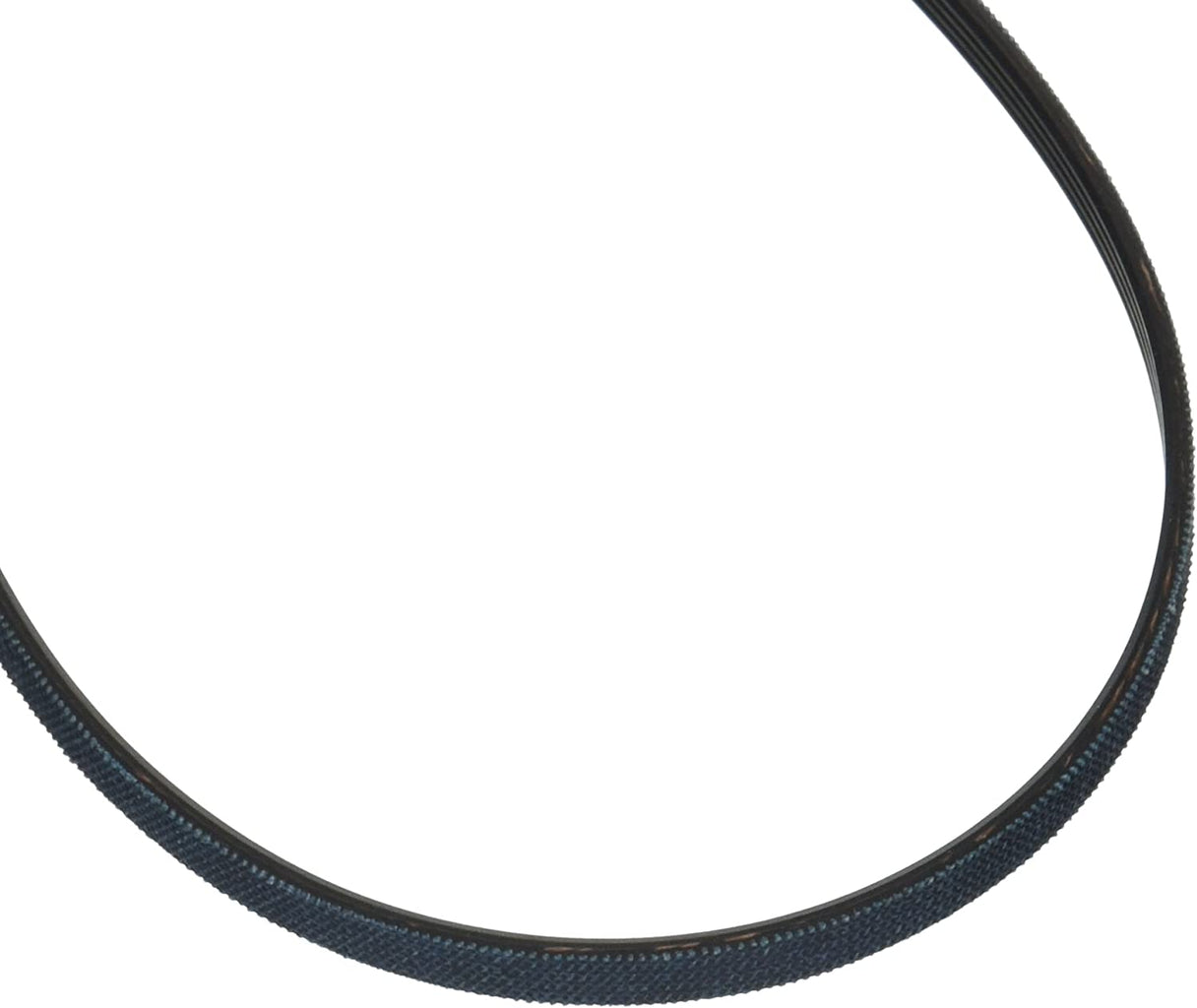

• Four ribs on one side with a flat opposite side
• Routes around the drum, motor pulley, and tensioning pulley
• Replaces manufacturer part number 131130700

Installation Notes

• Disconnect electrical power before servicing.
• Follow the model-specific service procedure or parts diagram because cabinet access and belt routing vary by dryer design.
• Install the ribbed side and flat side in the same orientation shown for the appliance and replacement belt.
• After installation, verify that the belt is seated and routed correctly around the drum, motor pulley, and tensioning pulley before reassembling the cabinet.
• After reassembly, run a brief empty test cycle and stop immediately if the belt slips, rubs, or produces abnormal noise.

Verified Compatible Models

FDE747GES0, FDE747RES0, FDE747RET0, FDE847GES0, FDE847GET0, FDE7977ES0, FDE7977EW0, FDG747GES0, FDG747RES0, FDG747RET0, FDG8977ES0, FDG8977EW0, FDGC847GFS1, FSE747GES0, FSE747GES1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
