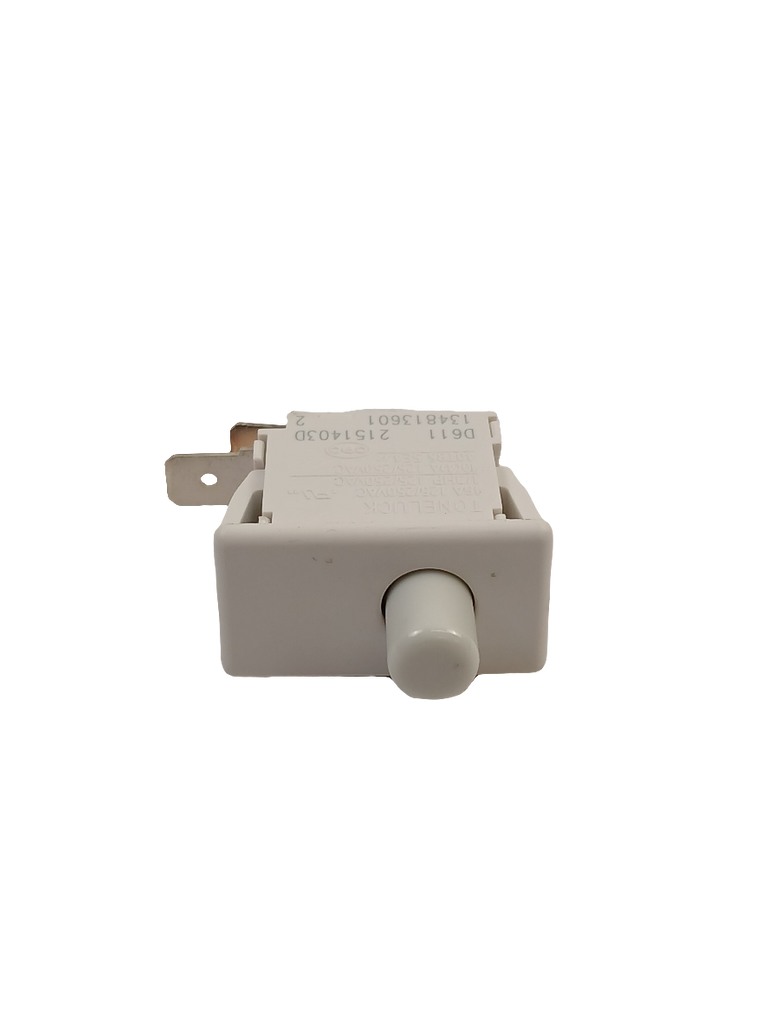

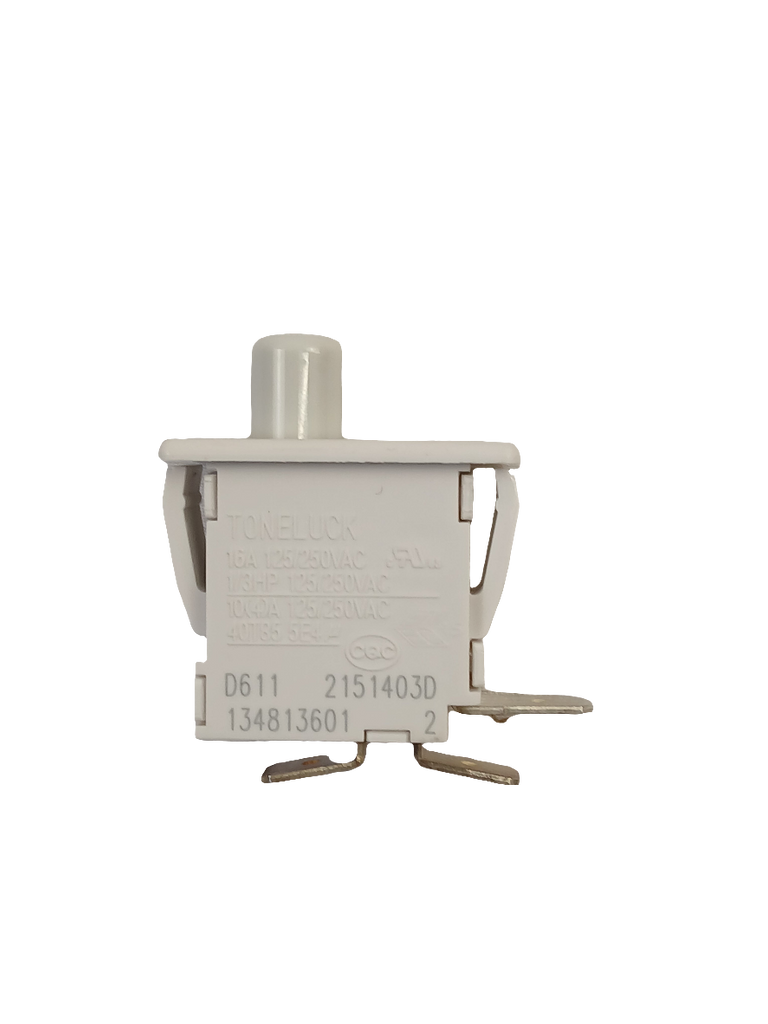

Frigidaire / Electrolux Dryer door switch, 3 wire 134813601, Replaces 131843101

Genuine OEM three-wire dryer door switch for dryers with a drum light. The switch prevents the dryer from operating when the door is open.

Is This the Right Part?

Common Symptoms

• Dryer will not start with the door closed.
• Dryer stops intermittently when the door or switch is disturbed.
• Interior drum light behavior does not change correctly with door position.
• Dryer may start only when the door is pressed firmly shut.

Check Before Replacing

• Disconnect electrical power before inspecting or testing the switch.
• Confirm that the door closes fully and mechanically depresses the switch actuator.
• Inspect the switch housing, actuator, connector, and wiring for visible damage or loose connections.
• With power disconnected and the switch isolated as appropriate for the model, check continuity across the relevant terminals while moving the actuator; the readings should change consistently between actuator positions.
• Use the dryer’s model-specific wiring diagram to identify the correct terminal functions before interpreting continuity results.

Pro Tip

Part Details

Key Features

• Genuine Frigidaire / Electrolux OEM part.
• Three-wire design for dryers equipped with a drum light or separate door-position circuit.
• Door-interlock function helps prevent dryer operation while the door is open.
• Replaces prior OEM number 131843101, as preserved in the trusted archive.

Installation Notes

• Disconnect electrical power before beginning installation.
• Record the original wire and terminal positions before disconnecting the switch.
• Install the replacement in the same orientation and ensure its actuator is fully engaged by the closed door.
• Reconnect the wires to the corresponding terminals; do not rely on terminal position from a similar-looking switch.
• After reassembly, verify that the dryer recognizes the door as closed and that normal operation and door-light behavior are restored.

Verified Compatible Models

41769042991, 41769052991, 41779042991, 41779052991, 41780042990, 41780042991, 41780052990, 41780052991, 41780142000, 41780412700, 41781042000, 41781042001, 41781052000, 41781052001, 41781122310

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
