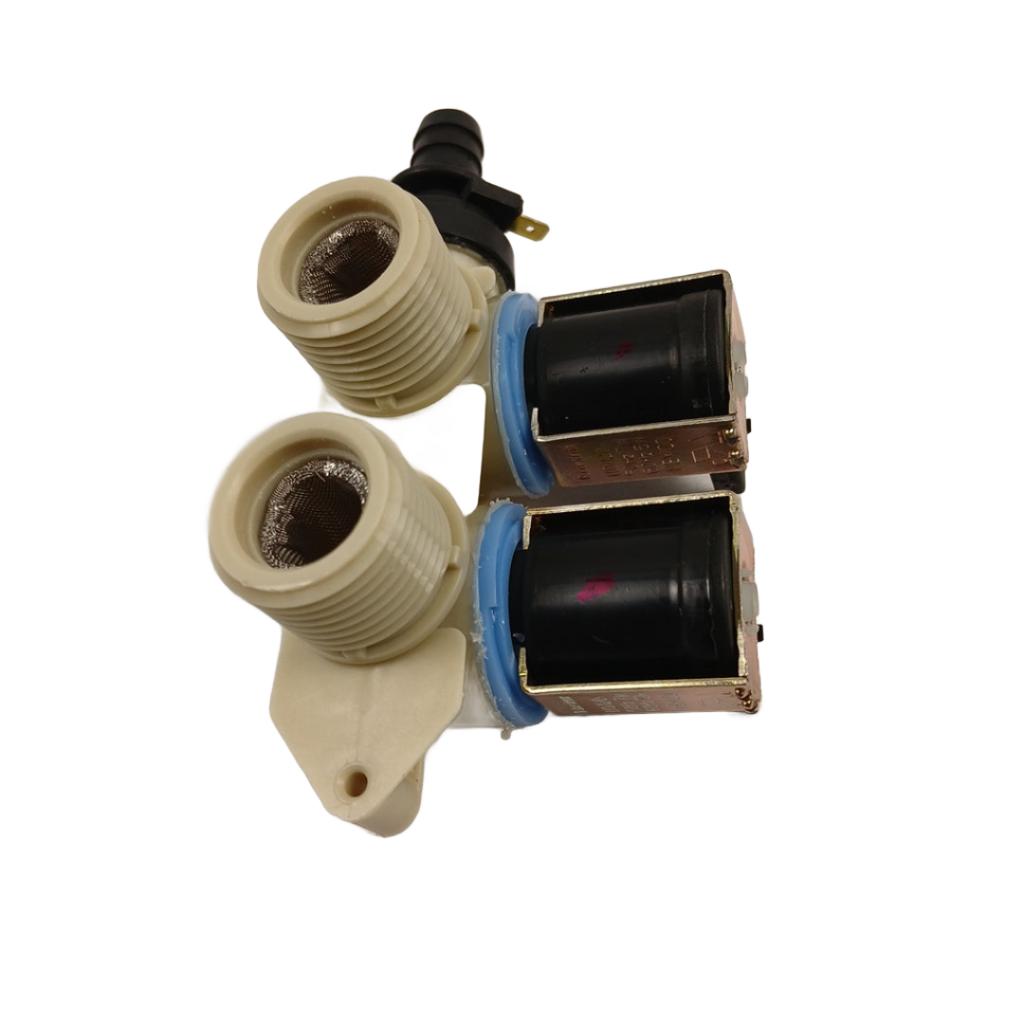

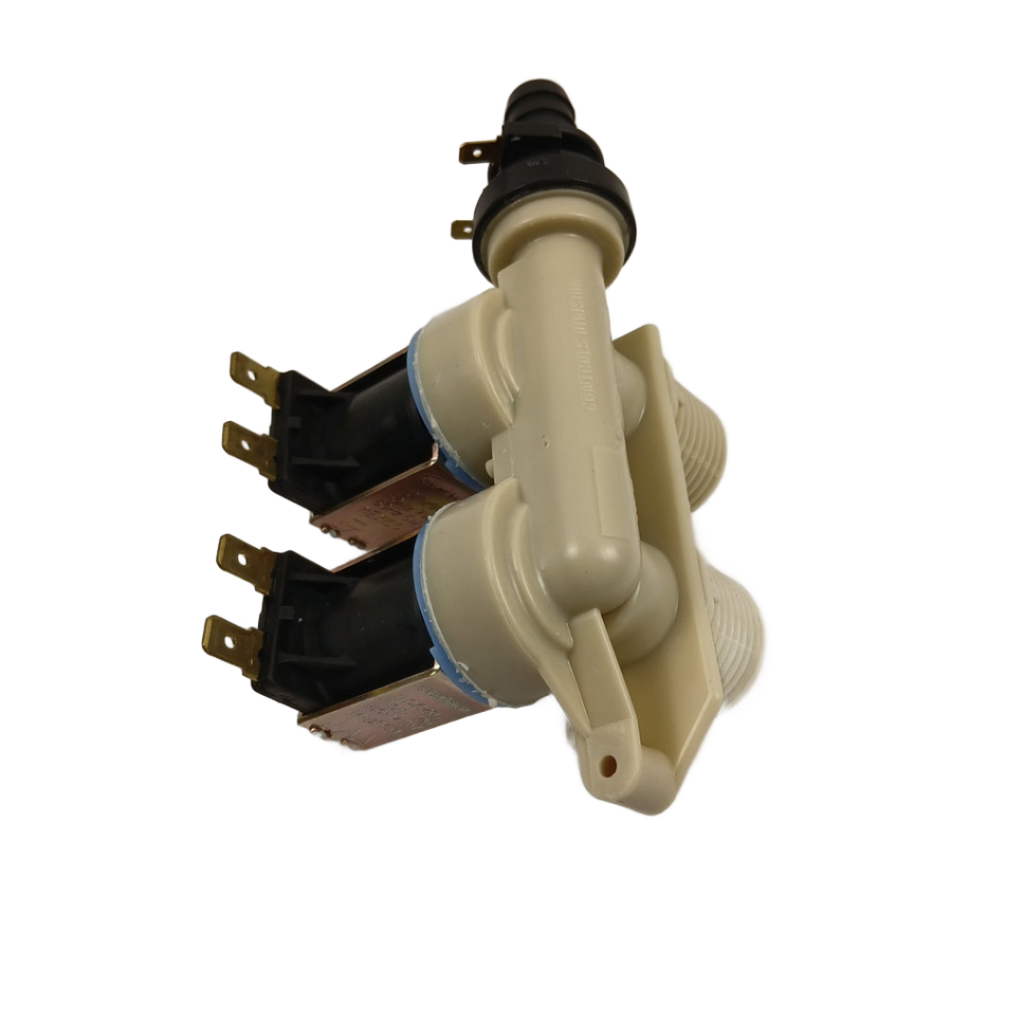

Frigidaire / Electrolux Home Products Washer Water inlet valve with thermistor 134890600

Genuine OEM washing-machine water inlet valve with thermistor; controls water flow into the washer. Also used in some washer/dryer laundry centers.

Is This the Right Part?

Common Symptoms

• Slow or insufficient filling
• No water entering during a fill portion of the cycle
• Water inlet leakage
• Washer overfilling or failing to stop filling
• Temperature-sensing or temperature-control problems related to the integrated thermistor

Check Before Replacing

• Confirm both household hot- and cold-water supply valves are fully open.
• Inspect the inlet hoses for kinks, crushed sections, or restricted flow.
• With power disconnected and water supplies turned off, inspect the valve and hose connections for visible cracking, mineral buildup, or leakage.
• Check the valve inlet screens for visible debris without damaging or removing them.
• Observe whether the washer calls for water and whether the valve produces an audible solenoid click; absence of a click does not by itself prove valve failure.
• If qualified to perform appliance electrical testing, follow the appliance-specific technical documentation for testing the valve and thermistor; do not test exposed live wiring unless properly trained.

Pro Tip

Part Details

Key Features

• Genuine Frigidaire/Electrolux OEM washer water inlet valve
• Integrated thermistor for water-temperature monitoring
• 115 V washer valve assembly
• Used on selected washers and laundry-center configurations

Installation Notes

• Disconnect electrical power and turn off both hot- and cold-water supplies before service.
• Expect residual water when disconnecting the supply hoses or fill hose; protect the floor and nearby components.
• Record or photograph the orientation of the solenoid and thermistor wiring before disconnecting it.
• Reconnect the thermistor and solenoid wires to their original corresponding terminals.
• Ensure the fill hose and its clamp are securely reattached, then restore the water supply and check for leaks before normal operation.

Verified Compatible Models

417.97962702, CLCE500FW4, CLCG500FW1, CLCG500FW5, CTW100FW1, FEX831FS2, FGX831FS2, FLEB8200FS4, FWS1233FS1, GLGT1142FS1, GLGT1142FS2, GLGT1142FS3, GLWS1439FC1, WWS833FS1, WWS833FS2

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
