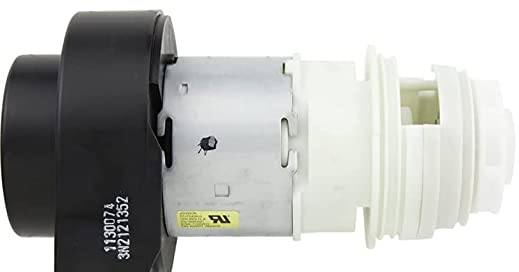

Electrolux / Frigidaire Dishwasher circulation pump motor with wash impeller, wire harness, and O-ring seals 154859101, Replaces 154588402, 154588801, 154574701, 154520501, 154539901, 154536101, 154523501, 154418302, 154

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dishes remain poorly cleaned because wash water is not circulated effectively.
• Little or no movement of the spray arms after the dishwasher fills.
• Unusual growling or loud operating noise during the wash portion of the cycle.
• Water leakage near the circulation-pump area caused by worn or damaged pump seals.

Check Before Replacing

• Confirm that the dishwasher fills to its normal operating level before evaluating circulation.
• After filling and with the door opened carefully, check whether the spray arms have changed position or show evidence of receiving circulating water; do not reach into a running dishwasher.
• Inspect and clean the filters, sump area, and spray-arm openings for debris before attributing a circulation problem to the pump.
• With power disconnected, inspect the circulation-pump connector and wire harness for looseness, corrosion, or visible damage.
• If electrical testing is required, have a qualified technician verify the pump’s supply voltage and wiring according to the model-specific service documentation; do not work on energized wiring.

Pro Tip

Part Details

Installation Notes

• Disconnect electrical power and the dishwasher water supply before accessing or replacing the pump.
• The dishwasher may need to be moved sufficiently to access the circulation pump; follow the appliance model’s service procedure.
• Replace or correctly seat the supplied O-ring seals and verify that the pump is fully aligned before securing it.
• Use the supplied harness or connector components only as directed by the included instructions and the appliance service documentation.
• Restore the water and electrical connections, then check the pump area for leaks during a test cycle.

Verified Compatible Models

CDBE566AS1, FDB946NEQ0, FDB946NES0, FDB954SDC1, FDB955SDB0, FDB955SDC0, FDB955SDC1, FDB955SDQ0, FDB955SDS0, FDB2310LCC2, FDBB540DS0, FDBB840DC0, FDBB840DC1, FDBB1940DB0, FDBB1940DS0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
