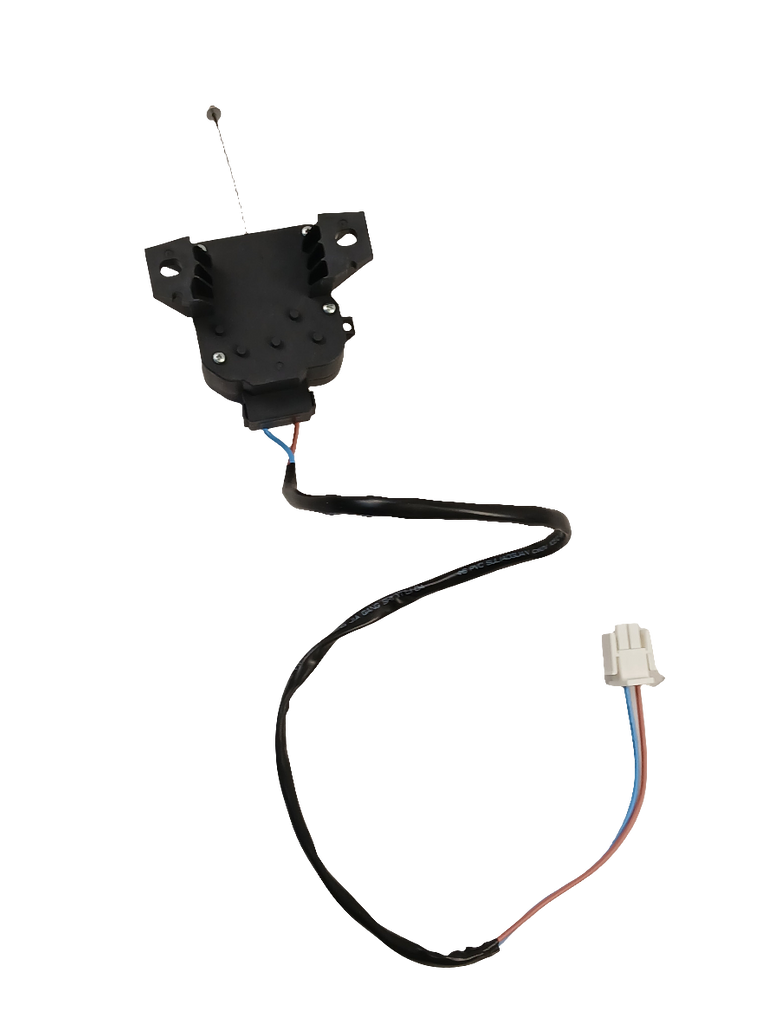

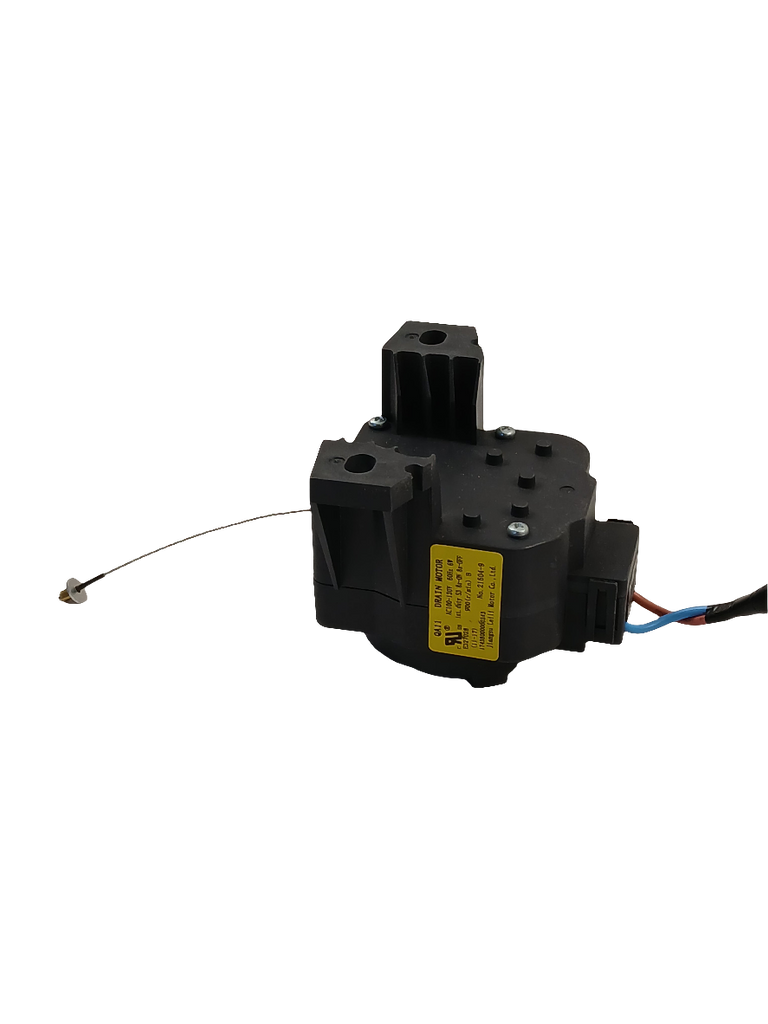

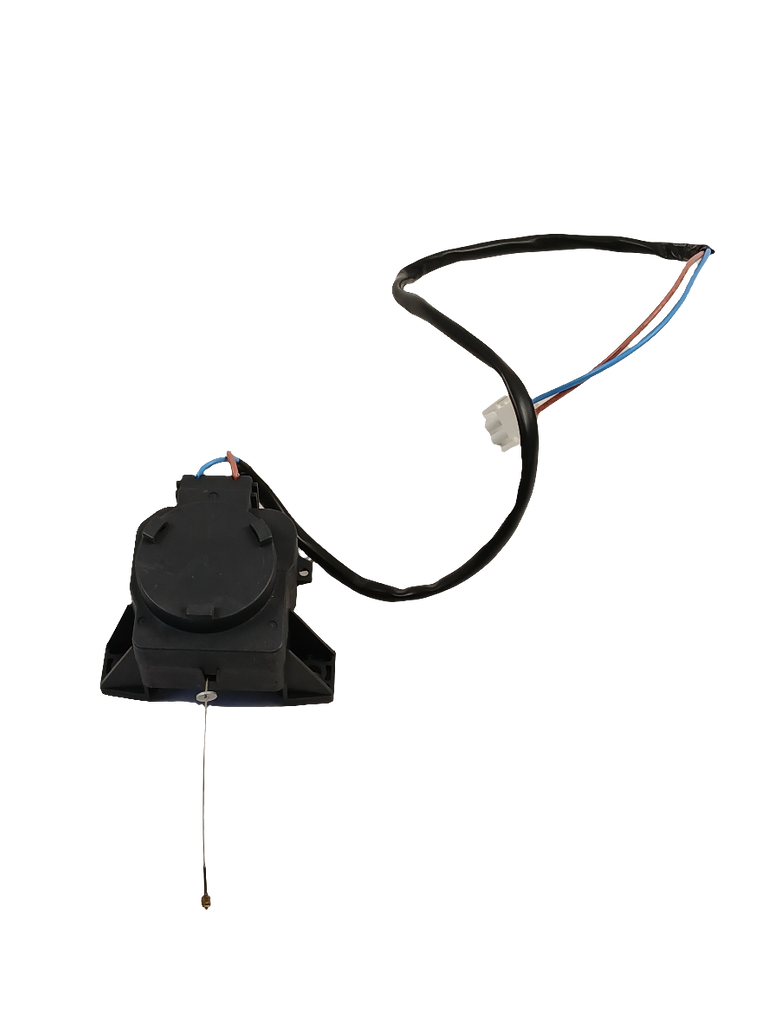

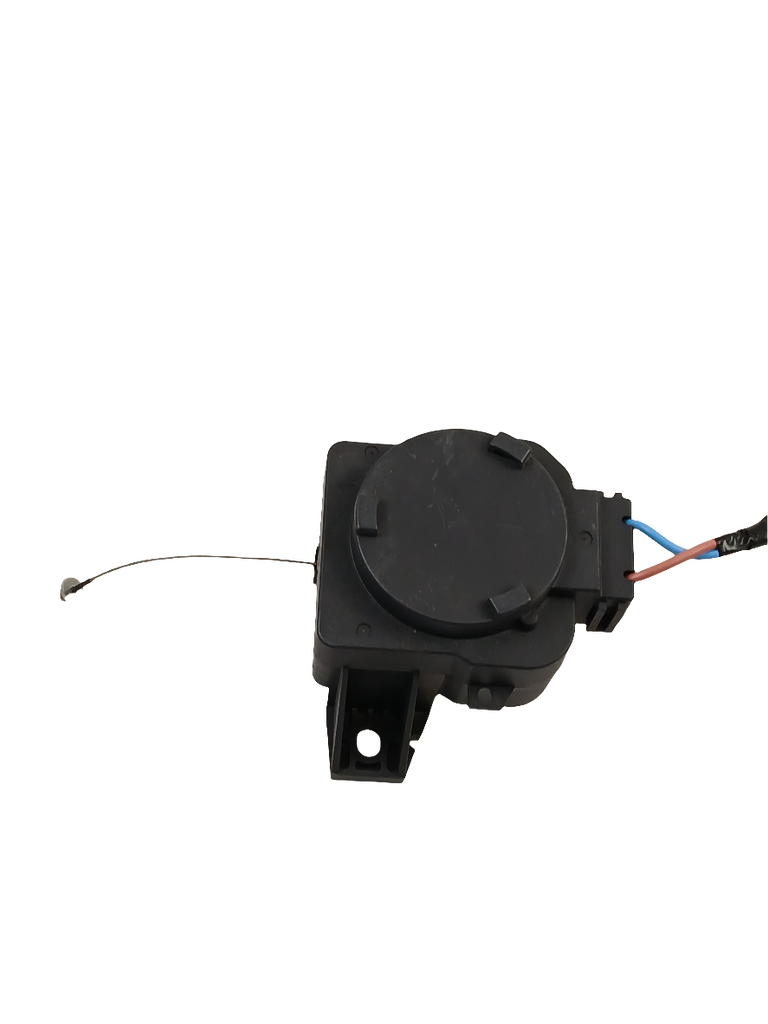

Midea Washer Retractor Motor 17438000000343, Replaces 302421670075

Genuine Midea washer retractor motor, also listed in technical parts documentation as a washer retractor. The component is used in the washer drive/retraction mechanism and is associated with spinning-related repairs.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Washer does not complete a normal spin.
• Clothes may remain wetter than expected after a cycle.
• Abnormal operation during a Rinse & Spin test can indicate a drive-system issue, but does not by itself identify the retractor motor as the cause.

Check Before Replacing

• Confirm the washer model uses part 17438000000343 in its model-specific parts documentation before ordering or disassembly.

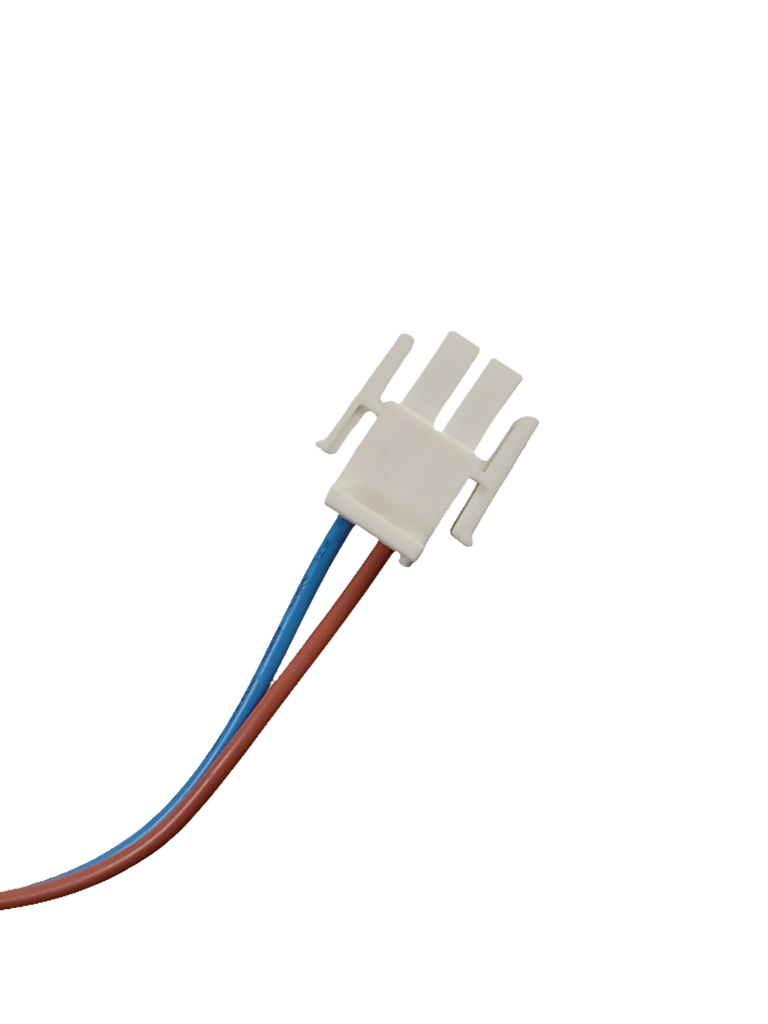

• With power disconnected, visually inspect the retractor motor wiring connector and harness for a loose connection, damage, or corrosion; do not perform live-contact testing.
• Run the washer’s model-appropriate Rinse & Spin test and observe externally whether it drains, spins, rocks, or vibrates excessively.
• If drive-area service is required, inspect the related clutch, motor, belt, pump, and retractor as a system rather than assuming the retractor alone has failed.

Pro Tip

Part Details

Key Features

• Genuine Midea retractor motor.
• Exact manufacturer part number: 17438000000343.
• Listed as a discrete lower-drive component adjacent to the clutch body subassembly.
• Service-parts documentation identifies one retractor per applicable washer assembly.

Installation Notes

• Disconnect power before service. Midea warns that the retractor, motor, electric valve, and drain pump may present an electric-shock risk if contacted while energized.
• This is an under-tub drive-area component. In the applicable Midea service manual, access to the retractor follows removal of drive-area components and positioning the washer upside down; use the model-specific service documentation.
• Keep the retractor distinct from the clutch body subassembly and reconnect the wiring harness exactly as found.
• After service, run an appropriate test cycle and check for normal draining, spinning, excessive rocking, and vibration.

Verified Compatible Models

ATLMW41, CLAWI47W, CTW41N1AW, CTW45N1AW, CTW45N2AW, MAD160S2801GPSFMUS13, MAD160S2801PS, MLV41N1AWW, MLV41N1AWWC, MLV43A3AWW, MLV45N1BWW, MLV45N1BWWC, MLV45N3BMG, MLV45N3BWW, MLV47A3AGG

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
