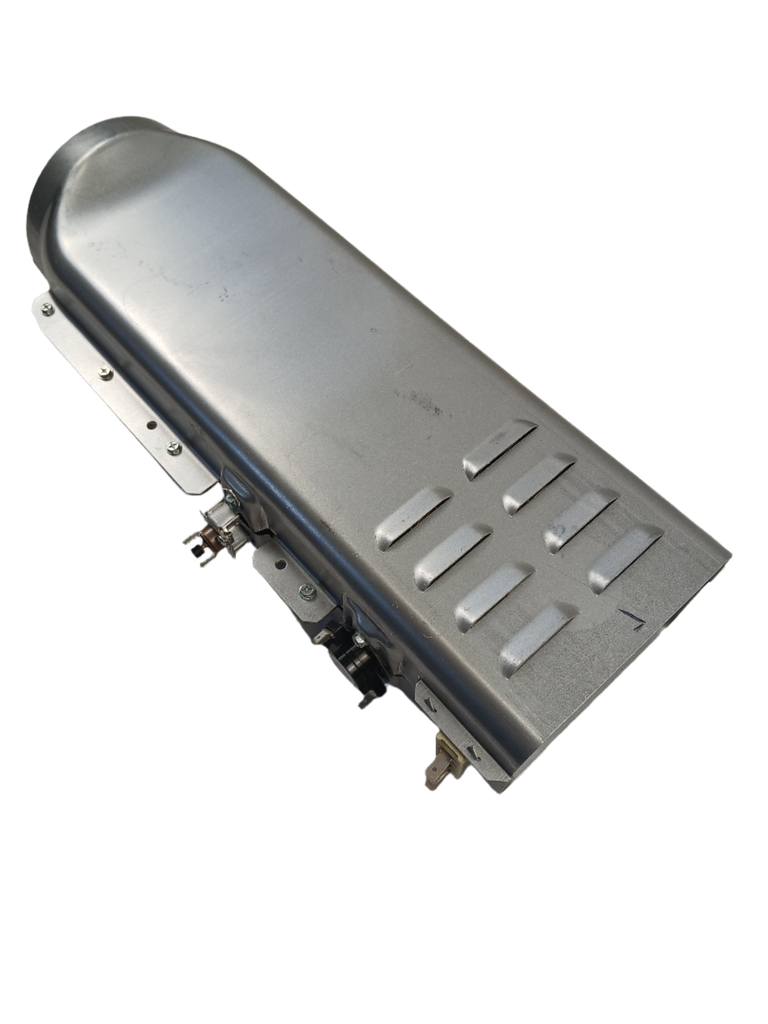

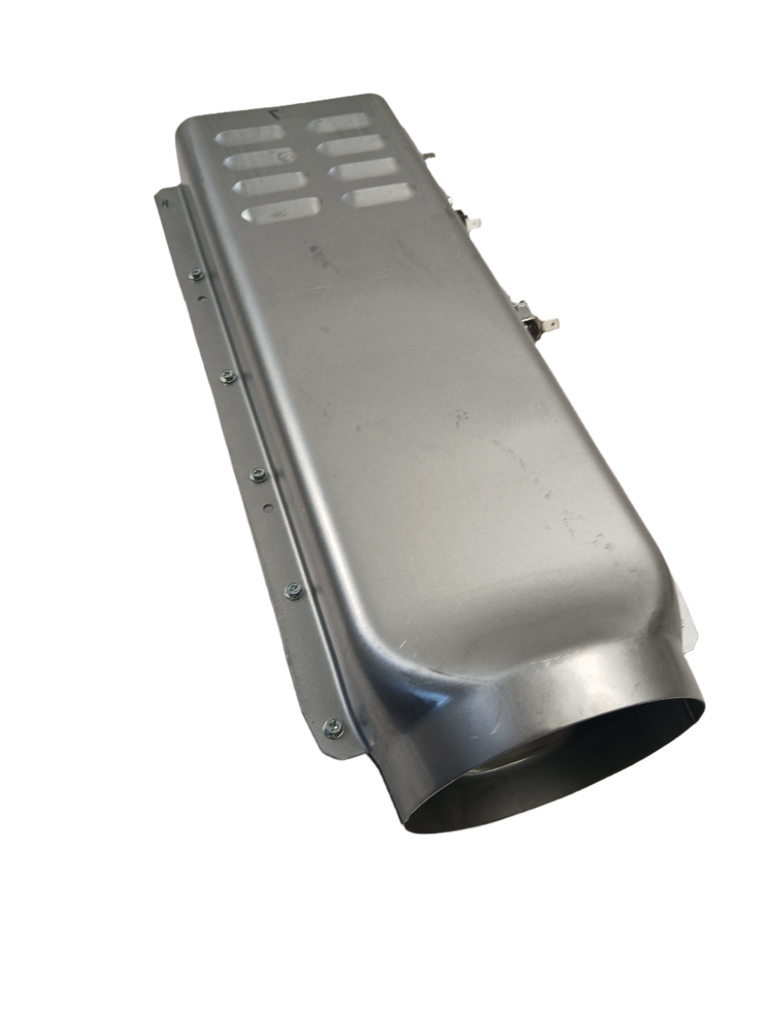

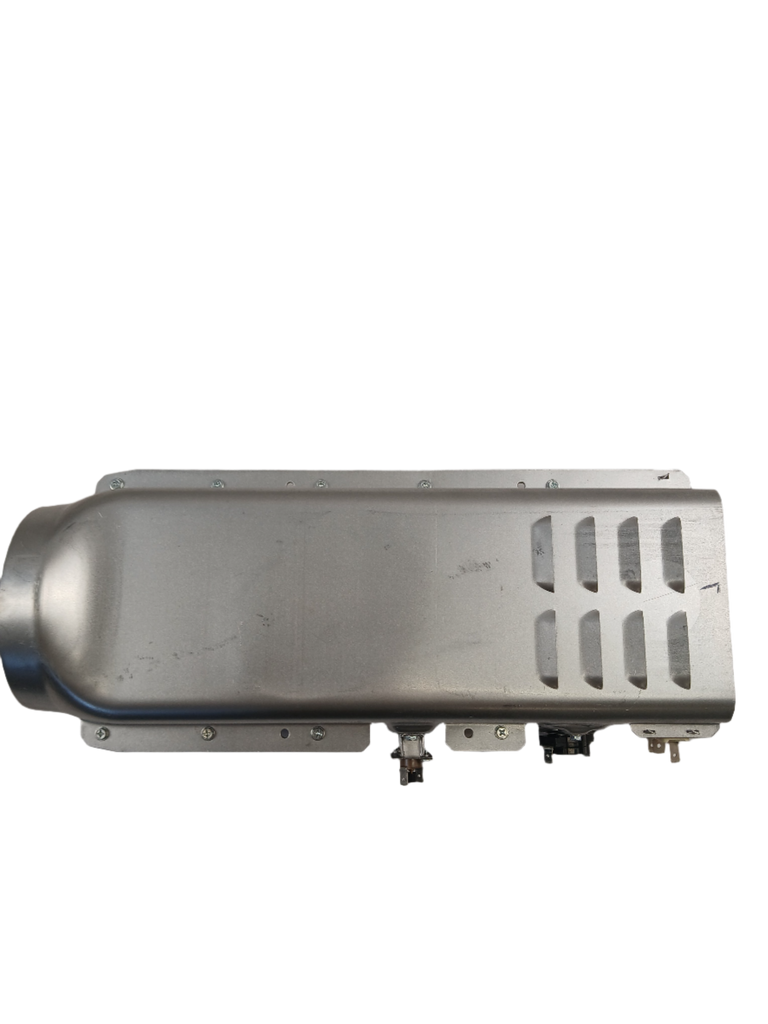

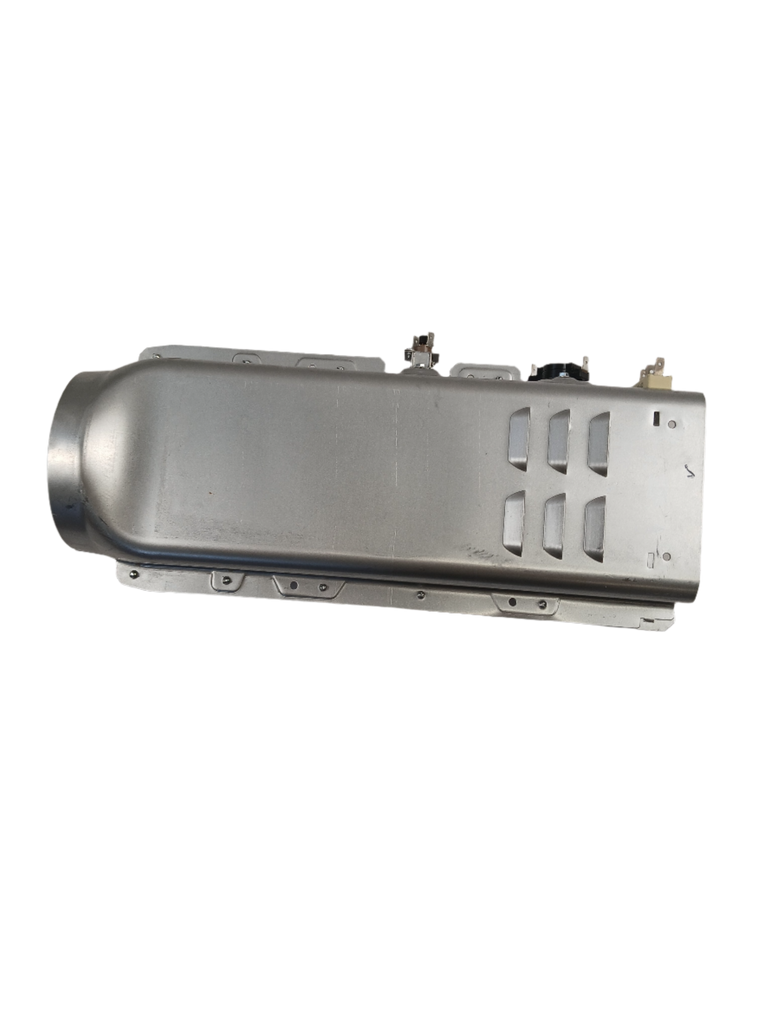

Midea Dryer Heating Element 17438200000109

Genuine Midea heating element/heater assembly for compatible electric dryers; it produces the heat used during the drying cycle.

Is This the Right Part?

Confirm the complete appliance model number before ordering.

Common Symptoms

• Dryer runs but produces no heat
• Clothes still damp after a full cycle
• Dryer takes two or three cycles to dry a normal load
• Thermal fuse trips repeatedly (element shorted)
• Burning smell followed by sudden loss of heat

Check Before Replacing

• Test the heating element for continuity with a multimeter — no continuity confirms failure
• Check the thermal fuse and high-limit thermostat — a blown fuse is often caused by a failed element
• Inspect and clear the exhaust duct — restricted airflow is the #1 cause of element burnout
• Verify the dryer is on a dedicated 240V circuit (electric models) — low voltage causes slow drying

✅ Cross Reference Information

Part Details

Installation Notes

1. Disconnect power before beginning any repair.
2. Photograph wiring, harness routing, and mounting positions before removal.
3. Compare the new part with the original before installation.
4. Inspect nearby wires, thermal fuse, and thermostat for damage.
5. Clear the exhaust duct before reassembling the cabinet.
6. Test on a short cycle before closing up the dryer.

Use a qualified technician when diagnosis or installation is outside your experience.

Verified Compatible Models

MDD160A2301E1305, MLE41N1AWW, CDE41N1AW, MLE41N1AWWC, CLADE67W, MLE47A3AGG, MLE43A3AWW, MLE47R5BWW, MLE47C4AWW, LE43A3AWWFR, MLTE37N1BWW, LE43A3AWW, MLE47C3AWW, HLTD600AEW, HTLD600ACW, NSFDRE67WH8AC

Fitment reminder: Match the complete model number including suffix and revision before ordering.
