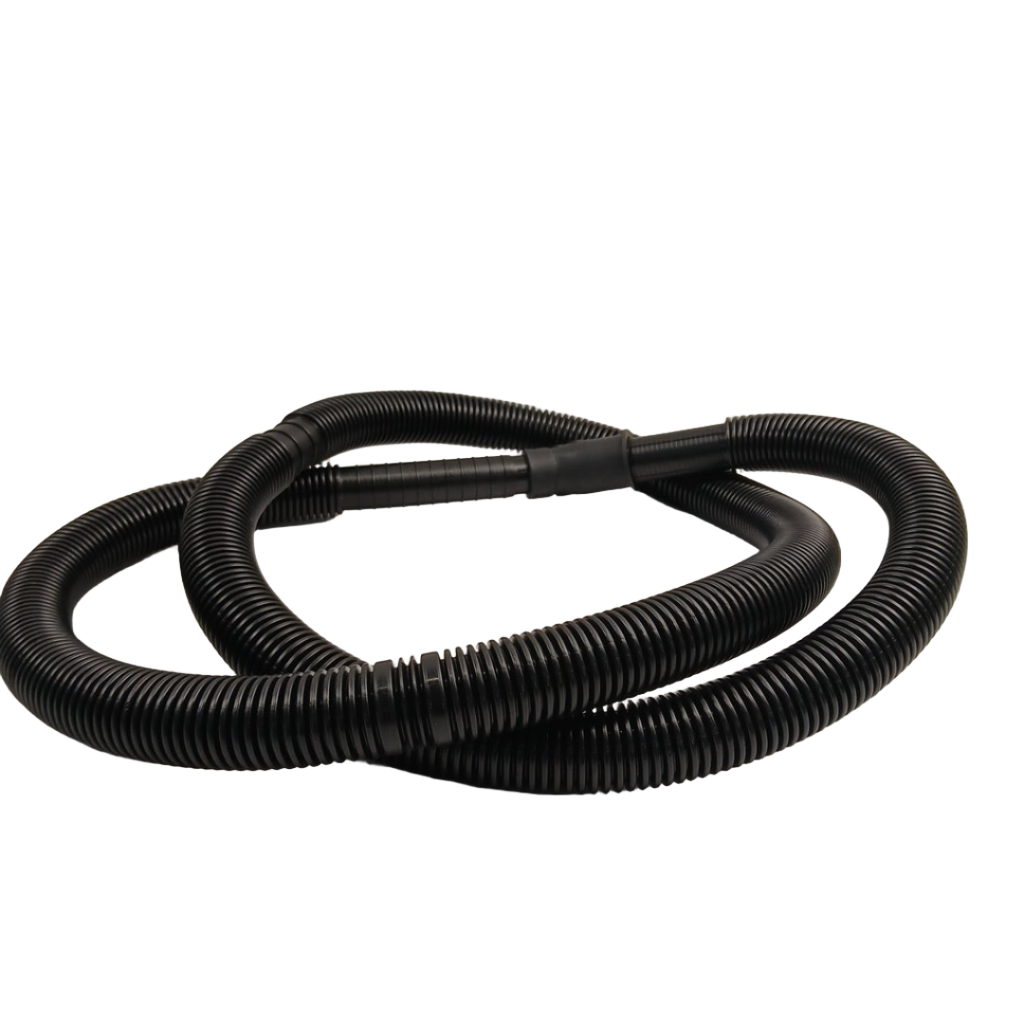

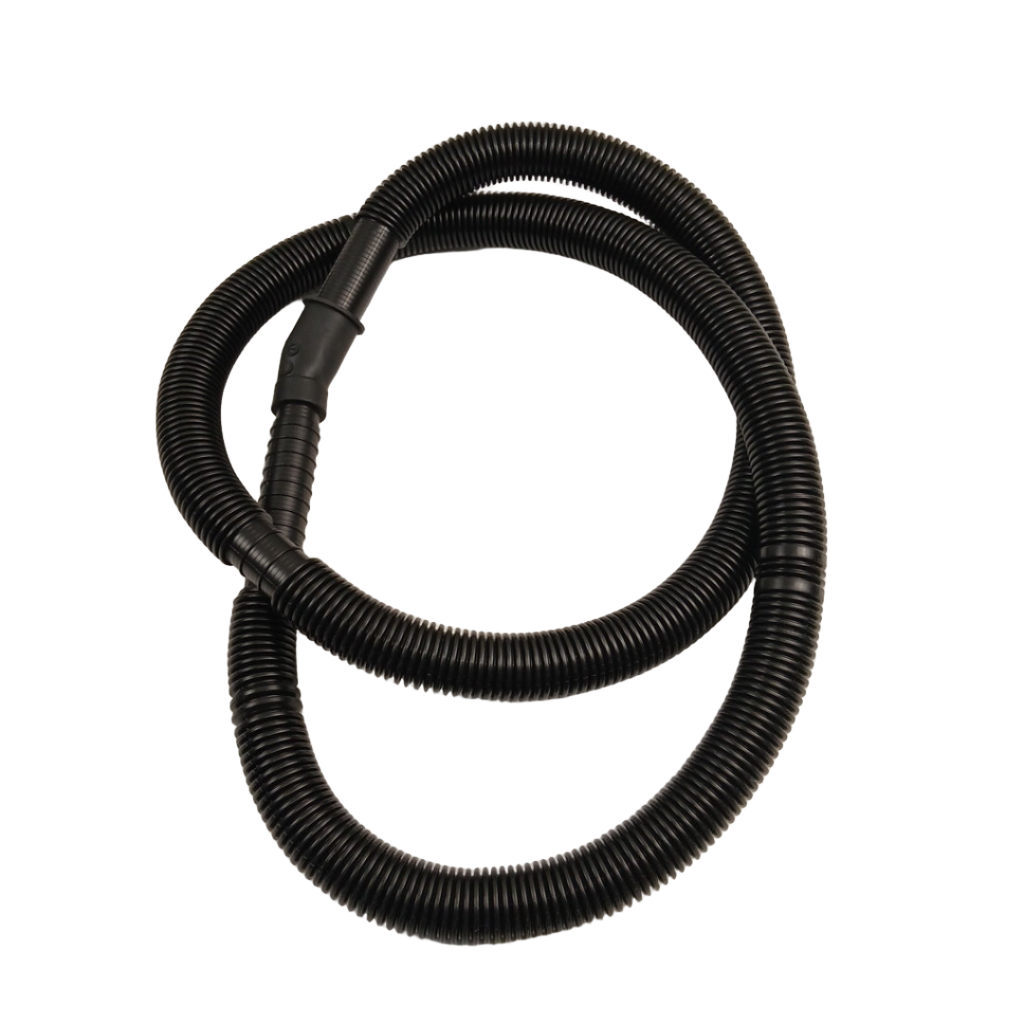

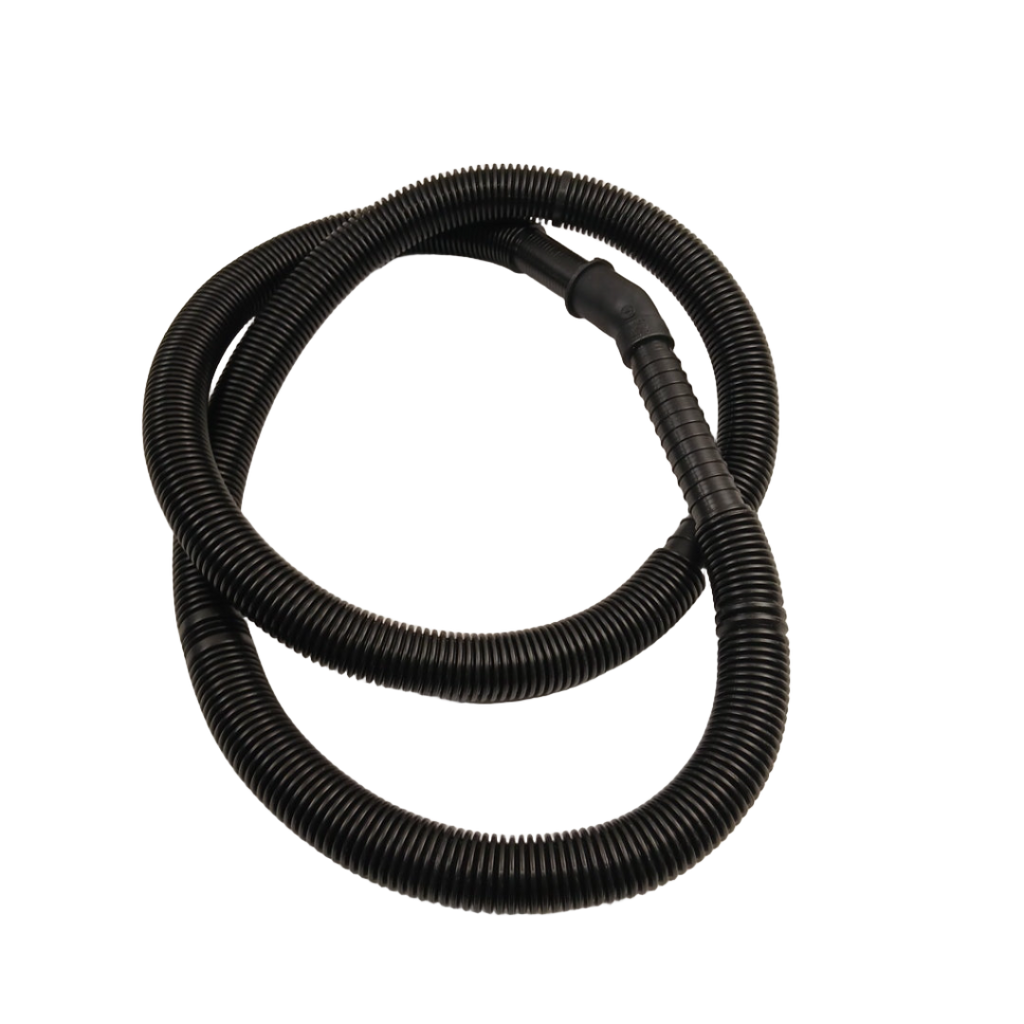

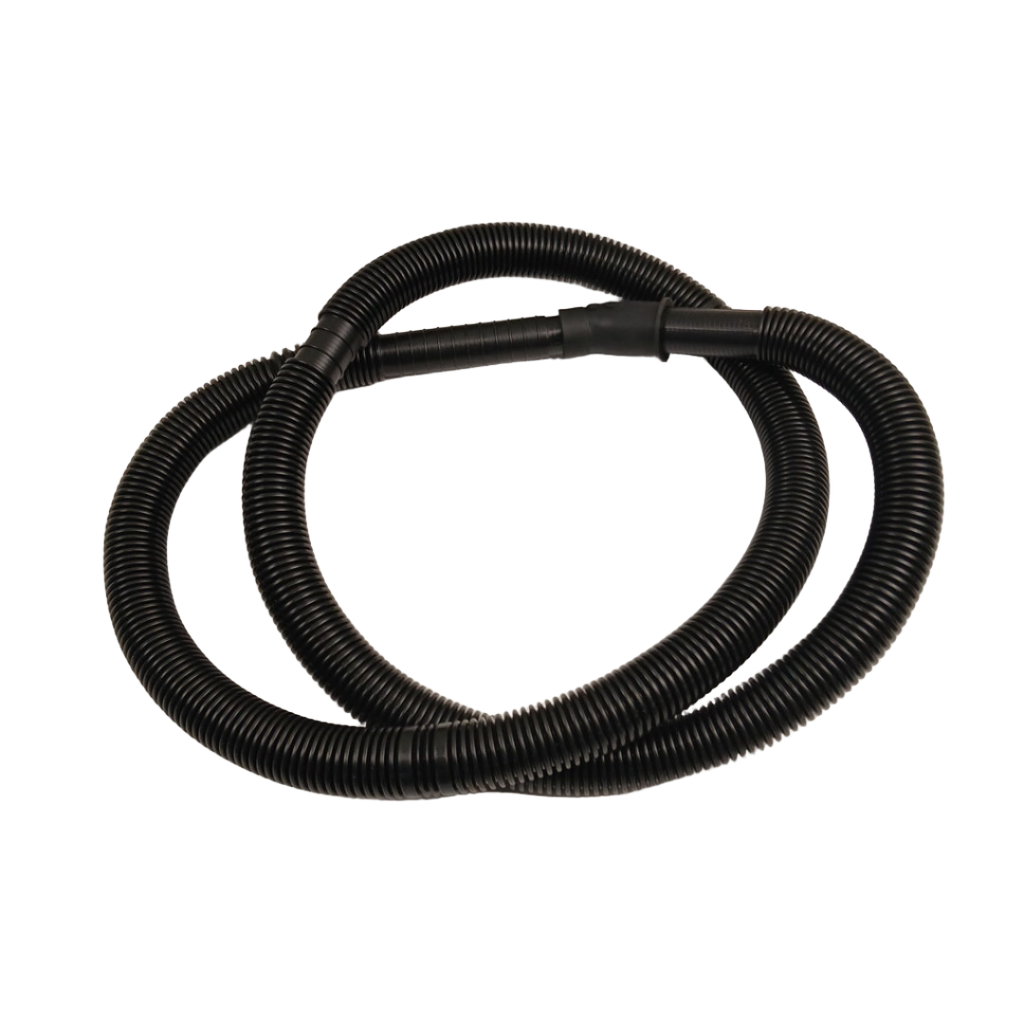

Alliance Laundry Systems / Speed Queen Washer Drain Hose (TLW) 203588

Genuine OEM drain hose for residential top-load washers.

Is This the Right Part?

Common Symptoms

• Water leaking from the rear or underside of the washer during drain or spin.
• Washer does not drain fully or leaves standing water when the hose is kinked, clogged, or restricted.
• Drain hose odor or residue associated with retained water or buildup.

Check Before Replacing

• With the washer not running, visually inspect the hose for cracks, splits, abrasion, flattened sections, or loose connections.
• Check that the hose is not kinked, twisted, crushed against the wall, or obstructed at the drain receptacle.
• Observe the hose and its connections during a drain cycle for visible leakage, without placing hands near moving parts or energized components.
• Confirm that the drain receptacle is open and able to accept the discharge flow; a plumbing restriction can mimic a hose problem.

Pro Tip

Part Details

Key Features

• Genuine OEM Speed Queen / Alliance Laundry Systems part 203588.
• OEM description: HOSE,DRAIN(TLW).
• Designed for residential top-load washer drain routing.
• Exact component identity is documented in Alliance Laundry Systems parts documentation.

Installation Notes

• Route the replacement hose through the same path as the removed hose and reconnect it at the washer's existing drain connection.
• Secure the external end in the drain receptacle according to the washer installation instructions.
• Do not kink or twist the hose, and do not place the ribbed portion too deeply into a standpipe because improper routing can cause siphoning or drainage problems.
• After installation, run a drain or rinse cycle and visually check the hose connections and floor area for leaks.

Verified Compatible Models

AWN43RSN115CW01, AWN43RSN115CW14, AWN43RSN115TW01, AWN43RSN116TW01, AWN43RSN305LW01, AWN43RSN305NW29, AWN43RSN305NW49, AWN43RSN305XW01, AWN63RSN115CW01, AWN63RSN115CW14, AWN63RSN115TW01, AWN63RSN116TW01, AWN63RSN125DW01, AWN63RSN545DW01, AWN552SN301NW29

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
