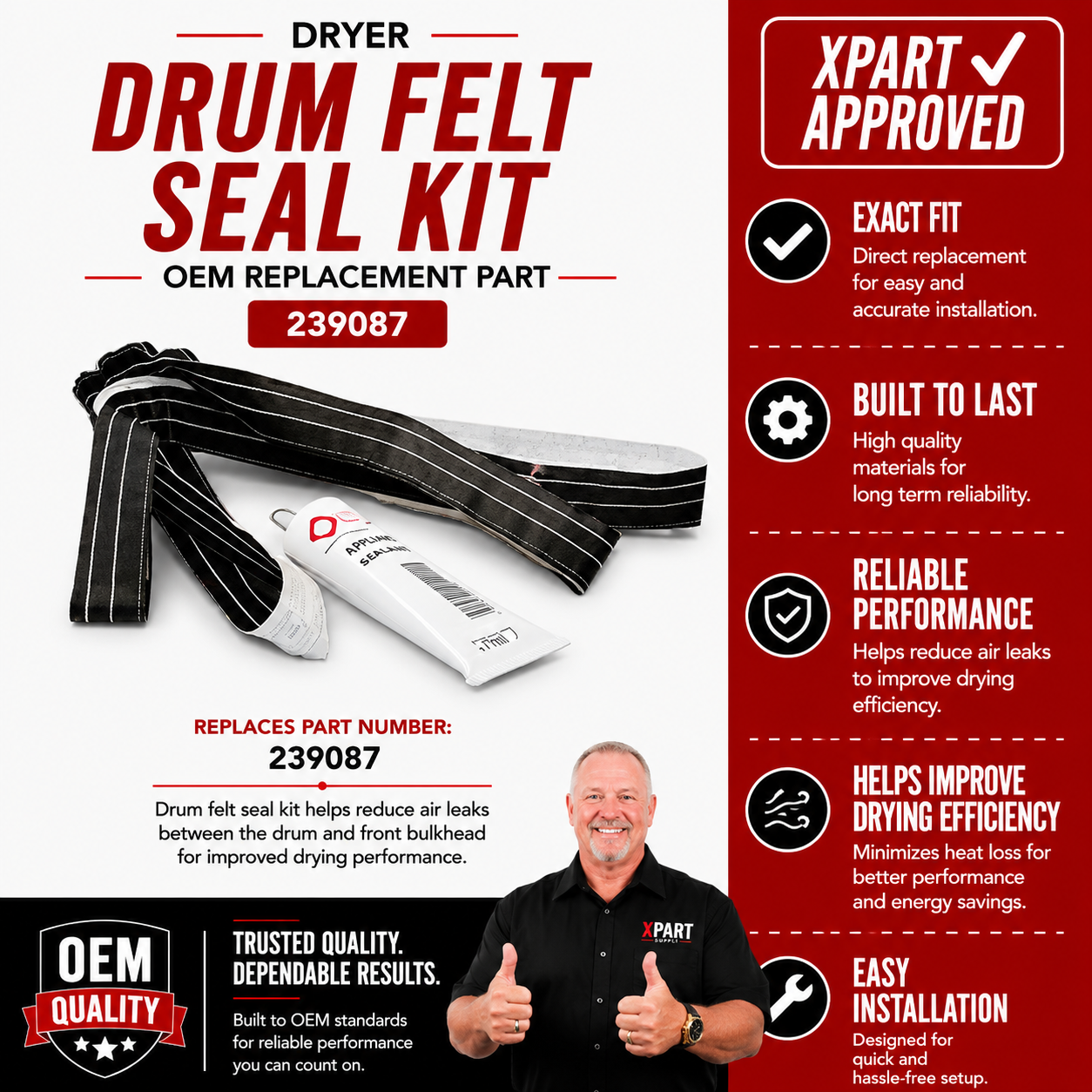

Whirlpool Corporation Dryer Rear drum felt seal with adhesive 239087, Replaces 337449, 337499, 4319323, 8066085

Genuine Whirlpool rear drum felt seal with adhesive. The seal closes the rear drum opening to help prevent air leakage and reduce lint, heat loss, noise, and clothing damage caused by a worn seal.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Rattling or rubbing noise during drum rotation
• Brown or other marks appearing on clothing
• Heat or air escaping around the rear drum area
• Visible fraying, separation, or displacement of the rear felt seal
• Increased lint accumulation near the rear drum opening

Check Before Replacing

• Disconnect electrical power before inspection.
• With the dryer empty and unplugged, manually rotate the drum and listen or feel for rubbing, scraping, or abnormal resistance.
• Visually inspect the rear drum seal for fraying, gaps, loose sections, or evidence that it has shifted from the rear bulkhead.
• Check for clothing marks and inspect the rear drum area for unusual lint or heat leakage.
• Confirm the model-specific parts diagram before ordering, because similar dryer seals may not interchange.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM manufacturer part 239087
• Rear drum felt seal
• Adhesive included
• Designed to seal the rear drum opening
• Used across multiple Whirlpool-family dryer brands and models

Installation Notes

• Disconnect power before servicing the dryer.
• Installation requires removal of the drum or other model-specific access components; follow the service instructions for the exact dryer model.
• Remove the old seal and clean residual adhesive and contamination from the bonding surface before applying the replacement.
• Install the felt in the original rear-bulkhead location and keep it correctly oriented against the bulkhead bead.
• Allow the adhesive to cure according to the adhesive manufacturer's instructions before reassembling and operating the dryer.
• After reassembly, manually rotate the drum to confirm the seal is not folded into the drum path and does not bind.

Verified Compatible Models

1106918722, 1106927450, 1106928450, 1107218623, 11073102100, 11073102101, 11076401400, 11076677100, 11076677400, 11076677600, 11076915110, 11077401410, 11077430200, 11077430220, 11077433200

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
