Range Not Heating or Showing Error Codes? Main Control Board 2827771050 – Fix Oven & Stove Failures Fast
If your Frigidaire or Electrolux range won’t heat, displays error codes, or has burners and oven functions that are completely unresponsive, a failed main control board is the most common cause. In most Frigidaire-built ranges, the main control board (PCB) is the central brain that manages all heating elements, burner ignition, temperature regulation, and the display. When it fails, the range may show fault codes, refuse to heat, or lose all function entirely. ⚡ Common failure point in Frigidaire, Electrolux, and Kenmore ranges — especially after power surges or age-related component failure. Part 2827771050 is the genuine OEM replacement control board that restores full range operation, clears fault codes, and brings all heating functions back online.
❓ Is This the Right Part?
This is the correct fix if ALL of the following are true:
- ✔ Range has power — display lights up or shows error codes
- ✔ Wiring harness and connections have been inspected — no burnt wires or loose connectors
- ✔ Bake and broil elements have been tested and confirmed OK — not an element failure
- ✔ ONLY problem is no heat, error codes (F1, F10, F30, etc.), or complete loss of oven/burner control
Not sure? Send us your model number — we’ll confirm before you order.
🔧 Common Symptoms
- Oven won’t heat — bake or broil elements don’t activate
- Error codes displayed: F1, F10, F11, F30, F31 or similar fault codes
- Burners won’t ignite or surface elements don’t respond
- Display is blank, frozen, or showing incorrect readings
✔ If these symptoms match, the main control board is the most likely failed component in the system.
✔ In most cases, replacing this control board clears all fault codes and restores full range operation immediately.
📦 Part Details

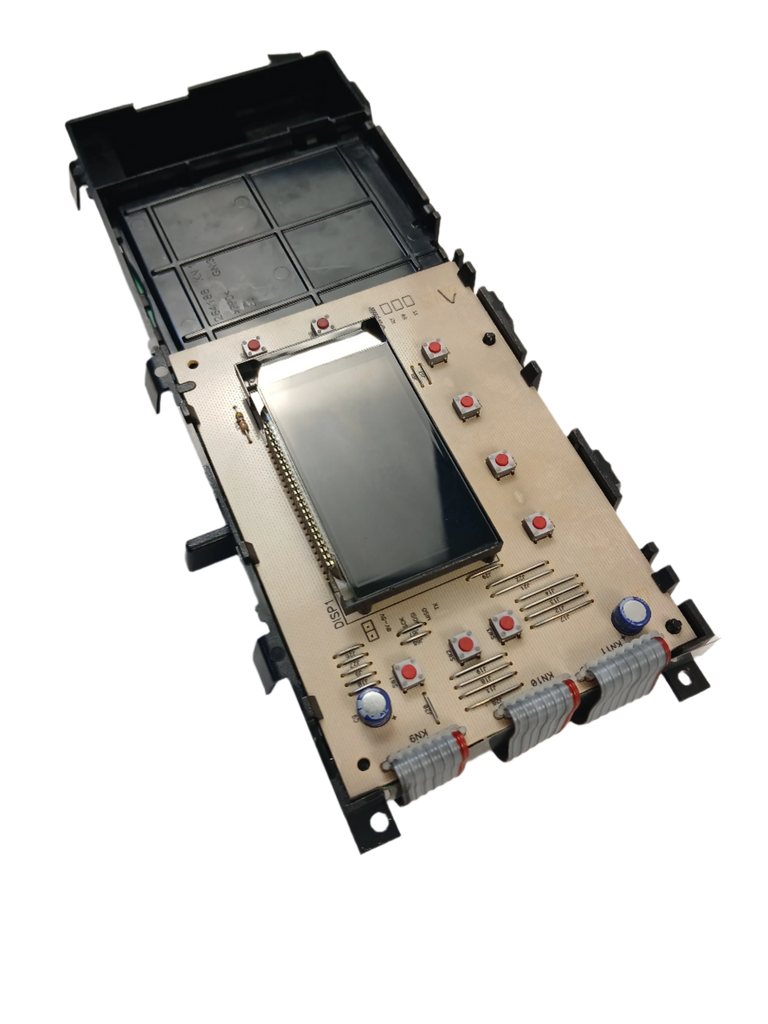

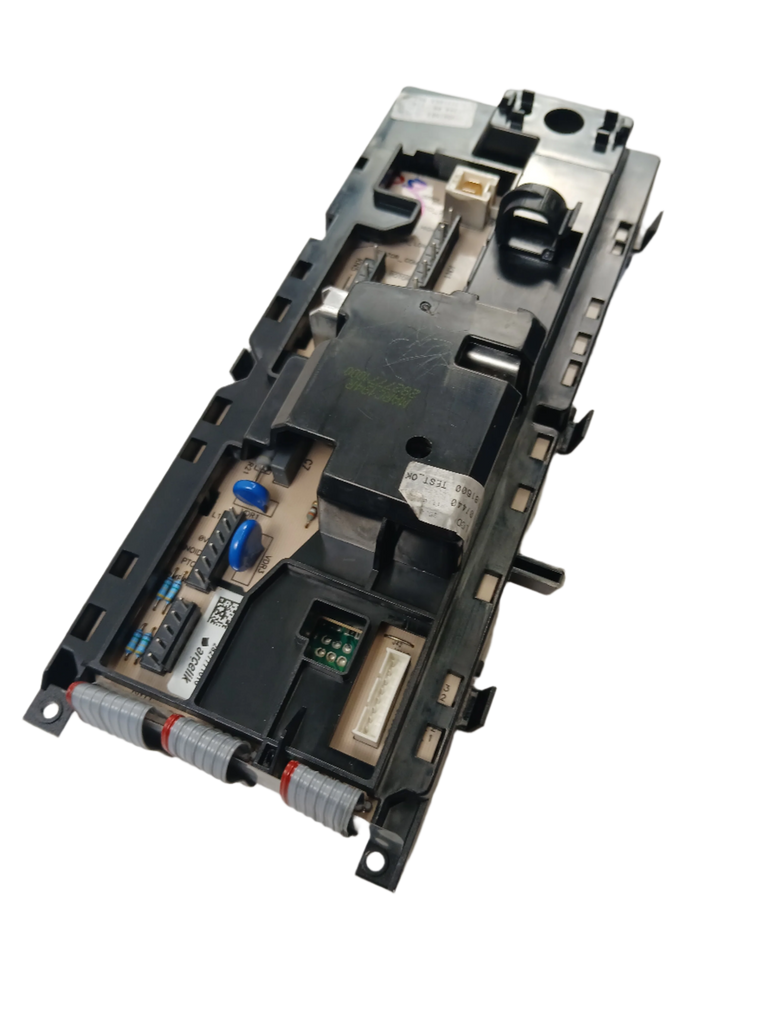

- Part Number: 2827771050
- Type: Range Main Control Board (PCB) — electronic control module
- Replaces: AP2126206, 832923, 2027771020, 318399800, 318399801, 5303311205, 7316136600, 7318399800
- Brands: Frigidaire, Electrolux, Kenmore, and associated sub-brands
If the board failed due to a power surge, also inspect the oven temperature sensor (RTD probe) — a shorted or open sensor is the #1 cause of F30/F31 error codes and will destroy a new board if not replaced first. Test the sensor resistance (should read ~1100Ω at room temperature) before installing the new board.
⚙️ Installation
Skill Level: MODERATE — 30–45 minutes. Disconnect power before servicing. Access the control board by removing the rear panel or the control panel assembly depending on your model. Photograph all wiring harness connections before disconnecting. Transfer connectors one at a time to the new 2827771050 board, reinstall the panel, restore power, and run a test cycle to confirm all functions operate correctly.
✓ Compatible Models
Confirmed compatible with a wide range of Frigidaire, Electrolux, Kenmore, and sub-brand electric and gas ranges using the 2827771050 / AP2126206 / 318399800 control board. Contact us to verify your model number before ordering.
💡 Pro Tip
The most common reason a new control board fails immediately after installation is an undetected shorted temperature sensor. Before ordering, unplug the sensor connector from the old board and measure resistance across the sensor leads — if it reads 0Ω (shorted) or open circuit, replace the sensor first. This $20–30 test can save you from returning a perfectly good $269 control board.
✅Compatibility & Cross Reference
Not sure about your model number? Call 1-877-899-7278 and we’ll help you confirm. All brand names are the property of their respective owners and are used for compatibility reference only.
