Whirlpool Washer Agitator Cam Repair Kit 285825, Replaces 8055142, 8055143

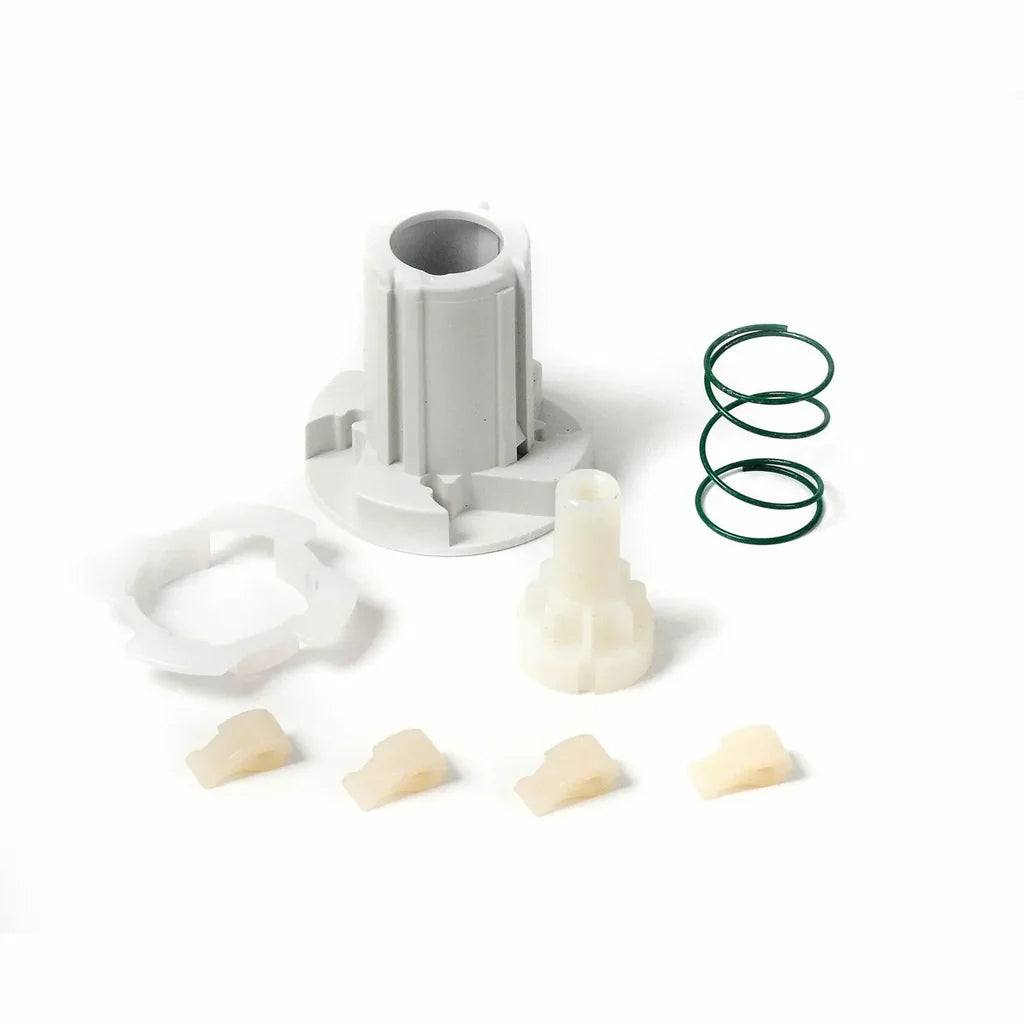

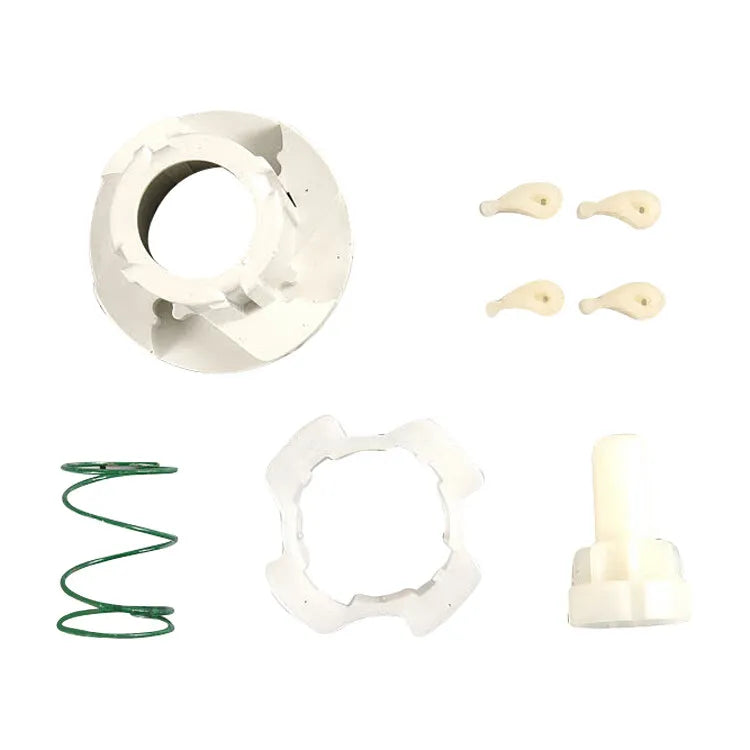

Genuine Whirlpool OEM washer agitator cam repair kit. Includes the driven cam bearing, four agitator dogs, spring, and spring retainer. The kit restores agitator rotation and addresses a washer that will not agitate.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Upper agitator section spins freely by hand in both directions.
• Lower agitator moves but the upper section slips or stops.
• Clothes are not adequately moved or cleaned during the wash portion of the cycle.
• Clicking, ratcheting, or grinding may occur while the washer attempts to agitate.

Check Before Replacing

• With the washer unplugged and empty, manually check whether the upper agitator section turns freely in both directions; abnormal free rotation in both directions can indicate worn agitator dogs or cam components.
• Observe the agitator during the wash portion of a cycle only after reinstalling all covers and keeping hands clear; verify whether the upper section engages and moves with the lower section.
• Inspect the accessible agitator cam and dog components for rounded, stripped, cracked, or visibly worn engagement surfaces after following the washer’s model-specific disassembly instructions.
• Confirm that the symptom occurs during agitation rather than incorrectly attributing a spin, motor, transmission, or control problem to this kit.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM agitator cam repair kit.
• Includes four agitator dogs, cam, spring, and retainer.
• Designed for washer agitator engagement and rotation.
• Prior archive identifies 8055142 and 8055143 as previous numbers; no new substitute relationship was established in this pass.

Installation Notes

• Disconnect electrical power before servicing the washer.
• Remove the fabric-softener dispenser or agitator cap, if equipped, to access the agitator retainer and internal cam/dog assembly.
• Follow the washer’s model-specific procedure for removing and reinstalling the agitator retainer, spring, cam, and dogs.
• Ensure the cam and dogs are correctly seated and the retainer is secured before operating the washer.
• Restore power only after reassembly is complete; verify operation with a controlled test cycle.

Verified Compatible Models

11020052990, 11020052991, 11020052992, 11020052993, 11020052994, 11020056991, 11020056992, 11020056993, 11020056994, 11020072990, 11020072991, 11020072992, 11020072993, 11020092990, 11020092991

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
