Whirlpool Washer Tub-to-Pump Hose Kit 285871, Replaces W10116973, 8317915, 8527049, 62731, 3950340, 3951449

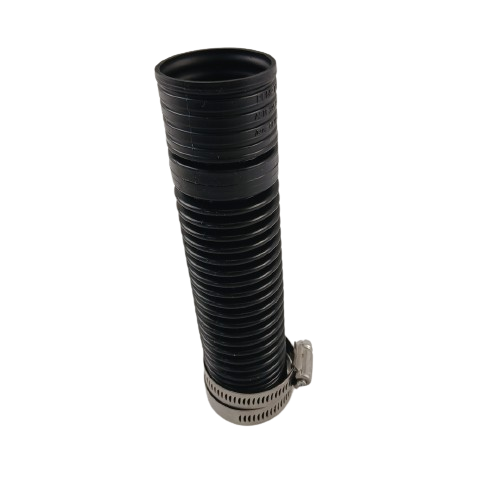

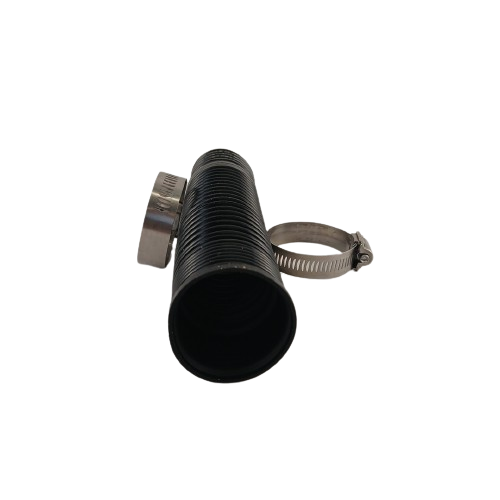

Genuine Whirlpool washer tub-to-pump hose kit with clamps. It connects the washer tub to the drain pump and carries water from the tub to the pump during draining.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Visible leaking beneath the washer
• Poor or interrupted draining when the hose is split, torn, kinked, or obstructed
• Water leakage at a hose connection when a clamp is loose or the hose is not seated correctly

Check Before Replacing

• Disconnect electrical power before inspection.
• Check the hose and its connections for visible splits, tears, distortion, or water residue.
• Verify that both clamps are present and that the hose is seated fully on the tub outlet and pump inlet.
• Inspect the hose path for obvious kinks or blockage without cutting, stretching, or otherwise modifying the hose.
• After reassembly, observe a short drain operation for leakage only if the washer can be operated safely and the cabinet has been correctly reinstalled.

Pro Tip

Part Details

Key Features

• Genuine Whirlpool OEM tub-to-pump hose kit
• Includes clamps
• Used on compatible top-load washer and washer-dryer-combo applications
• Designed to connect the tub outlet to the drain-pump inlet

Installation Notes

• Unplug the washer and shut off the water supply before service.
• Expect residual water to spill when the old hose is disconnected.
• Release the clamps at both ends, then remove the old hose.
• Position the supplied clamps on the replacement hose before fitting it.
• Seat one end fully on the pump inlet and the other on the tub outlet, then secure both clamps.
• Reinstall the cabinet and control-panel components according to the washer model's service procedure before restoring power.

Verified Compatible Models

110.28522700, 1101050299, 10682872600, 11010202000, 11010202001, 11010502990, 11010502991, 11010852990, 11010852991, 11012202100, 11012502100, 11012852100, 11013202200, 11013212200, 11014102300, 11014112300, 11014202300, 11014212200, 11014222300, 11014502300, 11014852300, 11015732400, 11015842400, 11015852400, 11015862400, 11015864400, 11015942400, 11015942401, 11015944400, 11015944401, 11015952400, 11091565810, LSN1000KQ0, LSQ8243HQ0, LSQ8543JQ0, LSQ9010LW0, LSQ9544KQ0, LSQ9549LW0, LSR5233AW0, LSR7233DQ0, LSR7233EQ0, LSR8233EQ0, LSR8233EQ1, LSR8233JQ0, LSR8433KQ0, LXR7144EQ1, LXR9245EQ1, MET3800TW0, MVWC300VW1, TAWS800JQ1

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
