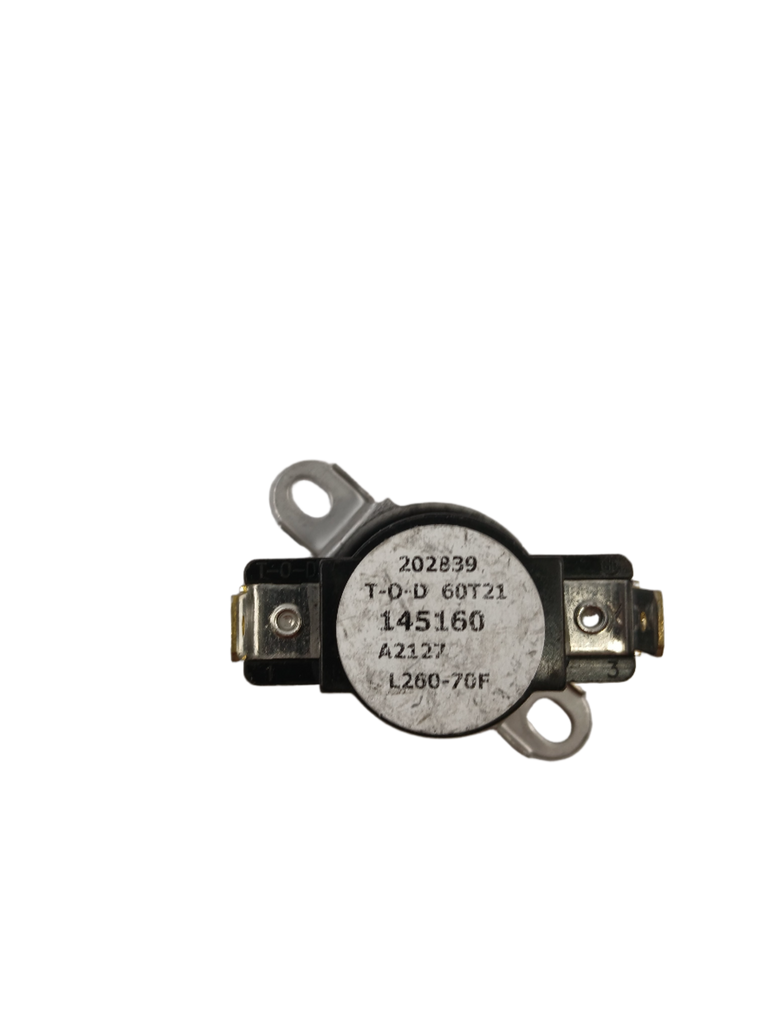

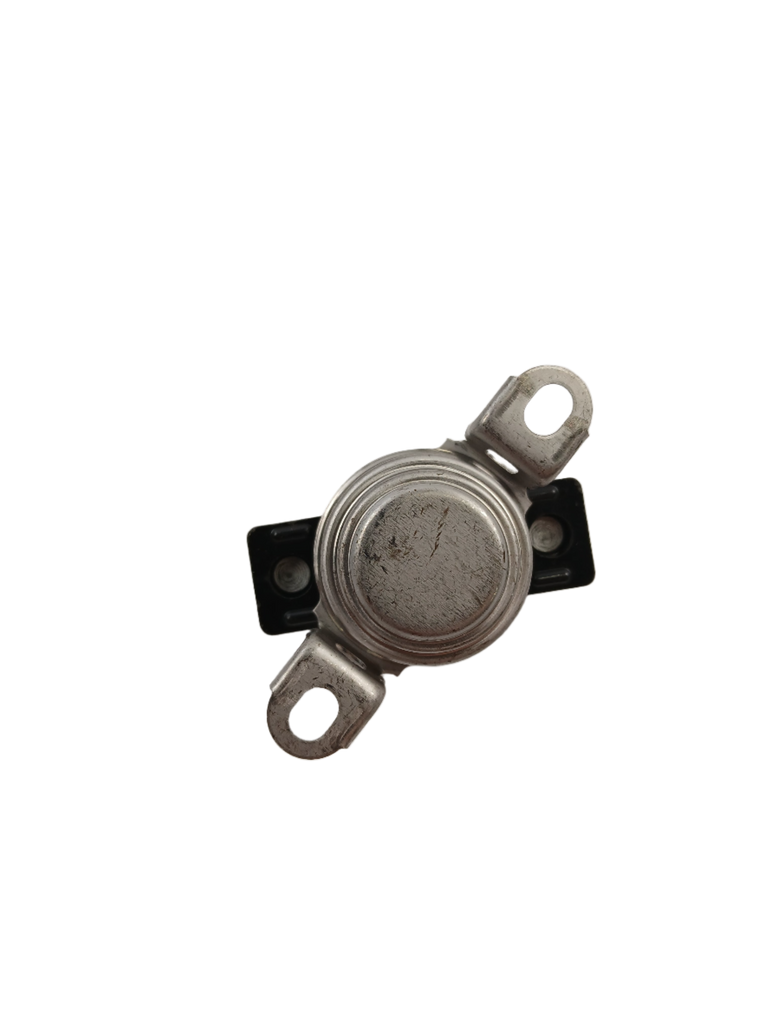

Frigidaire Dryer High Limit Thermostat 3204267, Replaces 73204267

OEM dryer high-limit safety thermostat, rated L260-70F. It opens the heating circuit when dryer temperature becomes excessive and resets after cooling.

Is This the Right Part?

✅ Cross Reference Information

Common Symptoms

• Dryer becomes too hot
• Dryer shuts off too soon or loses heat after warming up
• No heat or insufficient heat after the thermostat opens
• Clothes take too long to dry

Check Before Replacing

• Disconnect electrical power before servicing.
• With power disconnected and the thermostat at room temperature, check continuity across its terminals with a multimeter; an open reading may indicate a failed thermostat, subject to the model’s wiring and service specifications.
• Inspect the thermostat terminals and wiring for loose connections, burning, or heat damage.
• Check the lint filter, exhaust duct, and outside exhaust hood for restricted airflow, since blocked airflow can contribute to overheating.
• Do not bypass the thermostat or test live voltage unless qualified to do so.

Pro Tip

Part Details

Key Features

• Frigidaire OEM dryer high-limit safety thermostat
• L260-70F rating documented for the exact part
• Normally closed protective device during normal operating temperature
• Resets after cooling according to the archived part description

Installation Notes

• Disconnect electrical power before installation.
• Use the appliance’s model-specific service instructions because access and mounting location vary.
• Transfer the wires to the corresponding terminals on the replacement and confirm that connections are secure.
• Reinstall the thermostat using the original mounting arrangement; do not bypass or substitute the safety device.
• After installation, restore panels and verify operation only after all wiring and connections are secured.

Verified Compatible Models

4178005291, 41749012890, 41749022890, 41761712510, 41761712511, 41761722510, 41761722511, 41761723510, 41761723511, 41761732810, 41761732811, 41761733810, 41761733811, 41764182300, 41769042990, 41769042991, 41769052990, 41769052991, 41780032990, 41780042990, 41780042991, 41780052990, 41780052991, 41780142000, 41780412700, 41781042000, 41781042001, 41781052000, 41781052001, 41781100000, FDE216RES1, FDE216RES2, FDE336CFS2, FDE336RES1, FDE336RES2, FDE336RET1, FDE336RET2, FDE436RES1, FDE436RES2, FDE436RET1, FDE436RET2, FDE437GHS0, FDE546RES1, FDE546RES2, FDE546RET1, FDE546RET2, FDE558GGS0, FDE558GHS0, FDE646GES0, FDE646RHS0

Fitment reminder: Match the complete appliance model number, including suffix or revision where applicable, before ordering.
